Weiler track feller bunchers provide industry-leading lift capacity throughout full reach, a key benefit in large timber. A robust undercarriage utilizes proven components, customized for demanding forestry conditions while maintaining high ground clearance. Both reduced tail swing and full tail swing machines are available as tilting or non-tilting to meet a variety of application requirements.
Track Feller Bunchers
Photos
Documents
Specifications
-

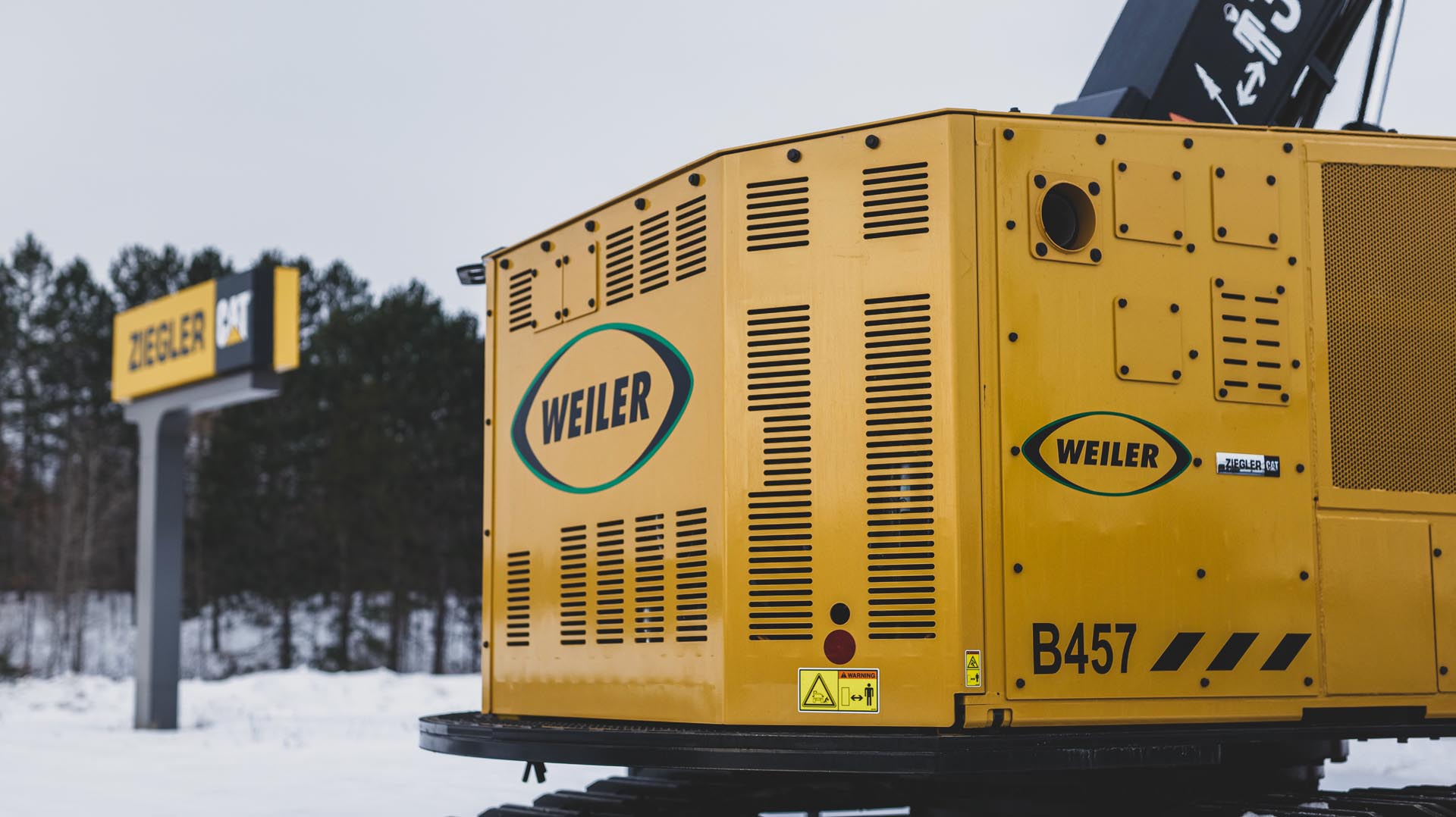

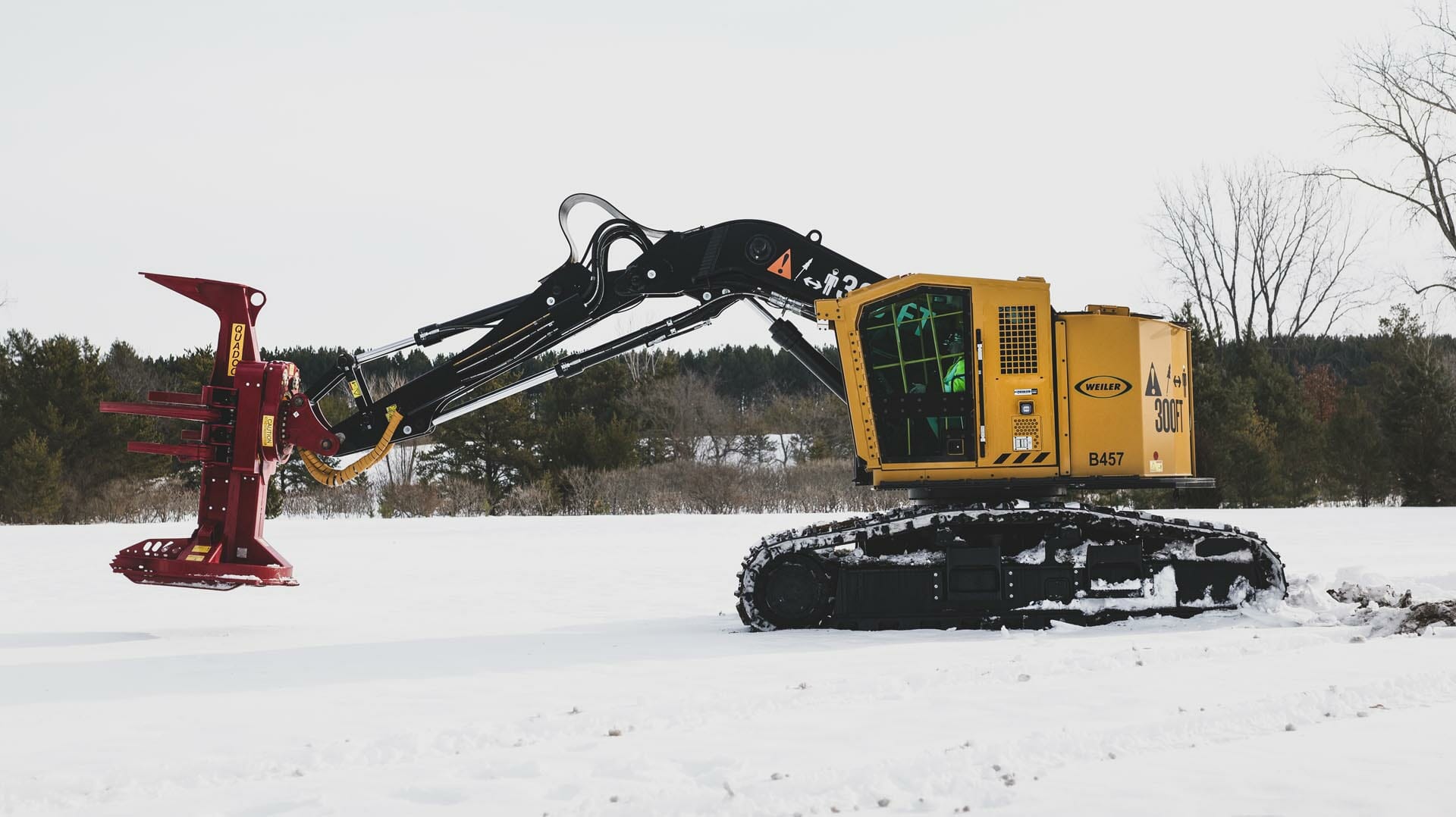

B457
Spec Value Engine Model Cat 9.3 Tier 4 Final Gross Power 298 hp Engine Displacement 568 in3 Fuel Capacity 216 gal DEF Capacity 5.0 gal Wheelbase 110.0” Weight W/ out Head 66,270 lbs Maximum Flow 322 Gpm Max Reach (w/ 201 saw) 27’ 4” Lift at Max Reach (No Head) 13,918 lbs Tractive Effort 68,848 lbf Undercarriage Size 336 HD HEX Undercarriage Pitch 8.5” Ground Clearance 33” Track Gauge 102” Track Length 192” Engine Oil Capacity 10.6 gal Hydraulic System Capacity 79.8 gal Transport Width 10’ 11” Height 11’ 3” Length (Boom ext., w/ 201 saw) 34’ 6” Length (boom tuck., no head) 27’ 6” -
B458
Spec Value Engine Model Cat 9.3 Tier 4 Final Gross Power 298 hp Engine Displacement 568 in3 Fuel Capacity 216 gal DEF Capacity 5.0 gal Weight W/ out Head 79,221 lbs Maximum Flow 322 Gpm Max Reach (w/ 201 saw) 26’ 10”” Lift at Max Reach (No Head) 13,918 lbs Tractive Effort 81,229 lbf Undercarriage Size 336 HD HEX Undercarriage Pitch 8.5” Ground Clearance 35” Track Gauge 114” Track Length 191” Engine Oil Capacity 10.6 gal Hydraulic System Capacity 79.8 gal Transport Width 11’ 11” Height 12’ 11” Length (Boom ext., w/ 201 saw) 34’ 1” Length (boom tuck., no head) 25’ 7”
