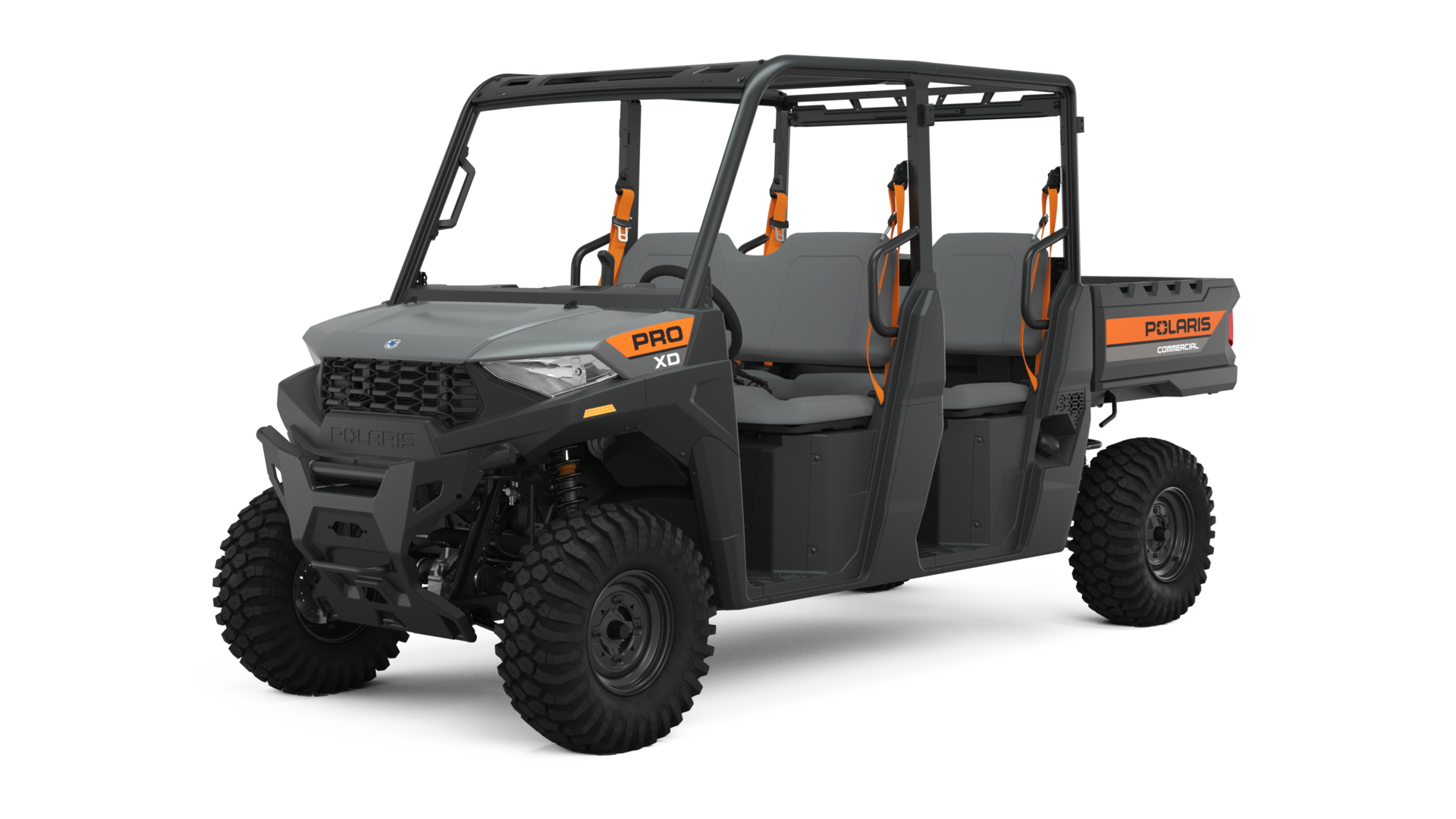

Gas-powered, with speed that can be adjusted for added worksite safety, and a cab that seals tight against the weather and detritus, the Pro XD Mid-Size Gas Crew is built for maneuverability while still being fully capable.
Product Disclaimer: Kubota® is a registered trademark of Kubota Corporation. Duro® is a registered trademark of HWA Fong Rubber (USA) Inc. Donaldson® is a registered trademark of Donaldson Company, Inc. Kevlar® is a registered trademark of E.I. du Pont de Nemours & Company.
| Spec | Value |
|---|---|
| Air Intake | Side Intake |
| Cooling | Liquid |
| Cylinders Displacement | 570 cc |
| Drive System Type | Selectable 4x4 |
| Engine Braking System (EBS) | Not Equipped |
| Engine Type | ProStar 570 cc Gas |
| Fuel System/Battery | Electronic Fuel Injection |
| Top Speed | Adjustable to 40 mph (64 km/h) |
| Horsepower | 39.5 HP |
| Transmission/Final Drive | Automatic PVT H/L/N/R/P; Shaft |
| Spec | Value |
|---|---|
| Bed Box Dimensions (L x W x H) | 33.3" x 48.7" x 12.3" (84.6 x 123.7 x 31.2 cm) |
| Box Capacity | 500 lb (226 kg) |
| Estimated Dry Weight | 1,490 lb (676 kg) |
| Fuel Capacity | 9.5 gal (36 l) |
| Ground Clearance | 10 in (25.4 cm) |
| GVWR | 2,700 lb (1225 kg) |
| Hitch Towing Rating | 1,500 lb (680 kg) |
| Overall Vehicle Size (L x W x H) | 144 x 56 x 74 in. (365.8 x 142.2 x 188 cm) |
| Payload Capacity | 1,250 lb (566 kg) |
| Turning Radius | 196 in (498 cm) |
| Wheelbase | 105 in (267.1 cm) |
| Spec | Value |
|---|---|
| Front/Rear Brakes | 4-Wheel Hydraulic Disc |
| Parking Brake | Park In-Transmission |
| Spec | Value |
|---|---|
| Cargo System | Lock & Ride® |
| Maintenance Interval | 200 Hours (50 Hour initial) |
| Hitch Type | Standard 2 in (5 cm) Receiver |
| Instrumentation | All-Digital Gauge, Speedometer, Odometer, Tachometer, 2 Tripmeters, Hour Meter, Gear Indicator, Diff Lock Indicator, Clock, Clutch Belt Slip Warning, Low Oil Pressure Indicator, Seat Belt Indicator |
| Lighting | 55W Headlight, LED Taillamps |
| Other Standard Features | Horn, Backup Alarm, Password protected, electronically adjustable speed limiting |
| Seat Covering | Kevlar®-Backed Vinyl (Grey) |
| Person Capacity | 4 |
| Tilt Steering | Standard |
| Spec | Value |
|---|---|
| Electronic Power Steering | Optional |
| Hubs | Front: Ductile Iron; Rear: Aluminum |
| Front Tires | 25 x 9.00-12; Wanda Crawler P3057 |
| Rear Tires | 25 x 9.00-12 Wanda Crawler P3057 |
| Wheels | 12 x 6 HD Steel - Gloss Black |
| Front Suspension | MacPherson Strut 9 in (22.9 cm) Travel |
| Rear Suspension | Dual A-Arm, IRS 10 in. (25.4 cm) Travel |
