Production of oil and gas in the oilfield can be a challenge when utility power is not available. The Caterpillar product line of oilfield gas generator sets provides the ideal solutions for this challenge. Engines are designed to run on low to no-cost well site gas without sacrifice on performance. These generator sets allow customers to significantly reduce fuel cost and avoid the expense and logistics of diesel fuel deliveries. Plus, they are designed to withstand the harsh conditions in the oilfield and feature a heavy-duty construction ideal for loading and unloading operations. Cat generator sets are backed by the worldwide network of Cat dealers ready to support your operation with technical support, service, parts, and warranty. CG137-12 oilfield gas generator set. Rating: 400 ekW (500 kVA) @ 60 Hz (1800 rpm). Standard Configuration meets U.S. EPA Tier II Nonroad Mobile Emissions standards and Available for NSPS emission standards in non-attainment areas via design to order process.
Cat

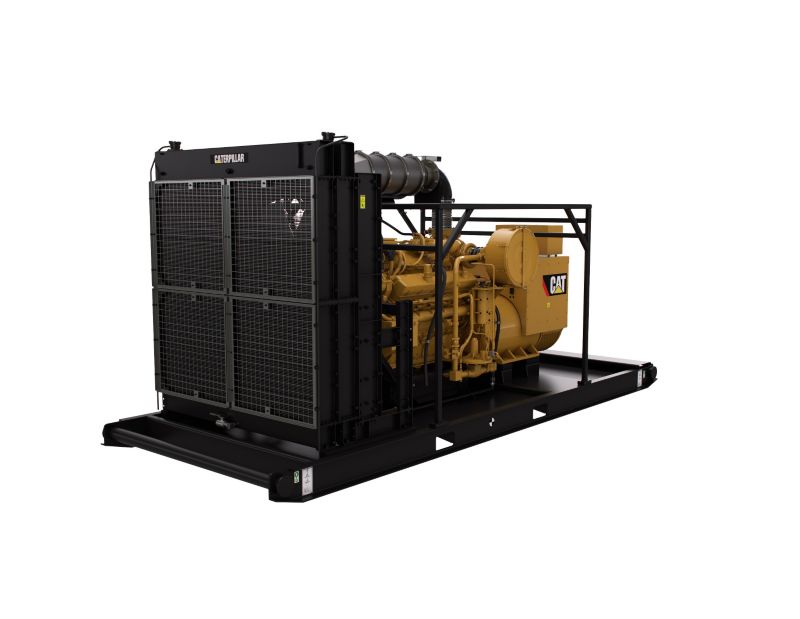

CG137-12 Oilfield Gas Generator Set
Photos
-
CG137-12
360° View
Exterior
360° Exterior view. Double click on the image to zoom in on any area of the product.
Documents
Features
Specifications
-
Engine Specifications
Spec Value Maximum Rating 400 ekW (500 kVA) Minimum Rating 400 ekW (500 kVA) Emissions/Fuel Strategy U.S. EPA Tier II Nonroad Mobile Emissions Certified. Available for NSPS compliance via Design to Order process Aspiration Turbocharged-Aftercooled Manifold Type Watercooled Bore 5.39 in Stroke 6.46 in Displacement 1770 in³ Engine Control and Protection ADEM A4 Generator Set Control EMCP 4.4 Control Panel Generator SR4B Frequency - Speed 60 Hz (1800 rpm) -
Capacity for Liquids
Spec Value Fuel CNG, LNG, field gas, natural gas Lube Oil System - Refill 45 gal (US) Cooling System - Engine 15 gal (US) -
Dimensions
Spec Value Length 230 in Width 89 in Height 102.3 in Weight 19731 lb
Standard Equipment
Air Inlet System
- Air cleaner — intermediate duty, dry
- Air cleaner rain cap
- Air cleaner service Indicator
Cooling System
- High ambient radiator design for gas fuel applications
- Stacked aftercooler and jacket water core
- Metal top and bottom tanks
- Coolant drain
- Fan and belt guard
- Coolant level sensor
Exhaust System
- Exhaust manifolds — water cooled
- Exhaust elbow and flex fitting — 127 mm (5 in)
- Residential grade muffler
- Three-way catalyst
- Muffler mounting structure
Fuel System
- Gas pressure regulator — requires 10.3-34.5 kPa (1.5-5 psi) gas
- Natural gas carburetor
- Air Fuel Ratio Control
Generator
- Rated for continuous duty — 10% oversize
- Class H insulation
- Permanent magnet
- Random wound
- 240 VAC space heater
- Coastal insulation protection
- IP23 protection
- Cat Digital Voltage Regulator
Control System
- Electronic governing ADEM A4
- Electronic diagnostics and fault logging
- Momentary start/stop logic
- High temperature braided engine harness with 70-pin customer connector and service tool connector
Lube System
- Crankcase breather, top-mounted
- Oil filter, spin-on, left-hand service
- Dipstick, left-hand service
- Oil pump — gear-driven
- Oil cooler
Mounting System
- Heavy-duty welded steel base designed for the oilfield
- Base design optimized for loading, transport, and unloading
Protection System
- The following parameters include alarm and shutdown:
General
- Jacket water heater
- 24V starting motor
- 24V, 45-amp charging alternator
Optional Equipment
Fuel System
- 1 micron gas filter
