In 1963, Caterpillar introduced the 769, a revolutionary off-road truck that was purpose built for the rigors of mining and heavy construction. Fifty years later, our trucks have never been better. We’ve taken the best of our rugged, dependable heritage and combined it with technologies that help our environment, make your operators more productive and dramatically improve the economics of your haul fleet. This 772 has an updated traction control system to keep you moving when the ground conditions aren’t perfect, you’ll see improvements in fuel use through new and flexible fuel saving strategies, and we’re making the operating experience best in class with automotive quality shifting, noise reduction and cab updates. Our heritage and new use of technology are combined in this truck for one purpose – the continued success of your business.
Caterpillar
772 (07) Off-Highway Truck
Overview
Photos
-

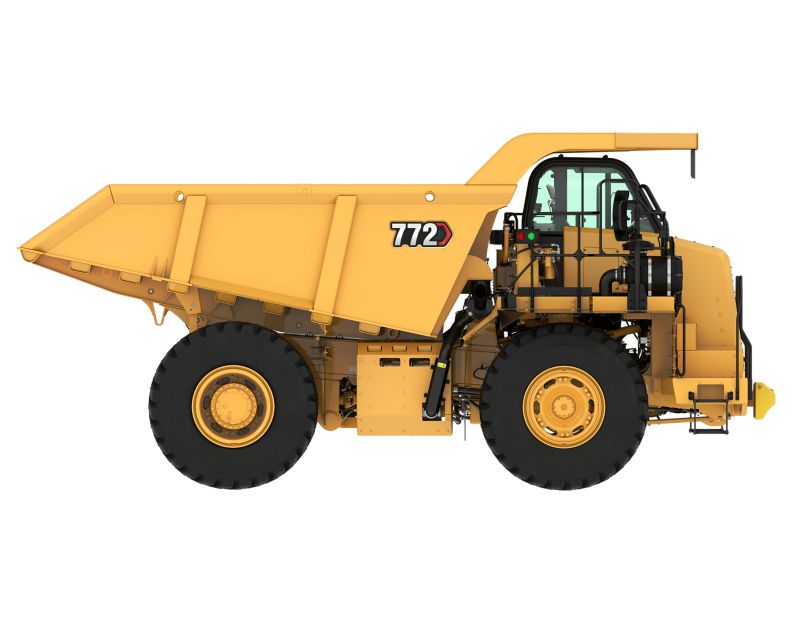

772 Off-Highway Truck -

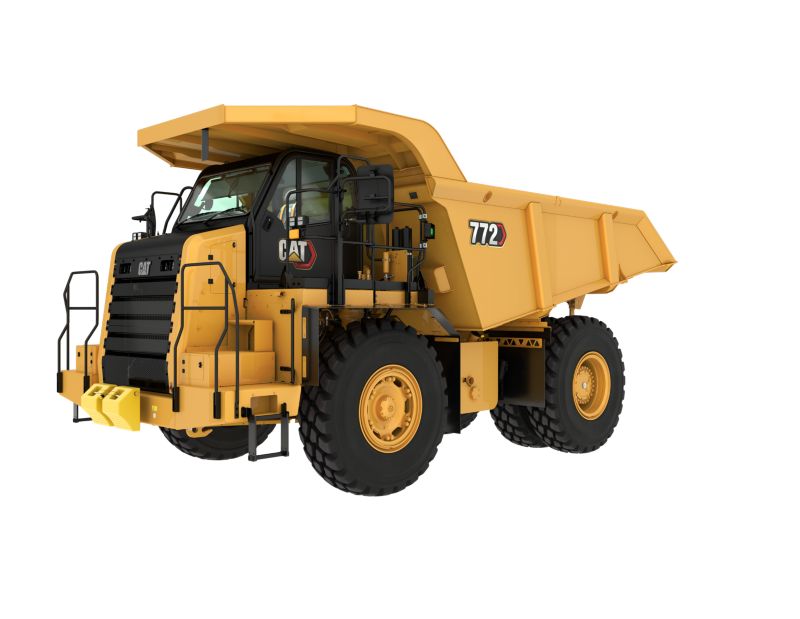

772 -

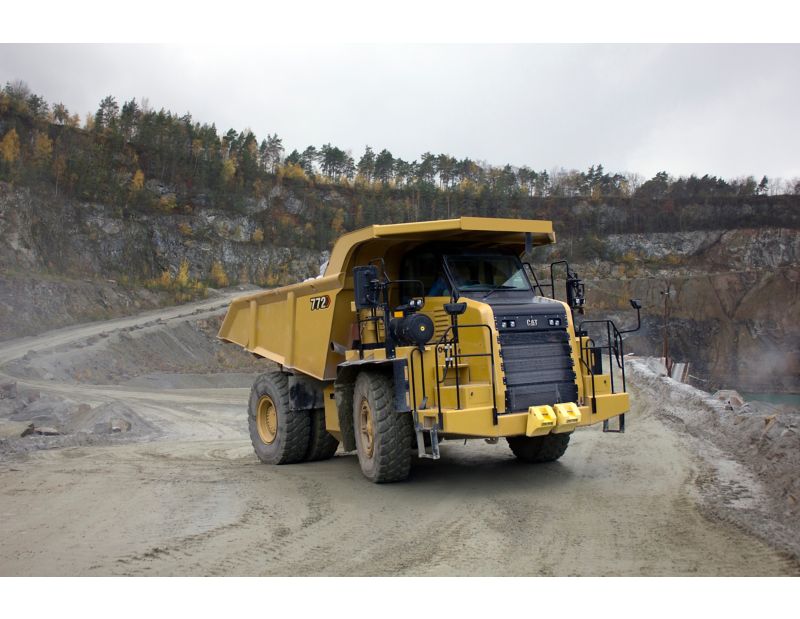

772 -

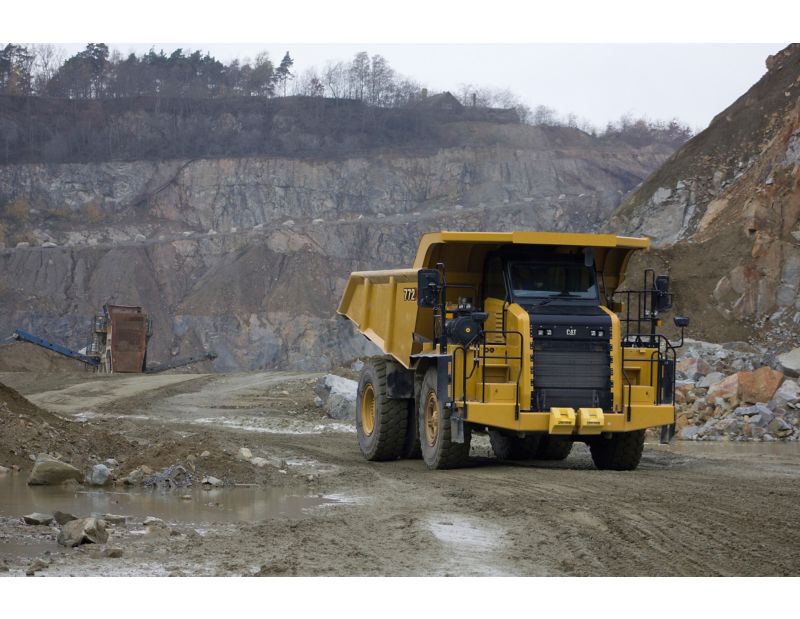

772
Videos
360° View
Exterior
360° Exterior view. Double click on the image to zoom in on any area of the product.
Interior
360° interior view. Double click on the image to zoom in on any area of the product.
Specifications
-
Engine
Spec Value Engine Model Cat® C18 Rated Engine Speed 1700 r/min Gross Power - SAE J1995:2014 605 hp Net Power - SAE J1349:2011 550 hp Net Power - ISO 9249 550 hp Number of Cylinders 6 Bore 5.7 in Stroke 7.2 in Displacement 1105 in³ Net Torque - SAE J1349 2221 ft-lb Engine Power - ISO 14396 598 hp -
Weights - Approximate
Spec Value Target Gross Machine Operating Weight 181000 lb Chassis Weight 59223 lb Body Weight 17306 lb Target Gross Machine Weight 181000 lb -
Operating Specifications
Spec Value Nominal Payload Class (100%) 51.6 ton (US) Top Speed - Loaded 49.2 mile/h Maximum Payload Class (110%) 56.7 ton (US) Body Capacity - SAE 2:1 40.8 yd³ Target Payload Capacity 51.6 ton (US) Not to Exceed Payload (120%) 61.9 ton (US) Body Capacity (SAE 2:1)** 40.8 yd³ -
Transmission
Spec Value Forward - 1 8 mile/h Forward - 2 10.9 mile/h Forward - 3 14.8 mile/h Forward - 4 19.8 mile/h Forward - 5 26.9 mile/h Forward - 6 36.2 mile/h Forward - 7 49.2 mile/h Reverse 10.4 mile/h -
Final Drives
Spec Value Differential Ratio 2.74:1 Planetary Ratio 4.80:1 Total Reduction Ratio 13.14:1 -
Brakes
Spec Value Brake Surface - Front 216 in² Brake Surface - Rear 7794 in² Brake Standards ISO 3450:2011 -
Body Hoists
Spec Value Pump Flow - High Idle 112 gal/min Relief Valve Setting - Raise 2750 psi Relief Valve Setting - Lower 500 psi Body Raise Time - High Idle 8 s Body Lower Time - Float 10 s Body Power Down - High Idle 10 s -
Capacity - Dual Slope - 100% Fill Factor
Spec Value Heaped 2:1 (SAE) 40.8 yd³ Struck 31.3 yd³ -
Capacity - Flat Floor - 100% Fill Factor
Spec Value Struck 31.3 yd³ Heaped 2:1 (SAE) 40.9 yd³ -
Weight Distributions - Approximate
Spec Value Front Axle - Empty 51.4 % Front Axle - Loaded 34.2 % Rear Axle - Empty 48.6 % Rear Axle - Loaded 65.8 % -
Suspension
Spec Value Rear axle - Oscillation 8.9 ° Empty Loaded Cylinder Stroke Front 9.2 in Empty Loaded Cylinder Stroke Rear 5.8 in -
Service Refill Capacities
Spec Value Fuel Tank 140 gal (US) Cooling System 33 gal (US) Differential - Final Drives 47 gal (US) Steering Tank 14.5 gal (US) Steering System - Including Tank 23 gal (US) Torque Converter - Transmission System 17 gal (US) Brake Hoist System 60 gal (US) DEF Tank 6 gal (US) Crankcase 17 gal (US) Brake/Hoist Hydraulic Tank 38 gal (US) -
Tires
Spec Value Standard Tire 21.00R33 (E4) -
ROPS
Spec Value FOPS Standards FOPS (Falling Objects Protective Structure) meets ISO 3449:2005 Level II FOPS criteria. ROPS Standards ROPS (Rollover Protective Structure) for cab offered by Caterpillar meets ISO 3471:2008 ROPS criteria. -
Sound
Spec Value Sound Standards (3) Operator Equivalent Sound Pressure Level (Leq) is 78 dB(A) when ISO 6396:2008 is used to measure the value for an enclosed cab. Sound Standards (2) Exterior sound pressure power level for standard machine measured according to tests specified in ISO 6395:2008 is 118 dB(A). Sound Standards (1) Hearing protection may be needed when operating with open operator station & cab for extended periods or in noisy environment. -
Steering
Spec Value Turning Diameter - Front 57.7 ft Steering Standards ISO 5010:2007 Steer Angle 40.5 ° Turning Circle - Clearance Diameter 66.6 ft -
Dimensions
Spec Value Height - Top of ROPS 12.8 ft Inside Body Depth - Maximum 5.7 ft Overall Body Length 26.8 ft Inside Body Length 19 ft Overall Length 28.9 ft Wheel Base 13 ft Rear Axle - Tail 9.5 ft Ground Clearance 1.6 ft Dump Clearance 1.5 ft Loading Height - Empty 11.6 ft Overall Height - Body Raised 27.1 ft Operating Width 15.7 ft Centerline Front Tire Width 10.4 ft Engine Guard Clearance 2 ft Outside Body Width 12.9 ft Inside Body Width 11.9 ft Front Canopy Height 13.7 ft Rear Axle - Clearance 1.9 ft Centerline of Rear Dual Tire Width 8.7 ft Overall Tire Width 12.9 ft
Standard Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
ELECTRICAL
- Alarm, backup
- Alternator, 115 ampere
- Auxiliary jump start receptacle
- Batteries, maintenance-free, 12V (2), 190 amp-hour
- Electrical system, 24V
- Lighting system: - Backup light (halogen) - Directional signals/hazard warning (front and rear LED) - Headlights, (halogen) with dimmer - Operator access courtesy lights (Developing Market Only)
PRODUCT LINK™ COMMUNICATIONS
- Product Link Ready
GUARDS
- Driveline
- Engine crankcase
OPERATOR ENVIRONMENT
- Air conditioning
- Ashtray and cigarette lighter
- Coat hook
- Cup holders (4)
- Diagnostic connection port, 24V
- Entertainment Radio Ready: - 5 amp converter - Speakers - Antenna - Wiring harness
- Gauges/indicators: - Air cleaner service indicator - electronic - Brake oil temperature gauge - Coolant temperature gauge - Hour meter - Tachometer - Engine overspeed indicator - Fuel level - Speedometer with odometer - Transmission gear indicator
- Heater/defroster (11 070 kCal/43,930 BTU)
- Hoist lever
- Horn, electric
- Light - dome
- Light - courtesy
- Messenger, display unit
- Mirrors
- Power port, 12V
- ROPS cab, insulated/sound suppressed
- Seat, Cat Comfort Series III: - full air suspension - four point harness
- Steering wheel, padded, tilt and telescopic
- Storage compartment
- Sun visor, tinted glass
- Throttle lock
- Windshield wiper (intermittent) and washer
POWER TRAIN
- Air-To-Air Aftercooler (ATAAC)
- Air cleaner with precleaner (1)
- Automatic cold mode idle control
- Electric start
- Turbocharger
- Braking system, hydraulic actuated: - Automatic Retarder Control (ARC) (utilizes rear oil-cooled, multiple disc brakes) - Brake release motor (towing) - Caliper-disc (front) - Oil-cooled, multiple disc (rear) - Parking - Secondary - Service
- Transmission: - 7 speed automatic powershift - Body up shift inhibitor - Controlled throttle shifting - Directional shift management - Downshift inhibitor - Neutral start switch - Neutral coast inhibitor - Reverse shift inhibitor - Reverse neutralizer during dumping - Programmable top gear selection
SUSPENSION SYSTEMS
- Suspension, front and rear
OTHER STANDARD EQUIPMENT
- Body safety pin (secures body in up position)
- Body down indicator
- CD ROM parts book
- Fan, hydraulic demand
- Fuel tank (530 L/140 gal)
- Guard, engine compartment
- Guard, mud
- Ground level battery disconnect
- Ground level engine shutdown
- Ground level grease fittings
- Reservoirs (separate): - Brake/converter/hoist - Steering - Transmission/torque converter
- Rims 15 × 33
- Rock ejectors
- Service platform, left and right side
- Supplemental steering (automatic)
- Tie down eyes
- Tow hooks (front)/Tow pin (rear)
- Vandalism protection locks
ANTIFREEZE
- Extended Life Coolant to -35° C (-30° F)
