The Cat® 140 uses 45 years of refined steering wheel and lever controls experience for more precise grading. With a range of technology options, you can improve grading accuracy and save on materials. With lowered maintenance intervals, the 140 Motor Grader sets the pace for low operating costs, while maintaining productivity and efficiency.
Cat
140 Motor Grader LVR
Overview
Photos
-
140 Motor Grader -
140 Motor Grader -
140 Motor Grader -
140 Motor Grader -
140 Motor Grader
Videos
360° View
Exterior
360 Product Tour
Interior
360 Product Tour
Showroom
Virtual Product Tour. Double click on the hotspots to see in on any area of the product.
Features
BUILT TO PERFORM

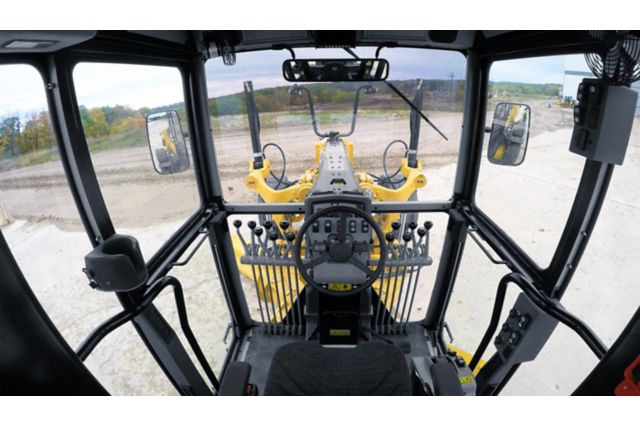

- Prefer a motor grader with steering wheel and levers? The 140 uses Caterpillar’s 45 years of lever and steering wheel controls design experience to provide you with the control option you prefer.
- Save up to 40 percent in material with the Cat Grade with Cross Slope feature. Monitor Cross Slope information from the machine display.
- Optimized machine balance ensures maximum drawbar power to the ground.
- Don’t let the snow stop you from working. The all-wheel drive (AWD) option assists with traction and maneuvering the machine.
- Each machine is equipped with the Cat C9.3 engine for power and reliability.
- Save up to 10 percent on fuel consumption with Eco mode.
- For your fine grade applications, the hydraulic system provides multifunction capability of up to seven simultaneous functions for superior performance.
- Reduce risk of impact damage with the standard circle drive slip clutch. It protects your circle drive and teeth.
BUILT TO PERFORM
- Prefer a motor grader with steering wheel and levers? The 140 uses Caterpillar’s 45 years of lever and steering wheel controls design experience to provide you with the control option you prefer.
- Save up to 40 percent in material with the Cat Grade with Cross Slope feature. Monitor Cross Slope information from the machine display.
- Optimized machine balance ensures maximum drawbar power to the ground.
- Don’t let the snow stop you from working. The all-wheel drive (AWD) option assists with traction and maneuvering the machine.
- Each machine is equipped with the Cat C9.3 engine for power and reliability.
- Save up to 10 percent on fuel consumption with Eco mode.
- For your fine grade applications, the hydraulic system provides multifunction capability of up to seven simultaneous functions for superior performance.
- Reduce risk of impact damage with the standard circle drive slip clutch. It protects your circle drive and teeth.
INTEGRATED CAT TECHNOLOGY
- Reduce your dependence on manual grade checking by using the Digital Blade Slope Meter.
- Cat Grade with Cross Slope Indicate option provides a real time readout of cross slope and can be scaled to Cat Grade with Cross Slope for automatic blade movement.
- Cat Grade with Cross Slope is an integrated system that enables operators to achieve grade faster and more accurately by automating the cross slope of the blade, allowing the operator to do more in the same amount of time. Other cost-saving benefits of the system include lower fuel consumption and up to 40% less material usage.
- Cat Grade Attachment Ready Option (ARO) ensures machine readiness for additional 2D/3D grade control technologies.
- Stable Blade senses blade bounce before the operator to reduce manual throttle use and site rework.

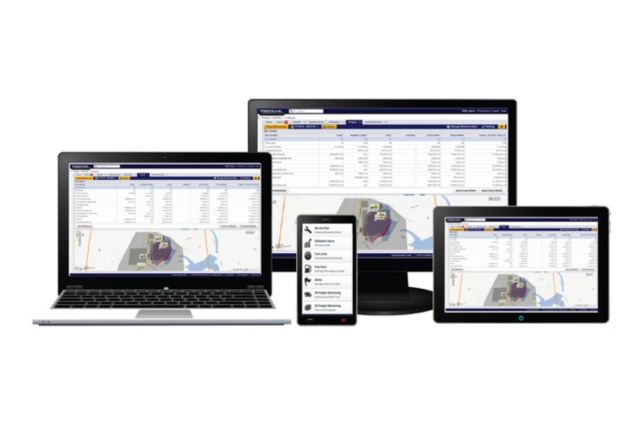

- VisionLink® provides actionable data insights for all assets - regardless of fleet size or equipment manufacturer.* Review equipment data from your desktop or mobile device to maximize uptime and optimize assets. Dashboards provide information such as hours, miles, location, idle time, and fuel utilization. Make informed decisions that lower costs, simplify maintenance, and improve safety and security on your jobsite.
- Remote Troubleshoot is a mobile application that allows your Cat dealer to perform diagnostic testing on your connected machine remotely to help ensure that issues are resolved quickly and with less downtime.
- Remote Flash is a mobile application that allows you to update onboard software without a technician being present, allowing you to initiate software updates when convenient, increasing your overall operating efficiency.
- Cat® Inspect is a mobile application that allows you to easily perform digital preventative maintenance (PM) checks, inspections, and daily walkarounds. Inspections can easily be integrated with other Cat data systems like VisionLink® so you can keep a close eye on your fleet.
INTEGRATED CAT TECHNOLOGY
- Reduce your dependence on manual grade checking by using the Digital Blade Slope Meter.
- Cat Grade with Cross Slope Indicate option provides a real time readout of cross slope and can be scaled to Cat Grade with Cross Slope for automatic blade movement.
- Cat Grade with Cross Slope is an integrated system that enables operators to achieve grade faster and more accurately by automating the cross slope of the blade, allowing the operator to do more in the same amount of time. Other cost-saving benefits of the system include lower fuel consumption and up to 40% less material usage.
- Cat Grade Attachment Ready Option (ARO) ensures machine readiness for additional 2D/3D grade control technologies.
- Stable Blade senses blade bounce before the operator to reduce manual throttle use and site rework.
- VisionLink® provides actionable data insights for all assets - regardless of fleet size or equipment manufacturer.* Review equipment data from your desktop or mobile device to maximize uptime and optimize assets. Dashboards provide information such as hours, miles, location, idle time, and fuel utilization. Make informed decisions that lower costs, simplify maintenance, and improve safety and security on your jobsite.
- Remote Troubleshoot is a mobile application that allows your Cat dealer to perform diagnostic testing on your connected machine remotely to help ensure that issues are resolved quickly and with less downtime.
- Remote Flash is a mobile application that allows you to update onboard software without a technician being present, allowing you to initiate software updates when convenient, increasing your overall operating efficiency.
- Cat® Inspect is a mobile application that allows you to easily perform digital preventative maintenance (PM) checks, inspections, and daily walkarounds. Inspections can easily be integrated with other Cat data systems like VisionLink® so you can keep a close eye on your fleet.
WORK IN COMFORT
- Adjust to your ideal comfort with the air suspension seat with multiple ergonomic adjustments.
- The rear camera option enhances visibility along with a heated lens to prevent snow buildup.
- The high capacity Heating, Ventilation and Air Conditioning (HVAC) system dehumidifies and pressurizes the cab, circulates fresh air, seals out dust and keeps windows clear.
- Add the communications radio mount to connect with your operators from the cab.
WORK IN COMFORT
- Adjust to your ideal comfort with the air suspension seat with multiple ergonomic adjustments.
- The rear camera option enhances visibility along with a heated lens to prevent snow buildup.
- The high capacity Heating, Ventilation and Air Conditioning (HVAC) system dehumidifies and pressurizes the cab, circulates fresh air, seals out dust and keeps windows clear.
- Add the communications radio mount to connect with your operators from the cab.
LOWER MAINTENANCE COSTS
- Filters, such as hydraulic oil, engine air, and DEF filters, are grouped together for easy access and preventative maintenance.
- The next generation filters help to reduce your fluid and filter costs.
- Spend less time cleaning the cooling system with the reversing fan option, which helps to keep costs down when cleaned once per week for more uptime.
- Maintain roads with the standard drawbar circle moldboard with hardened circle teeth for increased durability.
- For tight finish grading, consider the top adjust drawbar option for applications that require maximum accuracy, and offers up to 45 percent reduction in maintenance cost over the standard.
LOWER MAINTENANCE COSTS
- Filters, such as hydraulic oil, engine air, and DEF filters, are grouped together for easy access and preventative maintenance.
- The next generation filters help to reduce your fluid and filter costs.
- Spend less time cleaning the cooling system with the reversing fan option, which helps to keep costs down when cleaned once per week for more uptime.
- Maintain roads with the standard drawbar circle moldboard with hardened circle teeth for increased durability.
- For tight finish grading, consider the top adjust drawbar option for applications that require maximum accuracy, and offers up to 45 percent reduction in maintenance cost over the standard.
SAFELY HOME EVERY DAY
- Depend on your brakes with maximum stopping power on all four rear wheels.
- View your work space with the rear camera option. It offers a rear view of the machine to ensure the safety of you and those around you. The dedicated display can be always on to ensure a safe work environment
- In the event of an engine issue, your operators can count on the secondary steering system to stop the machine safely. It turns on automatically if the main pump pressure drops.
- Ground level refueling requires no climbing on the machine to fill the fuel tank.
- Ensure three points of contact when entering and exiting the machine with strategically placed walkways and grab rails.
- Work past sundown using the LED light option for increased nighttime visibility.
SAFELY HOME EVERY DAY
- Depend on your brakes with maximum stopping power on all four rear wheels.
- View your work space with the rear camera option. It offers a rear view of the machine to ensure the safety of you and those around you. The dedicated display can be always on to ensure a safe work environment
- In the event of an engine issue, your operators can count on the secondary steering system to stop the machine safely. It turns on automatically if the main pump pressure drops.
- Ground level refueling requires no climbing on the machine to fill the fuel tank.
- Ensure three points of contact when entering and exiting the machine with strategically placed walkways and grab rails.
- Work past sundown using the LED light option for increased nighttime visibility.
OPTIONS TO MEET YOUR NEEDS
- Ripper and Scarifier options are available.
- Improve the balance of your machine with the counterweight and push block for increased performance and efficiency.

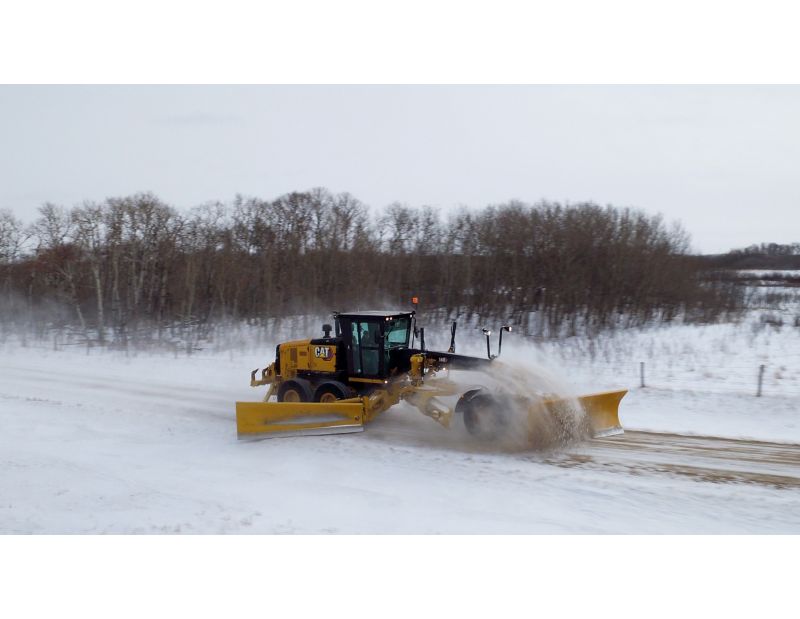

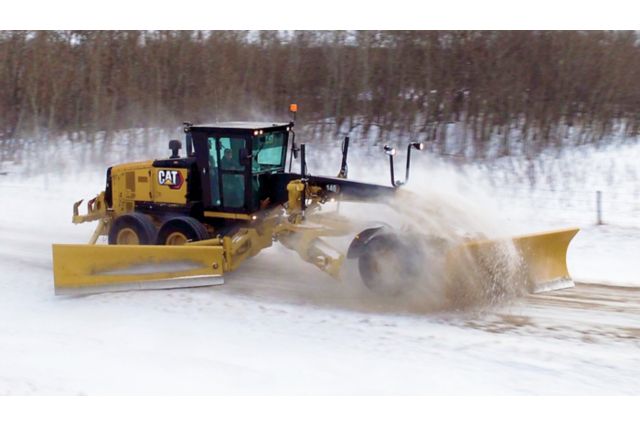

- For snow applications, straight blades or v-plows added to the front lift keep roads clear.

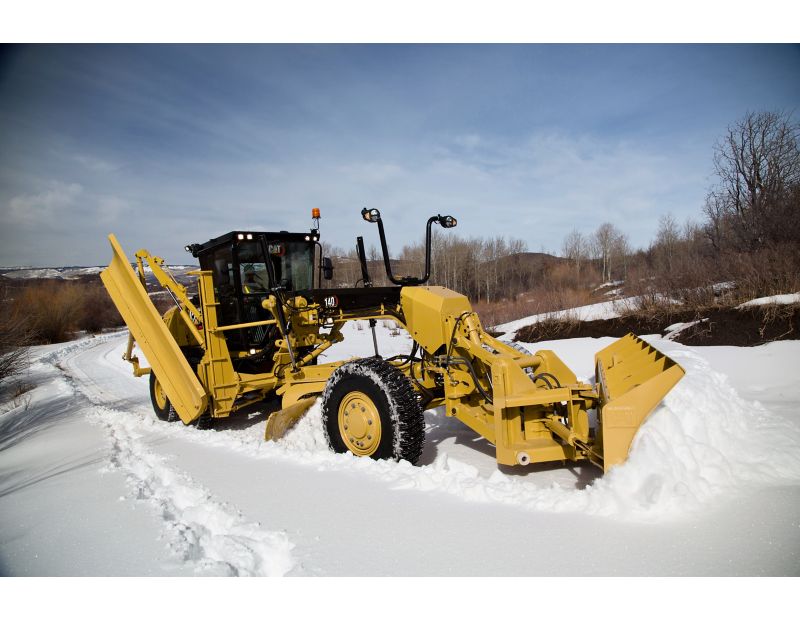

- Plow through snow with the mast-type or mast-less snow wing attachment.
- For more road coverage, add a moldboard extension to add 600 mm (24 in).
OPTIONS TO MEET YOUR NEEDS
- Ripper and Scarifier options are available.
- Improve the balance of your machine with the counterweight and push block for increased performance and efficiency.
- For snow applications, straight blades or v-plows added to the front lift keep roads clear.
- Plow through snow with the mast-type or mast-less snow wing attachment.
- For more road coverage, add a moldboard extension to add 600 mm (24 in).
Specifications
-
Engine
Spec Value Net Power - EEC 80/1269 250 hp Net Power - ISO 9249/SAE J1349 250 hp Standard Capability 109 °F Engine RPM 2,000 Engine Model Cat C9.3 Bore 4.5 in Emissions U.S. EPA Tier 4 Final/EU Stage V Displacement 567.5 in³ Stroke 5.9 in Number of Cylinders 6 Torque Rise - ISO 9294 44% -
Weights
Spec Value Operating Weight - Typically Equipped 44613 lb -
Moldboard
Spec Value Blade Width 12 ft Cutting Edge 6 in Arc Radius 16.3 in Throat Clearance 6.5 in End Bit 6 in -
Air Conditioning System
Spec Value Air Conditioning The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. -
Dimensions
Spec Value Basic Blade Width 140 in Length of Machine* 397.6 in Width 97.6 in Note *Typically equipped with push block and ripper. Maximum Height 132 in -
Service Refill
Spec Value Hydraulic System 14.5 gal (US) Engine Crankcase 7.9 gal (US) Circle Drive 1.8 gal (US) Fuel Tank 100 gal (US) Front Wheel Spindle Bearing - Each 0.13 gal (US) -
Machine Weight
Spec Value Note *Typically equipped with push block and ripper. All-Wheel Drive (AWD) Weight 44613 lb -
Blade Range
Spec Value Maximum Lift Above Ground 18.9 in Maximum Depth of Cut 28.9 in
Standard Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
CAB
- Vinyl Seat
- Information Display Screen
- Base cab
- Entertainment Radio Ready
- HVAC
- ROPS, Standard Sound Suppression
- Halogen Lighting
CAT TECHNOLOGY
- Product Link
ENGINE
- C9.3
- ECO Mode
DRAWBAR CIRCLE MOLDBOARD
- Standard Drawbar Circle Moldboard
- Circle Drive Slip Clutch
SAFETY
- Rearview Mirror
- Hydraulic Brakes
- Secondary Steering System
- Signaling/Warning Horn
- Side View Mirrors
VERSATILITY
- Front Bolster
Optional Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
CAB
- Air Suspension Adjustable Seat
- Canopy
- Cab Plus
- Rear Wiper
- Communication Radio Mounting
- Rear Window Screen
- Defrost Fans
- LED Lighting
CAT TECHNOLOGY
- Cat Grade with Cross Slope
- Cat Grade Attachment Ready Option (ARO)
- Cat Grade with Cross Slope Indicate
- Digital Blade Slope Meter
- Stable Blade
- Remote Services
ENGINE
- Reversing Fan
- All-Wheel Drive (AWD)
DRAWBAR CIRCLE MOLDBOARD
- Top Adjust Drawbar Circle Moldboard
- Circle Saver
SAFETY
- Rearview Camera
VERSATILITY
- Counterweight
- Push Block
- Front Lift Group
- Mast Type - Snow Wing
- Mast-Less - Snow Wing
- Ripper/Scarifier
- Auxiliary Hydraulic Lines
- Moldboard Extension
- Front Blade
