The industry standard continues to roll forward with the Cat® 14 (14M3) motor grader. With a larger engine, improved fuel economy and machine balance, enhanced transmission performance and a range of technology, this machine is ready to excel at your grading projects.
Caterpillar
14 Motor Grader
Overview

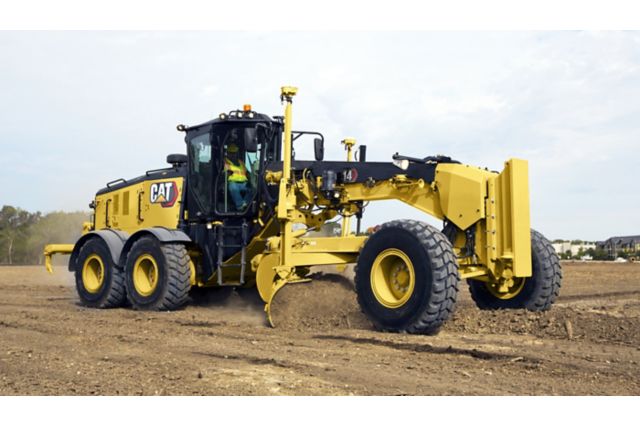

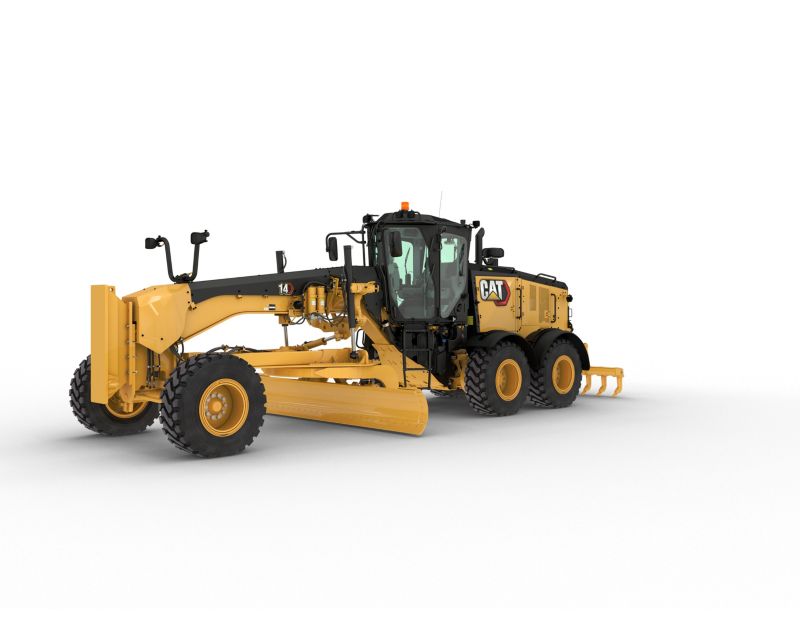

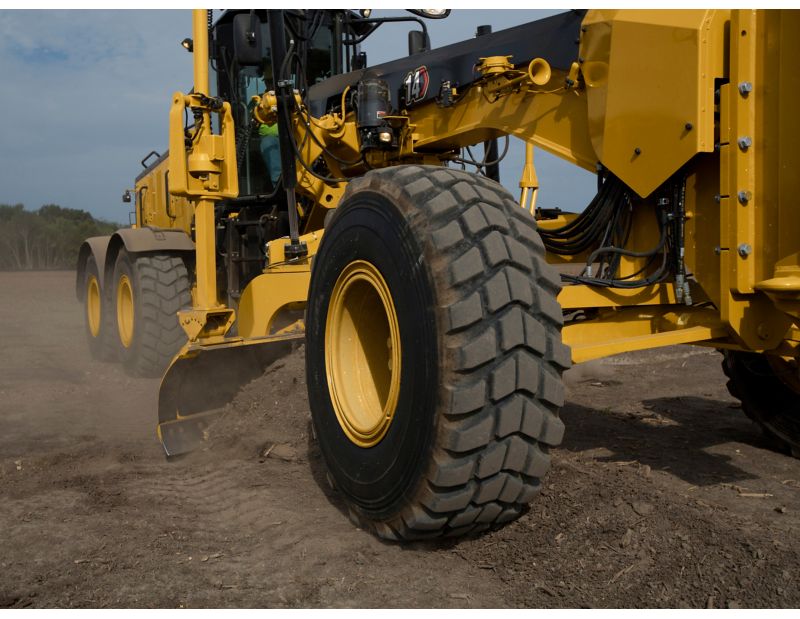

Photos
-

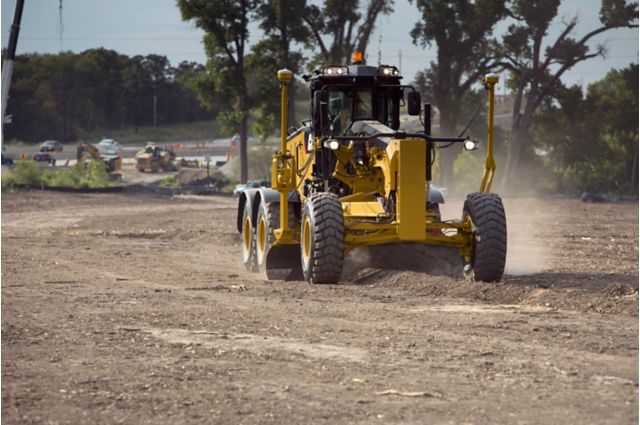

14 Motor Grader -

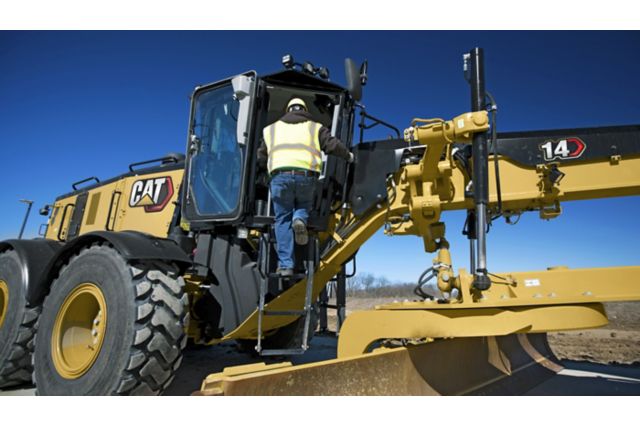

14 Motor Grader -

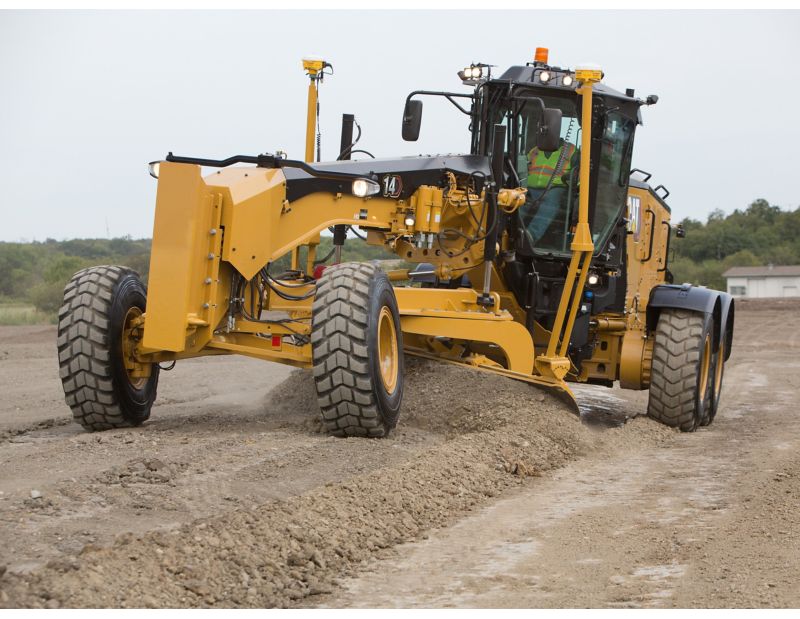

14 Motor Grader -

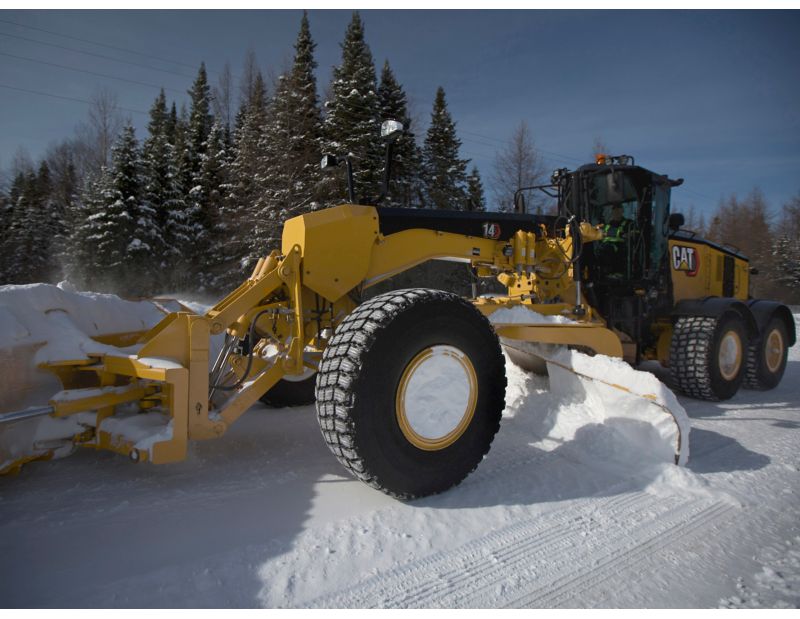

14 Motor Grader -

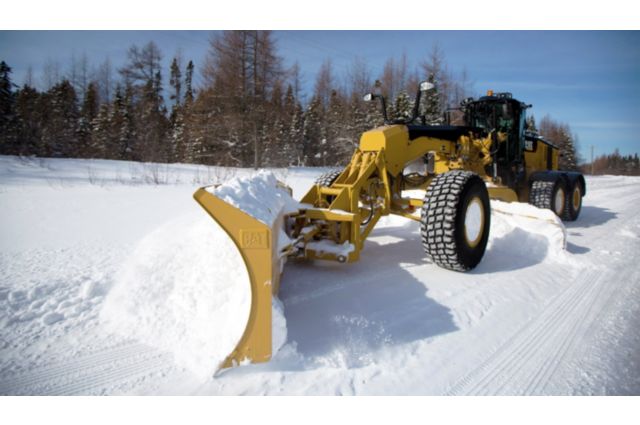

14 Motor Grader -

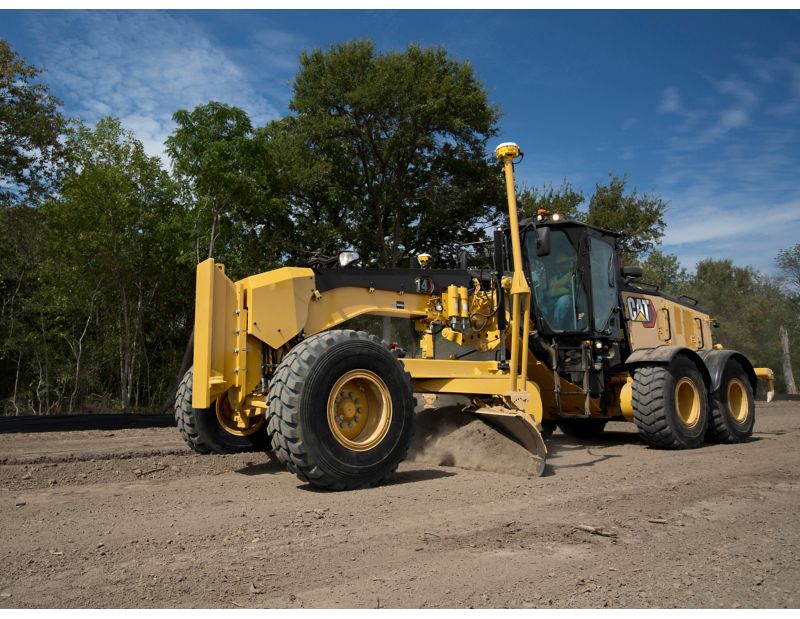

14 Motor Grader -
14 Motor Grader
Videos
360° View
Exterior
360° Exterior View. Double click on the image to zoom in on any of the products.
Interior
360° Interior View. Double click on the image to zoom in on any of the products.
Features
TECHNOLOGY THAT GETS WORK DONE
- Optional Stable Blade improves grading precision by decreasing engine speed at 15 percent intervals when machine bounce is detected then increases engine rpm systematically when grader stabilizes.

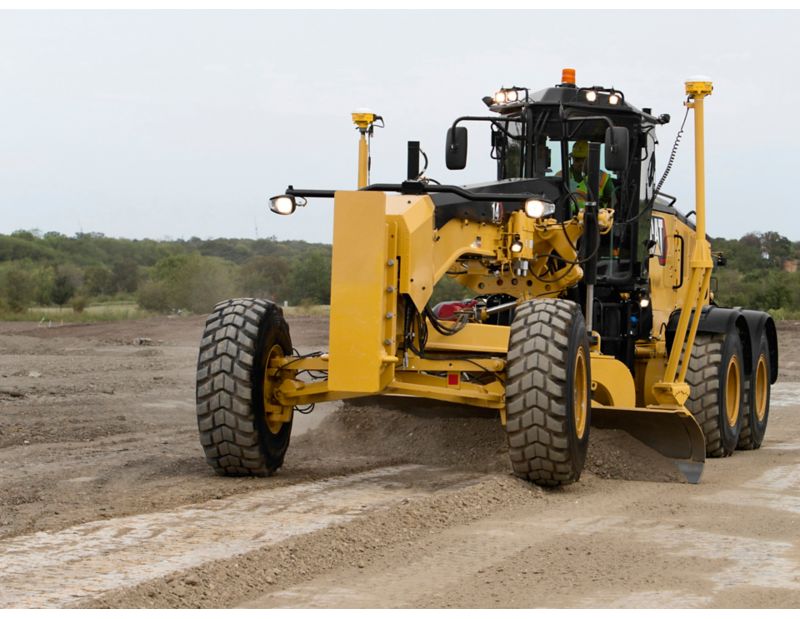

- Optional Cat Grade with Cross Slope helps maintain desired cross slope by automatically controlling one side of the blade.
- Optional Cat Grade uses positioning and guidance technologies, machine sensors, and automatic blade control to help get to grade faster, easier, and more efficiently.
- Optional Auto Articulation allows you to articulate automatically while steering in tight spaces or around curves, obstacles, and turnarounds.
- Manage your fleet of machines while reducing fuel burn with Cat Production Measurement System option. The Efficiency Coach and Application Segmentation work together to monitor operators and machines simultaneously. Measure your jobsite’s efficiency and productivity from anywhere on the website.
TECHNOLOGY THAT GETS WORK DONE
- Optional Stable Blade improves grading precision by decreasing engine speed at 15 percent intervals when machine bounce is detected then increases engine rpm systematically when grader stabilizes.
- Optional Cat Grade with Cross Slope helps maintain desired cross slope by automatically controlling one side of the blade.
- Optional Cat Grade uses positioning and guidance technologies, machine sensors, and automatic blade control to help get to grade faster, easier, and more efficiently.
- Optional Auto Articulation allows you to articulate automatically while steering in tight spaces or around curves, obstacles, and turnarounds.
- Manage your fleet of machines while reducing fuel burn with Cat Production Measurement System option. The Efficiency Coach and Application Segmentation work together to monitor operators and machines simultaneously. Measure your jobsite’s efficiency and productivity from anywhere on the website.
MOVE MORE, BURN LESS
- Cat C13 engine meets U.S. EPA Tier 4 Final/EU Stage V, Tier 3/Stage IIIA equivalent or Tier 2/Stage II equivalent emission standards, depending on emission standards of specific country.
- Standard Economy Mode can be turned on to limit maximum engine speed which helps reduce fuel consumption.
- Standard VHP Plus provides ideal amount of power in all gears.
- Standard Automatic Differential Lock unlocks differential during a turn and re-locks when straight for easier operation and improved power train protection.
MOVE MORE, BURN LESS
- Cat C13 engine meets U.S. EPA Tier 4 Final/EU Stage V, Tier 3/Stage IIIA equivalent or Tier 2/Stage II equivalent emission standards, depending on emission standards of specific country.
- Standard Economy Mode can be turned on to limit maximum engine speed which helps reduce fuel consumption.
- Standard VHP Plus provides ideal amount of power in all gears.
- Standard Automatic Differential Lock unlocks differential during a turn and re-locks when straight for easier operation and improved power train protection.
MORE CONTROL AND EFFICIENCY
- Load-sensing system and advanced electro hydraulics give operator superior implement control and hydraulic performance.
- Proportional Priority Pressure-Compensating valves have different flow rates for head and rod ends of cylinder so machine responds consistently and predictably.
- Balanced hydraulic flow is proportioned to ensure all implements will operate simultaneously without slowing engine or speed of some implements.
MORE CONTROL AND EFFICIENCY
- Load-sensing system and advanced electro hydraulics give operator superior implement control and hydraulic performance.
- Proportional Priority Pressure-Compensating valves have different flow rates for head and rod ends of cylinder so machine responds consistently and predictably.
- Balanced hydraulic flow is proportioned to ensure all implements will operate simultaneously without slowing engine or speed of some implements.

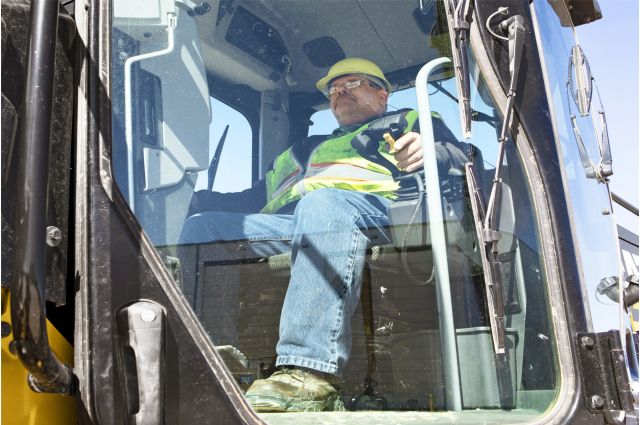

DESIGNED FOR OPERATORS
- Simple, intuitive joystick controls replace levers, so hand and arm movement is reduced by 78%, helping reduce operator fatigue.
- Optional Advanced Control Joysticks allow operator to control automated grading solutions efficiently and safely without removing hands from the joysticks.
- Selectable blade lift modes – Fine, Normal, or Coarse – allow operator to match application requirements.
- Articulation Return-to-Center automatically returns machine to a straight frame position from any angle with the touch of a button.
DESIGNED FOR OPERATORS
- Simple, intuitive joystick controls replace levers, so hand and arm movement is reduced by 78%, helping reduce operator fatigue.
- Optional Advanced Control Joysticks allow operator to control automated grading solutions efficiently and safely without removing hands from the joysticks.
- Selectable blade lift modes – Fine, Normal, or Coarse – allow operator to match application requirements.
- Articulation Return-to-Center automatically returns machine to a straight frame position from any angle with the touch of a button.
BUILT-IN SAFETY FEATURES
- Optional rear vision camera enhances sight to rear of machine.
- Electrical disconnect and engine shutoff switches are ground level.
- Operator Presence System keeps parking brake engaged and hydraulic implements disabled until operator is seated and machine is ready for operation.
- Hydraulic Lockout disables all implement functions while still providing machine steering control – especially useful while roading.
- Optional seat belt indicator promotes safe operating habits.
BUILT-IN SAFETY FEATURES
- Optional rear vision camera enhances sight to rear of machine.
- Electrical disconnect and engine shutoff switches are ground level.
- Operator Presence System keeps parking brake engaged and hydraulic implements disabled until operator is seated and machine is ready for operation.
- Hydraulic Lockout disables all implement functions while still providing machine steering control – especially useful while roading.
- Optional seat belt indicator promotes safe operating habits.

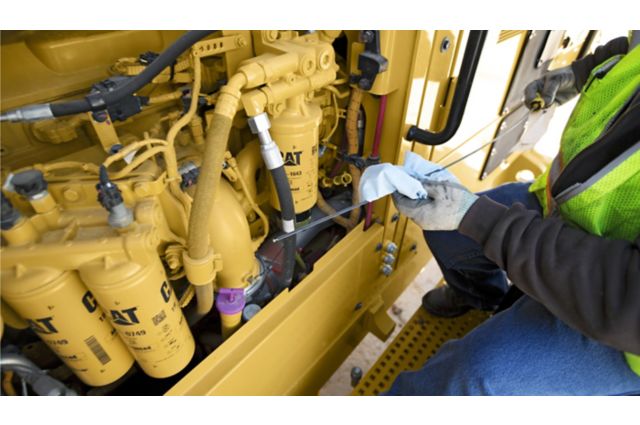

SAVE MAINTENANCE TIME
- Convenient access from the top of the circle to the patented top-adjust wear strips and inserts make them easy to add or replace.
- Shim less Moldboard Retention System uses vertical and horizontal adjusting screws to keep moldboard wear strips aligned for reduced blade chatter and precise blade control.
SAVE MAINTENANCE TIME
- Convenient access from the top of the circle to the patented top-adjust wear strips and inserts make them easy to add or replace.
- Shim less Moldboard Retention System uses vertical and horizontal adjusting screws to keep moldboard wear strips aligned for reduced blade chatter and precise blade control.
Specifications
-
Engine
Spec Value Base Power (1st Gear) - Net 238 HP Engine Model Cat C13 Bore 5.1 in Stroke 6.2 in Speed at Rated Power 1,850 rpm Note (3) Net power advertised is the power available at rated speed of 1,850 rpm, measured at the flywheel when engine is equipped with fan, air cleaner, muffler and alternator. Standard Capability 122 °F Note (2) Optimized VHP Plus is standard for the 14M3. Torque Rise 41% Maximum Altitude - Full Power 13900 ft Maximum Torque - VHP Plus 1137 lb/ft Emissions Tier 4 Final/Stage V, Tier 3/Stage IIIA equivalent or Tier 2/Stage II equivalent Maximum Altitude - Full Power (Tier 3) 14349 ft Maximum Altitude - Full Power (Tier 2) 12049 ft Note (1) Net power is tested per ISO 9249, SAE J1349, and EEC 80/1269 Standards in effect at the time of manufacture. Standard - Fan Speed - Minimum 550 rpm Note (4) Power as declared per ISO 14396. Rated rpm 1,850. VHP+ = 228 kW (306 hp) Displacement 763 in³ Number of Cylinders 6 Note (5) Cat engines equipped with a Selective Catalytic Reduction (SCR) system are required to use: Diesel Exhaust Fluid (DEF) which meets the requirements outlined in the International Organization for Standardization (ISO) standard 22241-1. Standard - Fan Speed - Maximum 1,600 rpm -
Frame
Spec Value Circle - Outer Diameter 71.7 in Front Axle - Wheel Lean - Left/Right 17.1° Front Axle - Total Oscillation per Side 32° -
Service Refill Capacities
Spec Value Transmission and Differential 23.5 gal (US) Diesel Exhaust Fluid Tank (Tier 4 Only) 5.8 gal (US) Hydraulic System 33 gal (US) Circle Drive 1.8 gal (US) Cooling System 15.9 gal (US) Fuel Tank 109.9 gal (US) -
Moldboard
Spec Value Blade Width 14 ft Arc Radius 16.3 in Throat Clearance 4.6 in Blade Width - With End Bits 169 in Blade Height - With Cutting Edge 24.9 in Blade Width - Without End Bits 164 in Blade Height - Without Cutting Edge 23 in -
Blade Range
Spec Value Maximum Depth of Cut 23.3 in Circle Centershift - Left 25.6 in Maximum Lift Above Ground 16.5 in Circle Centershift - Right 20.5 in Blade Tip Range - Backward 5° Maximum Shoulder Reach Outside of Tires - Right 78.9 in Moldboard Sideshift - Right 31.1 in Moldboard Sideshift - Left 29.1 in Maximum Shoulder Reach Outside of Tires - Left 73.6 in Blade Tip Range - Forward 40° -
Weights
Spec Value Operating Weight - Typically Equipped 57250 lb Gross Vehicle Weight - Base* - Total 50980 lb Gross Vehicle Weight - Base* - Front Axle 13994 lb Gross Vehicle Weight - Typically Equipped - Total 57250 lb Gross Vehicle Weight - Typically Equipped - Rear Axle 42005 lb Gross Vehicle Weight - Typically Equipped - Front Axle 15245 lb Gross Vehicle Weight - Base* - Rear Axle 36994 lb Note *Base operating weight calculated on standard machine configuration with 20.5 R25 tires, full fuel tank operator and ROPS cab. -
Air Conditioning System
Spec Value Air Conditioning The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 2.0 kg (4.4 lb) of refrigerant which has a CO2 equivalent of 2.860 metric tonne (2.76 ton).
Standard Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
OPERATOR ENVIRONMENT
- Joystick, power adjustable armrests
- Air conditioner with heater
- Centershift pin indicator
- Coat hook
- Cup holder
- Display, digital speed and gear
- Doors, left and right side with wiper
- Gauges (analog) inside cab (includes fuel, articulation, engine coolant temp, engine rpm, and hydraulic oil temp)
- Gauges, machine level
- Message display
- Joystick gear selection
- Joystick hydraulic controls for implements, steering, transmission
- Ladders, cab, left and right side
- Lights, left and right side lights
- Lights, night time cab, LED
- Meter, hour, digital
- Mirror, inside rearview, wide angle
- Power port, 12V
- Radio ready, entertainment
- ROPS cab, sound suppressed, less than 73 dB(A) ISO 6394 (70% fan speed)
- Seat, mechanical suspension, cloth
- Storage compartments
- Throttle control, electronic
POWER TRAIN
- Air cleaner, dual stage, dry-type radial seal with service indicator through messenger and dust ejector
- Articulation, automatic Return-to-Center
- Air-to-Air After Cooler (ATAAC)
- Auto Diff Lock
- Brake wear indication
- Brakes, oil disc, four-wheel, hydraulic
- Consistent power to ground
- Monitoring system
- Clutch, circle drive slip
- Differential, lock/unlock*
- Drain, engine oil, ecology
- Demand fan, hydraulic
- Engine ECO Mode
- Ether starting aid
- Fuel tank, ground level
- Fuel-water separator
- Hydraulic demand fan
- Muffler, under hood (China Nonroad Stage III and Tier 3/Stage IIIA/Tier 2/Stage II equivalent)
- Optimized VHP
- Parking brake - multi disc, sealed, oil-cooled
- Priming pump, fuel
- Sediment drain, fuel tank
- Three variations of the C13 engine. One meets Tier 4 Final/Stage V emission standards and is required for higher regulated countries. One meets Tier 3/Stage IIIA/China Nonroad Stage III standards, depending on emission standards of the specific country. One meets Tier 2/Stage II equivalent emission standards and is available for lesser or non-regulated countries, depending on standards of the specific country.
- Transmission, 8F/6R, power shift, direct drive
ELECTRICAL
- Alternator, 150 ampere, sealed
- Batteries, maintenance free, HD, 1,125 CCA
- Breaker panel
- Electrical system, 24V*
- Belt, serpentine, automatic tensioner
- Lights: reversing (LED), roof-mounted roading, stop and tail (LED)
- Product Link
- Starter, electric
- Service lights, enclosure, rear, LED
SAFETY
- Alarm, back up
- Ground level engine shutdown
- Hammer (emergency exit)
- Horn, electric
- Lockout, hydraulic implement for roading
- Operator Not Present Monitoring system
- Paint, glare reducing - top of front frame, rear enclosure and ripper cylinders
- Seat belt, retractable 76 mm (3 in)
- Secondary steering
- Windows, laminated glass: Fixed front with intermittent wiper; Side and rear wipers (3)
Optional Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
OPERATOR ENVIRONMENT
- Air horn
- Heated door
- Mirrors high visibility
- Mirrors, outside heated 24V
- Mirrors, outside mounted
- Seat, heated
- Seat, heated/ventilated
- Rearview camera
- Seat belt indicator
POWER TRAIN
- Transmission, autoshift
- Engine, compression brake
TECHNOLOGY
- Cat GRADE with Cross Slope
- Stable Blade
- Advanced Control Joysticks
- Auto Articulation
GUARDS
- Debris guard
- Front axle cylinder guards
- Rear fenders
- Sound suppression, engine enclosure and transmission
- Transmission guard
- Accumulators, blade lift
- Fast fill fuel, 378.5 L/min (100 gal/min)
- Metallic DCM wear strips
ELECTRICAL
- Light, LED, warning strobe
- Lights, front headlights high
- Lights, front headlights low
- Mounting, for warning light
- Working lights halogen
- Working lights LED
SAFETY
- Additional rearview camera and monitor
- Machine security system key
OTHER ATTACHMENTS
- Moldboard, 4.9 m (16 ft)
- Heater, engine coolant, 120V
- Heater, engine coolant, 240V
- Hydraulic arrangements with additional hydraulic valves: Base +1, Base +3, Base +4, Base +5, Base +6
- Product Link satellite, cellular
- Rim, 431.8 mm x 635 mm (17 in x 25 in) MP (spare)
- Snow wing, mounting frame ready
- Fast fill
WORK TOOLS/G.E.T.
- 4.9 m (16 ft) blade with flat cutting edge 254 mm x 35 mm (10in x 1 3/8 in )
- Push block, counterweight
- Ripper, rear
- Tooth, ripper
FLUIDS
- Coolant, -51 degrees C (-60 degrees F)
