Specially configured for mine operation and haul road development and maintenance, the Cat® 16 (16M3) maximizes availability and controls operating costs. Fuel efficient technologies and legendary Cat robust design and construction ensure these machines help your operation optimize profits.
Caterpillar
16 Motor Grader
Overview
Photos
-

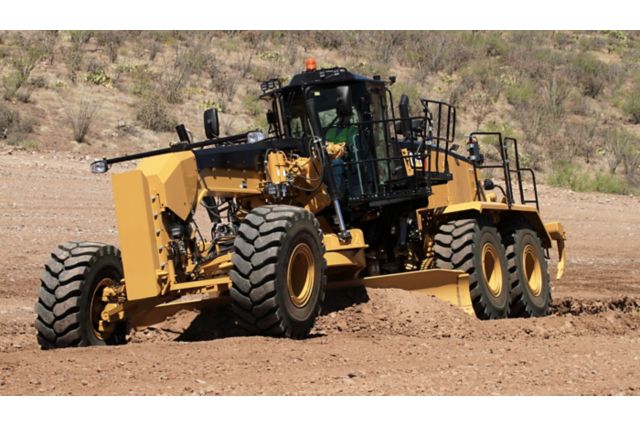

16 Motor Grader -

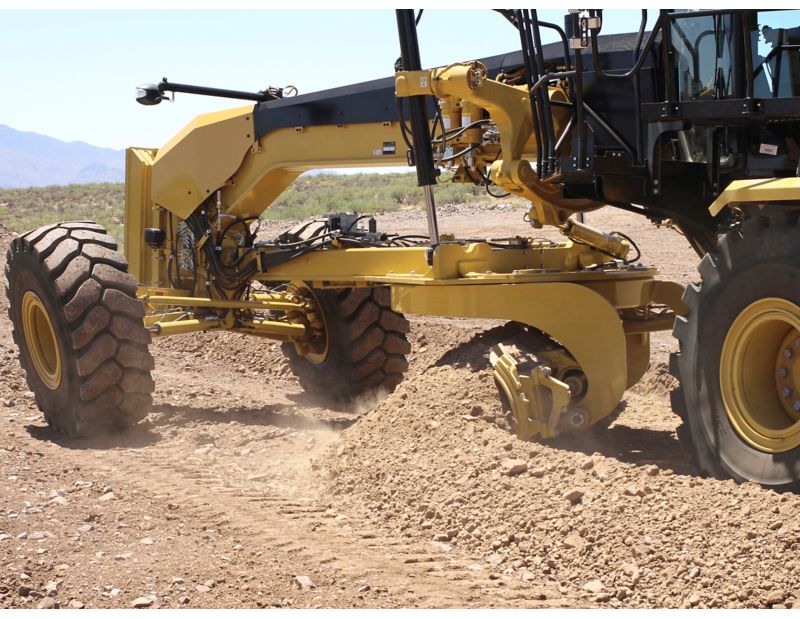

16 Motor Grader -

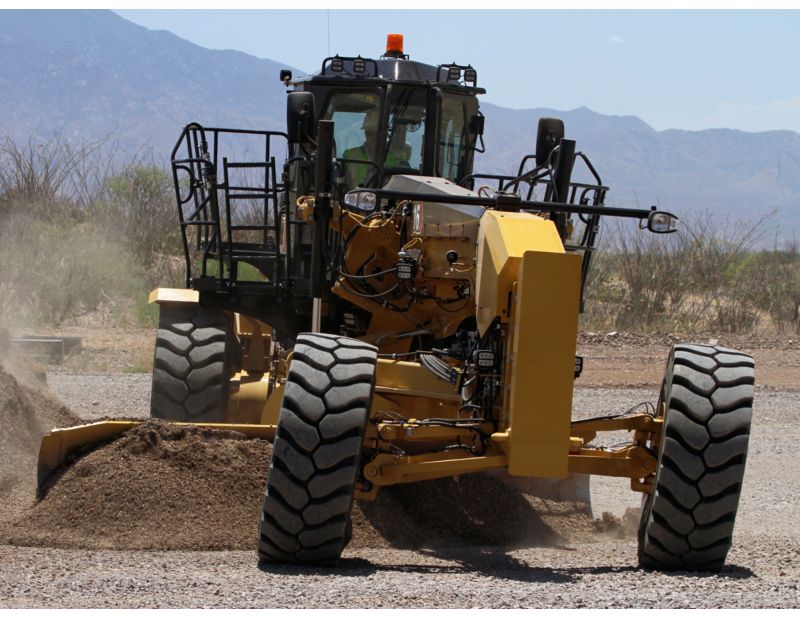

16 Motor Grader -

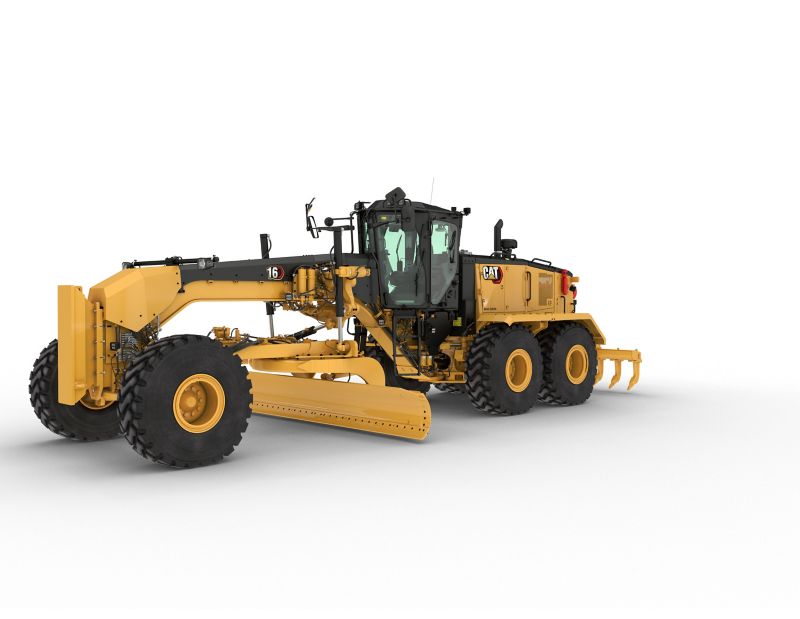

16 Motor Grader -
16 Motor Grader -
16 Motor Grader -
16 Motor Grader
Videos
360° View
Exterior
360° Exterior view. Double click on the image to zoom in on any area of the product.
Interior
360° interior view. Double click on the image to zoom in on any area of the product.
Documents
Features
RELIABILITY YOU CAN COUNT ON
- Reduce downtime and operating cost through improved serviceability, fuel economy and reduced maintenance, maximizing availability.
- Major components are modular, so most can be removed and reinstalled without disturbing other components for peak repair efficiency.
- C13 engine has been optimized to be as efficient without compromising performance. Eco Mode can be activated to control high engine idle speed and ensure the engine is performing as efficiently as possible, offering additional fuel savings.
- Center shift section of the front frame is a heavy-duty steel casting improving stress distribution for enhanced durability.
- Rear frame structure is lengthened providing easy access to components in the engine enclosure as well as improved machine balance.
- Front axle steering cylinder enhances durability and hydraulic lines are routed to improve reliability.
- Modular cooling package provides simple removal and installation of components on the cooling system reducing service time.

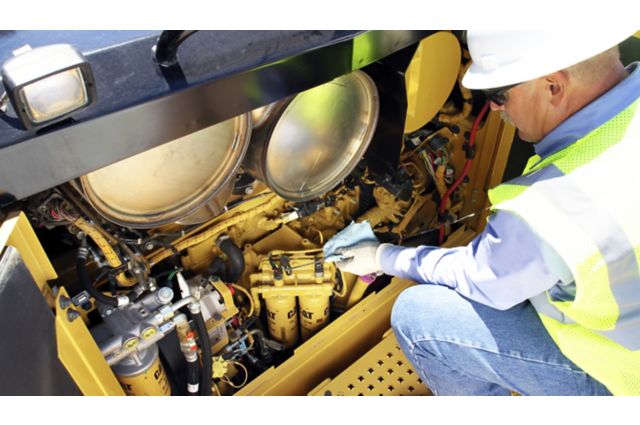

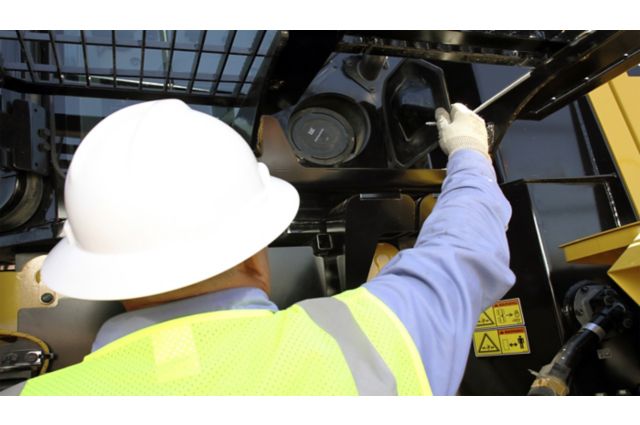

- Engine enclosure doors provide complete access to the engine without any enclosure post.
- Extended maintenance intervals reduce the number of touches and downtime.
- Fluid monitoring systems help prevent critical components from damage when levels are low.
- Information Display in cab shows service/maintenance concerns and diagnostic codes are logged.
RELIABILITY YOU CAN COUNT ON
- Reduce downtime and operating cost through improved serviceability, fuel economy and reduced maintenance, maximizing availability.
- Major components are modular, so most can be removed and reinstalled without disturbing other components for peak repair efficiency.
- C13 engine has been optimized to be as efficient without compromising performance. Eco Mode can be activated to control high engine idle speed and ensure the engine is performing as efficiently as possible, offering additional fuel savings.
- Center shift section of the front frame is a heavy-duty steel casting improving stress distribution for enhanced durability.
- Rear frame structure is lengthened providing easy access to components in the engine enclosure as well as improved machine balance.
- Front axle steering cylinder enhances durability and hydraulic lines are routed to improve reliability.
- Modular cooling package provides simple removal and installation of components on the cooling system reducing service time.
- Engine enclosure doors provide complete access to the engine without any enclosure post.
- Extended maintenance intervals reduce the number of touches and downtime.
- Fluid monitoring systems help prevent critical components from damage when levels are low.
- Information Display in cab shows service/maintenance concerns and diagnostic codes are logged.
PERFORMANCE AND PRODUCTIVITY
- Motor graders have a direct impact on how productively all other mining machines operate – in particular in their role in haul road maintenance. The 16is optimized exactly to this goal:
- Additional weight along with adjusted weight balance offers enhanced performance improving traction and the ability to keep ground speed, especially when carrying a large load.
- Available with three variations of the C13 engine depending upon sales region.
- Emissions reduction technology is transparent, with no action required from the operator.
- Multi-color / touch screen information display is the operator's gateway to monitoring machine performance and provides convenient way of modifying machine parameters to tailor performance to the current task. Assist in providing service information for troubleshooting.
- Cat Product Link™ Elite integrates into the machine, taking guesswork out of equipment management. Provides easy access to machine location, hours, fuel usage, idle time and event codes via the online VisionLink® user interface helping you manage your fleet and operating costs.
- Manage your fleet of machines while reducing fuel burn with Cat Production Measurement System option. The Efficiency Coach and Application Segmentation work together to monitor operators and machines simultaneously. Measure your jobsite’s efficiency and productivity from anywhere on the website.
PERFORMANCE AND PRODUCTIVITY
- Motor graders have a direct impact on how productively all other mining machines operate – in particular in their role in haul road maintenance. The 16is optimized exactly to this goal:
- Additional weight along with adjusted weight balance offers enhanced performance improving traction and the ability to keep ground speed, especially when carrying a large load.
- Available with three variations of the C13 engine depending upon sales region.
- Emissions reduction technology is transparent, with no action required from the operator.
- Multi-color / touch screen information display is the operator's gateway to monitoring machine performance and provides convenient way of modifying machine parameters to tailor performance to the current task. Assist in providing service information for troubleshooting.
- Cat Product Link™ Elite integrates into the machine, taking guesswork out of equipment management. Provides easy access to machine location, hours, fuel usage, idle time and event codes via the online VisionLink® user interface helping you manage your fleet and operating costs.
- Manage your fleet of machines while reducing fuel burn with Cat Production Measurement System option. The Efficiency Coach and Application Segmentation work together to monitor operators and machines simultaneously. Measure your jobsite’s efficiency and productivity from anywhere on the website.
ENSURING A SAFE JOB SITE
- Caterpillar considers the safety of everyone in, on or around Cat equipment when developing products or enhancing safety features.
- The 16has safety features including -

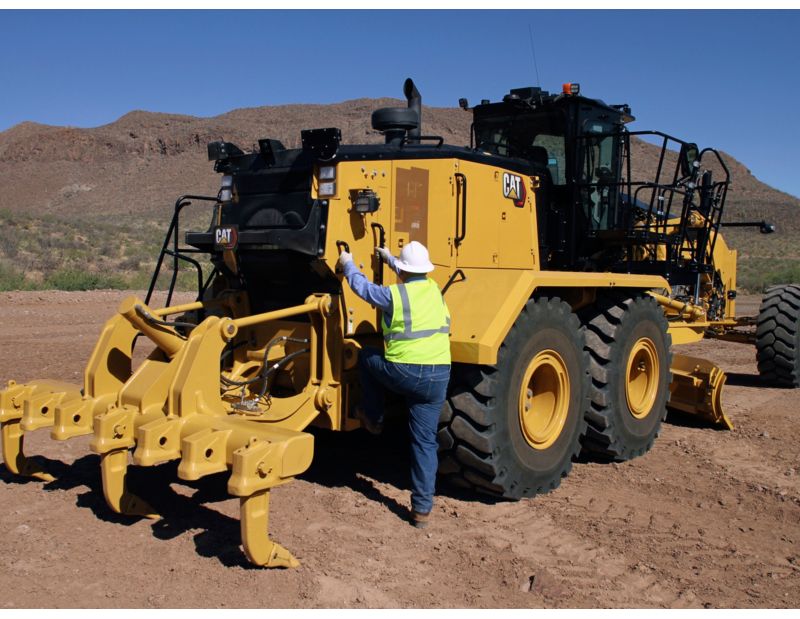

- Access to Tandem
- Rear View Camera
- Seat Belt Indicator
- Access Platform – optional
- Service Access Platform – optional
- Fire Suppression Ready System – optional
ENSURING A SAFE JOB SITE
- Caterpillar considers the safety of everyone in, on or around Cat equipment when developing products or enhancing safety features.
- The 16has safety features including -
- Access to Tandem
- Rear View Camera
- Seat Belt Indicator
- Access Platform – optional
- Service Access Platform – optional
- Fire Suppression Ready System – optional
TOP-TIER SERVICE AND SUPPORT
- Cat dealers are committed to helping you succeed, ensuring you have the right machine for the job, making parts available, operator training and providing a wide range of versatile work tools.
TOP-TIER SERVICE AND SUPPORT
- Cat dealers are committed to helping you succeed, ensuring you have the right machine for the job, making parts available, operator training and providing a wide range of versatile work tools.
Specifications
-
Engine
Spec Value Base Power (1st Gear) - Net 290 HP Engine Model Cat® C13 Bore 5.1 in Stroke 6.2 in Speed at Rated Power 2,000 rpm Derating Altitude - Tier 2/Stage II/Japan 2001 (Tier 2) Equivalent 12176 ft Maximum Torque - ISO 9249 - Tier 3/Stage IIIA/Japan 2006 (Tier 3) Equivalent 1270 lb/ft Maximum Torque - ISO 9249 - Tier 4/Stage IV/Japan 2014 (Tier 4) 1306 lb/ft Maximum Torque - ISO 9249 - Tier 2/Stage II/Japan 2001 (Tier 2) Equivalent 1270 lb/ft Emissions (2) Tier 3/Stage IIIA/Japan 2006 (Tier 3) Equivalent Emission Standards – depending on emission standards of specific country Torque Rise - Tier 4/Stage IV/Japan 2014 (Tier 4) 43% Torque Rise - Tier 2/Stage II/Japan 2001 (Tier 2) Equivalent 39% Standard - Ambient Capability 122 °F Derating Altitude - Tier 3/Stage IIIA/Japan 2006 (Tier 3) Equivalent 12973 ft VHP Range - Net - Metric 216-259 kW (294-353 hp) Base Power (1st Gear) - Net - Metric 294 HP Standard - Fan Speed - Minimum 550 rpm Standard - Fan Speed - Maximum 1,450 rpm Emissions (3) Tier 2/Stage II/Japan 2001 (Tier 2) Equivalent Emission Standards – depending on emission standards of specific country Torque Rise - Tier 3/Stage IIIA/Japan 2006 (Tier 3) Equivalent 39% Emissions (1) U.S. EPA Tier 4 Final/EU Stage V/Japan 2014 (Tier 4 Final) VHP Range - Net 216-259 kW (290-348 hp) Derating Altitude - Tier 4/Stage IV/Japan 2014 (Tier 4) 12500 ft Displacement 763 in³ Number of Cylinders 6 Optimized VHP Range - Net 216-259 kW (290-348 hp) -
Power Train
Spec Value Forward/Reverse Gears 8 Forward/6 Reverse Transmission Direct drive, power shift, countershaft Brakes - Dynamic Brake Torque per Wheel 27069.27 lb/ft Brakes - Secondary Oil-actuated, oil-disc Brakes - Service Oil-actuated, oil disc Brakes - Parking Spring applied, hydraulically released -
Hydraulic System
Spec Value Circuit Type Electro-hydraulic load sensing, closed center Pump Type Variable piston Maximum System Pressure 3590 psi Standby Pressure 856 psi Pump Output* 74 gal/min Note *Pump output measured at 2,150 rpm. -
Operating Specifications
Spec Value Steering Range - Left/Right 47.5° Forward - 6th 16 mile/h Forward - 4th 7.6 mile/h Forward - 5th 11.8 mile/h Turning Radius - Outside Front Tires 30.5 ft Forward - 7th 22 mile/h Top Speed - Forward 32.1 mile/h Forward - 3rd 5.5 mile/h Reverse - 6th 25.3 mile/h Reverse - 5th 17.4 mile/h Reverse - 2nd 4.1 mile/h Reverse - 3rd 6 mile/h Forward - 8th 32.1 mile/h Reverse - 1st 2.2 mile/h Forward - 1st 2.8 mile/h Top Speed - Reverse 25.4 mile/h Forward - 2nd 3.8 mile/h Reverse - 4th 9.3 mile/h Articulation Angle - Left/Right 20° Note Calculated with no slip and 23.5 R25 L-3 tires. -
Service Refill
Spec Value Fuel Capacity 131 gal (US) Cooling System 18.5 gal (US) DEF Tank 4.2 gal (US) Hydraulic System - Total 38.6 gal (US) Hydraulic System - Tank 18.5 gal (US) Engine Oil 9.5 gal (US) Transmission - Differential - Final Drives 34 gal (US) Tandem Housing - Each 34 gal (US) Front Wheel Spindle Bearing Housing 0.24 gal (US) Circle Drive Housing 2.6 gal (US) -
Frame
Spec Value Front Frame Structure - Height 18.1 in Front Frame Structure - Width 14 in Drawbar - Width 3 in Drawbar - Height 8 in Front Axle - Total Oscillation per Side 35° Circle - Diameter 71.7 in Circle - Blade Beam Thickness 2 in Front Frame Structure - Thickness 0.6 in Front Axle - Wheel Lean 18° Left/17° Right Front Axle - Height to Center 26.4 in -
Tandems
Spec Value Tandem Oscillation - Front Up 15° Sidewall Thickness - Outer 0.9 in Sidewall Thickness - Inner 0.9 in Tandem Oscillation - Front Down 25° Height 25.5 in Width 9.3 in Drive Chain Pitch 2.5 in Wheel Axle Spacing 72.5 in -
Moldboard
Spec Value Blade Width 16 ft Arc Radius 16.3 in Throat Clearance 5 in Thickness 1 in End Bit - Width 6 in Blade Pull* - Base GVW 41039 lb Cutting Edge Width 8 in Cutting Edge Thickness 1 in Down Force - Maximum GVW 43861 lb Height 31 in Width 16 ft Down Force - Base GVW 30743 lb Blade Pull* - Maximum GVW 52878 lb End Bit - Thickness 0.75 in Note *Blade pull calculated at 0.9 traction coefficient, which is equal to ideal no-slip conditions, and Gross Machine Weight. -
Blade Range
Spec Value Maximum Blade Position Angle 65° Maximum Lift Above Ground 15.7 in Maximum Depth of Cut 18.5 in Maximum Shoulder Reach Outside of Tires - Right 91 in Moldboard Sideshift - Left 29.1 in Circle Centershift - Right 22 in Circle Centershift - Left 27.2 in Moldboard Sideshift - Right 31.1 in Maximum Shoulder Reach Outside of Tires - Left 91 in Blade Tip Range - Forward 40° Blade Tip Range - Backward 5° -
Ripper
Spec Value Ripping Depth - Maximum 17.8 in Shank Holder Spacing - Minimum 17.5 in Ripper Shank Holders 7 Penetration Force 30311 lb Pry-Out Force 43700 lb Machine Length Increase, Beam Raised 63.4 in Shank Holder Spacing - Maximum 20 in -
Weights
Spec Value Operating Weight - Typically Equipped 71454 lb -
Weights Tier 4/Stage IV/Japan 2014 (Tier 4 Final)*
Spec Value Gross Vehicle Weight - Maximum Tested - Total 84877 lb Gross Vehicle Weight - Base** - Total 63528 lb Gross Vehicle Weight - Typically Equipped - Rear Axle 52201 lb Gross Vehicle Weight - Typically Equipped - Total 71454 lb Gross Vehicle Weight - Maximum Tested - Front Axle 26125 lb Gross Vehicle Weight - Typically Equipped - Front Axle 19253 lb Gross Vehicle Weight - Maximum Tested - Rear Axle 58753 lb Gross Vehicle Weight - Base** - Front Axle 17932 lb Gross Vehicle Weight - Base** - Rear Axle 45596 lb Note (1) *For machines not equipped with Tier 4 Final emission engine, subtract 150 kg (331 lb) from rear axle weight and total weight. Note (2) **Base operating weight calculated on standard machine configuration with 23.5 R25 tires, full fuel tank operator and ROPS cab. -
Dimensions (Approximate)
Spec Value Ground Clearance - Rear Axle 15.6 in Length - Counterweight to Ripper 474.4 in Length - Front Axle to Moldboard 120.7 in Length - Front Axle to Mid Tandem 290 in Height - Top of Cylinders 121.6 in Width - Tire Center Lines 106.4 in Width - Outside Rear Tires 134.3 in Length - Between Tandem Axles 72.5 in Height - Top of Cab 146.4 in Width - Outside Front Tires 134.3 in Height - Front Axle Center 28.9 in Length - Front Tire to Rear of Machine - Including Tow Hitch 417 in Height - Exhaust Stack 140 in -
Standards
Spec Value Steering ISO 5010:2007 Brakes ISO 3450:2011 Sound ISO 6394:2008/ISO 6395:2008/ISO 6396:2008 ROPS/FOPS ISO 3471:2008/ISO 3449:2005 Note (1) The dynamic spectator sound power level is 109 dB(A) for Stage IV certified configurations and 109 dB(A) for Tier 2/Stage II/Japan 2001 (Tier 2) and Tier 3/Stage IIIA/Japan 2006 (Tier 3) equivalent emission standard machines when measured according to the dynamic test procedures that are specified in ISO 6395:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed. The machine was equipped with a sound suppression system. Note (2) The dynamic operator sound pressure level is 71 dB(A) for Stage IV certified configurations and 72 dB(A) for Tier 2/Stage II/Japan 2001 (Tier 2) and Tier 3/Stage IIIA/Japan 2006 (Tier 3) equivalent emission standard machines when measured according to the dynamic test procedures that are specified in ISO 6396:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed, with the cab doors and the cab windows closed. The cab was properly installed and maintained. The machine was equipped with a sound suppression system. -
Variable Power Tier 4 Final/Stage IV/Japan 2014 (Tier 4 Final), Tier 3/Stage IIIA/Japan 2006 (Tier 3) or Tier 2/Stage II/Japan 2001 (Tier 2) - Net
Spec Value Gear - Reverse 3rd-6th 298 HP Gear - Forward 8th 348 HP Gear - Forward 3rd 298 HP Gear - Forward 6th 320 HP Gear - Forward 5th 311 HP Gear - Reverse 1st 290 HP Gear - Reverse 2nd 290 HP Gear - Forward 4th 304 HP Gear - Forward 7th 328 HP Gear - Forward 1st 290 HP Gear - Forward 2nd 290 HP -
Variable Power Tier 4 Final/Stage IV/Japan 2014 (Tier 4 Final), Tier 3/Stage IIIA/Japan 2006 (Tier 3) or Tier 2/Stage II/Japan 2001 (Tier 2) - Metric
Spec Value Gear - Forward 4th 309 HP Gear - Reverse 1st 294 HP Gear - Forward 3rd 302 HP Gear - Reverse 3rd-6th 302 HP Gear - Reverse 2nd 294 HP Gear - Forward 7th 332 HP Gear - Forward 6th 325 HP Gear - Forward 8th 353 HP Gear - Forward 1st 294 HP Gear - Forward 5th 315 HP Gear - Forward 2nd 294 HP -
Optional Tire Arrangements
Spec Value Wheel Group - 19.5×25 MP (1) Tires: 23.5R25 Bridgestone VKT 2 Star Wheel Group - 19.5×25 MP (2) Tires: 23.5R25 Bridgestone VKT 1 Star Wheel Group - 19.5×25 MP (3) Tires: 23.5R25 Bridgestone VJT 1 Star Wheel Group - 19.5×25 MP (4) Tires: 23.5R25 Michelin XHA 2 Star Wheel Group - 19.5×25 MP (5) Tires: 23.5R25 Michelin XLDD 2 Star L5
Standard Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
OPERATOR ENVIRONMENT
- Adjustable Electric Arm rest
- Adjustable wrist rest
- Air conditioner with heater
- Articulation, automatic Return-to-Center
- Centershift pin indicator
- Coat hook
- Cup holder
- Display, digital speed and gear
- Doors, left and right side with wiper
- Gauges (analog) inside the cab (includes fuel, articulation, engine coolant temp, engine rpm, and hydraulic oil temp)
- Gauges, machine level
- Information display touch screen
- Joystick gear selection
- Joystick hydraulic controls for implements, steering, transmission
- Ladders, cab, left and right side
- Lights, left and right side lights
- Lights, night time cab
- Meter, hour, digital
- Mirror, inside rearview, wide angle
- Power port, 12V
- Radio ready, entertainment
- ROPS cab, sound suppressed, less than 73 dB(A) ISO 6394 (70% fan speed)
- Seat, cloth-covered, comfort air suspension
- Storage compartments
- Throttle control, electronic
POWER TRAIN
- Air cleaner, dual stage dry type radial seal with service indicator through messenger and automatic dust ejector
- Air-to-air after cooler (ATAAC)
- Auto Diff Lock
- Belt, serpentine, automatic tensioner
- Brake wear indication
- Brakes, oil disc, four-wheel, hydraulic
- Consistent Power to ground
- Critically Low Fluid Level Monitoring System
- Differential, lock/unlock
- Drain, engine oil, high speed
- Electronic over speed protection
- Engine ECO Mode: Tier 4 Final/Stage IV/Japan 2014 (Tier 4 Final) and Tier 2/Stage II/Japan 2001 (Tier 2) equivalent emission standards
- Engine, compression brake
- Ether starting aid
- Fuel tank, fast fill, ground level
- Fuel-water separator
- Hydraulic Demand Fan
- Muffler, under hood (Tier 2/Stage II/Japan 2001 (Tier 2) and Tier 3/Stage IIIA/Japan 2006 (Tier 3)
- OK-to-Start
- Optimized VHP
- Parking brake – multi disc, sealed, oil-cooled
- Priming pump, fuel
- Rear axle, modular
- Sediment drain, fuel tank
- Three variations of the C13 engine. One meets U.S. EPA Tier 4 Final/EU Stage V/Japan 2014 (Tier 4 Final) emission standards and is required for sale in higher regulated countries. The other options are capable of meeting Tier 2/Stage II/Japan 2001 (Tier 2) or Tier 3/Stage IIIA/Japan 2006 (Tier 3) equivalent emission standards and are available for lesser or non-regulated countries, depending on the emission standards of the specific country.
- Transmission, 8F/6R, power shift
- VIMS no telematics
ELECTRICAL
- Alternator, 150 ampere, sealed
- Batteries, maintenance free, heavy duty, 1,400 CCA
- Breaker panel
- Electrical system, 24V
- Lights: brake, reversing, roof-mounted roading, stop and tail (LED), work front
- Product Link
- Starter, electric, heavy duty
SAFETY
- Alarm, back up
- Ground level engine shutdown
- Hammer (emergency exit)
- Horn, electric
- Lockout, hydraulic implement for roading
- Operator not present monitoring System
- Paint, glare reducing – top of front frame, rear enclosure an ripper cylinders
- Rearview camera
- Seat belt indicator
- Seat belt, retractable 76 mm (3 in)
- Secondary steering
- Windows, laminated glass: – Fixed front with intermittent wiper – Door with intermittent wipers (2)
- Windows, tempered: – Left and right side wipers – Rear with intermittent wiper
OTHER STANDARD EQUIPMENT
- 3-Bolt blade Bracket
- AccuGrade ARO
- Accumulators, blade lift
- Brake accumulators, dual certified
- Cat Grade Control Cross Slope
- CD ROM Parts Book
- Clutch, circle drive slip
- Cutting edges, curved DH-2 steel: – 203 mm × 25 mm (8 in × 1 in) – 19 mm (3∕4 in) mounting bolts
- Doors (four), engine compartment, (two left, two right hand) locking
- Doors, two service, left and right side
- Drawbar – six shoe with replaceable wear strips
- End bits, 16 mm (5∕8 in) DH-2 steel, 19 mm (3∕4 in) mounting bolts
- Fast fill fuel, 567.8 L/min (150 gpm)
- Fluid check
- Frame, articulated, with safety lock
- Hydraulics, load-sensing
- Metallic Fuel tank, 496 L (131 gal)
- Metallic DCM wear strips
- Modular cooling package
- Moldboard: – 4880 mm × 787 mm × 25 mm (16 ft × 31 in × 1 in) – Hydraulic side shift and tip
- Radiator, two cleanout access doors
- Rear bumper
- Rear tandem access steps and hand bars
- S∙O∙S ports: engine, hydraulic, transmission, coolant
- Tandem walkway
- Top adjust circle wear strips
- Tow hitch (not available with ripper)
TIRES, RIMS, AND WHEELS
- A partial allowance for tires on 597 mm × 609.6 mm (23.5 in × 24 in) multi-piece rims is included in the base machine price and weight
FLUIDS
- Extended Life Coolant to –35° C (–31° F)
WORK TOOLS/G.E.T.
- 4.9 m (16 ft) blade with curved cutting edge 203 mm × 25 mm (8 in × 1 in)
Optional Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
OPERATOR ENVIRONMENT
- Air horn
- Comfort package
- Heated door
- Mirrors high visibility
- Mirrors, outside heated 24V
- Mirrors, outside mounted
- Seat heated
- Seat heated/ventilated
- Windows cleaning platform and ladders left-right hand side
POWER TRAIN
- Transmission, autoshift
GUARDS
- Debris guard
- Front axle cylinder guard
- Rear fenders
- Sound suppression, engine enclosure and transmission
- Transmission guard
ELECTRICAL
- Light, LED, warning strobe
- Lights front LED
- Lights, front headlights high
- Lights, front headlights low
- Mounting, for warning light
- Service lights
- Working lights halogen
- Working lights LED
SAFETY
- Additional monitor for rearview camera
- Enhanced access platform
- Fire suppression ready
- Machine Security System Key
- Service access platform
OTHER ATTACHMENTS
- Auto-lube, Centro-matic
- Auto-lube, ripper enhancement
- Control, blade, variable float
- Heater, engine coolant, 120V
- Heater, engine coolant, 240V
- Hydraulic arrangements with additional hydraulic valves Base+1
- Hydraulic arrangements with additional hydraulic valves Base+5
- Product Link Elite dual
- Rim, 495.3 mm × 635 mm (19.5 in × 25 in) MP (spare)
- Weather, Cold Plus package
WORK TOOLS/G.E.T.
- 4.9 m (16 ft) blade with flat cutting edge 254 mm × 35 mm (10 in × 1 3∕8 in)
- Push block, counterweight
- Ripper, rear
- Tooth, ripper
FLUIDS
- Coolant, –51° C (–60° F)
Sign up for Ziegler CAT emails
Events, updates, and offers
