The Cat® MH3260 offers superior performance for your material handling applications. Featuring a spacious, ergonomic cab, the MH3260 offers a comfortable work environment to keep you productive all day long. Longer maintenance intervals and lower fuel consumption combine to provide up to 20% lower operating costs. The MH3260 provides the safety and reliability you need for your toughest applications.
Cat

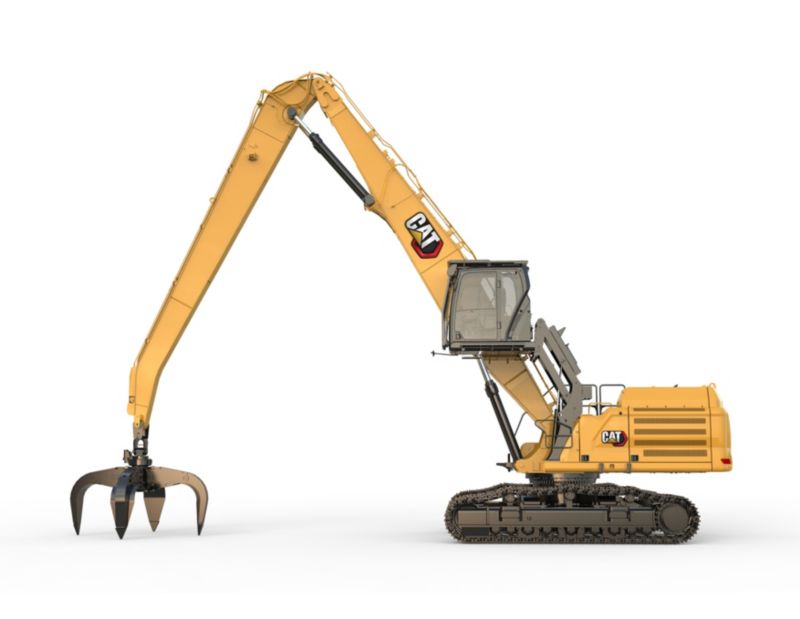

MH3260 Tracked Material Handler
Overview
Photos
Videos
Features
Specifications
-
Engine
Spec Value Engine Model Cat C13 Net Power - ISO 9249 424 hp Net Power - ISO 9249 (DIN) 430 hp (metric) Engine Power - ISO 14396:2002 425 hp Engine Power - ISO 14396 (DIN) 431 hp (metric) Bore 5 in Stroke 6 in Displacement 763 in³ Biodiesel Capability Up to B20¹ Emissions Meets U.S. EPA Tier 4 Final and EU Stage V emission standards. Note (1) Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 1,800 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture. Note (2) ¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. *Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). **Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. -
Transmission
Spec Value Gradeability 30°/58% Maximum Travel Speed 3 mile/h Maximum Drawbar Pull 53729 lbf -
Hydraulic System
Spec Value Main System - Maximum Flow (× 2 pumps) - Travel 206 gal(US)/min Maximum Pressure - Implements 5076 psi Maximum Pressure - Travel 5076 psi Maximum Pressure - Swing 3771 psi -
Weights
Spec Value Operating Weight 133200 lb -
Service Refill Capacities
Spec Value Fuel Tank Capacity 188.9 gal (US) Cooling System 13.7 gal (US) Engine Oil (with filter) 10.6 gal (US) Swing Drive - Each 2.8 gal (US) Final Drive - Each 4 gal (US) Hydraulic System - Including Tank 145.3 gal (US) Hydraulic Tank 57.3 gal (US) DEF Tank 12.2 gal (US) -
Swing Mechanism
Spec Value Swing Speed 8 r/min Swing Torque 137924 ft·lbf -
Dimensions
Spec Value Boom MH 9.9 m (32'6") Stick Industrial 9.1 m (29'10") Shipping Height (with OPG, without stick) 11.8 ft Shipping Length (without stick) 45 ft Machine Length (with boom/stick) 46.5 ft Tail Swing Radius 12.3 ft Counterweight Clearance 4.7 ft Cab Height-Lowered 11.6 ft Cab Height-Lowered with OPG 11.8 ft Cab Height-Raised 19.8 ft Cab Height-Raised with OPG 20.3 ft Ground Clearance 2.33 ft Track Length to Center of Rollers 14.3 ft Track Length 17.6 ft Upper Frame Width (includes walkways and handrails) 12.6 ft Track Gauge-Retracted 10.6 ft Track Gauge- Extended 12.2 ft Undercarriage Width-Retracted,750 mm (30”) shoes 13.2 ft -
Working Ranges
Spec Value Maximum Reach 59.1 ft Boom MH Boom 9.9m (32'6") Stick Industrial 9.1 m (29'10") Maximum Height 58.5 ft Minimum Height 10 ft Minimum Swing Radius-Front 13.1 ft Maximum Depth 26.8 ft Boom Pin Height 39.8 ft -
Air Conditioning System
Spec Value Note (1) The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.2 kg (2.64 lb) of refrigerant which has a CO2 equivalent of 1.716 metric tonnes (1.892 tons).
Standard Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
BOOMS AND STICKS
- 9.9 m (32'6") Material Handler boom
CAB
- Advanced sound-suppressed TOPS cab with rubber mount
- High-resolution 254 mm (10") LCD touchscreen monitor
- Air suspension premium seat with headrest, heater, ventilator
CAT TECHNOLOGY
- VisionLink®
- Remote Flash
- Remote Troubleshoot
ELECTRICAL SYSTEM
- Maintenance-free battery
- LED exterior lights (integrated into storage box and mounted on boom and stick sides)
- Power fuse module
- Electronic Technician compatible
ENGINE
- 115 Amp alternator
- -32° C (-25° F) cold start capability
- 52° C (126° F) high-ambient cooling
- Automatic engine speed control
- Electric fuel priming pump
- Integrated precleaner air filter
- Three vertical side-by-side cooling system
HYDRAULIC SYSTEM
- SmartBoom™
- Electric main control valve
- Automatic warm up
- Automatic swing parking brake
- Hydraulic main pump
- Boom and stick lowering check valves
- Boom and stick regeneration circuit
- Medium pressure (grapple rotate) and cab riser valve
- High performance hydraulic return filter
- Two speed travel
- Fine swing capability
SAFETY AND SECURITY
- 2D E-fence
- Rear- and side-view cameras
- Right-hand handrail and hand hold
- Signaling/warning horn
- Secondary engine shutoff switch
- Caterpillar One Key security system
- Lockable external tool/storage box and fuel drain compartment
- Lockable disconnect switch
- Standard visibility mirror package
SERVICE AND MAINTENANCE
- Service platform with anti-skid plate and recessed bolts
- Sampling ports for Scheduled Oil Sampling (S·O·S℠)
- Grouped location for engine oil and fuel filters
- Integrated vehicle health management system
UNDERCARRIAGE AND STRUCTURES
- Variable Gauge undercarriage
- 750 mm (30") triple grouser track shoes
- 12 000 kg (26,460 lb) counterweight
- Electric main control valve
Optional Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
BOOMS AND STICKS
- 7.4 m (24'5") Industrial stick
- 9.1 m (29'10") Industrial stick
CAB
- Operator Protective Guards (OPG)
ELECTRICAL SYSTEM
- Generator, 25 kW with wiring to stick nose
SAFETY AND SECURITY
- Inspection lighting
- 360° visibility
