Caterpillar

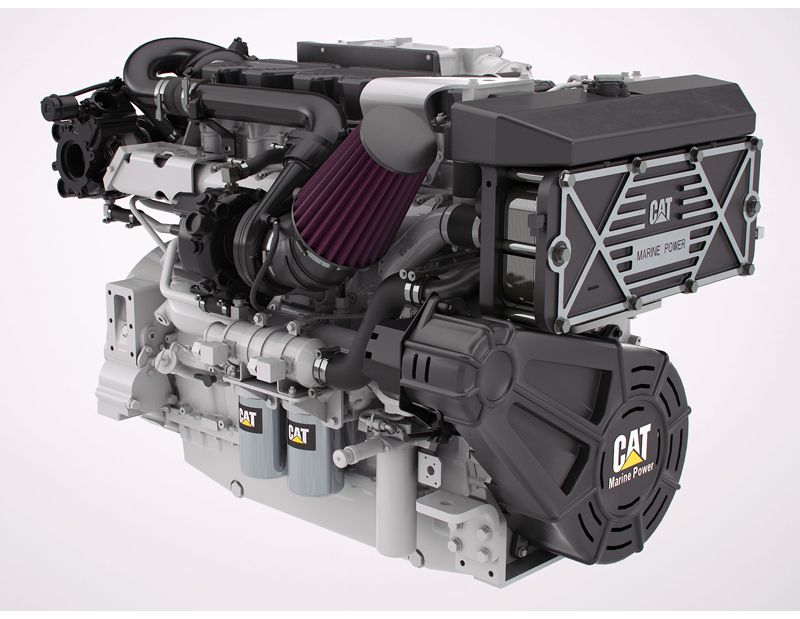

Cat C18 ACERT High Performance Propulsion Engine (Tier 3 Recreational)

The C18 ACERT marine propulsion engine has ratings for recreational applications that meet U.S. EPA Tier 3, IMO II, and EU Stage IIIA Regulations. This marine engine incorporates the latest core engine system innovations to provide maximum benefits in power density, performance, emissions, and fuel efficiency. Not only is it equipped with engine monitoring and protection features, it is also compatible with Cat display and vessel control systems. With this engine comes the unmatched worldwide marine support network including Cat dealers and hundreds of authorized marine dealers. Their combined experience and expertise, products and services, backup and support allow your recreational pleasure craft to remain precisely that — a pleasure.

Photos

Features

Specifications

  • Ratings
    Spec Value
    Power Range 1015-1150 mhp, 1001-1136 bhp, 747-847 bkW
  • Engine
    Spec Value
    Speed Range 2300 rpm
    Emissions EPA Tier 3, IMO II, EU IW
    Aspiration TA,TTA
    Bore 5.7 in
    Stroke 7.2 in
    Displacement 1106 in³
    Rotation from Flywheel End Counterclockwise
    Configuration In-line 6, 4-Stroke-Cycle Diesel
  • Dimensions & Weights
    Spec Value
    Maximum Height 51.2 in
    Maximum Dry Weight 4299 lb
    Maximum Width 47.4 in
    Maximum Length 76 in
    Minimum Length 73 in
    Minimum Dry Weight 4000 lb
    Minimum Width 44.6 in
    Minimum Height 47.2 in

Standard Equipment

AIR INLET SYSTEM

  • Aftercooler - sea water, corrosion resistant
  • Air cleaner/fumes disposal (closed system)
  • Turbocharger, jacket water cooled
  • Front-down and rear-down aftercooler condensate drains

CONTROL SYSTEM

  • Electronic diagnostics and fault logging
  • Cold mode start strategy
  • Engine and transmission monitoring (speed, temperature, pressure)
  • Electronic fuel/air ratio control
  • 70-pin customer connector
  • Engine Protection Mode for High Ambient Conditions
  • Three types of throttle inputs (primary/ secondary PWM, 0-5V, 4-20mA +/-)

COOLING SYSTEM

  • Sea water pump, rubber impeller, self-priming, gear driven
  • Sea water aftercooled
  • Jacket water pump, gear driven
  • JW Heat Exchanger - Titanium plate with integral fuel cooler expansion tank, and thermostat housing (fully open temp 92C)
  • Coolant recovery system

EXHAUST SYSTEM

  • Water-cooled exhaust manifold & turbocharger
  • 114.3 mm (4.5 in) ID round flanged exhaust outlet

FLYWHEELS & FLYWHEEL HOUSINGS

  • Flywheel Housing, SAE No. 1
  • Flywheel, 18 inch, 113 teeth
  • SAE standard rotation

FUEL SYSTEM

  • Fuel filter, RH service on Port, LH service on Starboard
  • Fuel transfer pump
  • Fuel priming pump
  • Hybrid fuel line design

LUBE SYSTEM

  • Crankcase breather
  • Oil cooler
  • Oil filter, spin-on, low profile, RH service on Port, LH service on
  • Oil pan, center sump
  • Dipstick, RH service on Port, LH service on Starboard
  • Oil pump, gear driven

POWER TAKE-OFFS

  • Hydraulic pump drive, SAE A, 11-tooth spline, 46 ft-lbs max torque, counterclockwise as viewed from the front of the engine with 1.41 x engine speed
  • Crankshaft pulley, 292 mm (11.5 in) two groove, 15.88 mm (0.63 in) width

PROTECTION SYSTEM

  • A4 ECM Electronic Engine Monitoring System provides customer programmable engine de-rate strategies to protect against adverse operating conditions

GENERAL

  • Front damper guard
  • Lifting eyes
  • RH or LH service options
  • Upper rear-facing customer wiring connector and Service Tool connection

Optional Equipment

CHARGING SYSTEM

  • Battery Chargers
  • Charging Alternators

FUEL SYSTEM

  • Primary Fuel Filter / Water Separator
  • Primary Fuel Filter

LUBE SYSTEM

  • Transmission Oil Cooler

POWER TAKE-OFFS

  • Crankshaft Pulleys

STARTING SYSTEM

  • Electric Starting Motor - Single 24 Volt
  • Battery Sets - 24 Volt - Dry

CONTROL SYSTEM

  • MECP I

INSTRUMENTATION

  • OEM Wiring Harness
  • Engine to Engine Harness
  • Instrument Panels
  • Transmission Sensors
