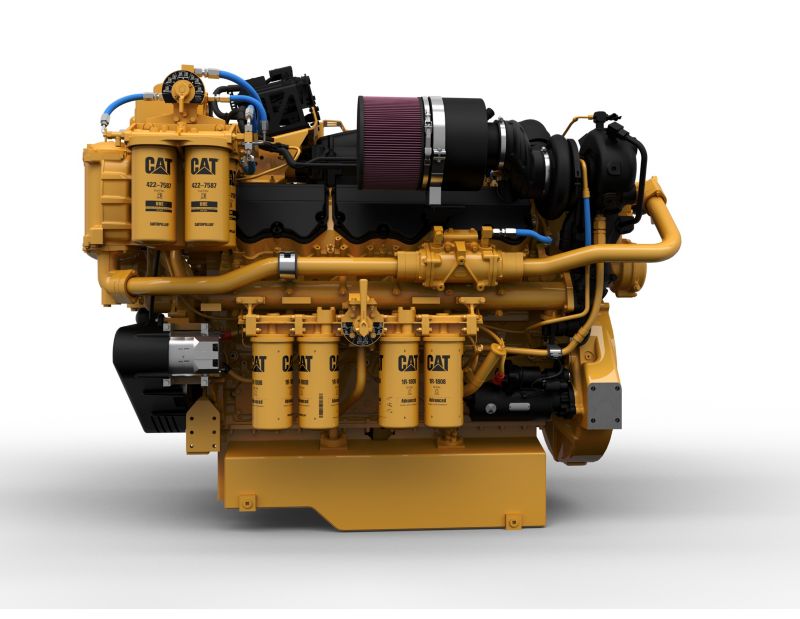

Cat C32 Auxiliary / Diesel Electric Propulsion Engine (IMO III)

Cat C32 Auxiliary / Diesel Electric Propulsion Engine (IMO III)

Photos

Features

Specifications

  • Power Rating
    Spec Value
    Minimum Rating 1047 BHP
    Maximum Rating 1332 BHP
  • Engine Specifications
    Spec Value
    Aspiration Turbocharged-aftercooled
    Displacement 1959 in³
    Stroke 6.38 in
    Rotation Counterclockwise from flywheel end
    Bore 5.71 in
    Configuration Vee 12, 4-stroke-cycle diesel
    Emissions IMO III emissions certified (SCR required)
    Cooling Heat exchanger or keel cooled
    Flywheel Housing SAE No. 0 with SAE No. 18 flywheel (136 teeth)
    Rated Engine Speed 1500 rpm
    Governor Electronic (A5 ECM)
    Oil Change Interval 750 hrs - deep pan
    Refill Capacity Lube Oil System w/ oil filter change: 146 L (38.5 gal) - deep pan
  • Dimensions & Weights
    Spec Value
    Maximum Engine Dry Weight 7160 lb
    Minimum Height 59.3 in
    Minimum Engine Dry Weight 6950 lb
    Minimum Width 57.1 in
    Maximum Length 89.8 in
    Minimum Length 83.9 in
    Maximum Width 57.3 in
    Maximum Height 63.5 in
  • Clean Emissions Module (CEM) - Dimensions
    Spec Value
    6 Brick Z-Flow - Weight 1246 lb
    6 Brick U-Flow - Width 56.9 in
    6 Brick U-Flow - Length 85 in
    6 Brick U-Flow - Height 23.5 in
    Dosing Cabinet - Width 18.8 in
    6 Brick Z-Flow - Height 23.5 in
    Dosing Cabinet - Weight 209 lb
    6 Brick Z-Flow - Length 147.7 in
    6 Brick U-Flow - Weight 1235 lb
    Dosing Cabinet - Length 37.4 in
    Dosing Cabinet - Height 22.8 in
    6 Brick Z-Flow - Width 43.5 in

Standard Equipment

AIR INLET SYSTEM

  • Separate circuit aftercooled (SCAC)
  • Closed crankcase fumes disposal

CONTROL SYSTEM

  • 24V control system

COOLING SYSTEM

  • Heat exchanger or Keel Cooling
  • Watercooled exhaust manifold and turbocharger
  • Hard seawater lines – no flexible hoses
  • Flanges for cooling connections, ANSI or DIN

FUEL SYSTEM

  • Duplex fuel filters with hybrid fuel lines
  • Shipped loose primary fuel filter with water separator
  • Fuel transfer and priming pump

LUBE SYSTEM

  • Oil fill, simplex filter and dipstick
  • Deep or shallow sump oil pan

MOUNTING SYSTEM

  • Adjustable front support mounting system

GENERAL

  • Right or left hand service sides
  • Customer wiring and service tool connector

Optional Equipment

ALARM AND PROTECTION

  • MECP I control panel
  • MECP III control panel with Cat® Alarm and Protection System

EXHAUST SYSTEM

  • Water-in-fuel and exhaust temperature sensors
  • Muffler

CHARGING SYSTEM

  • Charging alternator

FUEL SYSTEM

  • Manual or electric fuel priming pump
  • Fuel cooler

LUBE SYSTEM

  • Duplex oil filters

POWER TAKE-OFFS

  • Front drives including stub shaft and pump drive
  • Rear SAE A or B pump drives

STARTING SYSTEM

  • Starting motors – air, electric or redundant
