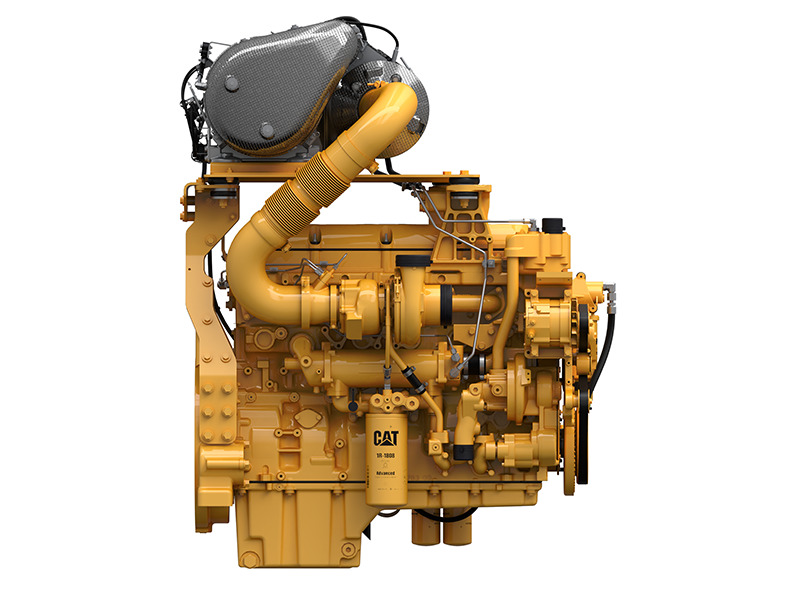

C13B

The Cat® C13B Industrial Diesel Engine is offered in ratings ranging from 340-430 bkW (456-577 bhp) @ 1800-2100 rpm. These ratings will meet EU Stage V,
U.S. EPA Tier 4 Final, Japan 2014, and Korea Tier 4 Final emission standards.

The C13B engines are ideal choices to power applications in agriculture, aircraft ground support, construction, forestry, general industrial, material handling, and mining.

Photos

Documents

Specifications

  • Power Rating
    Spec Value
    Minimum Power 340 bkW / 456 bhp
    Maximum Power 430 bkW / 577 bhp
    Rated Speed 1800-2100 rpm
  • Emission Standards
    Spec Value
    Emissions EU Stage V, U.S. EPA Tier 4 Final, Japan 2014, and Korea Tier 4 Final emission standards.
    Performance UN R120 for measurement of net power and specific fuel consumption
  • Engine Specifications
    Spec Value
    Engine Configuration In-Line 6, 4-Stroke-Cycle Diesel
    Bore 130 mm / 5.1 in
    Stroke 157 mm / 6.2 in
    Displacement 12.5 L / 762.8 in3
    Aspiration Turbocharged-Aftercooled (TA)
    Compression Ratio 15.8:1
    Combustion System Direct Injection
    Rotation (from flywheel end) Counterclockwise
    Cooling System Capacity (engine) 18.7 L / 19.8 qts
    Lube System (refill)* 34-41 L / 35.9-43.3 qts
  • Engine Dimensions (Approximate. Final dimensions dependent on selected options.)
    Spec Value
    Length 1274 mm / 50 in
    Width 994 mm / 39 in
    Height 1134 mm / 45 in
    Weight – Net Dry (Basic Operating Engine Without Optional Attachments) 1125 kg / 2480 lb
  • Aftertreatment Dimensions (Approximate. Final dimensions dependent on selected options.)
    Spec Value
    Length 896 mm / 35.3 in
    Width 807 mm / 31.8 in
    Height 460 mm / 18.1 in
    Weight 100 kg / 220 lb
