The Cat?� C13B engine supplies remarkable power and torque in a smaller, lighter engine package. With a aftertreatment that is 65% smaller and 54% lighter than its current equivalent and over 34 kW/L of power density, the C13B is designed to allow OEMs to downsize their engine platforms, lower installation costs and maximize uptime by providing long life in the toughest applications.
Caterpillar

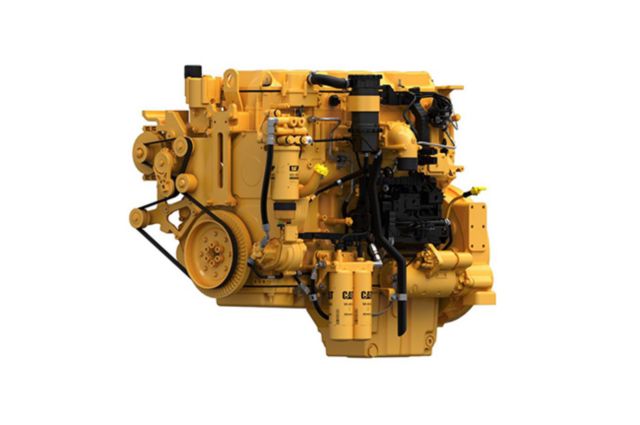

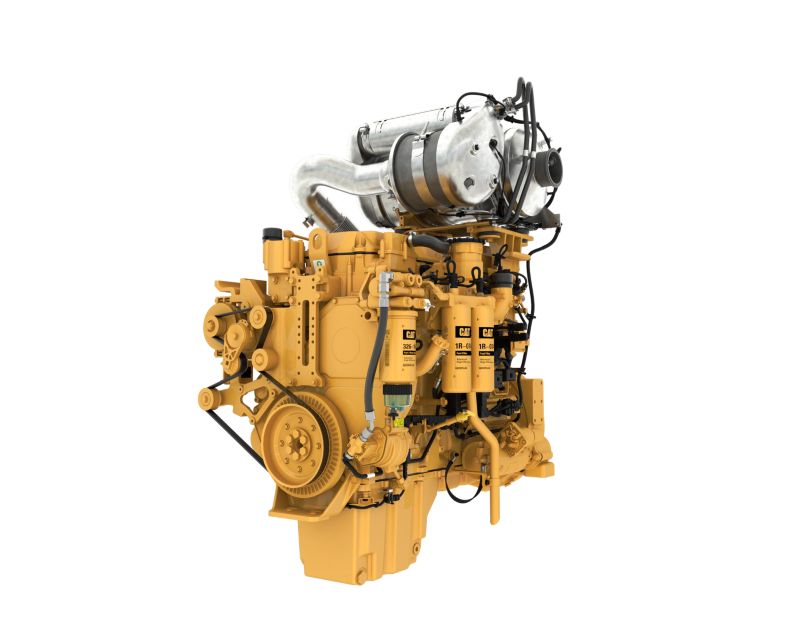

Cat?� C13B Diesel Engine
Photos
-
C13B Tier 4 Diesel Engines - Highly Regulated -
C13B Tier 4 Diesel Engines - Highly Regulated -
C13B Tier 4 Diesel Engines - Highly Regulated -
C13B Tier 4 Diesel Engines - Highly Regulated -
C13B Tier 4 Diesel Engines - Highly Regulated
Videos
360° View
Exterior
360° Exterior view. Double click on the image to zoom in on any area of the product.
Documents
Features
Installation
With a 65% reduction in size and 63% in weight from its previous engine equivalent, the Cat C13B is unparalled in supporting engine downsizing without an impact to overall performance. And with an absence of an EGR, the C13B provides a simplfied installation process, saving OEMs valauble time and costs.
Installation
With a 65% reduction in size and 63% in weight from its previous engine equivalent, the Cat C13B is unparalled in supporting engine downsizing without an impact to overall performance. And with an absence of an EGR, the C13B provides a simplfied installation process, saving OEMs valauble time and costs.
Advanced Features
Offering peak performance across a wide range of speed, the Cat C13B is optimized to perform at its best no matter what surprises the job site brings. And with 20% more power and 19% more torque than its predecessor engine, the C13 has never been more ready to take on the tough challenges operators meet of every day.
Advanced Features
Offering peak performance across a wide range of speed, the Cat C13B is optimized to perform at its best no matter what surprises the job site brings. And with 20% more power and 19% more torque than its predecessor engine, the C13 has never been more ready to take on the tough challenges operators meet of every day.
Ideal Applications

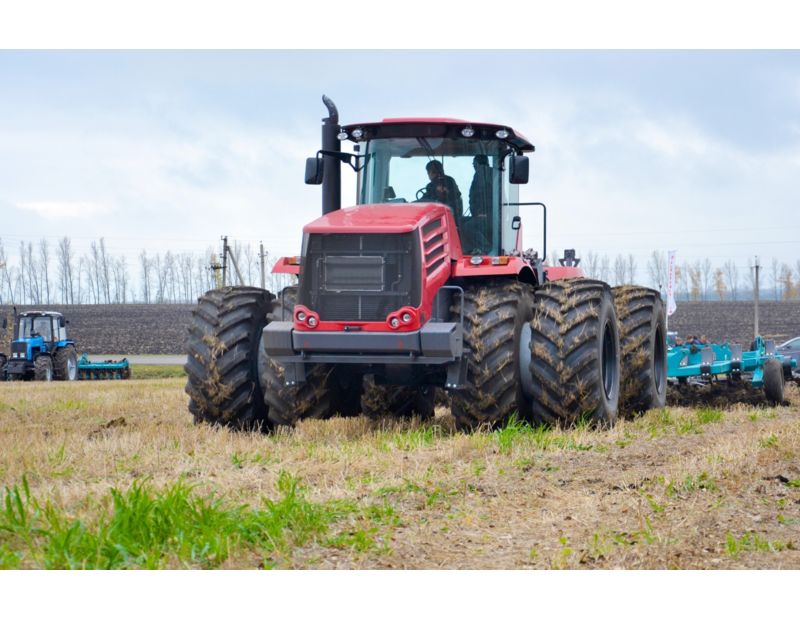

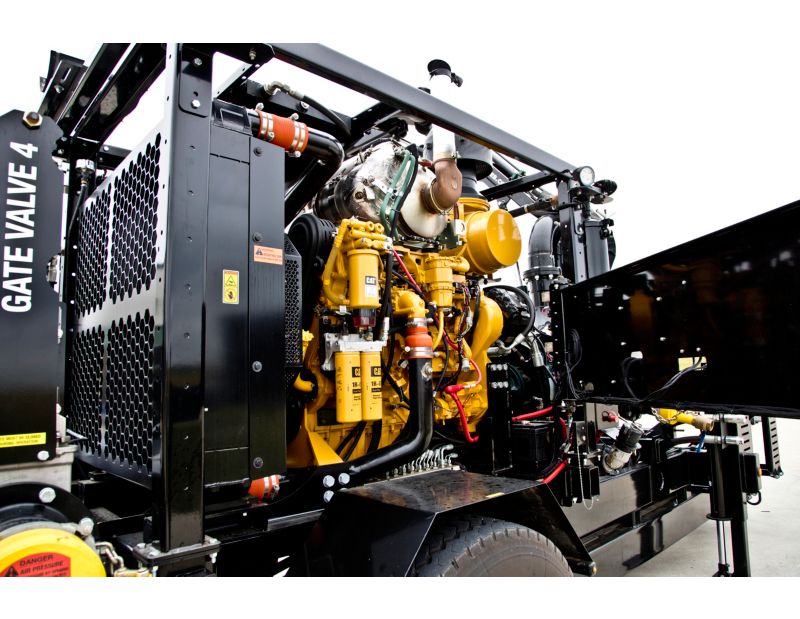

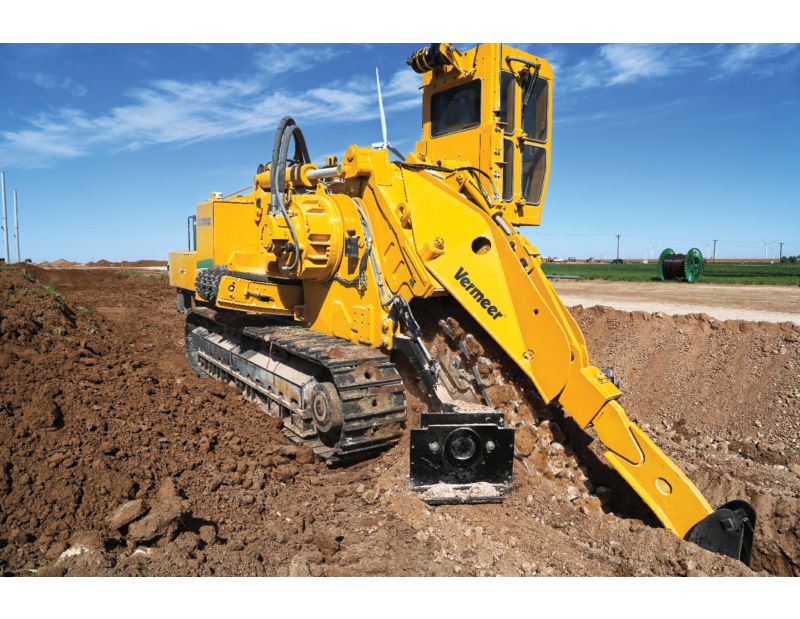

Industrial, agricultural and construction applications such as: Compressors • Trenchers • Chippers • Grinders • Irrigation equipment • Bore rigs • Drill rigs • Pumps • Hydraulic power units
Ideal Applications
Industrial, agricultural and construction applications such as: Compressors • Trenchers • Chippers • Grinders • Irrigation equipment • Bore rigs • Drill rigs • Pumps • Hydraulic power units
Total Cost of Ownership
The Cat C13B utilizes several technologies to deliver the lowest possible fluid consumption, including an overall fuel savings of 6% when compared to the C13 engine. And thanks to Caterpillar-patented technology the EGR has been eliminated, oil intervals are rated at 500 hours and 5,000 hours for ash services, helping OEMs and operators save on parts and service costs over the lifetime of the engine.
Total Cost of Ownership
The Cat C13B utilizes several technologies to deliver the lowest possible fluid consumption, including an overall fuel savings of 6% when compared to the C13 engine. And thanks to Caterpillar-patented technology the EGR has been eliminated, oil intervals are rated at 500 hours and 5,000 hours for ash services, helping OEMs and operators save on parts and service costs over the lifetime of the engine.
Cat Dealer Product Support
No matter where in the world the Cat C13B is, it’s backed by the reliable and extensive support the Cat dealer network offers across 192 countries. And for even more peace of mind, your Cat engine comes under warranty. See your Cat dealer for details.
Cat Dealer Product Support
No matter where in the world the Cat C13B is, it’s backed by the reliable and extensive support the Cat dealer network offers across 192 countries. And for even more peace of mind, your Cat engine comes under warranty. See your Cat dealer for details.
Safety
At Caterpillar, safety is a prioirty. It's why we put all our engines through rigorous rounds of testing and validation—including more than 120 mililon off-highway hours for the Cat C13B. We make our engines reliable, so operators can focus on keeping their work site safe, secure and in service.
Safety
At Caterpillar, safety is a prioirty. It's why we put all our engines through rigorous rounds of testing and validation—including more than 120 mililon off-highway hours for the Cat C13B. We make our engines reliable, so operators can focus on keeping their work site safe, secure and in service.
Specifications
-
Power Rating
Spec Value Maximum Power 577 hp Maximum Torque 1943 lb-ft @ 1400 rpm Rated Speed 1800-2100 rpm Minimum Power 456 hp -
Emission Standards
Spec Value Emissions EU Stage V, U.S. EPA Tier 4 Final, Korea Stage V, Japan 2014, China NRIV -
General
Spec Value Engine Configuration In-Line 6 Bore 5.1 in Stroke 6.2 in Displacement 762.8 in³ Compression Ratio 15.8:1 Aspiration Turbocharged-Aftercooled (TA) Combustion System Direct Injection Rotation from Flywheel End Counterclockwise Aftertreatment DOC+DPF+SCR -
Engine Dimensions - Approximate
Spec Value Length 50 in Width 39 in Height 45 in Weight - Net Dry - Basic Operating Engine Without Optional Attachments 2480 lb -
Aftertreatment Dimensions
Spec Value Length 35.3 in Width 31.8 in Height 18.1 in Weight 220 lb
Standard Equipment
Air Inlet System
- Turbocharged
- Air-to-Air Aftercooled
- Front or rear exhaust configurations available
Control System
- Electronic control system
- Over-foam wiring harness
- Automatic altitude compensation
- Power compensated for fuel temperature
- Configurable software features
- Engine monitoring system SAE J1939 broadcast and control
- Integrated Electronic Control Unit (ECU)
- Remote fan control
Cooling System
- Vertical or RH thermostat outlet
- Centrifugal water pump
- Guidance on cooling system design available through your dealer to ensure equipment reliability
Flywheels and Flywheel Housing
- Available SAE No. 1 power take-off with optional SAE B or SAE C power take-off drives. Engine power can also be taken from the front of the engine with optional attachments.
Fuel System
- Mechanical Electronic Unit Injector fuel system (MEUI-C)
- Primary fuel filter
- Secondary and tertiary fuel filters
- Fuel transfer pump
- Electronic fuel priming
Lube System
- Open crankcase ventilation system
- Oil cooler
- Oil filler
- Lube oil filter
- Oil dipstick
- Gear driven oil pump
- Choice of front, rear or center sumps
- Open crankcase ventilation system with fumes disposal (OCV filter system required for EU Stage V certification engines)
Power Take Off (PTO)
- SAE B or SAE C power take off (PTO) drives. Engine power can also be taken from the front of the engine on some applications.
General
- Caterpillar yellow paint, with optional colors available at request
- Vibration damper
- Lifiting eyes
