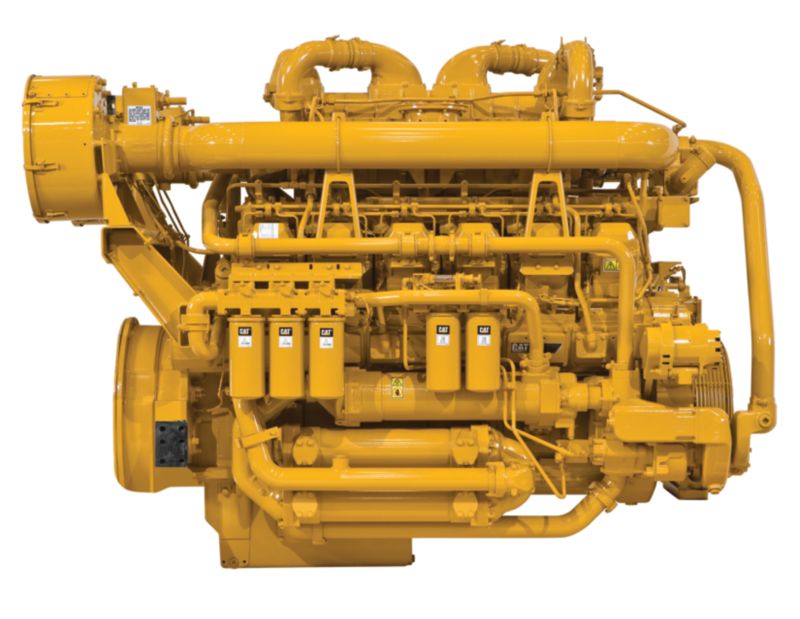

Cat® 3508B Industrial Diesel Engine

For your largest power needs in any environment, Cat® 3508B Industrial Diesel Engines offer the unsurpassed performance and durability your customers need to keep their industrial applications and operations running. They deliver high power output, proven reliability and excellent fuel efficiency. These engines maintain low operating costs to keep your customers profitable for years to come.

Photos

Features

Specifications

  • Power Rating
    Spec Value
    Maximum Power 1100 HP
    Maximum Torque 3211 lb-ft @ 1450 rpm
    Rated Speed 1800 rpm
    Minimum Power 1000 HP
  • Emission Standards
    Spec Value
    Emissions Non-Certified
  • General
    Spec Value
    Engine Configuration V-8, 4-Stroke-Cycle Diesel
    Bore 6.7 in
    Stroke 7.5 in
    Displacement 2105 in³
    Aspiration Turbocharged Aftercooled
    Rotation from Flywheel End Counterclockwise
    Aftertreatment -
  • Engine Dimensions - Approximate
    Spec Value
    Length 97 in
    Width 67 in
    Height 68 in
    Weight - Net Dry - Basic Operating Engine Without Optional Attachments 9500 lb

Standard Equipment

Air Inlet System

  • Aftercooler core, corrosion resistant coated (air side)
  • Air cleaner. Regular duty, dry, panel type with service indicators, turbocharger, jacket water aftercooled.
  • Turbocharger, rear mounted
  • Jacket water aftercooled

Control System

  • Governor, RH, 3161 with self contained synthetic oil sump
  • Air-fuel ratio control
  • Mechanical speed control, without torque control
  • Governor control
  • Positive locking

Cooling System

  • Thermostats and housing
  • Jacket water pump, centrifugal

Exhaust System

  • Exhaust manifold, dry

Flywheels and Flywheel Housing

  • SAE No. 0 flywheel
  • 151 flywheel teeth
  • SAE No. 0 flywheel housing
  • SAE standard rotation

Fuel System

  • Fuel filter, with service indicators, cartridge type with RH service
  • Fuel transfer pump

Instrumentation

  • Instrument Panel, RH
  • Engine oil pressure gauge
  • Fuel pressure gauge
  • Oil filter differential gauge
  • Jacket water temperature gauge
  • Service meter, electric
  • Tachometer

Lube System

  • Crankcase breather, top mounted
  • Oil cooler
  • Oil filler
  • Oil dipstick
  • Oil pump
  • Oil filter, cartridge type with RH service
  • Shallow oil pan
  • Fumes disposal (not installed)

Mounting System

  • Rails, mounting, engine length, 254 mm (10 in), industrial-type, C-channel.
  • Included on selected top level engines

Power Take Off

  • Accessory drive, upper RH
  • Front housing, single sided

Protection System

  • Junction box
  • Manual shutoff, RH
  • Safety shutoff protection, energized to shutdown
  • Low oil pressure, low idle 69 kPa (10 psi); high idle 207 kPa (30 psi)
  • Water temperature
  • Overspeed
  • 3161 governor solenoid energized to shutdown

Starting System

  • Starting switch

General

  • Vibration damper
  • Lifting eyes
  • Paint: Caterpillar yellow, with optional colors available at request
