Caterpillar

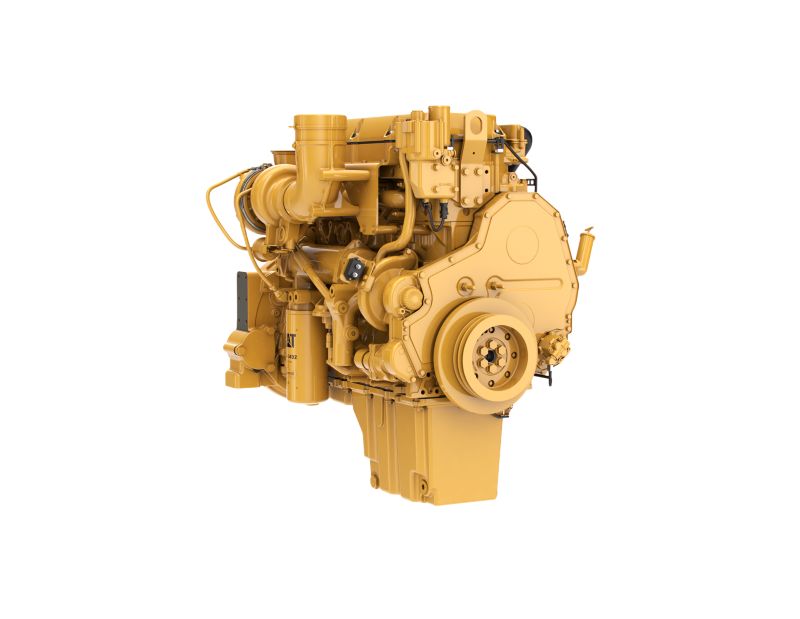

Cat® C11 Industrial Diesel Engine

The Cat® C11 Industrial Diesel Engine is offered in ratings ranging from 242-336 kW (325-451 hp). These ratings meet China Nonroad Stage III, Brazil MAR-1, and UN R96 Stage IIIA emission standards and UN R120 performance standards for measurement of net power and specific fuel consumption. Furthermore, this U.S. EPA Tier 3 certified engine can still be ordered as an engine replacement for machines currently taking U.S. EPA Tier 3 engines.

Photos

Features

Specifications

  • Power Rating
    Spec Value
    Maximum Power 451 HP
    Maximum Torque 1516 lb-ft @ 1400 rpm
    Rated Speed 1800-2100 rpm
    Minimum Power 325 HP
  • Emission Standards
    Spec Value
    Emissions China Nonroad Stage III, Brazil MAR-1, UN ECE R96 Stage IIIA, U.S. EPA Tier 3
  • General
    Spec Value
    Engine Configuration Inline 6, 4-Stroke-Cycle Diesel
    Bore 5.1 in
    Stroke 5.5 in
    Displacement 677.4 in³
    Compression Ratio 17.2:1
    Aspiration Turbocharged Aftercooled (TA)
    Combustion System Direct Injection
    Rotation from Flywheel End Counterclockwise
    Aftertreatment -
  • Engine Dimensions - Approximate
    Spec Value
    Length 47 in
    Width 42 in
    Height 47 in
    Weight - Net Dry - Basic Operating Engine Without Optional Attachments 2050 lb

Standard Equipment

Air Inlet System

  • Turbocharged
  • Air-to-Air Aftercooled

Control System

  • Electronic governing, PTO speed control
  • Programmable ratings
  • Automatic altitude compensation
  • Power compensation for fuel temperature
  • Programmable low and high idle and total engine limit
  • Electronic diagnostics and fault logging
  • Engine monitoring system SAE J1939 broadcast and control
  • ADEM™ A4 Electronic Control Unit (ECU)

Cooling System

  • Thermostats and housing, vertical outlet
  • Jacket water pump, centrifugal
  • Water pump, inlet

Exhaust System

  • Exhaust manifold, dry
  • Optional exhaust outlet

Flywheels and Flywheel Housing

  • SAE No. 1 flywheel housing

Fuel System

  • MEUI injection
  • Fuel filter, secondary (2 micron)
  • ACERT™ Technology
  • Fuel transfer pump
  • Fuel priming pump

Lube System

  • Crankcase breather
  • Oil cooler
  • Oil filler
  • Lube oil filter
  • Front sump oil pan
  • Oil dipstick
  • Gear driven oil pump

General

  • Vibration damper
  • Lifting eyes
  • Cold start capability to -20° C (-4° F)
  • Paint: Caterpillar yellow, with optional colors available at request
