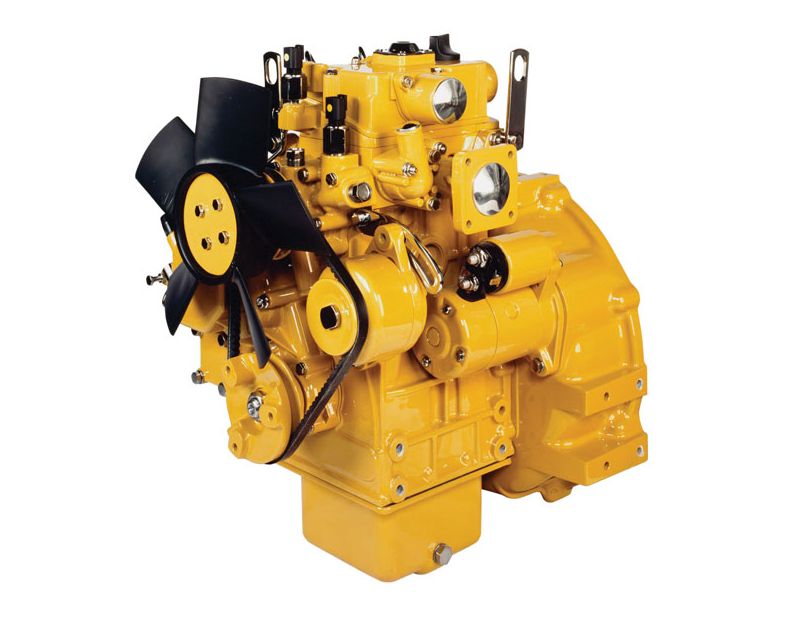

Cat® C0.5 Diesel Engine

Cat®C0.5 Industrial Diesel Engines deliver impressive performance throughout a wide speed range with exceptional power density. Their ultra-compact package size and extensive choice of options ensures these engines are ideal for a wide range of small, off road applications. Single-side servicing improves ease of maintenance and lowers overall owner operating costs. Industries and applications powered by C0.5 engines include Auxiliary Power Units, Compactors/Rollers, Mobile Earthmoving Equipment, Mobile Light Towers and Turf and Landscaping. C0.5 engines, with ratings: 8.2-10.2 bkW (11.0-13.7 bhp) @ 2800-3600 rpm are available using U.S. EPA Flexibility. They are available for Europe and, depending on applicable emission standards, may be introduced in other regulated and non-regulated areas. Nonroad engines less than 19 kW (25 hp) are not currently subject to EU emission standards.

Photos

Features

Specifications

  • Power Rating
    Spec Value
    Maximum Power 13.7 HP
    Maximum Torque 22 lb-ft @ 2000 rpm
    Rated Speed 2800-3600 rpm
    Minimum Power 11 HP
  • Emission Standards
    Spec Value
    Emissions U.S. EPA Tier 4 Interim Equivalent. Nonroad engines less than 19 kW (25 hp) are not currently subject to EU emission standards.
  • General
    Spec Value
    Engine Configuration Inline 2, 4-Stroke-Cycle Diesel
    Bore 2.6 in
    Stroke 2.8 in
    Displacement 31 in³
    Compression Ratio 23.5:1
    Aspiration Naturally Aspirated (NA)
    Combustion System Indirect Injection
    Rotation from Flywheel End Counterclockwise
    Aftertreatment -
  • Engine Dimensions - Approximate
    Spec Value
    Length 16 in
    Width 14.6 in
    Height 20.6 in
    Weight - Net Dry - Basic Operating Engine Without Optional Attachments 126 lb

Standard Equipment

Air Inlet System

  • Inlet manifold with choice of inlets.

Control System

  • Alternator 12 volt 14 amp
  • Starter motor 12 volt
  • Glow plug starting aid

Cooling System

  • Belt-driven coolant pump
  • Coolant temperature switch
  • Choice of cooling fans

Flywheel and Flywheel Housing

  • SAE No. 6 1/2 flywheel
  • Choice of SAE No. 5 or standard backplate flywheel housing

Fuel System

  • Fuel injection pump
  • Spin-on fuel filter
  • Electronic Shut-off Solenoid (ESOS)

Lube System

  • Closed circuit breather
  • Spin-on lube oil filter
  • Lube oil pressure switch
  • Lube oil sump

General

  • Cast iron, engine block
  • Cast iron exhaust manifold--side outlet
  • Cold start capability to -20° C (-4° F)
  • Gradeability 35° continuous
  • Paint: Caterpillar yellow, with optional colors available at request
