The Cat?� C32 Industrial Diesel Engine is offered in ratings ranging from 746-895 bkW (1000-1200 bhp) @ 1800 rpm. These ratings meet U.S. EPA Tier 4 Final emission standards.
Caterpillar

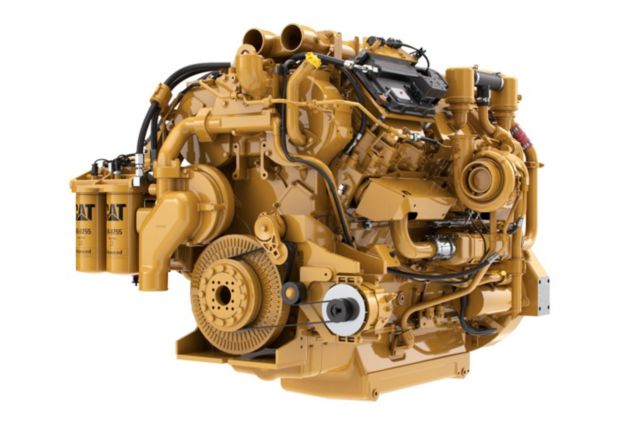

Cat?� C32 Diesel Engine
Photos
-
C32 Tier 4 Diesel Engines - Highly Regulated
360° View
Exterior
360° Exterior view. Double click on the image to zoom in on any area of the product.
Features
Advanced Features
The key to success for any machine is avoiding downtime as much as possible. Thanks to the DEF-free, the dual-can DOC Cat C32 with transparent regeneration, operators can stay focused on being productive for the long haul.
Advanced Features
The key to success for any machine is avoiding downtime as much as possible. Thanks to the DEF-free, the dual-can DOC Cat C32 with transparent regeneration, operators can stay focused on being productive for the long haul.
Total Cost of Ownership
Optimized to meet some of the most demanding operating cycles of just about any machine, the DEF-free Cat C32 can help owners and operators save on parts costs while also remaining maintenance-free for the engine's lifetime.
Total Cost of Ownership
Optimized to meet some of the most demanding operating cycles of just about any machine, the DEF-free Cat C32 can help owners and operators save on parts costs while also remaining maintenance-free for the engine's lifetime.
Cat Dealer Product Support
Bigger is better and that’s because the Cat C32 comes standard with a world-class global dealer network support and simplified service routines. Not to mention an included warranty. See your Cat dealer for details.
Cat Dealer Product Support
Bigger is better and that’s because the Cat C32 comes standard with a world-class global dealer network support and simplified service routines. Not to mention an included warranty. See your Cat dealer for details.
Safety
Built to meet Caterpillar's strict safety standards and customers' most demanding work sites throughout the world, the Cat C32 is tried and tested to be safe and secure no matter where the job site is.
Safety
Built to meet Caterpillar's strict safety standards and customers' most demanding work sites throughout the world, the Cat C32 is tried and tested to be safe and secure no matter where the job site is.
Specifications
-
Power Rating
Spec Value Maximum Power 1200 hp Maximum Torque 4056 lb-ft @ 1200 rpm Rated Speed 1800 rpm Minimum Power 1000 hp -
Emission Standards
Spec Value Emissions U.S. EPA Tier 4 Final -
General
Spec Value Engine Configuration V-12 Bore 5.7 in Stroke 6.4 in Displacement 1958.9 in³ Compression Ratio 15.0:1 Aspiration Twin Turbocharged Aftercooled (TTA) Combustion System Direct Injection Rotation from Flywheel End Counterclockwise Aftertreatment DOC -
Engine Dimensions - Approximate
Spec Value Length 73.8 in Width 63 in Height 53.9 in Weight - Net Dry - Basic Operating Engine Without Optional Attachments 6625 lb
Standard Equipment
Air Inlet System
- Turbocharged
- Air-to-Air Aftercooled
Control System
- Electronic control system
- Over-foam wiring harness
- Automatic altitude compensation
- Power compensated for fuel temperature
- Configurable software features
- Engine monitoring system SAE J1939 broadcast and control
Cooling System
- Thermostats and housing, vertical outlet
- Jacket water pump, centrifugal
- Water pump, inlet
Exhaust System
- Exhaust manifold, dry
- Optional exhaust outlet
Flywheels and Flywheel Housing
- Choice of SAE No. 0 or SAE No. 1 flywheel housing
Fuel System
- MEUI injection
- Fuel filter, secondary (2 micron)
- Electronic fuel priming
Lube System
- Open crankcase ventilation system
- Oil cooler
- Oil filler
- Lube oil filter
- Rear sump oil pan
- Oil dipstick
- Gear driven oil pump
General
- Paint: Caterpillar yellow, with optional colors available at request
