The C7.1 Industrial Diesel Engine is offered in ratings from 129-225 bkW (172-302 bhp) @ 2200 rpm and meets U.S. EPA Tier 4 Final, EU Stage V emission standards. Industries and applications powered by C7.1 engines include: Agriculture, Aircraft Ground Support, Bore/Drill Rigs, Chippers/Grinders, Combines/Harvesters, Compactors/Rollers, Compressors, Construction, Cranes, Crushers, Feller Bunchers, Forestry, Forklifts, General Industrial, Hydraulic Power Units, Irrigation Equipment, Loaders/Forwarders, Material Handling, Mining, Mobile Earthmoving Equipment, Mobile Sweepers, Paving Equipment, Pumps, Skidders, Specialty Ag Equipment, Sprayers, Trenchers and Underground Mining Equipment.
Caterpillar

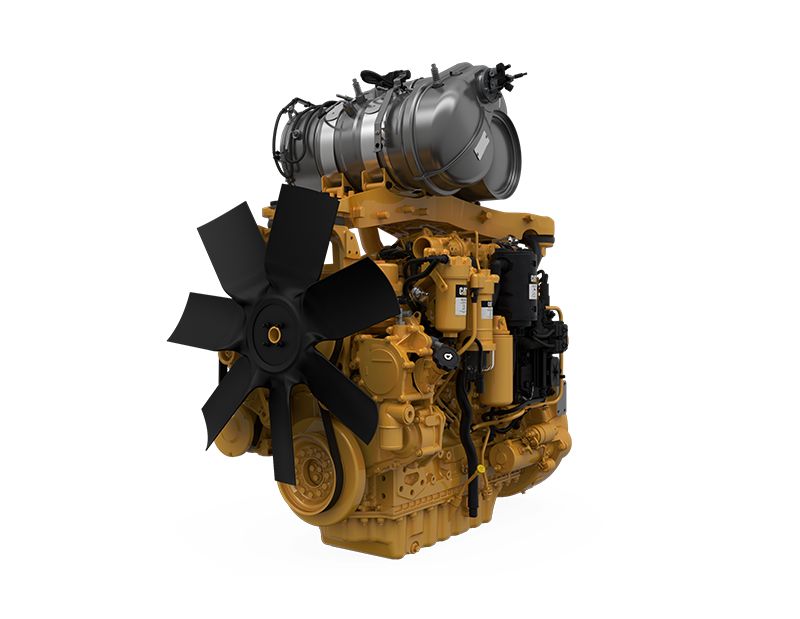

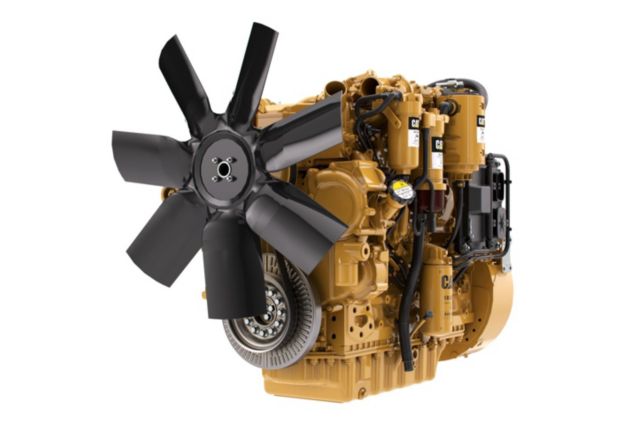

Cat® C7.1 ACERT™ Diesel Engine
Photos
-
C7.1 Tier 4 Diesel Engines - Highly Regulated
360° View
Exterior
360° Exterior view. Double click on the image to zoom in on any area of the product.
Documents
Features
Installation
Boasting one of Caterpillar's most modular engine designs to date, the Cat C7.1 also features an engine-mounted aftertreatment that saves OEMs valuable time and space when installing into a wide variety of machines—especially industrial and construction applications. OEMs also enjoy a 20% length, 5% height and 40% weight reduction when downsizing from 9-liter platforms.
Installation
Boasting one of Caterpillar's most modular engine designs to date, the Cat C7.1 also features an engine-mounted aftertreatment that saves OEMs valuable time and space when installing into a wide variety of machines—especially industrial and construction applications. OEMs also enjoy a 20% length, 5% height and 40% weight reduction when downsizing from 9-liter platforms.
Advanced Features
The Cat C7.1 uses passive regeneration technology, so operators can continue to perform their toughest tasks, in the most severe environments, without having to wait on the engine.
Advanced Features
The Cat C7.1 uses passive regeneration technology, so operators can continue to perform their toughest tasks, in the most severe environments, without having to wait on the engine.
Ideal Applications
Industrial, agricultural and construction applications such as: Pumps • Compressors • Chippers • Grinders • Asphalt paving equipment • Hydraulic power units • Bore rigs • Drill rigs • Tractors
Ideal Applications
Industrial, agricultural and construction applications such as: Pumps • Compressors • Chippers • Grinders • Asphalt paving equipment • Hydraulic power units • Bore rigs • Drill rigs • Tractors
Total Cost of Ownership
The benefits to downsizing are many, including an 18% decrease in overall fuel consumption when downsizing from a 6-cylinder engine. With an added 3-4% decrease in overall DEF consumption and EGR integration, the cost savings don't take long to add up.
Total Cost of Ownership
The benefits to downsizing are many, including an 18% decrease in overall fuel consumption when downsizing from a 6-cylinder engine. With an added 3-4% decrease in overall DEF consumption and EGR integration, the cost savings don't take long to add up.
Cat Dealer Product Support
Scheduled maintenance, included warranty, reliable dealer service and a comprehensive global dealer support network—it’s all standard with the Cat C7.1. See your Cat dealer for details.
Cat Dealer Product Support
Scheduled maintenance, included warranty, reliable dealer service and a comprehensive global dealer support network—it’s all standard with the Cat C7.1. See your Cat dealer for details.
Safety
Validated with thousands of hours of field testing, the Cat C7.1 is built to meet Caterpillar's strict safety standards and customers' most demanding work sites throughout the world.
Safety
Validated with thousands of hours of field testing, the Cat C7.1 is built to meet Caterpillar's strict safety standards and customers' most demanding work sites throughout the world.
Specifications
-
Power Rating
Spec Value Maximum Power 320 HP Maximum Torque 935 lb-ft @ 1400 rpm Rated Speed 2200 rpm Minimum Power 172 HP -
Emission Standards
Spec Value Emissions U.S. EPA & CARB Tier 4 Final, EU Stage V -
General
Spec Value Engine Configuration In-Line 6 Bore 4.1 in Stroke 5.3 in Displacement 427.7 in³ Compression Ratio 16.5:1 Aspiration Turbocharged-Aftercooled (TA) or Series Turbocharged Aftercooled (TTA) Combustion System Direct Injection Rotation from Flywheel End Counterclockwise Aftertreatment DOC+DPF+SCR -
Engine Dimensions - Approximate
Spec Value Length 41.9 in Width 31.4 in Height 35.9 in Weight - Net Dry - Basic Operating Engine Without Optional Attachments 1658 lb -
Aftertreatment Dimensions
Spec Value Length 29 in Width 30.3 in Height 18.1 in Weight 236 lb -
Aftertreatment Dimensions*
Spec Value Diameter 13.3 in
Standard Equipment
Air Inlet
- Standard air cleaners
Control System
- Full electronic control system, all connectors and wiring looms waterproof and designed to withstand harsh off-highway environments
- Flexible and configurable software features and well-supported SAE J1939 CAN bus enables highly integrated machines
Cooling System
- Top tank temperature 108° C (226° F) as standard to minimize cooling pack size
- 50:50 water glycol mix
- Guidance on cooling system design available through your dealer to ensure equipment reliability
Flywheels and Flywheel Housing
- Wide choice of drivetrain interfaces, including SAE No. 1, SAE No. 2, and SAE No. 3 configurations
Fuel System
- Electronic high pressure common rail
- Innovative filter design to ensure maximum protection of the engine
Lube System
- Wide choice of sumps for different applications
General
- Paint: Caterpillar yellow, with optional colors available on request
U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 (Tier 4 Final) Aftertreatment/ Clean Emissions Control Equipment
- Clean Emissions Module (CEM), consisting of Diesel Particulate Filter (DPF) and Diesel Oxidation Catalyst (DOC)
- NOx Reduction System (NRS)
- Selective Catalytic Reduction (SCR)
- 3" flex pipe connection with straight, 45°, and 90° options for flexibility
