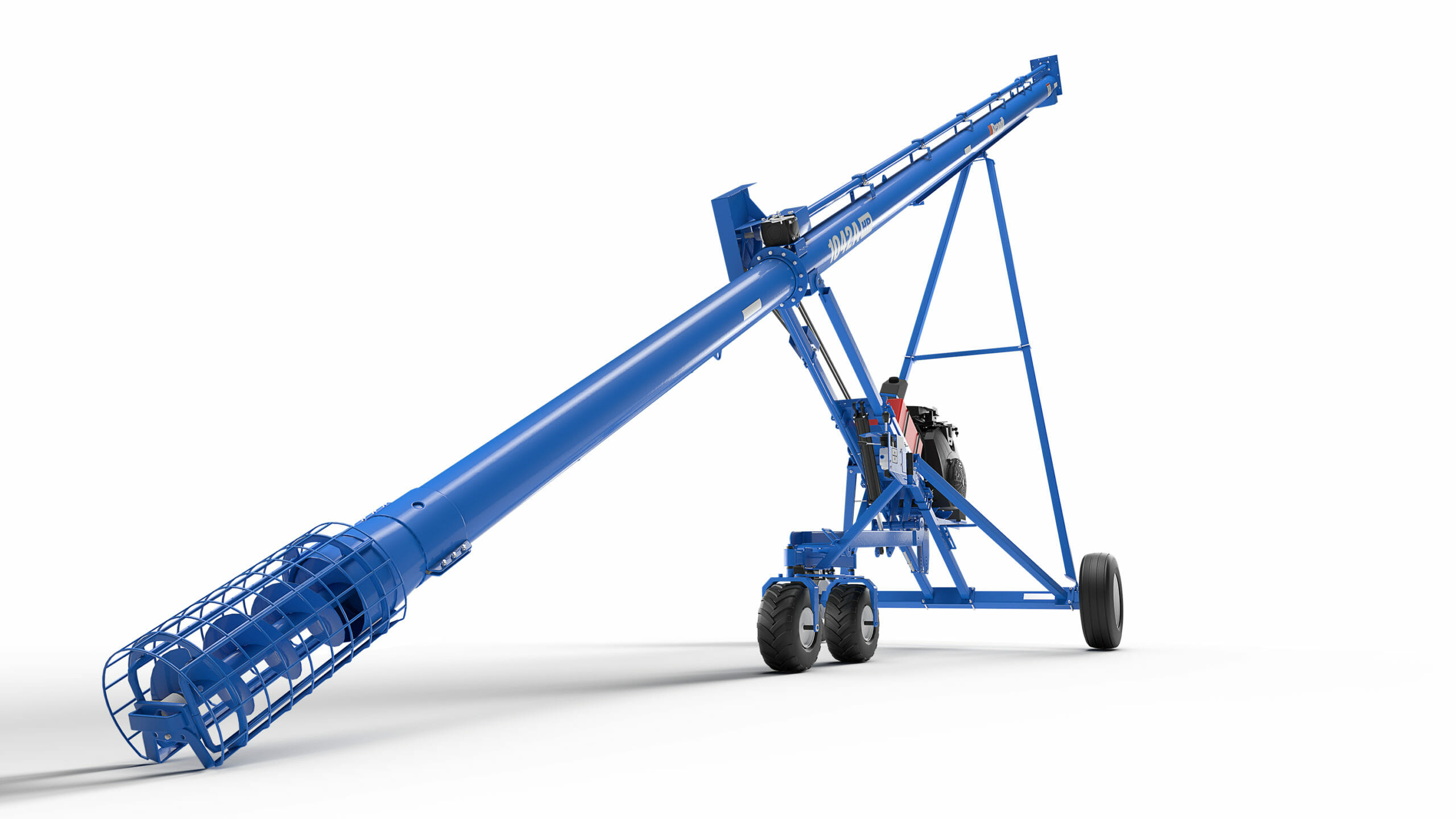

Brandt Transport Augers

your best harvest yet

Brandt Transport Augers deliver the reliability and performance that you need to stay productive, every day.

The stable undercarriage design of Brandt Transport Augers offers optimum discharge and intake reach at any height. Brandt’s Extended Life Flighting – raised flighting profile and strengthened wear areas – keep them running longer, while heavy-duty chain drives and heat-treated sprockets provide added reliability. The entire length of the driveshaft is fully guarded to protect from weathering, improve operator safety, and reduce required maintenance.

Move your transport auger with ease with Brandt’s auger mover systems. Hydraulically powered using ring gear drives mounted to the auger wheels, they can be easily engaged and disengaged for switching between transport and working setups. The EZMOVE system features joystick-controlled hydraulic steering designed to work both in the yard and out in the field. The Brandt AugerMOVER, with the controls and steering readily accessible along the side of the auger, maneuvers your transport auger with ease using manual steering.

In addition to standard Transport Augers, Brant offers High Performance (HP) and Low Profile Transport Augers. Brandt’s HP Transport Augers offer 23% more capacity than a standard auger of the same size due to the enlarged HP Intake, which pulls more grain into the flighting and keeps the tube full. Available on all 8″ and 10″ auger models, Brandt’s Low Profile Transport Augers provide the maximum clearance needed to get in place and the capacity required to keep your operation moving. The Low Profile Auger intake uses Extended Life Flighting, a tapered transition, and a self-leveling hopper to maximize capacity and ease of use when every second counts to get the job done.

Photos

Specifications

  • 832A
    Spec Value
    Standard - Capacity 3,200 bu/hr
    Standard - Recommended horsepower gas/diesel/PTO 20
    Standard - Recommended horsepower electric 10
    HP - Capacity 3,700 bu/hr
    HP - Recommended horsepower gas/diesel/PTO 20
    HP - Recommended horsepower electric 10
    Length 32'
    Height lowered 9'5"
    Height raised 21'6"
    Reach lowered 10'10"
    Reach raised 9'
    Reach intake 11' (Low-profile intake option available)
  • 837A
    Spec Value
    Standard - Capacity 3,200 bu/hr
    Standard - Recommended horsepower gas/diesel/PTO 23
    Standard - Recommended horsepower electric 10
    HP - Capacity 3,700 bu/hr
    HP - Recommended horsepower gas/diesel/PTO 23
    HP - Recommended horsepower electric 15
    Length 37'
    Height lowered 9'1"
    Height raised 25'
    Reach lowered 13'3"
    Reach raised 10'10"
    Reach intake 12'1" (Low-profile intake option available)
  • 842A
    Spec Value
    Standard - Capacity 3,200 bu/hr
    Standard - Recommended horsepower gas/diesel/PTO 25
    Standard - Recommended horsepower electric 15
    HP - Capacity 3,700 bu/hr
    HP - Recommended horsepower gas/diesel/PTO 25
    HP - Recommended horsepower electric 15
    Length 42'
    Height lowered 9'1"
    Height raised 28'1"
    Reach lowered 15'7"
    Reach raised 12'10"
    Reach intake 12'11" (Low-profile intake option available)
  • 847A
    Spec Value
    Standard - Capacity 3,200 bu/hr
    Standard - Recommended horsepower gas/diesel/PTO 25
    Standard - Recommended horsepower electric 15
    HP - Capacity 3,700 bu/hr
    HP - Recommended horsepower gas/diesel/PTO 25
    HP - Recommended horsepower electric 20
    Length 47'
    Height lowered 10'4"
    Height raised 32'
    Reach lowered 17'4"
    Reach raised 13'10"
    Reach intake 15'3" (Low-profile intake option available)
  • 852A
    Spec Value
    Standard - Capacity 3,200 bu/hr
    Standard - Recommended horsepower gas/diesel/PTO 27
    Standard - Recommended horsepower electric 15
    HP - Capacity 3,700 bu/hr
    HP - Recommended horsepower gas/diesel/PTO 27
    HP - Recommended horsepower electric 20
    Length 52'
    Height lowered 10'4"
    Height raised 34'4"
    Reach lowered 19'10"
    Reach raised 16'1"
    Reach intake 16'8" (Low-profile intake option available)
  • 862A
    Spec Value
    Standard - Capacity 3,200 bu/hr
    Standard - Recommended horsepower gas/diesel/PTO 25
    Standard - Recommended horsepower electric 20
    HP - Capacity 3,700 bu/hr
    HP - Recommended horsepower gas/diesel/PTO 35
    HP - Recommended horsepower electric 25
    Length 62'
    Height lowered 11'8"
    Height raised 42'2"
    Reach lowered 25'
    Reach raised 18'5"
    Reach intake 18' (Low-profile intake option available)
  • 1032A
    Spec Value
    Standard - Capacity 5,000 bu/hr
    Standard - Recommended horsepower gas/diesel/PTO 33
    Standard - Recommended horsepower electric 20
    HP - Capacity 6,200 bu/hr
    HP - Recommended horsepower gas/diesel/PTO 35
    HP - Recommended horsepower electric 25
    Length 32'
    Height lowered 9'3"
    Height raised 21'5"
    Reach lowered 10'8"
    Reach raised 9'
    Reach intake 11' (Low-profile intake option available)
  • 1037A
    Spec Value
    Standard - Capacity 5,000 bu/hr
    Standard - Recommended horsepower gas/diesel/PTO 35
    Standard - Recommended horsepower electric 20
    HP - Capacity 6,200 bu/hr
    HP - Recommended horsepower gas/diesel/PTO 35
    HP - Recommended horsepower electric 25
    Length 37'
    Height lowered 9'1"
    Height raised 25'1"
    Reach lowered 13'7"
    Reach raised 10'9"
    Reach intake 12'1"
  • 1042A
    Spec Value
    Standard - Capacity 5,000 bu/hr
    Standard - Recommended horsepower gas/diesel/PTO 35
    Standard - Recommended horsepower electric 25
    HP - Capacity 6,200 bu/hr
    HP - Recommended horsepower gas/diesel/PTO 35
    HP - Recommended horsepower electric 25
    Length 42'
    Height lowered 10'5"
    Height raised 28'2"
    Reach lowered 15'3"
    Reach raised 12'9"
    Reach intake 12'11" (Low-profile intake option available)
  • 1052A
    Spec Value
    Standard - Capacity 5,000 bu/hr
    Standard - Recommended horsepower gas/diesel/PTO 35
    Standard - Recommended horsepower electric 30
    HP - Capacity 6,200 bu/hr
    HP - Recommended horsepower gas/diesel/PTO 35
    HP - Recommended horsepower electric 30
    Length 52'
    Height lowered 10'3"
    Height raised 34'6"
    Reach lowered 19'8"
    Reach raised 16'
    Reach intake 16'10" (Low-profile intake option available)
  • 1340A
    Spec Value
    Standard - Capacity 9,000 bu/hr
    Standard - Recommended horsepower gas/diesel/PTO 49
    Standard - Recommended horsepower electric 30
    Length 40'
    Height lowered 11'6"
    Height raised 21'
    Reach lowered 21'3"
    Reach raised 15'5"
    Reach intake 13'
