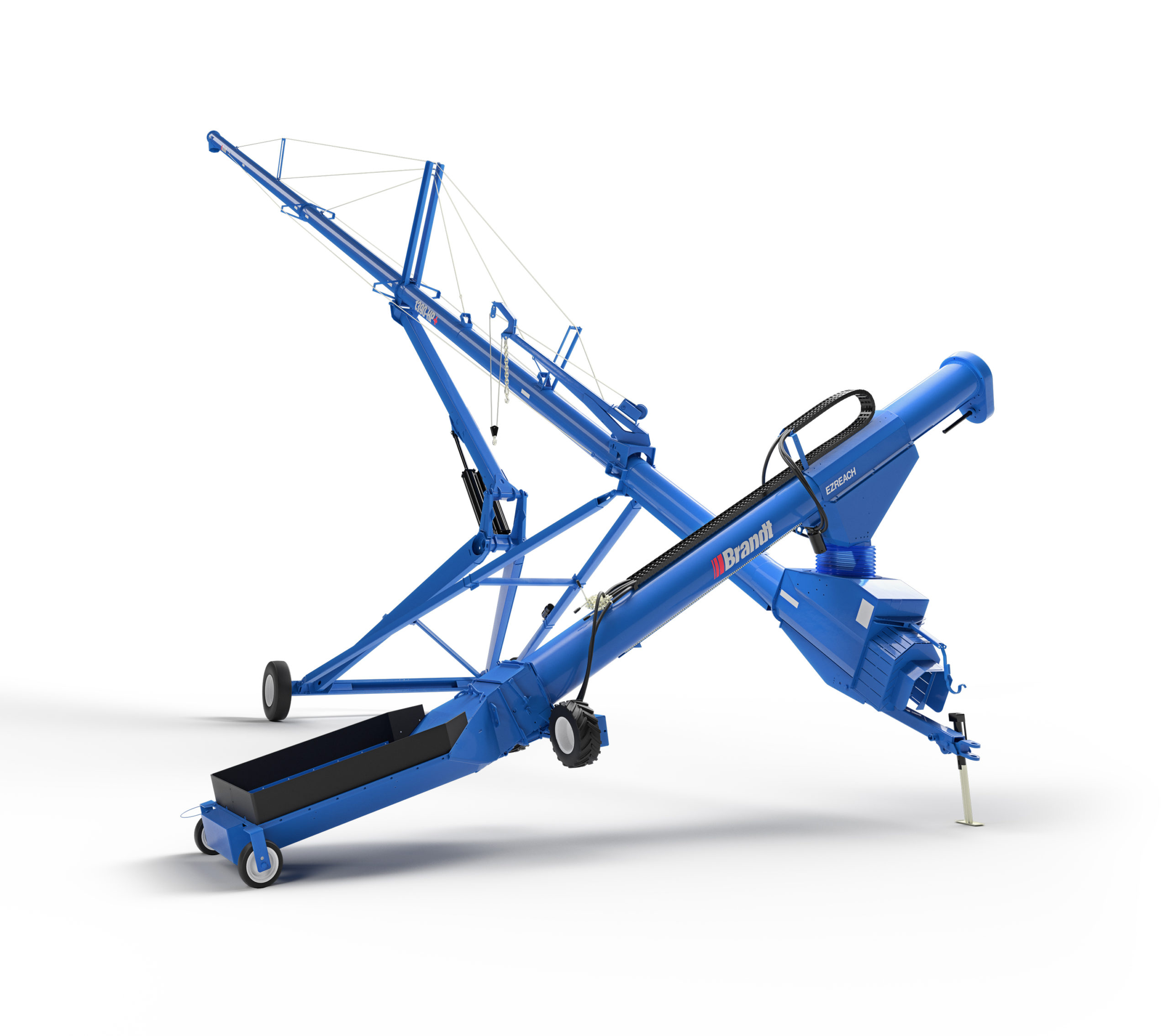

Brandt Swing Away Augers

Harvest with Confidence

Get ready for your best harvest yet with reliable, efficient, and easy-to-use Brandt Swing Away Augers.

Brandt Swing Away Augers have been redesigned with cutting-edge technology for increased capacity so you can reduce your truck unload times and get back to the field faster. Brandt’s design optimizes the flow of grain from the hopper through the swing tube and into the main auger for higher capacities and less flow resistance.

Brandt’s low profile, self-leveling hoppers are designed for easy positioning and maximum clearance to make moving large amounts of grain fast and easy. The scissor lift undercarriage allows for greater reach and clearance while maintaining stability and safety.

Maintenance is simple with easily accessible access doors, gearbox, and u-joints; a completely sealed transition spout to keep moisture out and product in; and the ability to reverse the auger for thorough cleanout.

The optional Auger-Steer system adds hydraulically controlled wheels for easier maneuvering in tight spots or around sharp corners. Plus, the ability to pivot the wheels and control a precise spout location makes lining up to the bin hole easier.

The Brandt HP Open Top Auger is another option to consider and is the perfect companion for the Brandt GrainDeck Drive-Over Conveyor. Simply drive over the GrainDeck and let your equipment do the rest. The high-capacity conveyor feeds the open top auger boot on the HP Auger, unloading your trucks pain-free and fast. The traditional Swing Away auger boot is replaced with the Open Top collapsible hopper at the intake end of the main auger allowing the GrainDeck to easily feed the Auger.

With a variety of models, Brandt has a swing-away auger that’s right for you – ranging from the 10HP with a capacity of 7,200 bushels per hour to the 16HP built to handle the pressure of moving large amounts of grain in a hurry at 23,000 bushels per hour.

Photos

Specifications

  • 10HP Swing Away Augers - 1060 HP
    Spec Value
    Capacity 7,200 bu/hr
    Recommended PTO Horsepower 95
    Length 60'
    Height lowered 9'8"
    Height raised 42'
    Reach lowered 25'6"
    Reach raised 16'6"
  • 10HP Swing Away Augers - 1070HP
    Spec Value
    Capacity 7,200 bu/hr
    Recommended PTO Horsepower 105
    Length 70'
    Height lowered 11'
    Height raised 48'6"
    Reach lowered 35'6"
    Reach raised 22'6"
  • 10HP Swing Away Augers - 1080HP
    Spec Value
    Capacity 7,200 bu/hr
    Recommended PTO Horsepower 115
    Length 80'
    Height lowered 11'6"
    Height raised 52'9"
    Reach lowered 42'8"
    Reach raised 30'
  • 13XL+ Swing Away Augers - 1370XL+
    Spec Value
    Capacity 11,000 bu/hr
    Recommended PTO Horsepower 150
    Length 70'
    Height lowered 9'6"
    Height raised 48'7"
    Reach lowered 33'3"
    Reach raised 22'9"
  • 13XL+ Swing Away Augers - 1380XL+
    Spec Value
    Capacity 11,000 bu/hr
    Recommended PTO Horsepower 160
    Length 80'
    Height lowered 10'9"
    Height raised 55'3"
    Reach lowered 43'1"
    Reach raised 29'6"
  • 13XL+ Swing Away Augers - 1390XL+
    Spec Value
    Capacity 11,000 bu/hr
    Recommended PTO Horsepower 170
    Length 90'
    Height lowered 11'11"
    Height raised 61'11"
    Reach lowered 53'
    Reach raised 36'11"
  • 13HP+ Swing Away Augers - 1370HP+
    Spec Value
    Capacity 13,000 bu/hr
    Recommended PTO Horsepower 175
    Length 70'
    Height lowered 9'6"
    Height raised 48'7"
    Reach lowered 33'3"
    Reach raised 22'9"
  • 13HP+ Swing Away Augers - 1380HP+
    Spec Value
    Capacity 13,000 bu/hr
    Recommended PTO Horsepower 195
    Length 80'
    Height lowered 10'9"
    Height raised 55'3"
    Reach lowered 43'1"
    Reach raised 29'6"
  • 13HP+ Swing Away Augers - 1390HP+
    Spec Value
    Capacity 13,000 bu/hr
    Recommended PTO Horsepower 215
    Length 90'
    Height lowered 11'11"
    Height raised 61'61"
    Reach lowered 53'
    Reach raised 36'11"
  • 13HP+ Swing Away Augers - 13110HP+
    Spec Value
    Capacity 13,000 bu/hr
    Recommended PTO Horsepower 235
    Length 110'
    Height lowered 12'10"
    Height raised 73'
    Reach lowered 61'9"
    Reach raised 46'2"
  • 16HP Swing Away Augers - 1685HP
    Spec Value
    Capacity 23,000 bu/hr
    Recommended PTO Horsepower 250
    Length 85'
    Height lowered 10'9"
    Height raised 59'5"
    Reach lowered 40'
    Reach raised 29'10"
  • 16HP Swing Away Augers - 16105HP
    Spec Value
    Capacity 23,000 bu/hr
    Recommended PTO Horsepower 275
    Length 105'
    Height lowered 9'9"
    Height raised 76'3"
    Reach lowered 55'2"
    Reach raised 37'8"
  • 16HP Swing Away Augers - 16125HP
    Spec Value
    Capacity 23,000 bu/hr
    Recommended PTO Horsepower 300
    Length 125'
    Height lowered 11'5"
    Height raised 84'11"
    Reach lowered 63'5"
    Reach raised 48'9"
  • HP Open Top Swing Away Auger - 13110HP OT
    Spec Value
    Capacity 11,900 bu/hr
    Height 12'10 to 73'
    Length 110'
