The 313 excavator offers excellent performance and operator efficiency. Standard, easy-to-use Cat technologies, large cab focused on operator comfort and productivity, and low fuel and maintenance costs allow you to move material all day with speed and precision while keeping more money in your pocket.
Cat

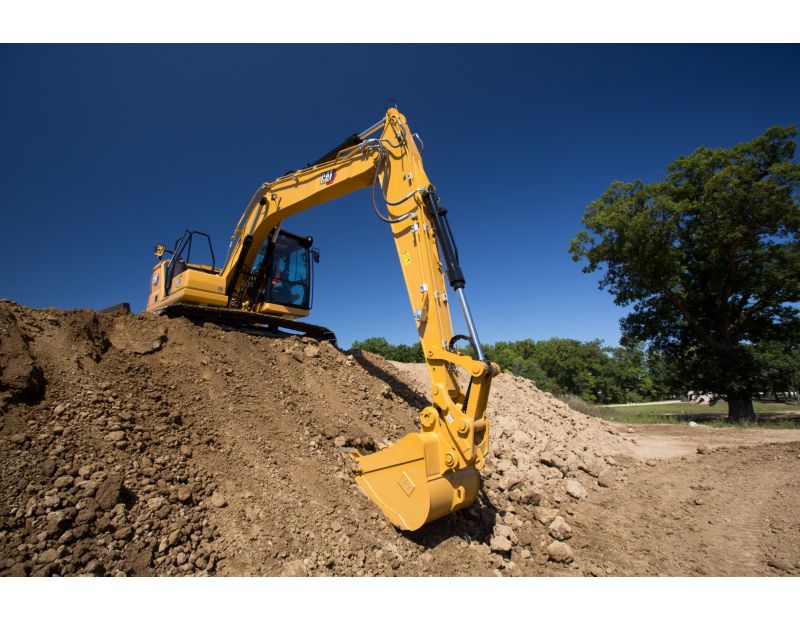

313 Hydraulic Excavator
Overview
Photos
Videos
360° View
Exterior
313 Exterior 360° View
Interior
313 Interior 360° View
Showroom
Virtual Product Tour. Double click on the hotspots to see in on any area of the product.
Features
Specifications
-
Engine
Spec Value Net Power - ISO 9249 108 hp Net Power - ISO 9249 (DIN) 110 hp (metric) Engine Model Cat C3.6 Engine Power - ISO 14396 110 hp Engine Power - ISO 14396 (DIN) 111 hp (metric) Bore 4 in Stroke 5 in Displacement 220 in³ Biodiesel Capability Up to B20¹ Emissions Meets U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 emission standards. Note (1) Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system and alternator with engine speed at 2,400 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture. Note (2) ¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations“ (SEBU6250) for details. * Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).** Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. -
Hydraulic System
Spec Value Main System - Maximum Flow 247 L/min (65 gal/min) Maximum Pressure - Equipment 5075 psi Maximum Pressure - Travel 5075 psi Maximum Pressure - Swing 3770 psi -
Swing Mechanism
Spec Value Swing Speed 11.5 r/min Maximum Swing Torque 25741 lbf·ft -
Weights
Spec Value Operating Weight 30400 lb -
Service Refill Capacities
Spec Value Fuel Tank Capacity 68.2 gal (US) Cooling System 4 gal (US) Engine Oil 2.1 gal (US) Final Drive - Each 0.8 gal (US) Hydraulic System - Including Tank 22.5 gal (US) Hydraulic Tank 18.5 gal (US) DEF Tank 5.6 gal (US) -
Dimensions
Spec Value Boom Reach 4.65 m (15'3") Stick Reach R3.0 m (9'10") Bucket GD 0.53 m³ (0.69 yd³) Shipping Height - Top of Cab 9.3 ft Handrail Height 9.3 ft Shipping Length 25.5 ft Shipping Length - with Blade 26.4 ft Tail Swing Radius 7.2 ft Counterweight Clearance 3 ft Ground Clearance 1.5 ft Track Length 12.3 ft Length to Center of Rollers 10 ft Track Gauge 6.5 ft Transport Width 8.2 ft -
Working Ranges and Forces
Spec Value Maximum Digging Depth 19.2 ft Boom Reach 4.65 m (15'3") Stick Reach R3.0 m (9'10") Bucket GD 0.53 m³ (0.69 yd³) Maximum Reach at Ground Level 28.4 ft Maximum Cutting Height 29 ft Maximum Loading Height 21.1 ft Minimum Loading Height 5.3 ft Maximum Depth Cut for 2440 mm (8 ft) Level Bottom 19.3 ft Maximum Vertical Wall Digging Depth 17 ft Minimum Working Equipment Radius 8.4 ft Bucket Digging Force - ISO 22180 lbf Stick Digging Force - ISO 13330 lbf -
Air Conditioning System
Spec Value Air Conditioning The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.85 hg of refrigerant which has a CO2 equivalent of 1.216 metric tonnes. -
Sustainability
Spec Value Recyclability 95%
Standard Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
BOOM AND STICKS
- 4.65 m (15'3") Reach boom
CAB
- Rollover protective structure (ROPS)
CAT TECHNOLOGIES
- VisionLink
- VisionLink Productivity
- Remote Flash
- Remote Troubleshoot
- Cat Grade with 2D
- Cat Assist
- Cat Payload
- Cat Advanced Payload
ELECTRICAL SYSTEM
- Maintenance free battery
- LED chassis light, left-side/right-side boom lights, cab lights
- Centralized electrical disconnect switch
- Programmable time-delay LED working lights
ENGINE
- Cat C3.6 single turbo diesel engine
- One-touch low idle with auto engine speed control
- Auto engine shutdown
- 52°C (125°F) high-ambient cooling capacity without de-rate
- Electric fuel priming pump
- Variable speed fan
- Single fuel filtration system
- Double element air filter with integrated precleaner
- Biodiesel capability up to B20
HYDRAULIC SYSTEM
- Boom and stick regeneration circuit
- Auto hydraulic warm up
- Auto two speed travel
- Electric main control valve
- Boom and stick drift reduction valve
- Swing drive with fine swing control function
SAFETY AND SECURITY
- Rear and right-side-view cameras
- Hydraulic lock out lever
- Ground-level engine shutoff switch
- Service platform with anti-skid plate and countersunk bolts
- Signaling/warning horn
- 2D E-Fence
SERVICE AND MAINTENANCE
- Grouped engine oil and fuel filters
- Ground-level engine oil dipstick
- Sampling ports for Scheduled Oil Sampling (S·O·S)
- Integrated vehicle health management system
UNDERCARRIAGE AND STRUCTURES
- Long undercarriage
- Grease lubricated track link
- Tie down points on base frame
- 2470 kg (5,445 lb) counterweight
Optional Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
BOOM AND STICKS
- 2.8 m (9'2") Thumb Ready stick
- 2.8 m (9'2") Reach stick
- 3.0 m (9'10") Reach stick
CAB
- Operator Protective Guards (OPG)
- Deluxe Cab: air suspension heated seat, 10" touch screen monitor
- Premium Cab: air suspension heated and cooled seat, 10" touch screen monitor
- Cat Stick Steer
- Auxiliary relay
CAT TECHNOLOGIES
- Cat Grade with Advanced 2D
- Cat Grade with 3D (single or dual GNSS)
- Operator Coaching
ELECTRICAL SYSTEM
- 360° lighting
ENGINE
- -25°C (-13°F) cold start capability
HYDRAULIC SYSTEM
- Boom and stick lowering check valves
- Medium-pressure line
- High-pressure line
- Quick coupler line
SAFETY AND SECURITY
- Cat Detect - People Detection
- Cat Command remote control
- 360° visibility
- Swing alarm
- Inspection lighting
UNDERCARRIAGE AND STRUCTURES
- 500 mm (20") triple grouser shoes
- 500 mm (20") rubber track shoes
- 500 mm (20") triple grouser shoes with rubber pad
- 600 mm (24") triple grouser shoes
- 600 mm (24") rubber track shoes
- 700 mm (28") triple grouser shoes
- 770 mm (30") triple grouser shoes
- 2500 mm (8'2") blade
- 2600 mm (8'6") blade
- 2700 mm (8'10") blade
