Cat® Electric Rope Shovels combine immense payload capability with low maintenance requirements and high reliability to deliver the lowest cost-per-ton loading solution for long-life mines. The Cat 7495 with HydraCrowd features AC IGBT electrics for greater uptime, lower operating costs and faster cycle times. The state-of-the-art operator’s cab is the most comfortable and productivity-enhancing in the industry. The 7495 is available with a number of new technologies that provide operator assist and machine self-protection, enable proactive maintenance, and deliver real-time information on productivity and performance. An entirely electric machine, the 7495 is cleaner and more efficient than diesel-powered machines, plus its regenerative braking technology feeds electrical energy back to the grid.
Caterpillar
7495 Electric Rope Shovel
Overview
Photos
-

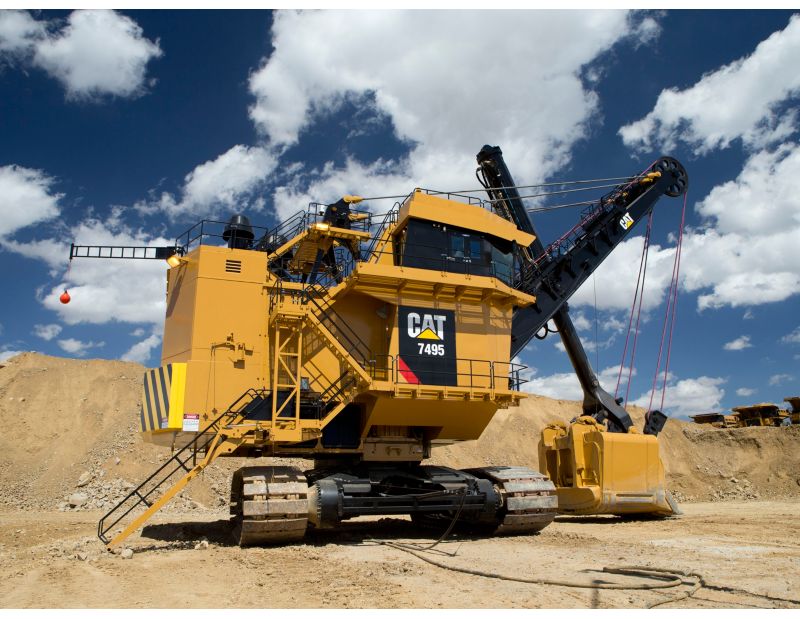

7495 With HydraCrowd -

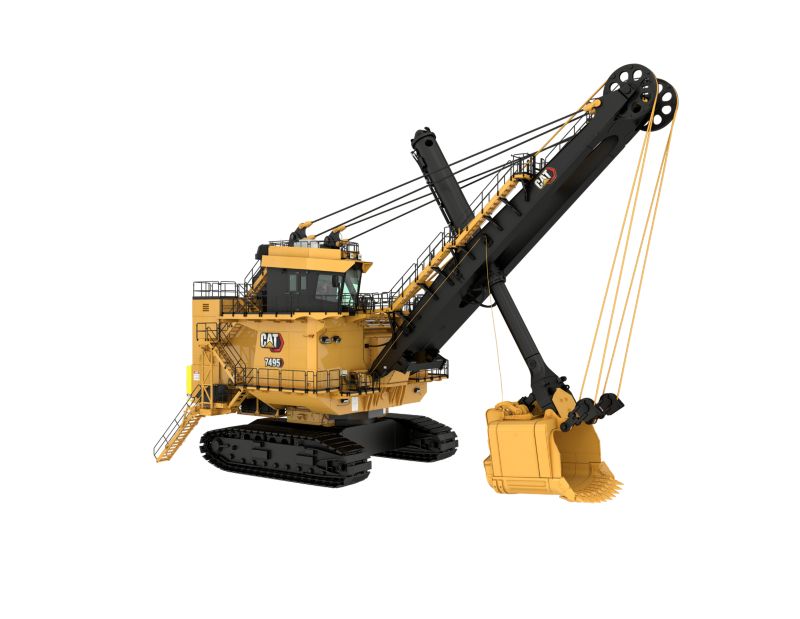

7495 With HydraCrowd -

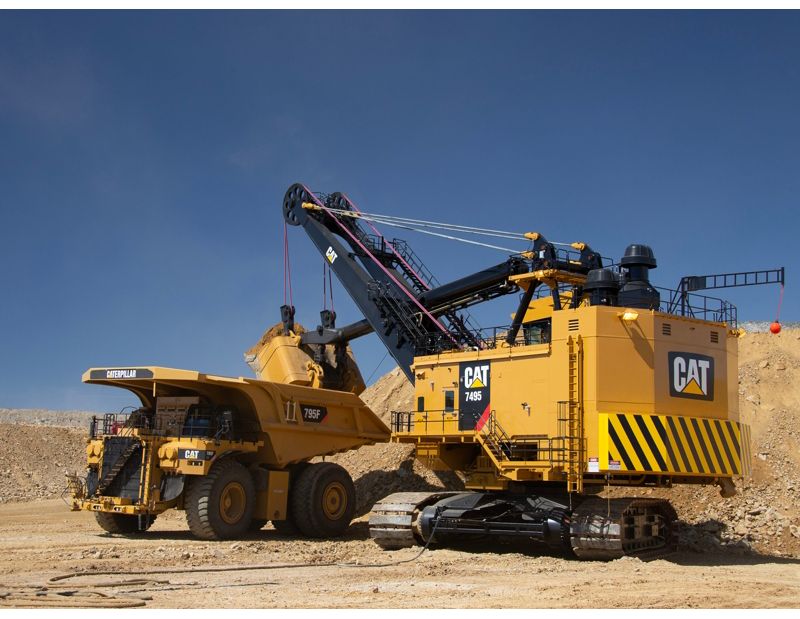

7495 With HydraCrowd -

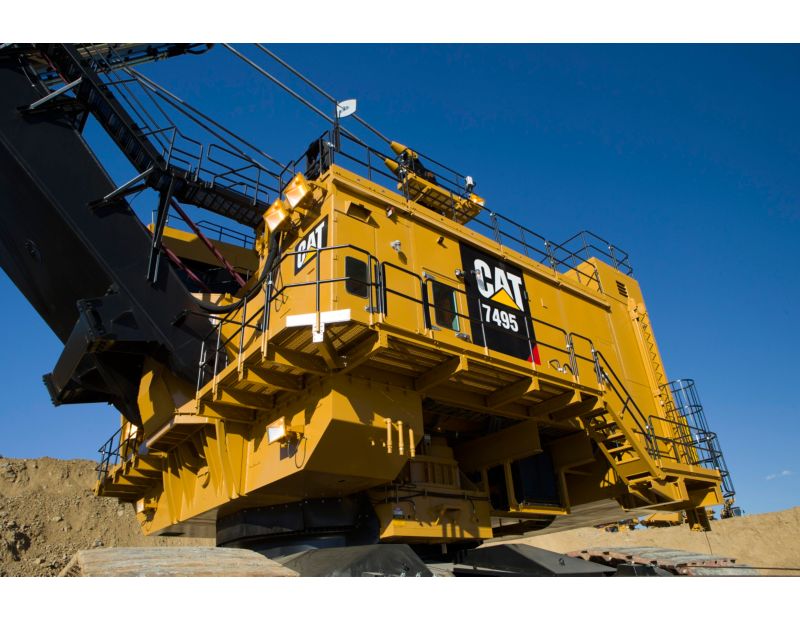

7495 With HydraCrowd
Videos
360° View
Exterior
360° Exterior view. Double click on the image to zoom in on any area of the product.
Interior
360° interior view. Double click on the image to zoom in on any area of the product.
Showroom
View the 7495 Virtual Product Tour
Specifications
-
Dimensions
Spec Value Dipper Payload 120 t Dipper Capacity 30.6-62.7 m3 (40-82 yd3) Dipper Payload (Available Dipper Payloads Up To 109 Tonnes [120 tons] When Specified) 120 t Note Dependent on application and material density -
Weights
Spec Value Working Weight - With Dipper and Standard Links 3066000 lb Ballast - Furnished By Customer 667150 lb Note (1) These weights will vary slightly depending upon dipper and optional equipment selection Note (2) All specifications are based on a 56 m3 (73 yd3) dipper and standard 200.7 cm (79 in) crawlers. -
Main Structures
Spec Value Crawler Dimensions - Overall Width 259.1 cm (102 in) Treads 38 ft Crawler Dimensions - Overall Width 200.7 cm (79 in) Treads, Standard 36 ft Hoist A planetary gearbox with dual-output pinions provides the hoist torque transfer from the electric motor to the hoist drum gear. Ground Bearing Pressure - Note Ground bearing pressure is dependent upon many factors Upper Works Overall Width - Including Standard Walkways 41.9 ft Ground Bearing Pressure - Total Effective Bearing Area (259.1 cm/102 in) Treads 46.6 m2 (298 kPa); 501.7 ft2 (43 psi) Swing Two planetary gearboxes, each driven by a vertically mounted motor, are located on either side of the revolving frame. Dual-output pinion shafts from each gearbox engage the swing rack. Planetary Propel Dual-motor independent drive Ground Bearing Pressure - Total Effective Bearing Area (200.7 cm/79 in) Treads - Standard 36 m2 (382 kPa); 386 ft2 (55 psi) -
Lube System
Spec Value Type Automatic, single-line system for open gear lubricant and grease Components (1) Six pumps (four for open gear lubricant and two for grease) located in an insulated, heated, double-walled lube room Components (2) External FastFil from lower level -
Electrical
Spec Value Power Requirements - Note Other voltage options available to suit customer requirements Drive IGBT Acutrol drive system Power Requirements - 50 Hz 6,000V, 6,600V, 7,200V, 11,000V Power Requirements - Average Power Demand 945-1322 kW Power Requirements - Voltage 3 phase, 50/60 Hz, 7,200V Power Requirements - 60 Hz 7,200V, 13,800V System Voltage - Nominal 50/60 Hz, 7,200V Power Requirements - Peak power 3778 kW -
Front End
Spec Value Rope Data - Boom Suspension - No. 4 Rope Data - Boom Suspension - Diameter 3.25 in Type One piece, forged, seamless tubular dipper handle and wide-spread boom point sheaves equipped with hoist ropes and dipper padlocks to stabilize dipper handle. Rope Data - Note High impact ropes available as an option Rope Data - Dipper Trip - No. 1 Rope Data - Hoist - No. 2 Rope Data - Hoist - Diameter 2.75 in Rope Data - Dipper Trip - Diameter 0.75 in Crowd (1) HydraCrowd, hydraulic power skid, located at the front center of the revolving frame deck, powers a large hydraulic cylinder to move the dipper handle fore and aft. Crowd (2) (Optional) Rope Crowd, the crowd machinery is located at the front center of the revolving frame, consisting of motor, brake, drum and gearing. Plastic-impregnated crowd and retract ropes are used to move the dipper handle fore and aft. -
Dimensions - Working Ranges
Spec Value Dipper Capacities 30.6-62.7 m3 (40-82 yd3) Maximum Dumping Height 28.9 ft Dipper Payload 120 ton (US) Operating Weight 3066000 lb -
Dimensions (Approximate) - Optimal Working Ranges*
Spec Value Cutting Radius - Maximum 80 ft Revolving Frame Tail Swing Radius 30.5 ft Cutting Height - Maximum 53.5 ft Radius of Level Floor 56.1 ft Dumping Height - With Clearance to Open Dipper Door 28.9 ft Note (1) Optimal working ranges based on loading a Cat 795F AC truck. Note (2) *All specifications are based on a 56 m3 (73 yd3) dipper and standard 200.7 cm (79 in) crawlers.
