Ziegler CAT

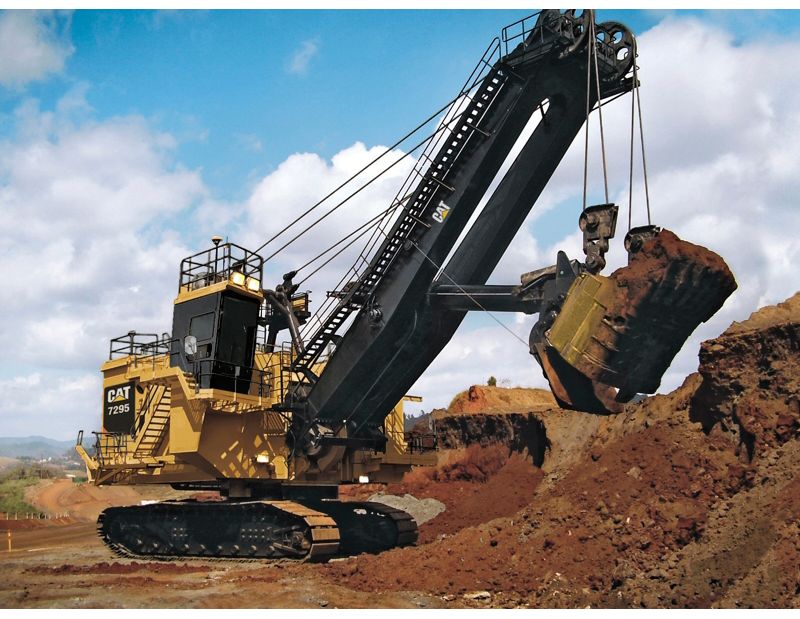

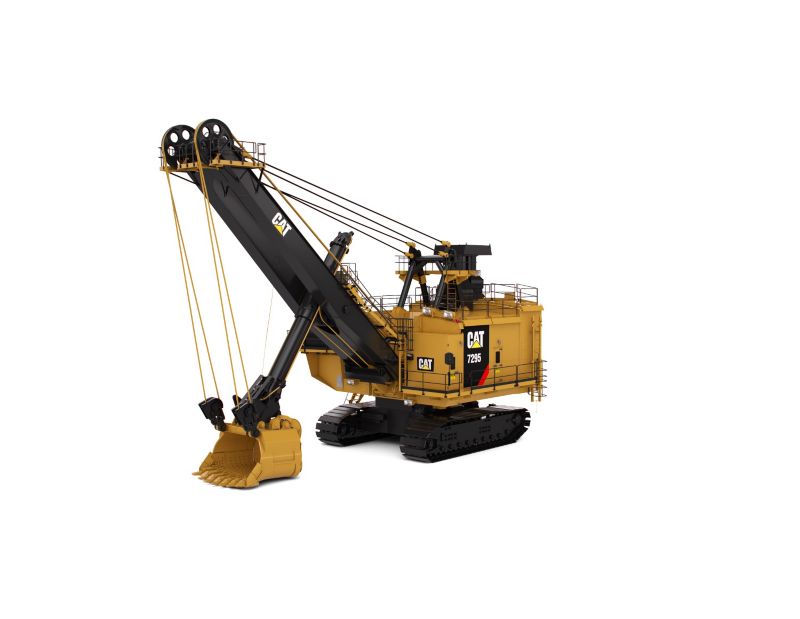

7295 Electric Rope Shovel

7295 Electric Rope Shovel

Brand: Caterpillar

Photos

Videos

360° View

Exterior

360° Exterior view. Double click on the image to zoom in on any area of the product.

Specifications

  • Dimensions
    SpecValue
    Dipper Payload 50 Sh Ton
    Dipper Capacity 19.1-38.2 m3 (25-50 yd3)
    Note Dependent on application and material density.
  • Weights
    SpecValue
    Working Weight - With Dipper and Standard Links 1748837 lb
    Note (1) These weights will vary slightly depending upon dipper and optional equipment selection.
    Ballast - Furnished By Customer 352000 lb
    Note (2) All specifications are based on a 19 m3 (25 yd3) dipper and standard 182.9 cm (72 in) treads.
  • Main Structures
    SpecValue
    Ground Bearing Pressure Ground bearing pressure is dependent upon many factors.
    Crawler Dimensions - Overall Width 182.9 cm (72 in) Treads, Standard 28.22 in
    Ground Bearing Pressure - 182.9 cm (72 in) Treads 39 in
    Upper Works Overall Width - Including Standard Walkways 41.33 in
    Planetary Propel Dual-motor independent drive.
    Swing Parallel shaft gear cases, driven by a vertically mounted motor, are located on either side of the revolving frame.
    Ground Bearing Pressure - Total Effective Bearing Area 315.6 ft²
    Hoist A motor coupled to two gear reductions drives a 137 cm (54 in) hoist drum.
  • Optimal Working Ranges*
    SpecValue
    Dumping Height - With Clearance to Open Dipper Door 27.56 ft
    Cutting Radius - Maximum 67.59 ft
    Revolving Frame Tail Swing Radius 25.59 in
    Note (1) Optimal working ranges based on loading a Cat® 785D truck.
    Radius of Level Floor 48.88 ft
    Cutting Height - Maximum 45 ft
    Note (2) *All specifications are based on a 19 m3 (25 yd3) dipper and standard 182.9 cm (72 in) treads.
  • Lube System
    SpecValue
    Components (1) 6 pumps (4 for open gear lubricant and 2 for grease) located in an insulated, heated, double-walled lube room.
    Type Automatic, single-line system for open gear lubricant and grease.
    Components (2) External fast fill from lower level.
  • Electrical
    SpecValue
    Power Requirements - 60 Hz 4,160V, 7,200V
    Power Requirements - Peak power 2886 HP
    Drive IGBT Acutrol drive system.
    Note Other voltages available to suit customer requirements.
    Power Requirements - Voltage 3 phase, 50/60 Hz, 7,200V
    Power Requirements - 50 Hz 6,000V, 6,600V, 7,200V
    Power Requirements - Average Power Demand 538-753 kW (721-1,010 hp)
  • Front End
    SpecValue
    Note High impact ropes available as an option
    Standard Rope Data - Retract - Diameter 2.25 in
    Standard Rope Data - Dipper Trip - Diameter 0.625 in
    Standard Rope Data - Boom Suspension - No. 4
    Standard Rope Data - Crowd - No. 1
    Standard Rope Data - Boom Suspension - Diameter 2.75 in
    Components One piece, forged, seamless tubular dipper handle and wide-spread boom point sheaves equipped with hoist ropes and dipper padlocks to stabilize dipper handle.
    Standard Rope Data - Retract - No. 1
    Standard Rope Data - Hoist - Diameter 2.375 in
    Standard Rope Data - Crowd - Diameter 2.25 in
    Standard Rope Data - Dipper Trip - No. 1
    Crowd Rope Crowd: the crowd machinery is located at the front center of the revolving frame; consisting of a motor, brake, drum and gearing. Plastic-impregnated crowd and retract ropes are used to move the dipper handle fore and aft.
    Standard Rope Data - Hoist - No. 2
