New Equipment

Cat

CB1.7 Utility Compactor

Operating Weight

3538 lb

Standard Compaction Width

35 in

Gross Power

24.7 hp

Overview

The CB1.7 is a 1.7 metric ton utility roller with 900 mm (35 in) tandem vibratory drums.

Photos

  • CB1.7 - 900 mm (35

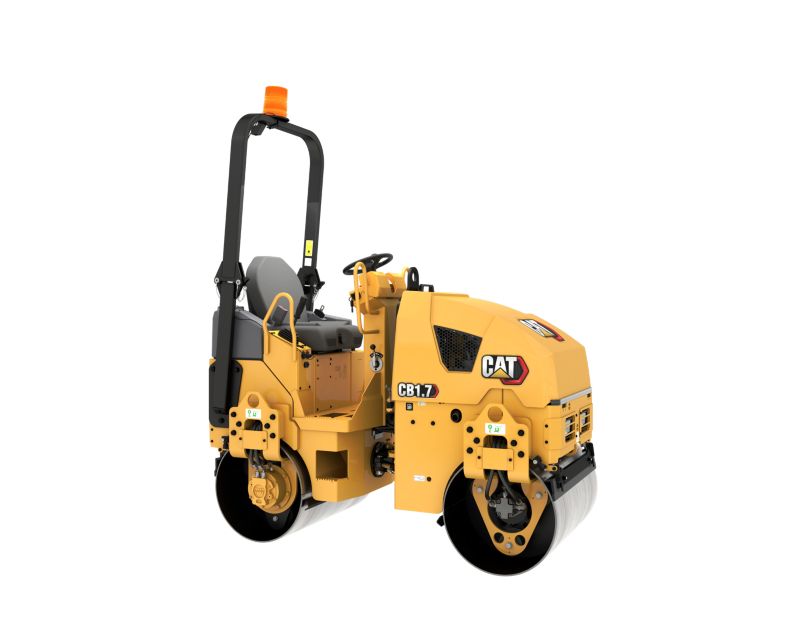

    CB1.7 - 900 mm (35") Drum Utility Roller
  • CB1.7 - 900 mm (35

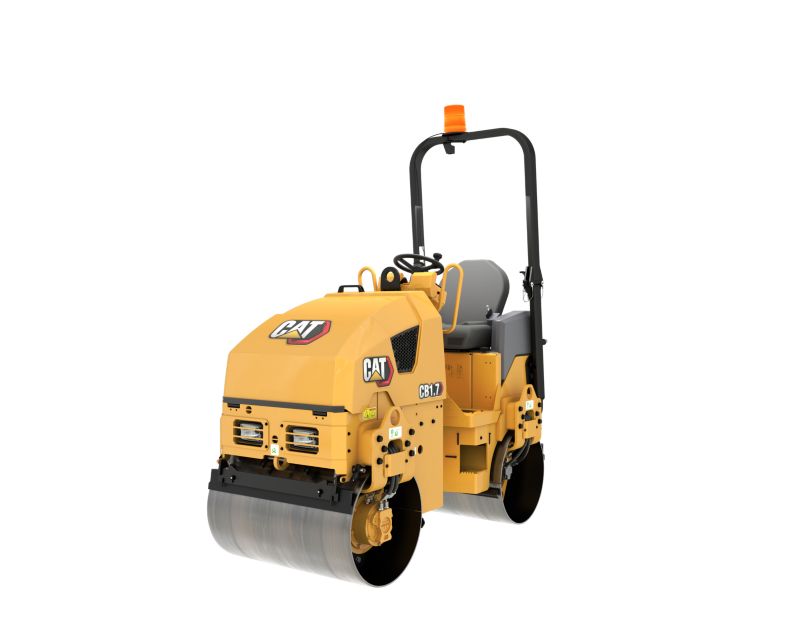

    CB1.7 - 900 mm (35") Drum Utility Roller
  • CB1.7 Utility Roller
    CB1.7 Utility Roller

Videos

  • Simple Reliable Affordable

360° View

Interior

360° Interior View. Double click on the image to zoom in on any area of the product.

Documents

Features

Simple Operation

Simple Operation

  • Ergonomic operating environment with vandal protection
  • Spacious seating and easy access due to logically placed handles and lower platform height
  • Simple operation with mechanical propel and speed control levers

Simple Operation

  • Ergonomic operating environment with vandal protection
  • Spacious seating and easy access due to logically placed handles and lower platform height
  • Simple operation with mechanical propel and speed control levers
Efficient Performance

Efficient Performance

  • Compact size for excellent maneuverability in tight spaces
  • Excellent drum-edge visibility enhances control for better coverage and compaction results
  • Industry-leading compaction force delivers outstanding results
  • Industry-leading water tank capacity of 145 L (38 gal) sized for less fills throughout the day
  • Single-Point Lift for trench work and alternative transport options

Efficient Performance

  • Compact size for excellent maneuverability in tight spaces
  • Excellent drum-edge visibility enhances control for better coverage and compaction results
  • Industry-leading compaction force delivers outstanding results
  • Industry-leading water tank capacity of 145 L (38 gal) sized for less fills throughout the day
  • Single-Point Lift for trench work and alternative transport options
Optimized Power

Optimized Power

  • Powerful Cat® C1.1 engine; single source supplier for parts, service, and support
  • Cooling system capability of up to 49º C (120º F) for good performance in harsh environments
  • Quickly move around the job site with a fast travel speed of 8.6 kph (5.3 mph) for good mobility

Optimized Power

  • Powerful Cat® C1.1 engine; single source supplier for parts, service, and support
  • Cooling system capability of up to 49º C (120º F) for good performance in harsh environments
  • Quickly move around the job site with a fast travel speed of 8.6 kph (5.3 mph) for good mobility
Reliable and Easy to Maintain

Reliable and Easy to Maintain

  • 3 year/3000 hour vibratory drum service interval
  • Reliable triple filtration design for the water spray system
  • Easy access to engine service points
  • Robust hitch design easily supports single lift point option
  • Remote monitoring available with Product Link™ option

Reliable and Easy to Maintain

  • 3 year/3000 hour vibratory drum service interval
  • Reliable triple filtration design for the water spray system
  • Easy access to engine service points
  • Robust hitch design easily supports single lift point option
  • Remote monitoring available with Product Link™ option

Specifications

  • Weights
    Spec Value
    Operating Weight 3538 lb
  • Operating Specifications
    Spec Value
    Standard Compaction Width 35 in
    Curb Clearance 16 in
    Ground Clearance 10 in
    Travel Speed - Maximum 5.3 mile/h
    Static Linear Load 72 lb/in
  • Engine
    Spec Value
    Gross Power 24.7 hp
    Engine Model Cat C1.1
  • Dimensions
    Spec Value
    Overall Length 80 in
    Overall Width 40 in
    Maximum Machine Height 94.5 in
    Drum Width 35 in
    Drum Diameter 22.5 in
  • Vibratory System
    Spec Value
    Frequency 3420 V/m
    Nominal Amplitude - High 0.019 in
    Centrifugal Force per Drum - Maximum 3057 lb
  • Service Refill Capacities
    Spec Value
    Fuel Tank Capacity 7.9 gal (US)
    Water Spray Tank Capacity 38 gal (US)

Standard Equipment

Operator Environment

  • ROPS Folding
  • Operator Console w/ Emergency Stop, Simple Rocker Switches, and Machine Warning Indicator Lights
  • Dual 12-volt Power Outlet
  • Horn, Backup Alarm

Compaction System

  • Folding Scrapers
  • Vibe Selection - Front, Rear, or Both
  • Pressurized, Triple-Filtration Spray System

Powertrain

  • Air Cleaner, Dual Element
  • Engine Belt Guard

Technology

  • ProductLinkTM

Electrical

  • Working Lights

Other

  • Vandal Protection - Lockable Hood and Controls Cover
  • Machine Life and Tiedowns

Optional Equipment

Operator Environment

  • Adjustable Suspension Seat w/ Operator Presence Switch
  • ROPS Fixed

Electrical

  • Battery Disconnect
  • Roading Lights
  • Rotating Amber Beacon
  • Light Guards

Other

  • Single Point Lift
