The CB4.4 is a 3-5 metric ton compactor with 800 mm (31.5 in) drums. It’s a versatile machine that can be used as the only vibratory roller on small sized jobs or on larger jobs as a support roller for high-production rollers. Its high amplitude and drum width give it the capacity to achieve a tons-per-day production rate that make it an excellent match for shoulders, small parking lots, lane additions, or other similar sized jobs.
Cat
CB4.4 Utility Compactor
Overview
Photos
-
CB4.4 Utility Compactor -

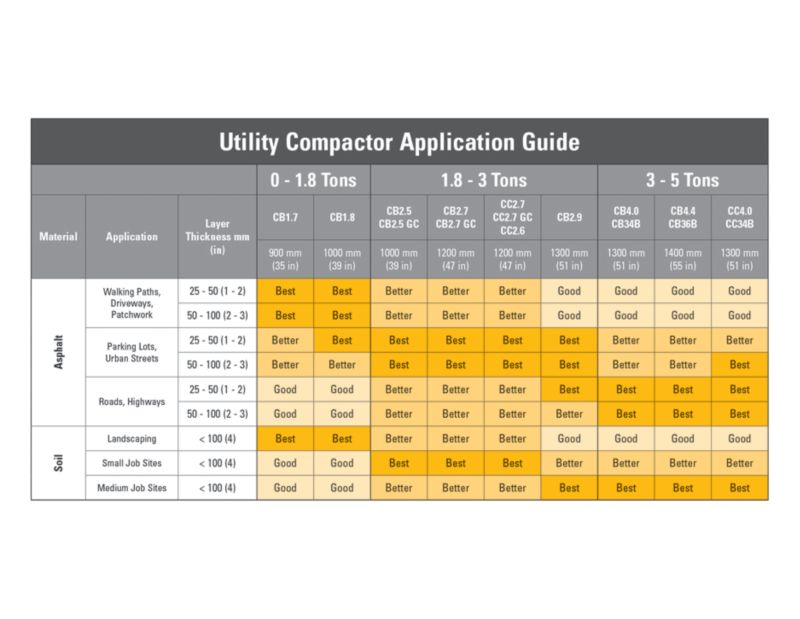

Utility Compactor Selection Chart
Specifications
-
Weights
Spec Value Standard Operating Weight with ROPS 8362 lb Maximum Weight at Rear Drum 4380 lb Maximum Weight at Front Drum 3982 lb Maximum Operating Weight with ROPS 9885 lb Static Linear Load 72.2 lb/in -
Dimensions
Spec Value Compaction Width 55.1 in Overall Length 112.3 in Overall Width 59.1 in Drum Width 55.1 in Drum Diameter 31.5 in Wheel Base 80.7 in Height - ROPS 104.7 in -
Engine
Spec Value Gross Power 48.2 hp Engine Model C1.7T Net Power - ISO 9249 47.6 hp -
Operating Specifications
Spec Value Standard Compaction Width 55.1 in Drum Offset 2 in Curb Clearance 19.6 in Ground Clearance 11.2 in Travel Speed - Maximum 8.1 mile/h Turning Radius - Inside Drum Edge 113.2 in Turning Radius - Outside Drum Edge 168.3 in -
Vibratory System
Spec Value Frequency 55/45 Hz (3300/2700 vpm) Nominal Amplitude - High 0.019 in Centrifugal Force - Maximum 7828 lb/ft -
Service Refill Capacities
Spec Value Fuel Tank Capacity 21.43 gal (US) Water Spray Tank Capacity 79 gal (US)
Standard Equipment
OPERATOR ENVIRONMENT
- Adjustable Suspension Seat with Operator Presense Switch
- ROPS Folding
- Seat Belt - 75 mm (3 in) high visibility orange
- Operator Console w/ Water Tank Gauge, Emergency Stop, and Glove Box
- 12-volt Power Outlet
- Horn, Backup Alarm
COMPACTON SYSTEM
- Folding Scrapers
- Vibe Selection - front, rear, or both
- Pressurized, Triple-Filtration Spray System with Test Mode
POWERTRAIN
- Auto Engine Off and Auto Warmup
- Air Cleaner, Dual Element
- Engine Belt Guard
TECHNOLOGY
- Telematics
ELECTRICAL
- LED Working Lights
OTHER
- Vandal Protection - lockable hood, fuel fill, and controls cover
- Machine Life and Tiedowns
- Offsets Hitch
Optional Equipment
OPERATOR ENVIRONMENT
- ROPS Fixed
- Sun Canopy
- Seat - Side Shift
- Dual Propel Levers
COMPACTON SYSTEM
- Fixed Scrapers
- Cocoa Mats
- Edge Cutter Ready
- Water Sprayer Antifreeze Kit
- Ballast Kit - 400 kg (880 lb)
- Ballast Kit - 542 kg (1194.91 lb)
POWERTRAIN
- Traction Control
TECHNOLOGY
- Remote Flash / Troubleshoot
- CMV - Compaction Measurement Value
ELECTRICAL
- Battery Disconnect
- LED Roading Lights
- Rotating Amber Beacon
OTHER
- Biodegradeable Hydraulic Oil
- Bumpers
- Single Point Lift
- Custom Paint
