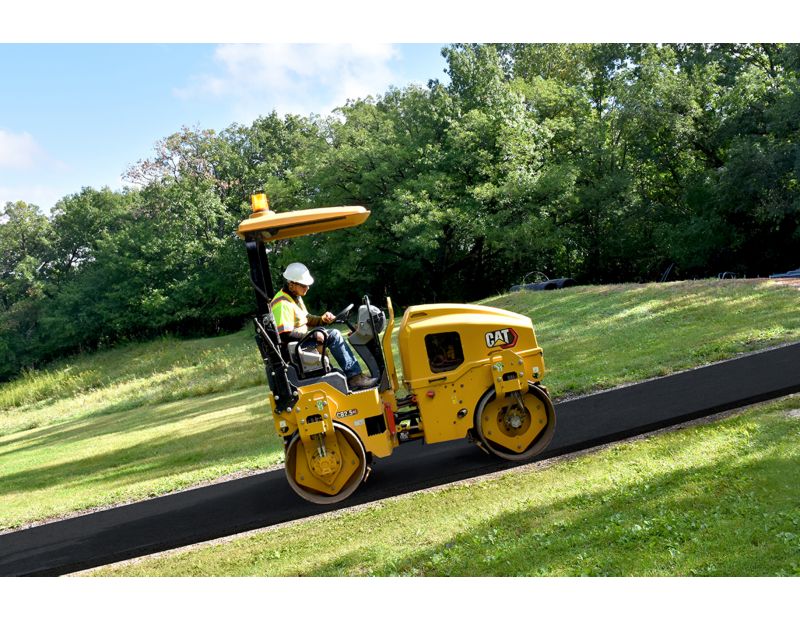

The CB2.5 GC is a 2.5 metric ton machine with 1000 mm (39 in) drums. It’s a versatile machine with a high amplitude and is an excellent match for car parks, shoulders, small parking lots, lane additions, and other similar sized jobs.
Cat

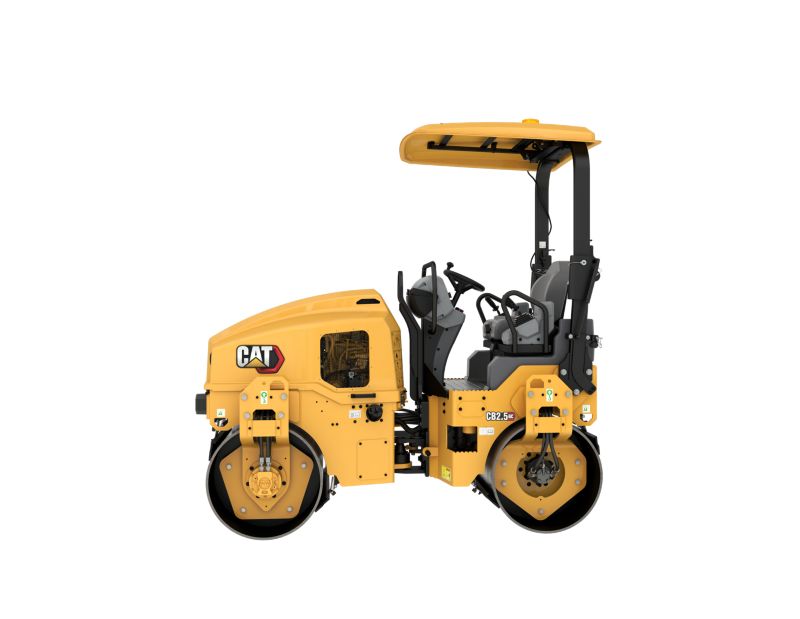

CB2.5 GC Utility Compactor
Overview
Photos
-
CB2.5 Utility Compactors -
Utility Compactor Application Guide
Specifications
-
Weights
Spec Value Standard Operating Weight with ROPS 5546 lb Maximum Operating Weight with ROPS 2607 lb Maximum Weight at Front Drum 2607 lb Maximum Weight at Rear Drum 2939 lb -
Dimensions
Spec Value Compaction Width 39.4 in Wheel Base 70.9 in Overall Width 43.8 in Drum Width 39.4 in Height - ROPS 102.2 in Overall Length 102.2 in Drum Diameter 28.3 in -
Operating Specifications
Spec Value Travel Speed - Maximum 5.8 mile/h Static Linear Load 66.2 lb/in Turning Radius - Outside Drum Edge 143.3 in Drum Offset 2 in Curb Clearance 17.8 in Ground Clearance 11.2 in Turning Radius - Inside Drum Edge 103.9 in -
Engine
Spec Value Gross Power 24.6 hp Net Power - ISO 9249 24.4 hp Engine Model C1.7T -
Vibratory System
Spec Value Nominal Amplitude - High 0.02 in Centrifugal Force - Maximum 5885.3 lb Frequency 62 Hz -
Service Refill Capacities
Spec Value Water Spray Tank Capacity 52.8 gal (US) Fuel Tank Capacity 14.37 gal (US)
Standard Equipment
OPERATOR ENVIRONMENT
- Adjustable Suspension Seat with Operator Presense Switch
- ROPS Folding
- Seat Belt - 75 mm (3 in) high visibility orange
- Operator Console w/ Water Tank Gauge, Emergency Stop, and Glove Box
- 12-volt Power Outlet
- Horn, Backup Alarm
COMPACTON SYSTEM
- Folding Scrapers
- Vibe Selection - front, rear, or both
- Pressurized, Triple-Filtration Spray System with Test Mode
POWERTRAIN
- Auto Engine Off and Auto Warmup
- Air Cleaner, Dual Element
- Engine Belt Guard
TECHNOLOGY
- Telematics
ELECTRICAL
- LED Working Lights
OTHER
- Vandal Protection - lockable hood, fuel fill, and controls cover
- Machine Life and Tiedowns
- Offsets Hitch
Optional Equipment
OPERATOR ENVIRONMENT
- ROPS Fixed
- Sun Canopy
- Seat - Side Shift
- Dual Propel Levers
COMPACTON SYSTEM
- Fixed Scrapers
- Cocoa Mats
- Edge Cutter Ready
- Water Sprayer Antifreeze Kit
- Ballast Kit - 200 kg (440 lb)
- Ballast Kit - 400 kg (880 lb)
POWERTRAIN
- Traction Control
TECHNOLOGY
- Remote Flash / Troubleshoot
- CMV - Compaction Measurement Value
ELECTRICAL
- Battery Disconnect
- LED Roading Lights
- Rotating Amber Beacon
OTHER
- Biodegradeable Hydraulic Oil
- Bumpers
- Single Point Lift
- Custom Paint
