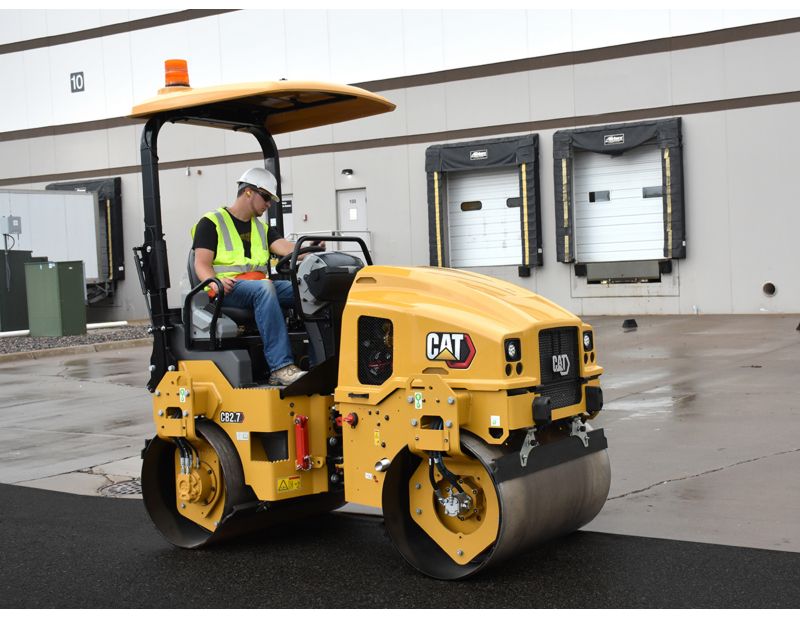

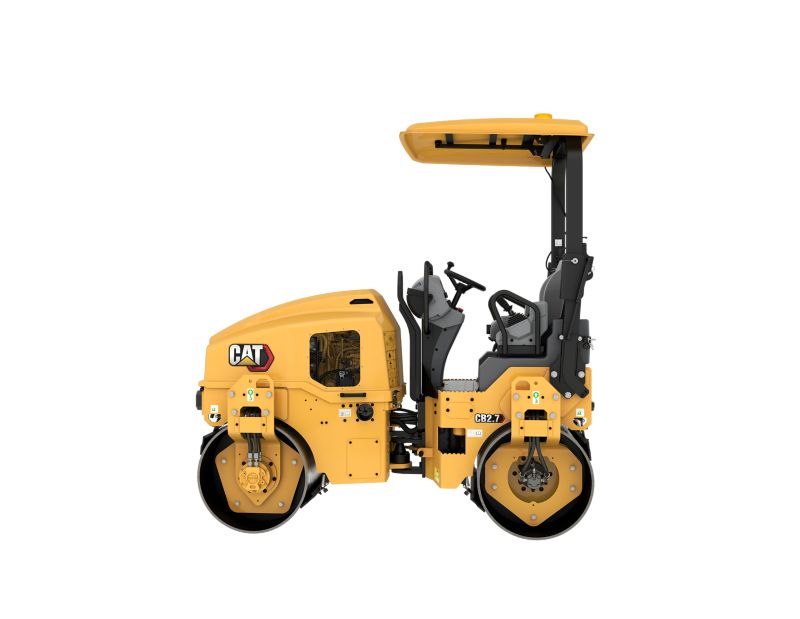

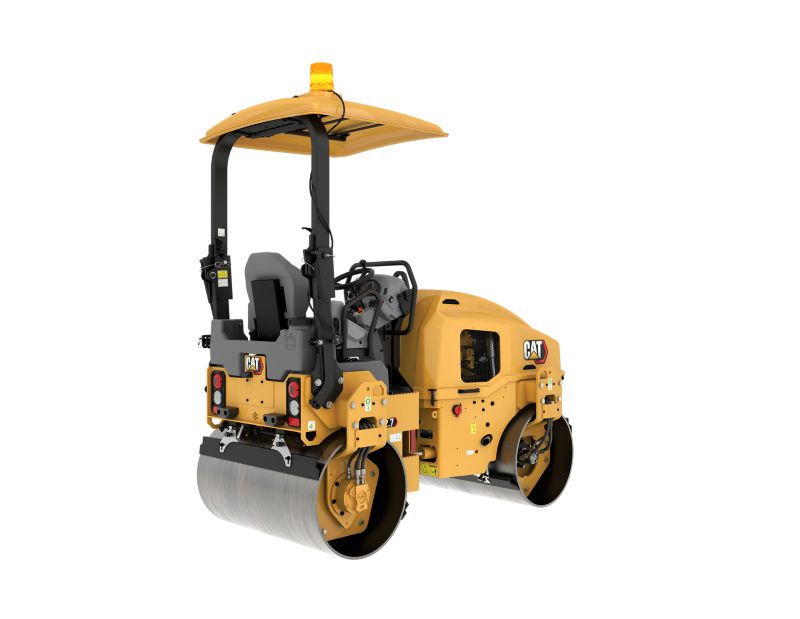

The CB2.7 is a 2.7 to 3 metric ton compactor with 1200 mm (47 in) drums. It’s a versatile machine that can be used as the only vibratory roller on small sized jobs or on larger jobs as a support roller for high-production rollers. Its high amplitude and drum width give it the capacity to achieve a tons-per-day production rate that make it an excellent match for shoulders, small parking lots, lane additions, or other similar sized jobs.
Cat
CB2.7 Utility Compactor
Overview
Photos
-
CB2.7 Utility Compactor -
Utility Compactor Application Guide
360° View
Exterior
360° Exterior View. Double click on the image to zoom in on any of the products.
Specifications
-
Weights
Spec Value Standard Operating Weight with ROPS 5936 lb Maximum Weight at Front Drum 2861 lb Maximum Operating Weight with ROPS 5936 lb Maximum Weight at Rear Drum 1398 lb Static Linear Load 60.6 lb/in -
Dimensions
Spec Value Compaction Width 47.2 in Drum Diameter 28.3 in Overall Width 51.7 in Height - ROPS 70.8 in Overall Length 99.2 in Drum Width 47.2 in Wheel Base 70.9 in -
Operating Specifications
Spec Value Turning Radius - Outside Drum Edge 3740 mm Drum Offset 2 in Travel Speed - Maximum 7.5 mile/h Static Linear Load 70.6 lb/in Turning Radius - Inside Drum Edge 100 in Curb Clearance 17.8 in Ground Clearance 11.2 in -
Engine
Spec Value Gross Power 48.2 hp Net Power - ISO 9249 47.6 hp Engine Model C1.7T -
Vibratory System
Spec Value Frequency 64/53 Hz (3840/3180 vpm) Frequency 3840 V/mm Centrifugal Force - Maximum 7929 lb Nominal Amplitude - High 0.02 in -
Service Refill Capacities
Spec Value Fuel Tank Capacity 14.37 gal (US) Water Spray Tank Capacity 52.8 gal (US)
Standard Equipment
OPERATOR ENVIRONMENT
- Adjustable Suspension Seat with Operator Presense Switch
- ROPS Folding
- Seat Belt - 75 mm (3 in) high visibility orange
- Operator Console w/ Water Tank Gauge, Emergency Stop, and Glove Box
- 12-volt Power Outlet
- Horn, Backup Alarm
COMPACTON SYSTEM
- Folding Scrapers
- Vibe Selection - front, rear, or both
- Pressurized, Triple-Filtration Spray System with Test Mode
POWERTRAIN
- Auto Engine Off and Auto Warmup
- Air Cleaner, Dual Element
- Engine Belt Guard
TECHNOLOGY
- Telematics
ELECTRICAL
- LED Working Lights
OTHER
- Vandal Protection - lockable hood, fuel fill, and controls cover
- Machine Life and Tiedowns
- Offsets Hitch
Optional Equipment
OPERATOR ENVIRONMENT
- ROPS Fixed
- Sun Canopy
- Seat - Side Shift
- Dual Propel Levers
COMPACTON SYSTEM
- Fixed Scrapers
- Cocoa Mats
- Edge Cutter Ready
- Water Sprayer Antifreeze Kit
- Ballast Kit - 200 kg (440 lb)
- Ballast Kit - 400 kg (880 lb)
POWERTRAIN
- Traction Control
TECHNOLOGY
- Remote Flash / Troubleshoot
- CMV - Compaction Measurement Value
ELECTRICAL
- Battery Disconnect
- LED Roading Lights
- Rotating Amber Beacon
OTHER
- Biodegradeable Hydraulic Oil
- Bumpers
- Single Point Lift
- Custom Paint
