The CB2.5 is a 2.5 metric ton machine with 1000 mm (39 in) drums. It’s a versatile machine with a high amplitude and is an excellent match for car parks, shoulders, small parking lots, lane additions, and other similar sized jobs.
Cat

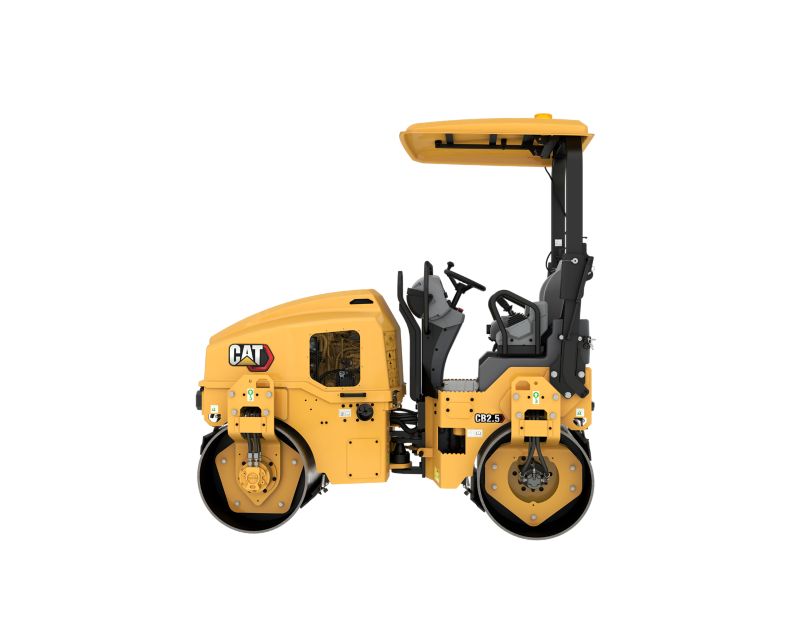

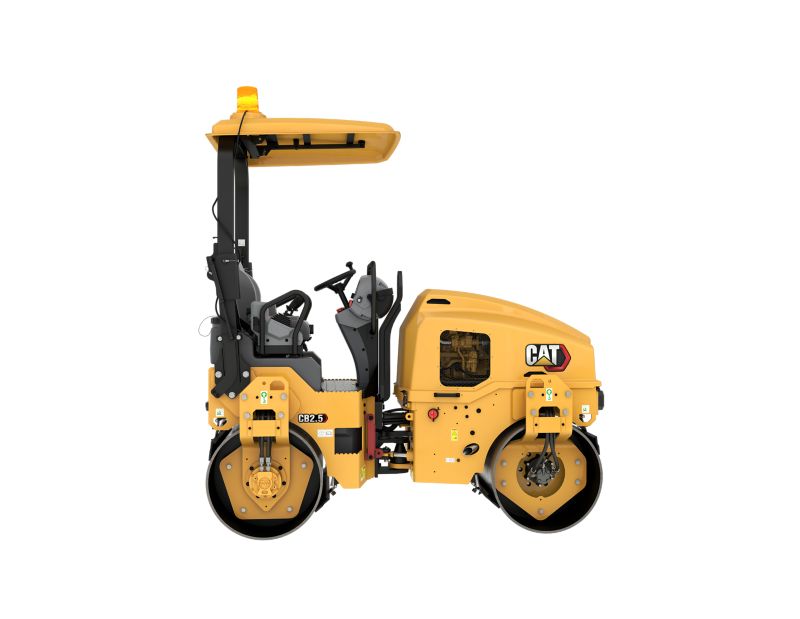

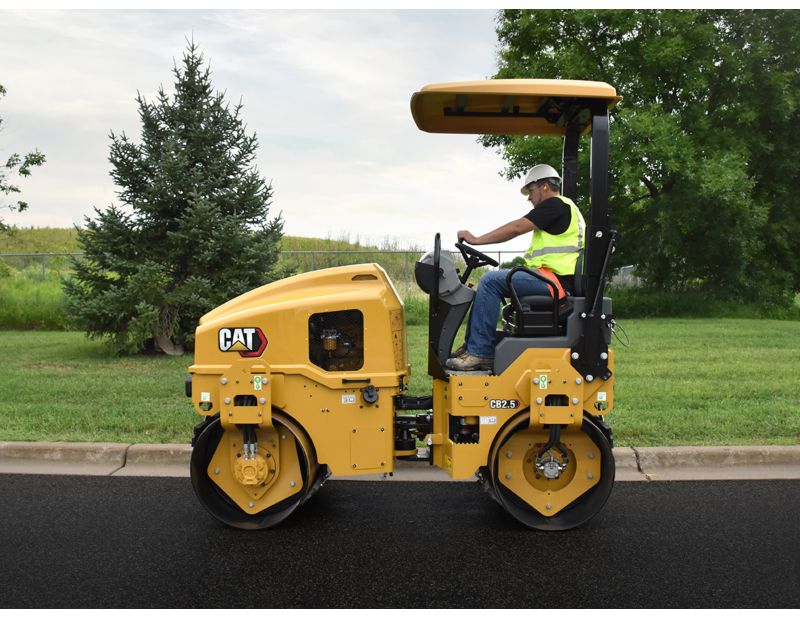

CB2.5 Utility Compactor
Overview
Photos
-
CB2.5 Utility Compactors -
Utility Compactor Application Guide
Specifications
-
Weights
Spec Value Standard Operating Weight with ROPS 5546 lb Maximum Operating Weight with Cab 5546 lb Static Linear Load 66.2 lb/in Maximum Operating Weight with ROPS 6646 lb Maximum Weight at Front Drum 2607 lb Maximum Weight at Rear Drum 2939 lb -
Dimensions
Spec Value Compaction Width 39.4 in Overall Width 43.8 in Drum Diameter 28.3 in Overall Length 99.2 in Drum Width 39.4 in Wheel Base 70.9 in Height - ROPS 106 in -
Operating Specifications
Spec Value Travel Speed - Maximum 7.5 mile/h Turning Radius - Inside Drum Edge 103.9 in Ground Clearance 11.2 in Static Linear Load 66.2 lb/in Static Linear Load - With Cab 74.7 lb/in Turning Radius - Outside Drum Edge 143.3 in Curb Clearance 17.8 in Drum Offset 2 in -
Engine
Spec Value Gross Power 48.2 hp Engine Model C1.7T Net Power - ISO 9249 47.6 hp -
Vibratory System
Spec Value Nominal Amplitude - High 0.02 in Centrifugal Force - Maximum 6697 lb Frequency 64 Hz -
Service Refill Capacities
Spec Value Fuel Tank Capacity 14.37 gal (US) Water Spray Tank Capacity 52.8 gal (US)
Standard Equipment
OPERATOR ENVIRONMENT
- Adjustable Suspension Seat with Operator Presense Switch
- ROPS Folding
- Seat Belt - 75 mm (3 in) high visibility orange
- Operator Console w/ Water Tank Gauge, Emergency Stop, and Glove Box
- 12-volt Power Outlet
- Horn, Backup Alarm
COMPACTON SYSTEM
- Folding Scrapers
- Vibe Selection - front, rear, or both
- Pressurized, Triple-Filtration Spray System with Test Mode
POWERTRAIN
- Auto Engine Off and Auto Warmup
- Air Cleaner, Dual Element
- Engine Belt Guard
TECHNOLOGY
- Telematics
ELECTRICAL
- LED Working Lights
OTHER
- Vandal Protection - lockable hood, fuel fill, and controls cover
- Machine Life and Tiedowns
- Offsets Hitch
Optional Equipment
OPERATOR ENVIRONMENT
- ROPS Fixed
- Sun Canopy
- Seat - Side Shift
- Dual Propel Levers
COMPACTON SYSTEM
- Fixed Scrapers
- Cocoa Mats
- Edge Cutter Ready
- Water Sprayer Antifreeze Kit
- Ballast Kit - 200 kg (440 lb)
- Ballast Kit - 400 kg (880 lb)
POWERTRAIN
- Traction Control
TECHNOLOGY
- Remote Flash / Troubleshoot
- CMV - Compaction Measurement Value
ELECTRICAL
- Battery Disconnect
- LED Roading Lights
- Rotating Amber Beacon
OTHER
- Biodegradeable Hydraulic Oil
- Bumpers
- Single Point Lift
- Custom Paint
