Caterpillar

CW16 Pneumatic Roller

Operating Weight - 11 Wheel Base Machine

11685 lb

Operating Weight - 11 Wheel with Maximum Ballast

32849 lb

11 Wheel Compaction Width with Bias Tire

84 in

Overview

The Cat® CW16 with 11 wheels offers an operating weight range of 5300 kg to 14 900 kg (11,685 lb – 32,849 lb) for excellent versatility and performance. Equipped with an efficient Cat engine, this machine delivers smooth, reliable performance on grades and soft base materials.

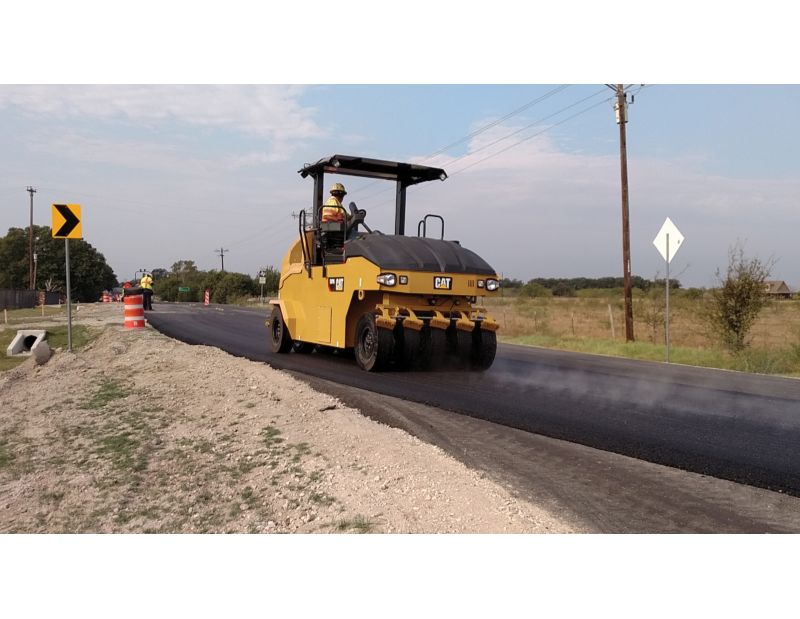

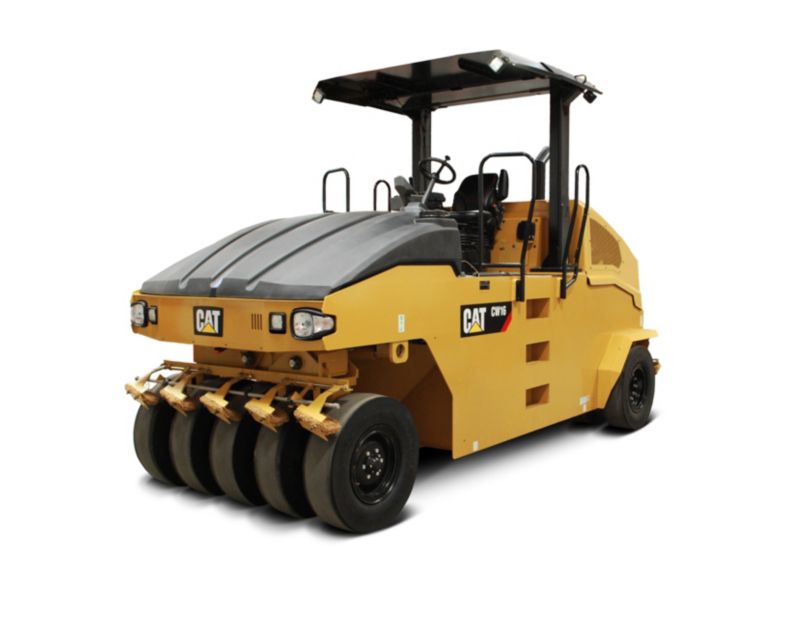

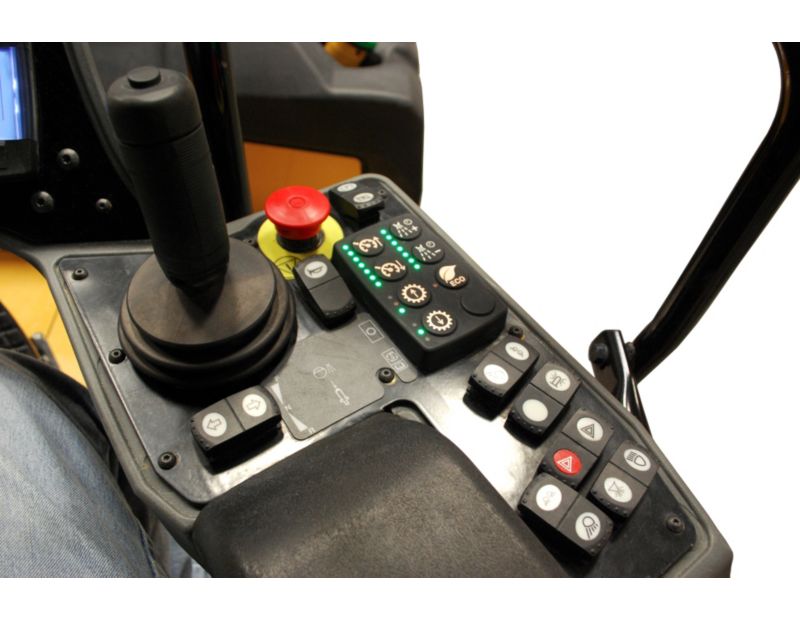

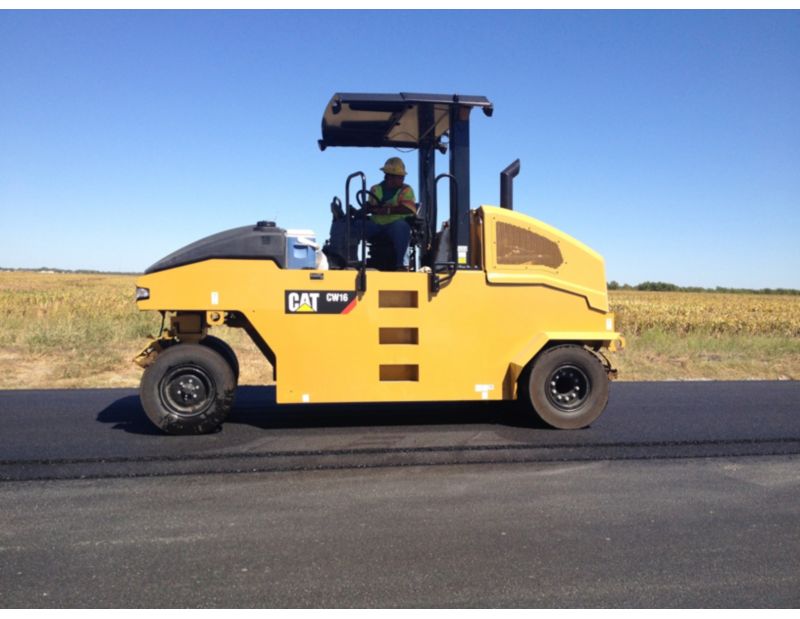

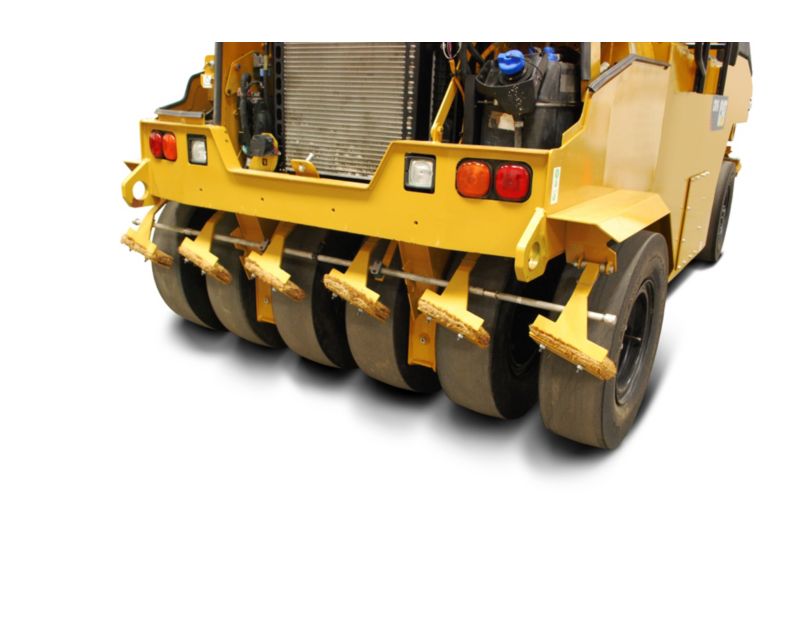

Photos

Specifications

  • Weights
    Spec Value
    Operating Weight - 11 Wheel Base Machine 11685 lb
    Operating Weight - 11 Wheel with Maximum Ballast 32849 lb
    Load per Wheel - 11 Wheel Base Machine 1058 lb
    Load per Wheel - 11 Wheel with Maximum Ballast 2976 lb
  • Operating Specifications
    Spec Value
    11 Wheel Compaction Width with Bias Tire 84 in
    Travel Speed - Maximum 12 mile/h
    Ground Clearance 10.5 in
    Turning Radius - Outside 255 in
    11 Wheel Compaction Width with Radial Tire 83 in
    Inside Turn Radius - 11 Wheel 133 in
  • Engine
    Spec Value
    Gross Power 100.5 HP
    Engine Model C3.4B or C4.4
  • Dimensions
    Spec Value
    Height - ROPS 9.8 ft
    Overall Length 14.1 ft
    Height - Steering Wheel 91 in
  • Service Refill Capacities
    Spec Value
    Water Spray Tank Capacity 92 gal (US)
    Fuel Tank Capacity 38 gal (US)
