Purpose-built for landfill operation, the Cat 826 delivers a level of reliability, performance, safety, operator comfort, serviceability, and efficiency that can only come from 45-plus years as an industry leader. Field-proven protection and integrated technologies provide peak availability and optimized landfill performance.
Caterpillar
826 Landfill Compactor
Overview
Photos
-

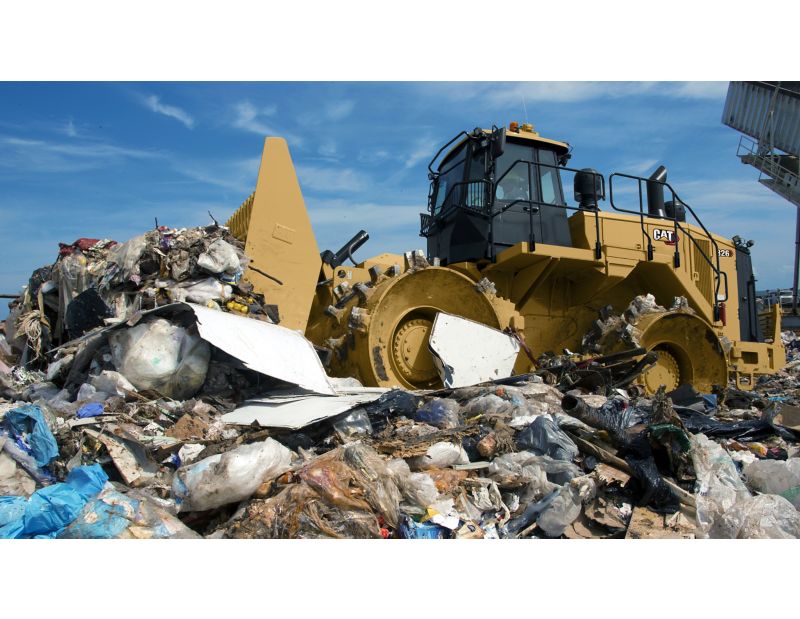

826 Landfill Compactor -

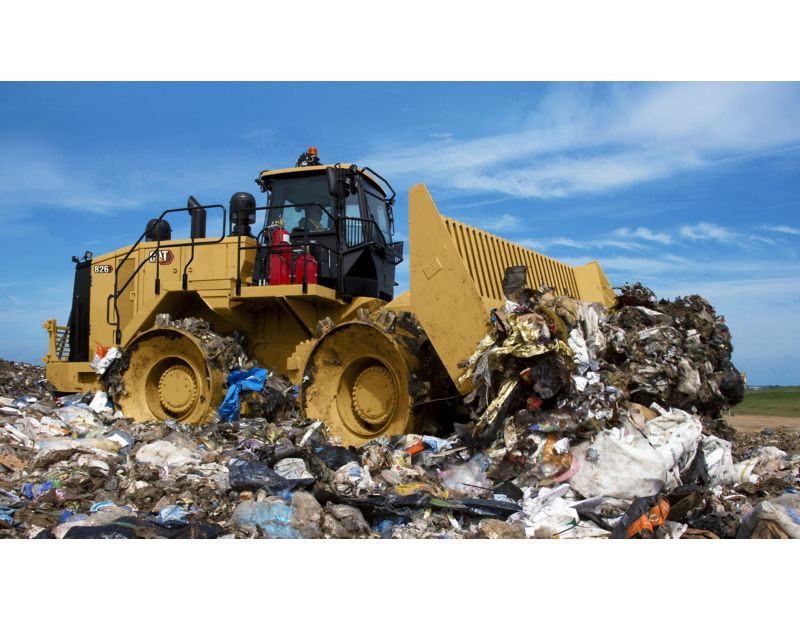

826 Landfill Compactor -

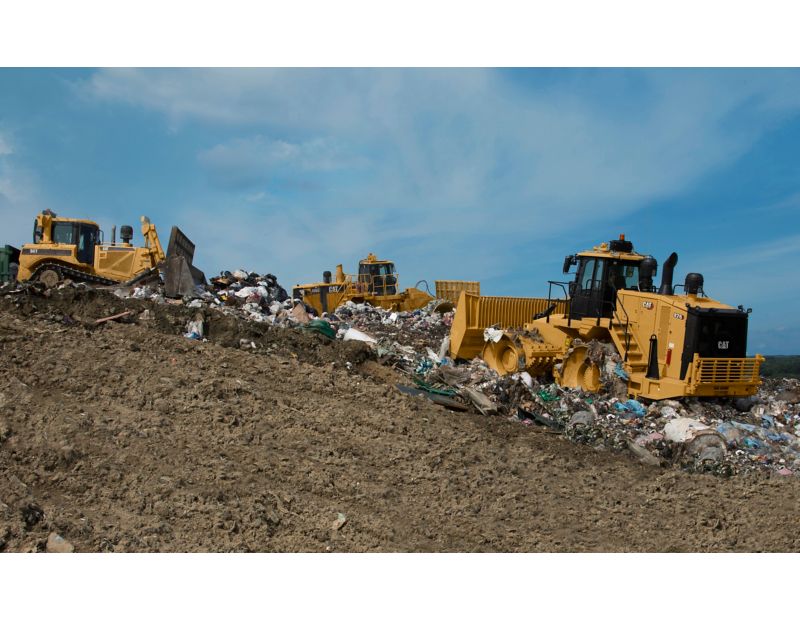

826 Landfill Compactor -
826 Landfill Compactor -
826 Landfill Compactor
360° View
Exterior
360° Exterior view. Double click on the image to zoom in on any area of the product.
Interior
360° interior view. Double click on the image to zoom in on any area of the product.
Specifications
-
Engine
Spec Value Gross Power - SAE J1995:2014 435 hp Net Power - SAE J1349:2011 405 hp Net Power - ISO 9249:2007 405 hp Engine Power - ISO 14396:2002 426 hp Engine Model C15 Cat® Emissions U.S. EPA Tier 4 Final/ EU Stage V/Korea Stage V and Japan 2014 or Brazil MAR-1, emitting equivalent to U.S. EPA Tier 3/EU Stage IIIA Rated Speed 1800 Torque Rise 33% Bore 5.4 in Stroke 6.7 in Displacement 927.6 in³ High Idle Speed 2300 r/min Low Idle Speed 800 r/min Maximum Altitude – Without Derating (Tier 4 Final/Stage V) 9298 ft Maximum Altitude - Without Derating (Tier 3/Stage IIIA) 9098 ft Note Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, clean emissions module and alternator. -
Operating Specifications
Spec Value Operating Weight (Tier 4 Final/Stage V) 90207 lb Operating Weight (Tier 3/Stage IIIA equivalent) 89186 lb Maximum Operating Weight (Tier 4 Final/Stage V) 92568 lb Maximum Operating Weight (Tier 3/Stage IIIA equivalent) 91549 lb -
Transmission
Spec Value Transmission Type Planetary - Powershift - ECPC Direct Drive - Forward 1 4.2 mile/h Direct Drive - Forward 2 7.5 mile/h Direct Drive - Reverse 1 4.3 mile/h Direct Drive - Reverse 2 8.6 mile/h -
Hydraulic System
Spec Value Pump Flow at 1800 rpm 30.9 gal/min Main Relief Pressure 3771 psi Maximum Supply Pressure 3495 psi Lift System Double Acting Cylinder Bore 4.7 in Stroke 42.1 in -
Service Refill Capacities
Spec Value Cooling System 30.6 gal (US) Engine Crankcase 9 gal (US) Transmission 17.4 gal (US) Fuel Tank 206.6 gal (US) Diesel Exhaust Fluid Tank (Tier 4 Final/Stage V) 8.5 gal (US) Differential - Final Drives - Front 26.4 gal (US) Differential - Final Drives - Rear 29.1 gal (US) Hydraulic Tank Only 35.4 gal (US) Note Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: • 20% biodiesel FAME (fatty acid methyl ester) * • 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. * Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). ** Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels – Cat DEO-ULS™ or oils that meet the Cat ECF-3, API CJ-4, and ACEA E9 specifications are required. – Diesel exhaust fluid (DEF) that meets all requirements defined in ISO 22241-1:2006. -
Axles
Spec Value Front Planetary - Fixed Rear Planetary - Oscillating Oscillation Angle ±5° -
Braking System
Spec Value Service Brakes Multi Disc Wet (Enclosed) 2 WHL Parking Brake Drum and Shoe, Spring Applied, Hydraulic Released -
Sound Performance - Tier 4 Final / Stage V
Spec Value Operator Sound Pressure Level (ISO 6396:2008) 73 dB(A) Machine Sound Power Level (ISO 6395:2008) 113 dB(A) Operator Sound Pressure Level (ISO 6396:2008)* 72 dB(A) Machine Sound Power Level (ISO 6395:2008)* 110 dB(A) Note (1) * Sound suppression equipped Note (2) The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed. Note (3) The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed. Note (4) Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. -
Sound Performance - Tier 3 / Stage IIIA
Spec Value Operator Sound Pressure Level (ISO 6396:2008) 73 dB(A) Machine Sound Power Level (ISO 6395:2008) 113 dB(A) Operator Sound Pressure Level (ISO 6396:2008)* 72 dB(A) Machine Sound Power Level (ISO 6395:2008)* 110 dB(A) Note (1) * Sound suppression equipped Note (2) The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed. Note (3) The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed. Note (4) Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. -
Hydraulic System - Steering
Spec Value Steering System - Circuit Pilot operated, load sensing Bore 4.5 in Stroke 22.7 in Steering System - Pump Piston - Variable Displacement Maximum System Flow 170 L/min @ 1,800 rpm (44.9 gal/min @ 1,800 rpm) Steering Pressure Limited 3481 psi Vehicle Articulation Angle 86 ° -
Dimensions (Approximate)
Spec Value Height to Top of Air Conditioning Condenser 14.99 ft Height - Cab Roof 13.75 ft Height - Top of Beacon 15.63 ft Height - Top of Exhaust Pipe 14.56 ft Height - Top of Hood 10.87 ft Ground Clearance - Bumper 3.15 ft Centerline of Rear Axle to Edge of Counterweight - No Rear Radiator Guard 9.38 ft Centerline of Rear Axle to Edge of Counterweight - Including Rear Radiator Guard 10.16 ft Hitch to Centerline of Front Axle 6.07 ft Wheel Base 12.14 ft Length - With Blade on Ground - Straight Blade - Including Rear Radiator Guard 28.59 ft Ground Clearance 2.11 ft Width - Over Wheels 12.47 ft Turning Radius - Inside of Wheels 9.18 ft -
Straight Blade
Spec Value Width – Moldboard Length 14.16 ft Width - Over End Bits 14.75 ft Height with Cutting Edge and Screen 6.23 ft Maximum Depth of Cut 1.5 ft Maximum Lift above Ground 4.19 ft Capacity, Rated 16.1 yd³ Overall Machine Length (includes rear radiator guard, measured to cutting edge) 28.59 ft -
Semi U-Blade
Spec Value Width – Moldboard Length 14.66 ft Width - Over End Bits 14.83 ft Height with Cutting Edge and Screen 6.63 ft Maximum Depth of Cut 2.03 ft Maximum Lift above Ground 3.825 ft Capacity, Rated 20.9 yd³ Overall Machine Length (includes rear radiator guard, measured to cutting edge) 29.54 ft -
U-Blade
Spec Value Width – Moldboard Length 14.25 ft Width - Over End Bits 14.41 ft Height with Cutting Edge and Screen 6.62 ft Maximum Depth of Cut 2.03 mm Maximum Lift above Ground 3.79 ft Capacity, Rated 22.9 yd³ Overall Machine Length (includes rear radiator guard, measured to cutting edge) 30.7 ft -
Wheels
Spec Value Combination Tips (Weight Group) 21125 lb Plus Tips - Weight (Group) 22002 lb Paddle Tips - Weight (Group) 20540 lb Diamond Tips Weight (Group) 23997 lb Outside Diameter 77.6 in Outside Diameter - Diamond 78.1 in Drum Diameter 63.4 in Drum Width 47.2 in Feet Per Row 6 Feet Per Wheel 30 Replaceable Weld On Width Over Drums 3800 mm Tip Height 179 mm Tip Height - Diamond 7.25 in
Standard Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
POWERTRAIN
- Single Clutch Speed Shifting (SCSS)
- Electronic Clutch Pressure Control (ECPC)
- Air-to-air aftercooler
- Brakes, full hydraulic, enclosed, wet multiple disc service brakes
- Cat Clean Emission Module (U.S. EPA Tier 4 Final/ EU Stage V only)
- Muffler (under hood) (U.S. EPA Tier 3/EU Stage IIIA equivalent)
- Electro-hydraulic parking brake
- Engine, Cat C15 configured for two emissions options: Tier 4 Final/Stage V, or emitting equivalent to Tier 3/Stage IIIA
- Fuel priming pump (electric)
- Fuel-to-air cooler
- Ground level engine shutdown
- Heat shield, turbo and exhaust manifold
- Hydraulically driven demand fan
- Integrated braking system
- Radiator, Aluminum Modular (AMR)
- Separated cooling system
- Starting aid (ether)
- Throttle lock
- Torque converter with Lock Up Clutch (LUC)
- Eco Mode
- Transmission, planetary, with 2F/2R speed range control
- Under hood ventilation system
ELECTRICAL
- Alarm, back-up
- Alternator, 150 amp
- Batteries, maintenance-free (4 - 1,000 CCA)
- Electrical system, 24V
- Light, warning unswitched (LED strobe)
- Lighting system, halogen (front and rear)
- Lighting, access stairway
- Lighting, underhood
- Starter, electric (heavy duty)
- Ground level lockable master disconnect switch
- Auxiliary start receptacle
OPERATOR ENVIRONMENT
- Camera, rear vision
- Air conditioner with roof-mounted condenser
- Cab, sound-suppressed pressurized
- Internal four-post rollover protective structure (ROPS/FOPS)
- Radio ready for entertainment: – Antenna – Speakers – Converter (12V, 10-15 amp)
- 12V power port for mobile phone or laptop connection
- Radio, CB ready
- Coat and hard hat hooks
- Fingertip shifting controls
- Flip-up armrest
- Heater and defroster
- Implement hydraulic lockout
- Glass (window) - rubber mounted glass
- Light, (dome) cab
- Lunch box and beverage holders
- Instrumentation, gauges: – Diesel exhaust fluid (DEF) level (U.S. EPA Tier 4 Final/ EU Stage V) – Engine coolant temperature – Fuel level – Hydraulic oil temperature – Speedometer/tachometer – Torque converter temperature
- Instrumentation, warning indicators: – Action alert system, three categories – Brake oil pressure – Electrical system, low voltage – Engine failure malfunction alert and action lamp – Parking brake status
- Mirror, internal (panoramic)
- Mirrors, heated, rearview (externally mounted)
- Premium plus seat containing forced air heating and cooling, 2-way thigh adjustment, power lumbar and back bolster adjustment, ride stiffness adjustment, dynamic end dampening, and leather finish
- Seat belt with minder, retractable, 76 mm (3 in) wide
- Steering and Transmission Integrated Control (STIC™) system with lockout
- Sun visor, front
- Tinted glass
- Transmission gear (indicator)
- Vital Information Management System (VIMS™): – Graphical information display – External data port – Customizable operator profiles
- Wet-arm wipers/washers (front and rear)
- Intermittent wipers (front and rear)
- Precleaner, cab powered
- Horn group (trumpet)
GUARDS
- Guards, axle (front and rear)
- Guard, cab window
- Guard, driveshaft
- Guards, crankcase and powertrain, hydraulically powered
- Guard, differential (front and rear)
FLUIDS
- Antifreeze, premixed 50% concentration extended life (–34° C/–29° F)
OTHER STANDARD EQUIPMENT
- Demand fan/swing out (hydraulic reversible)
- Doors, service access (locking)
- Ecology drains for engine, radiator, transmission, hydraulic tank
- Emergency platform exit
- Engine, crankcase, 500 hour interval with CJ-4 oil
- Engine idle management features: – Auto idle kickdown – Delayed engine shutdown – Engine idle shutdown
- Fire suppression ready
- Fuel tank, 782 L (207 gal)
- Hitch, drawbar with pin
- Hoses, Cat XT™
- Hydraulic, engine, and transmission oil coolers
- Total hydraulic filtration system
- Oil sampling valves
- Oil change system, high speed
- Steering, load sensing
- Stairway, left and right rear access
- Vandalism protection caplocks
- Venturi stack
- Fold-down exhaust stack for shipping
TECHNOLOGY PRODUCTS
- Product Link™ – Cellular, Satellite
SPECIAL ARRANGEMENTS
- Engine: – Sound suppression
- Engine precleaners - single stage
BLADES
- Dozer arrangement (no blade)
WHEELS AND CLEANER BARS
- Striker bars
- Wheels and tips: wheel arrangements – 7" combination tips
Optional Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
OPERATOR ENVIRONMENT
- Radio, AM/FM/Aux/USB/Bluetooth®
- Cat Compact SBAS Mapping (available through SITECH only)
- Cat Compact RTK Mapping (available through SITECH only)
GUARDS
- Guard – rear fan and grill
POWERTRAIN
- Heater, engine coolant, 120V
- Heater, engine coolant, 240V
SPECIAL ARRANGEMENTS
- Engine precleaners – dual stage
MISCELLANEOUS
- CE/UKCA Certification (standard where regulations require it)
- Plate – year of manufacture (Tier 3/Stage IIIA equivalent only)
WHEELS AND CLEANER BARS
- Striker bars with cleaner fingers
OTHER STANDARD EQUIPMENT
- Stairway, swingout (LH & RH)
