Caterpillar

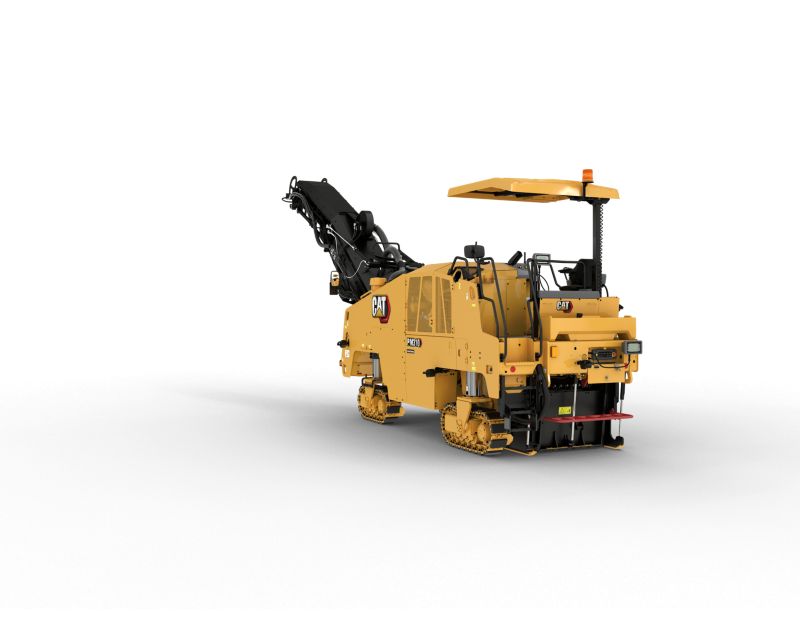

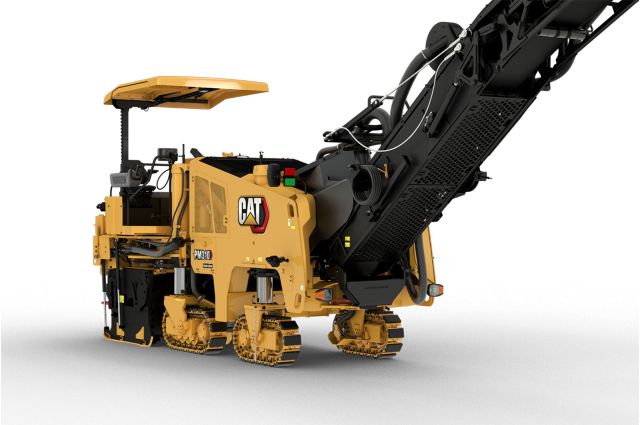

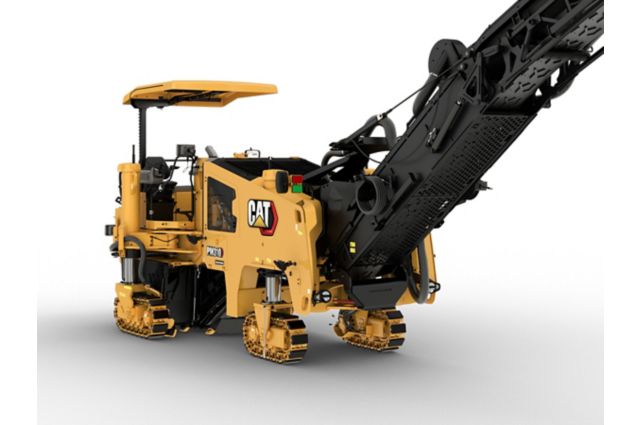

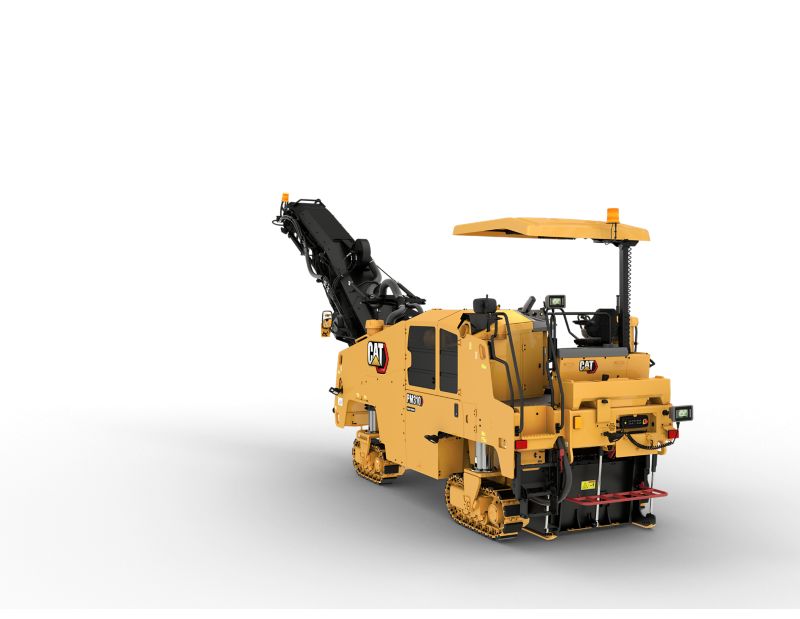

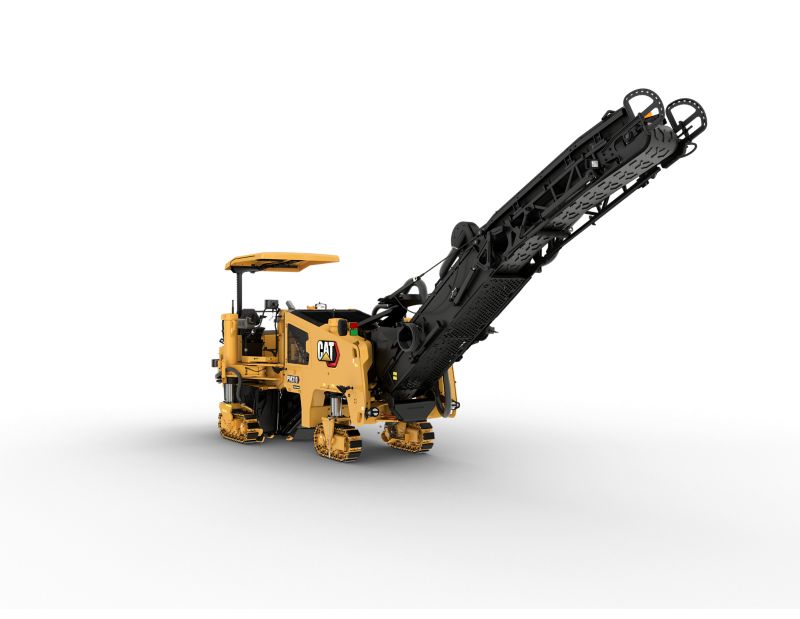

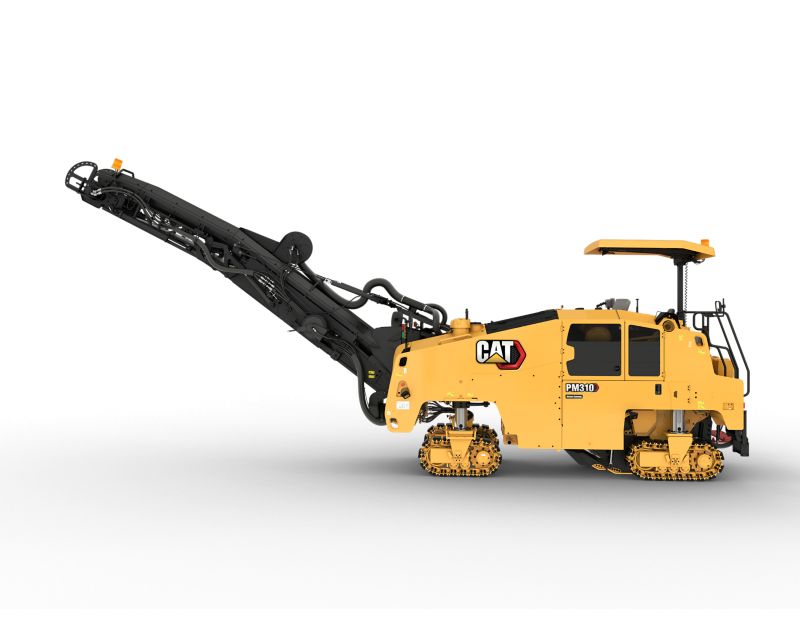

PM310 Track Undercarriage Cold Planer

Milling Width

39.4 in

Rated Power

343 hp

Operating Weight

46770 lb

Overview

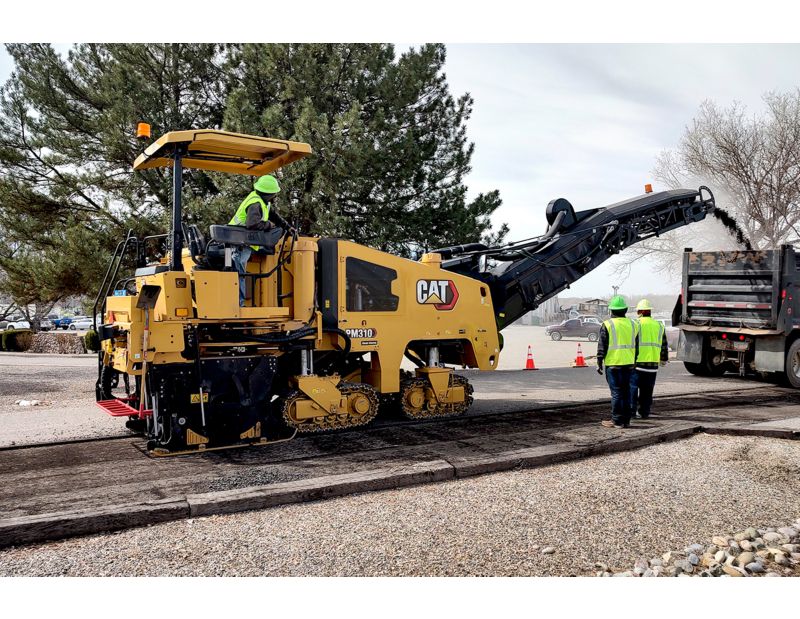

The Cat PM310 is an efficient, highly maneuverable milling machine with a cutting width of 1000 mm (39.4 in) that performs controlled full-depth removal of asphalt and concrete pavements in a single pass. Integrated Cat GRADE and the latest System K rotors deliver performance, productivity and cutting precision. A comfortable operator environment puts intuitive controls at your fingertips, while long service intervals and easy maintenance access simplifies service. While designed for a single operator, the PM310 includes added features for supporting ground personnel. Many options are available to enhance machine versatility when optimum maneuverability or high production capabilities are required.

Photos

Videos

  • PM310 Track Undercarriage Cold Planer
  • PM310 Cold Planer - Customer Testimonial

360° View

Interior

360° Interior View. Double click on the image to zoom in on any area of the product.

Features

Specifications

  • Cutting System
    Spec Value
    Milling Width 39.4 in
    Maximum Milling Depth 13 in
    Rotor Speeds 97 / 109 / 121 rpm
    Number of Bits 91
  • Power Train
    Spec Value
    Rated Power 343 hp

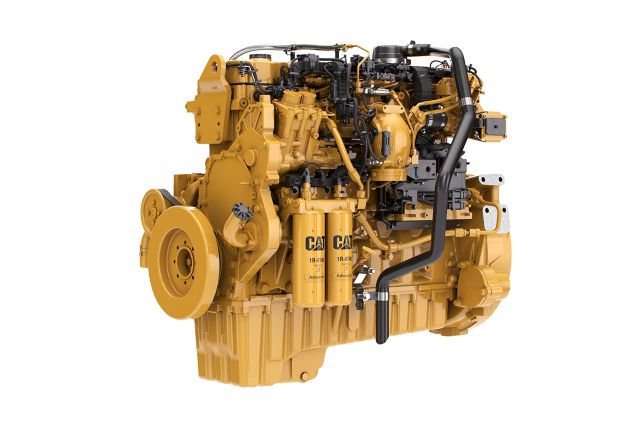

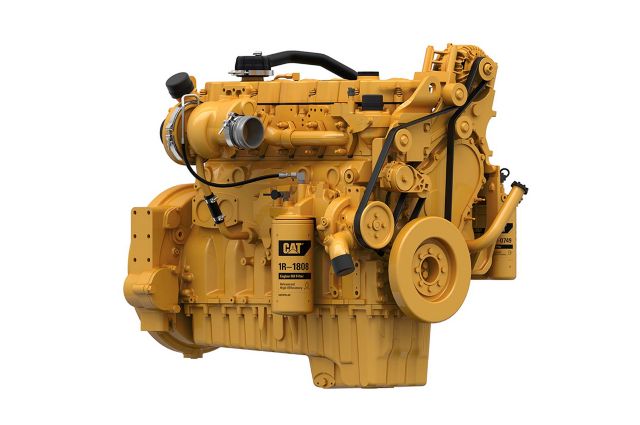

    Engine C9.3B
    Maximum Travel Speed 3.4 mile/h
    Maximum Milling Speed 108 ft/min
  • Weights
    Spec Value
    Operating Weight 46770 lb
    Transport Weight 45869 lb
  • Dimensions
    Spec Value
    Operating Length - Conveyor Up 36.45 ft
    Operating Width 8.33 ft
    Height - Canopy 12.3 ft
    Maximum Truck Clearance 15.42 ft
    Minimum Right Cutting Radius 6.3 ft
    Minimum Left Cutting Radius 13.58 ft
    Conveyor Swing 60 degrees from center
    Transport Length 30.58 ft
    Transport Width 8.33 lb/in
    Transport Height 9.84 ft
  • Service Refill Capacities
    Spec Value
    Water Spray System Tank 332.9 gal (US)
    Hydraulic Tank 14.5 gal (US)
    Diesel Exhaust Fluid (DEF) Tank 12.4 gal (US)
    Engine Oil 7.9 gal (US)
    Cooling System 16.9 gal (US)
    Fuel Tank 137.9 gal (US)

Standard Equipment

NOTE

  • Standard and optional equipment may vary. Consult your Cat dealer for details.

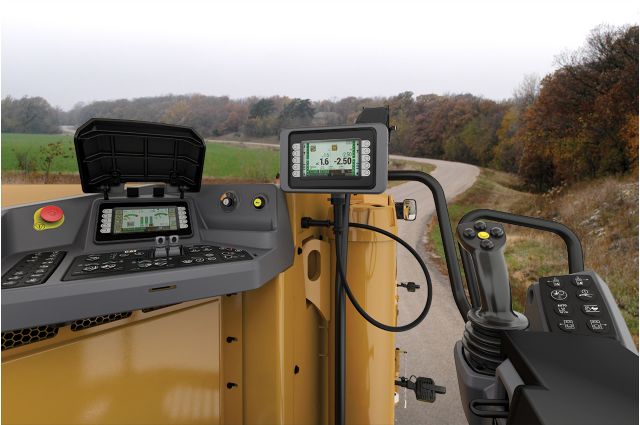

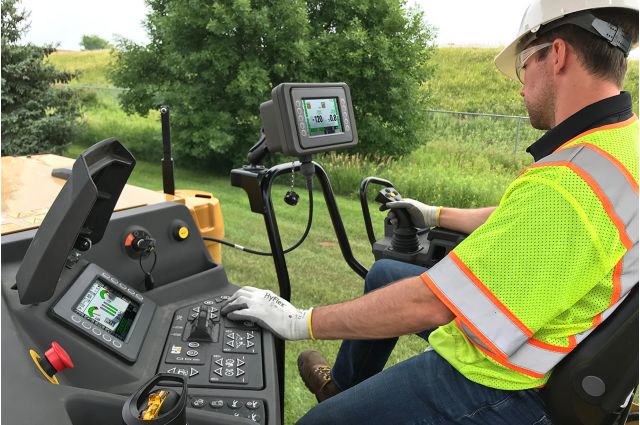

OPERATOR ENVIRONMENT

  • Sliding operator station
  • Suspension seat
  • Ergonomically adjustable arm rest

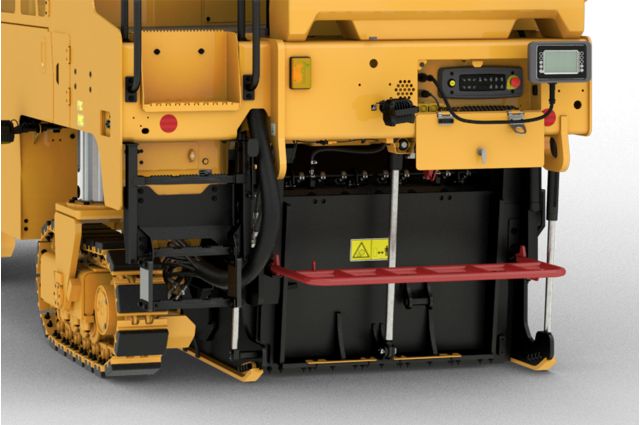

  • Ground control keypad

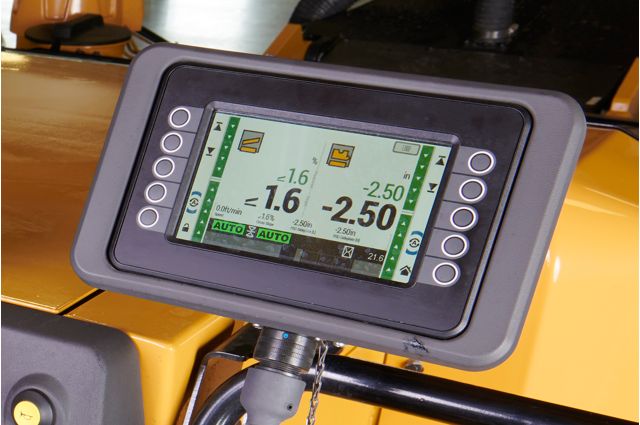

  • High-resolution LCD touchscreen display
  • 12-volt power receptacle

CAT CONNECT TECHNOLOGY

  • Remote Flash
  • Remote Troubleshoot
  • Cat Grade with Grade and Slope
  • VisionLink® telematics

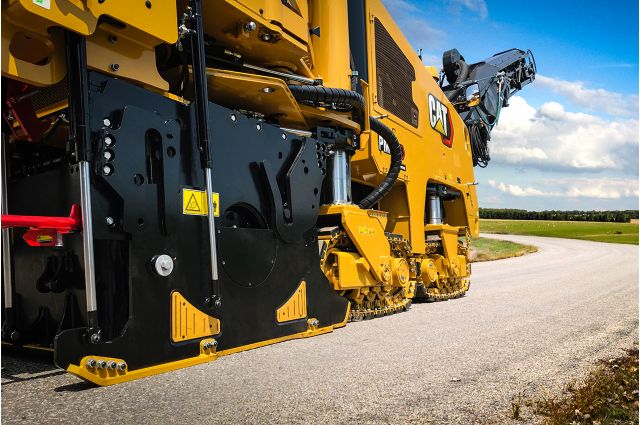

ROTOR SYSTEM

  • Automatic plunge-cut
  • Automatic grade and slope transition feature
  • Obstacle jump
  • Three cutting speeds

POWERTRAIN

  • Engine Idle Speed Management
  • High capacity cooling system
  • Automatic Load Control

HYDRAULIC SYSTEM

  • Traction control

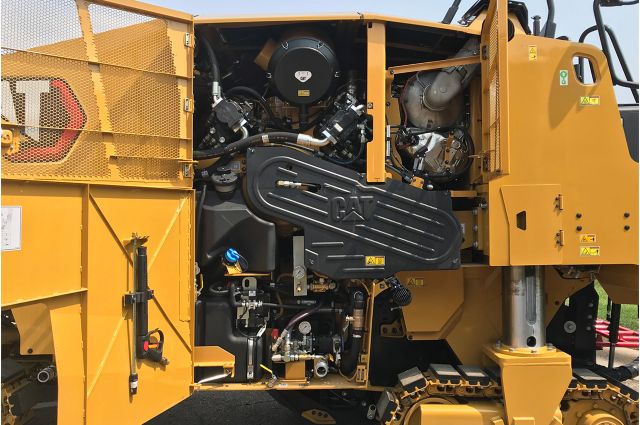

SERVICE AND MAINTENANCE

  • Ports for Scheduled Oil Sampling (S·O·S℠)
  • Platform-level engine oil dipsticks
  • 1260 L (332.9 gal) onboard water tank
  • Side water fill valve
  • Water spray system

SAFETY AND SECURITY

  • Platform handrails
  • Signaling/warning horn

Optional Equipment

NOTE

  • Standard and optional equipment may vary. Consult your Cat dealer for details.

OPERATOR ENVIRONMENT

  • Additional high-resolution LCD touchscreen display
  • Powered canopy
  • Windscreen
  • Exhaust diverter

CAT CONNECT TECHNOLOGY

  • Sonic grade control sensors
  • High-resolution LCD touchscreen display (for ground level grade controls)

CONVEYOR

  • Dust abatement system
  • Hydraulic folding conveyor

ROTOR SYSTEM

  • Rotor turning device (with pendant control)

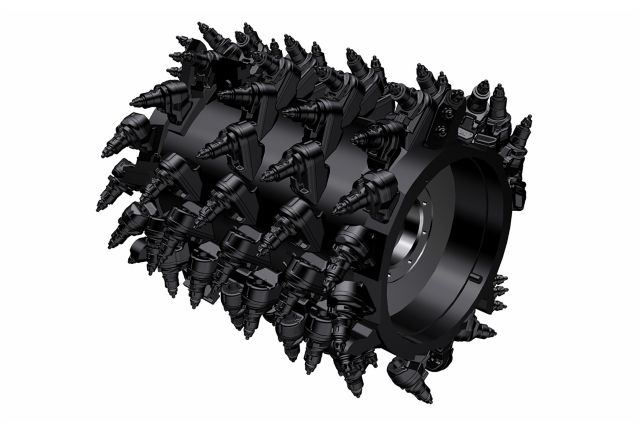

  • System K Rotor - Coarse (18 mm)
  • System K Rotor - Standard (15 mm)
  • System K Rotor - Fine (8 mm)
  • Diamond bits
  • Pneumatic bit removal tool
  • Tool holder extractor
  • 510 kg (1124 lb) ballast kit

POWERTRAIN

  • Wheel undercarriage
  • Track undercarriage
  • CE certificate

HYDRAULIC SYSTEM

  • Cat Bio HYDO™ Advanced biodegradable hydraulic oil
  • High ambient hydraulic oil

SERVICE AND MAINTENANCE

  • Air compressor
  • Accessory drive system
  • High pressure washdown
  • Low pressure washdown
  • Additional water spray system (dust control)

SAFETY AND SECURITY

  • Halogen work lighting
  • Wide dispersion LED work lighting
  • Warning beacon (fixed)
  • LED roading lights
  • Truck signal lights
  • Remote cameras (rear back up, front conveyor, left and/or right cutting edges, magnetic mount)
