Ziegler CAT

Caterpillar

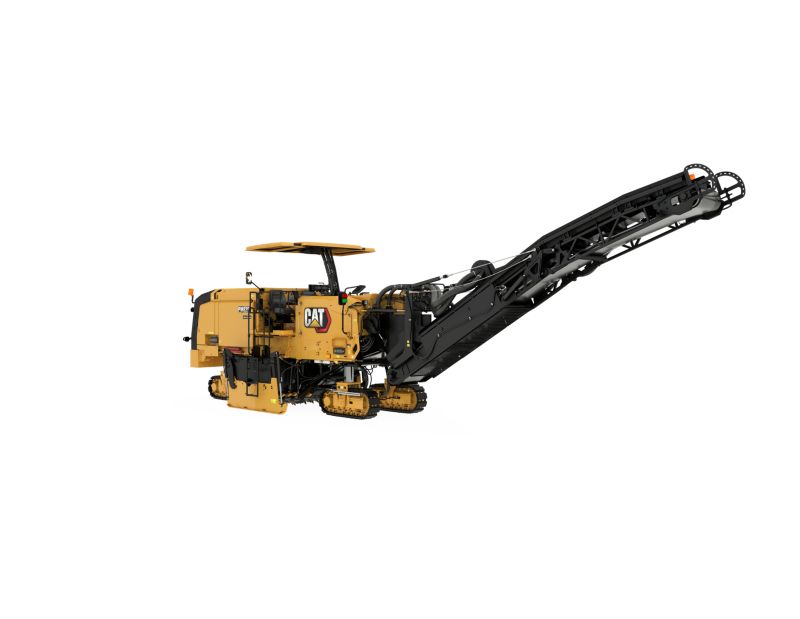

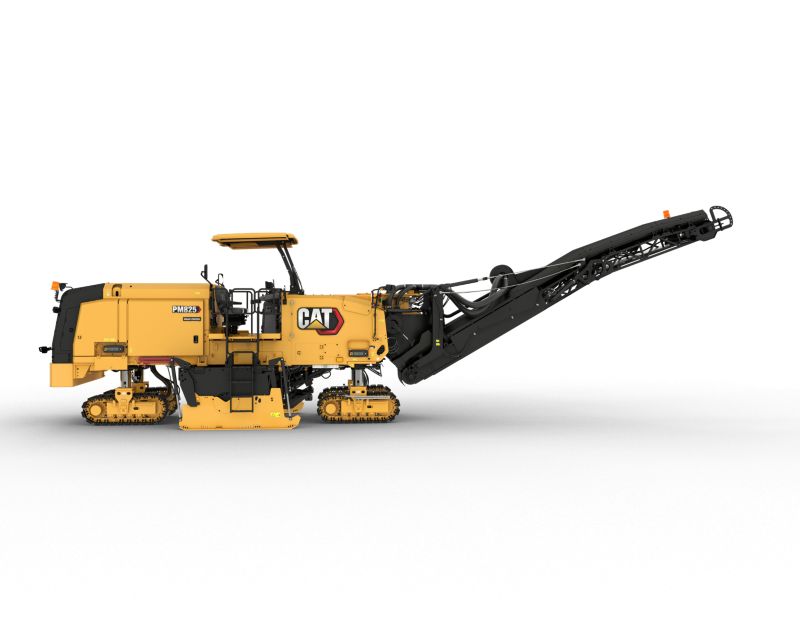

PM825 Cold Planer

Milling Width

98.6 in

Rated Power

800.6 HP

Operating Weight

82673 lb

Overview

The PM825 is a high-production, half-lane milling machine with a cutting width of 2505 mm (98.6 in) that performs controlled full-depth removal of asphalt and concrete pavements in a single pass.

Photos

Videos

  • Ramp In, Ramp Out & Jump Hold on Cat Mills
  • Cat® PM822 Cold Planer Working on Pikes Peak, Colorado

360° View

Exterior

360� Exterior view. Double click on the image to zoom in on any area of the product.

Interior

360� Interior view. Double click on the image to zoom in on any area of the product.

Showroom

Virtual Product Tour

Features

Specifications

  • Cutting System
    Spec Value
    Milling Width 98.6 in
    Maximum Milling Depth 13 in
    Rotor Speeds 100 / 109 / 118 rpm
    Number of Bits 203
  • Power Train
    Spec Value
    Rated Power 800.6 HP

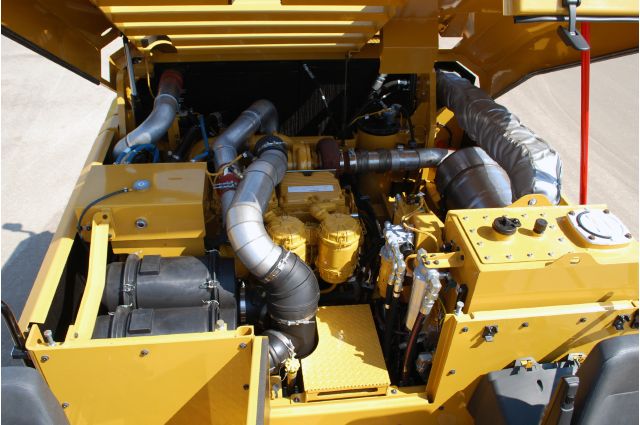

    Engine Cat C18 twin-turbo
    Maximum Travel Speed 3.7 mile/h
    Maximum Milling Speed 328 ft/min
  • Weights
    Spec Value
    Operating Weight 82673 lb
    Transport Weight 74075 lb
  • Dimensions
    Spec Value
    Operating Length - Conveyor Up 47.64 ft
    Operating Width 11.02 ft
    Height - Canopy 13.29 ft
    Maximum Truck Clearance 15.94 ft
    Minimum Right Cutting Radius 4.92 ft
    Minimum Left Cutting Radius 6.56 ft
    Conveyor Swing 60 degrees from center
    Transport Length 40.78 ft
    Transport Width 9.88 ft
    Transport Height 9.84 ft
  • Service Refill Capacities
    Spec Value
    Water Spray System Tank 898.2 gal (US)
    Cooling System 27.5 gal (US)
    Fuel Tank 292.7 gal (US)
    Engine Oil 17.2 gal (US)
    Hydraulic Tank 29.9 gal (US)

Standard Equipment

OPERATOR ENVIRONMENT

  • Ground control keypads

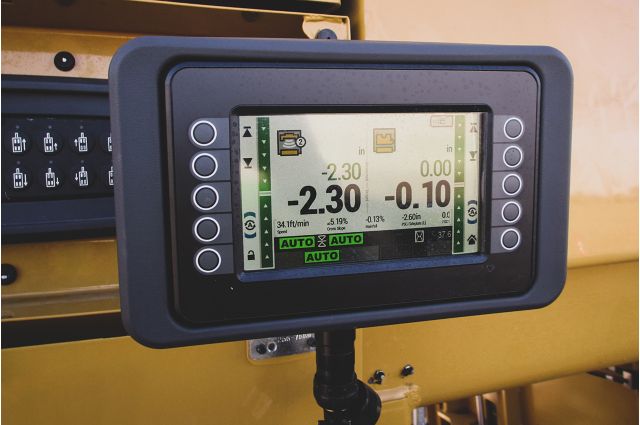

  • Single high-resolution LCD touchscreen display
  • 12-volt power receptacle

CAT CONNECT TECHNOLOGY

  • Remote troubleshoot capability
  • Cat Product Link
  • Cat GRADE

CONVEYOR

  • Grease tensioner
  • Material removal boost feature

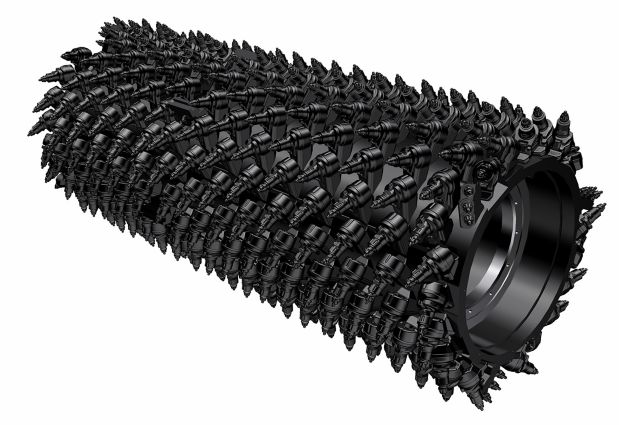

ROTOR SYSTEM

  • Automatic plunge-cut
  • Automatic transition feature
  • Obstacle jump
  • Three cutting speeds
  • System K Rotor - Standard (15 mm)

POWERTRAIN

  • Auto engine idle control
  • High capacity cooling system
  • Dual propel pumps
  • Automatic load control

HYDRAULIC SYSTEM

  • Dual pump hydraulic propel system
  • Traction control

SERVICE AND MAINTENANCE

  • Sampling ports for Scheduled Oil Sampling (S·O·S)
  • Power hood
  • Platform-level engine oil dipsticks
  • Rotor chamber water spray system
  • Air compressor
  • Accessory drive system
  • 3400 L (898 gal) onboard water tank
  • Side water fill valve

SAFETY AND SECURITY

  • Platform handrails
  • Signaling/warning horn
  • Halogen work lighting

Optional Equipment

OPERATOR ENVIRONMENT

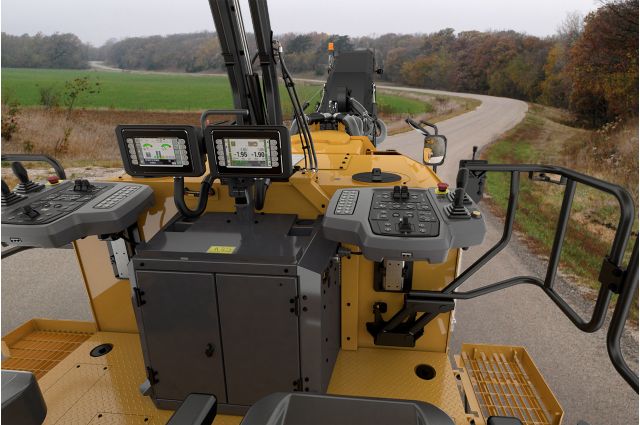

  • Dual high-resolution LCD touchscreen displays
  • Hydraulically folding canopy
  • Air-ride suspension seats
  • Windscreens

CAT CONNECT TECHNOLOGY

  • Inboard ski
  • Sonic sensor (averaging or string line)
  • Ground level grade controls and displays

CONVEYOR

  • Dust abatement system
  • Remote camera (loading conveyor)

ROTOR SYSTEM

  • System K Rotor - Course (25 mm)
  • System K Rotor - Course (18 mm)
  • System K Rotor - Fine (8 mm)
  • System K Rotor - Micro (6 mm)
  • Diamond bits
  • Bit bucket trays
  • Pneumatic bit removal tool
  • Tool holder extractor
  • Rotor turning device

POWERTRAIN

  • CE certificate

HYDRAULIC SYSTEM

  • Water tank transfer pump
  • Fuel transfer pump

SERVICE AND MAINTENANCE

  • High pressure washdown
  • Low pressure washdown
  • Additional spray bars
  • Remote Flash

SAFETY AND SECURITY

  • LED work lighting (fixed, pole mounted, magnetic)
  • Warning beacon (fixed or magnetic mount)
  • Truck signal lights
  • Remote camera (rear, front, magnetic mount)
