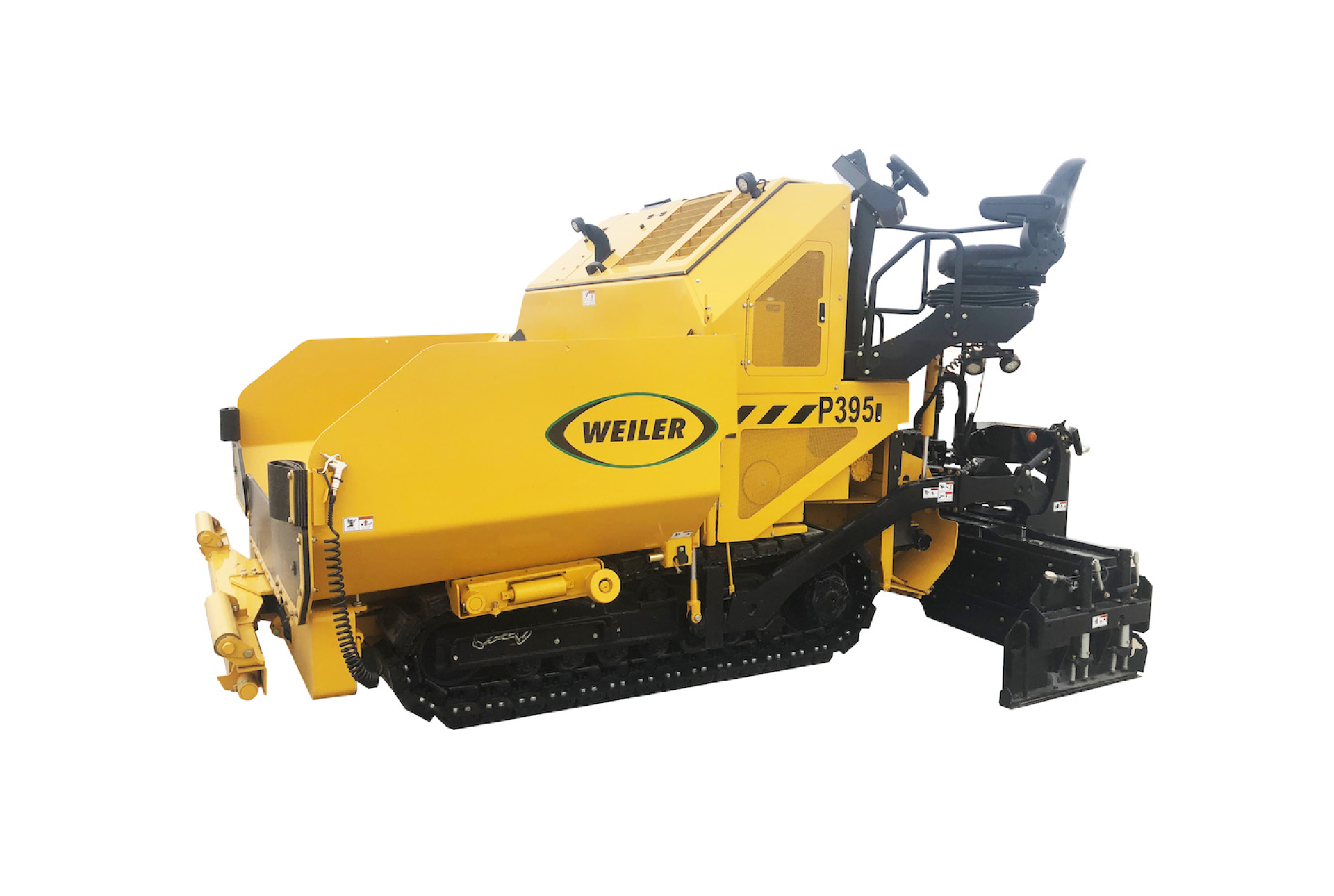

P395B

Engineered and built to exceed the demands of commercial paving, the Weiler P395 incorporates proven designs with new innovations to provide performance, reliability and outstanding mat quality in a wide range of applications.

Photos

Documents

Specifications

  • Specifications
    Spec Value
    Engine Cat C3.6 St V
    Engine HP 120 HP
    Length 15' 2"
    Width 8' 6"
    Truck Clearance 19"
    Fuel Capacity 39 Gal
    Hydraulic Capacity 30 Gal
    Spraydown Tank 8 Gal
    Hopper Capacity 11 Tons
    Machine Weight 24,000 lbs
    Screed Weight 4,400 lbs
    Paving Width 7' 8" to 15' 4"
    Main Plate Width 16.5"
    Extension Plate Width 10"
    Screed Heat Electric - 4 Elements
    Vibration 4 x 2500 VPM
    Steering Steering Wheel Standard
    Track Length 96"
    Transport Speed 350 FPM
    Max Auger Speed 150 rpm
    Auger Diameter 14"
    Generator Hydraulic Driven
