Caterpillar

740 EJ Articulated Truck

Engine Model

Cat® C18

Rated Payload

42 ton (US)

Heaped (SAE 2:1)

30.1 yd³

Overview

The Cat® 740 EJ features a world-class cab design, re-engineered using global operator feedback to advance comfort and ease of operation. Enhancements include new controls, transmission-protection features, hoist-assist system, advanced automatic traction control system, stability-assist machine rollover warning system, and a fuel saving ECO mode.

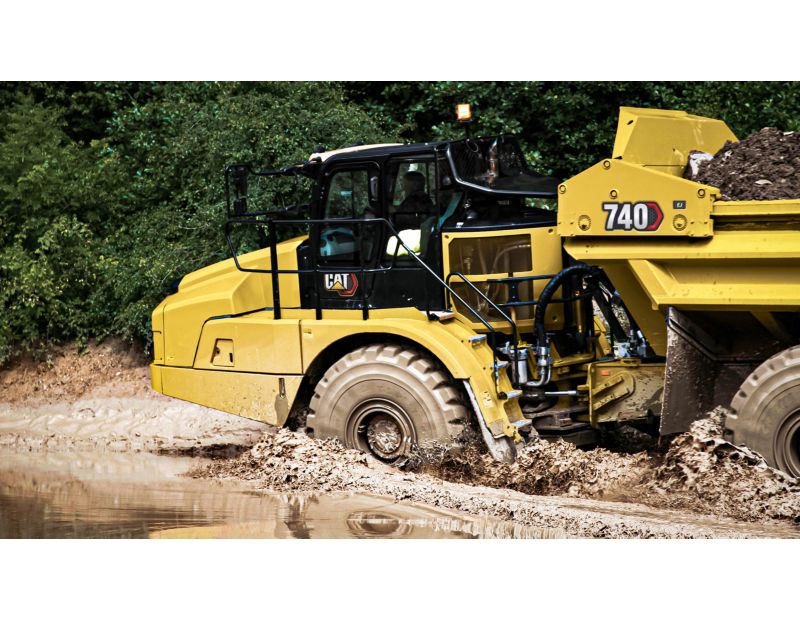

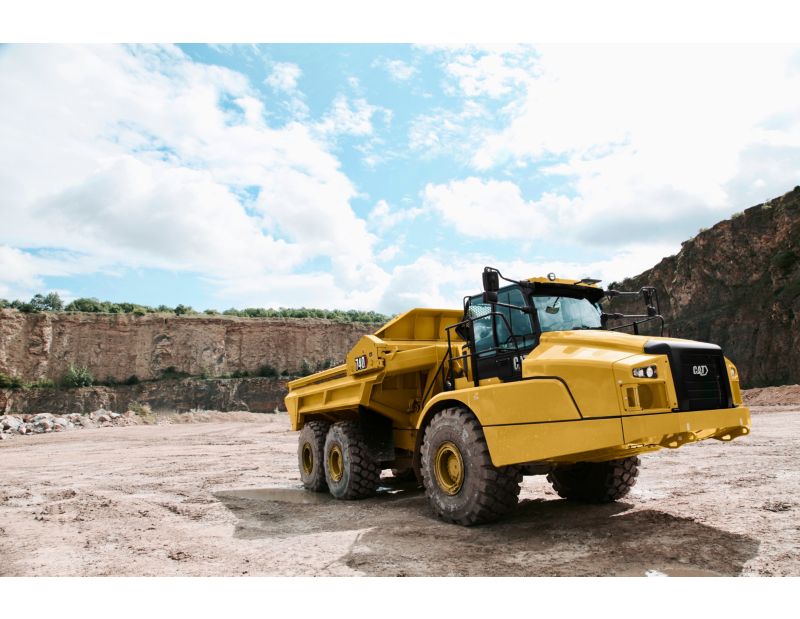

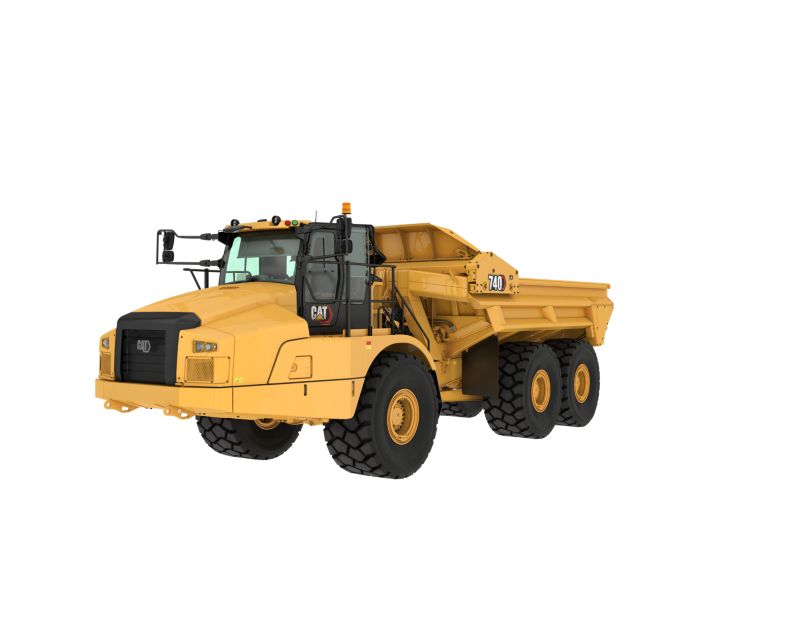

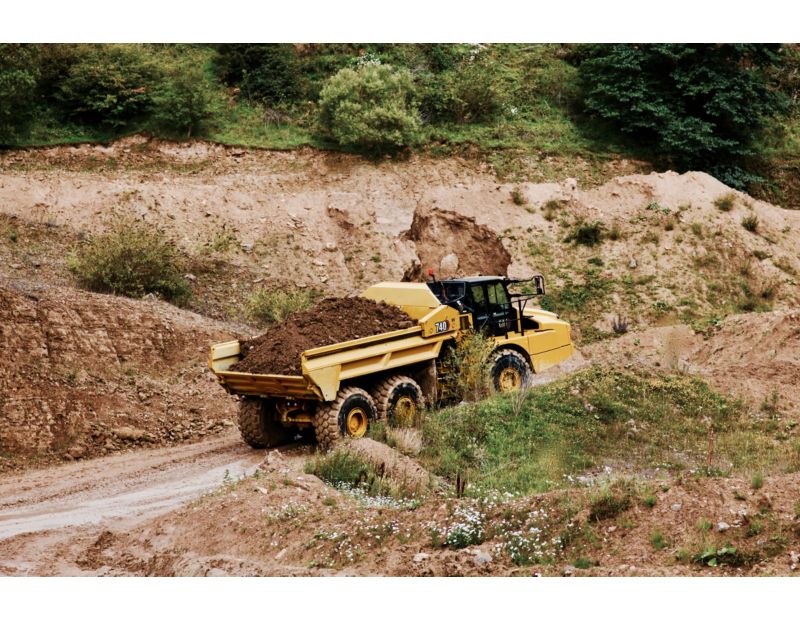

Photos

360° View

Exterior

360° Exterior View. Double click on the image to zoom in on any of the products.

Interior

360° Interior View. Double click on the image to zoom in on any of the products.

Showroom

740 EJ Virtual Product Tour

Specifications

  • Engine
    Spec Value
    Engine Model Cat® C18
    Bore 5.7 in
    Stroke 7.2 in
    Displacement 1106 in³
    Net Power - SAE J1349:2011 496 hp
    Engine Model - U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 (Tier 4 Final), Korea Tier 4 Final Cat C18
    Net Power - ISO 14396 504 hp
    Gross Power - SAE J1995:2014 511 hp
    Peak Engine Torque Net (SAE J1349) 1887 ft·lbf
    No Engine De-rating Required Below 10000 ft
    Note (4) DEF used in Cat SCR systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241-1. ISO 22241-1 requirements are met by many brands of DEF, including those that carry the AdBlue or API certifications.
    Peak Engine Torque Gross (SAE J1995) 1931 ft·lbf
    Note (1) The power ratings apply at rated speed of 1,700 rpm when tested under the conditions for the specified standard.
    Peak Engine Torque Speed 1200 r/min
    Note (2) The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler and fan at minimum speed.
    Note (3) Net power when the fan is at maximum speed is 348 kW (467 hp) per the SAE reference conditions.
    Emissions The 740 EJ meets Tier 4 Final and Stage V emission standards.
  • Weights
    Spec Value
    Rated Payload 42 ton (US)
  • Body Capacities
    Spec Value
    Heaped (SAE 2:1) 30.1 yd³
    Struck 23.5 yd³
  • Transmission
    Spec Value
    Forward - 1 3.8 mile/h
    Forward - 2 5 mile/h
    Forward - 3 7 mile/h
    Forward - 4 8.8 mile/h
    Forward - 5 11.6 mile/h
    Forward - 6 14.2 mile/h
    Forward - 7 19.6 mile/h
    Reverse - 1 4 mile/h
    Reverse - 2 9.1 mile/h
    Forward - 8 23.5 mile/h
    Forward - 9 34 mile/h
  • Sound Levels
    Spec Value
    Interior Cab 72 dB(A)
    Note (1) The operator sound exposure Leq (equivalent sound pressure level) measured according to the work cycle procedures specified in ANSI/SAE J1166 OCT98 is 76 dB(A), for the cab offered by Caterpillar, when properly installed and maintained and tested with the doors and windows closed.
    Note (2) Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in noisy environments.
  • Operating Weights
    Spec Value
    Front Axle - Empty 44849 lb
    Front Axle - Loaded 48548 lb
    Center Axle - Loaded 57214 lb
    Center Axle - Empty 17095 lb
    Total - Empty 78623 lb
    Rear Axle - Rated Load 40120 lb
    Rear Axle - Empty 16515 lb
    Front Axle - Rated Load 3534 lb
    Center Axle - Rated Load 40120 lb
    Total - Loaded 162399 lb
    Total - Rated Load 83776 lb
    Rear Axle - Loaded 56637 lb
  • Body Plate
    Spec Value
    Type High Strength Brinell HB450 Wear Resistant Steel
    Chute 0.55 in
    Front 0.28 in
    Side 0.43 in
    Base 0.55 in
  • Service Refill Capacities
    Spec Value
    Fuel Tank 145.3 gal (US)
    Cooling System 23.7 gal (US)
    Engine Crankcase 13.7 gal (US)
    Steering/Hoist Hydraulic System 36.9 gal (US)
    Transmission - OTG 19.8 gal (US)
    DEF Tank 5.3 gal (US)
    Brake Cooling Tank 17.7 gal (US)
    Axles - Each 15.8 gal (US)
    Final Drive - Each 1.3 gal (US)
  • Steering
    Spec Value
    Lock to Lock 4.8 seconds @ 60 rpm
  • Standards
    Spec Value
    Brakes ISO 3450 – 2011
    Cab - FOPS ISO 3449 Level II – 2005
    Cab - ROPS ISO 3471 – 2008
    Steering ISO 5010 – 2007
  • Turning Circle
    Spec Value
    Note Dimensions are for machines equipped with 29.5R25 tires.
    Turning Dimensions - Aisle Width 233 in
    Turning Dimensions - Inside Radius 173 in
    Turning Dimensions - Clearance Radius 356 in
    Turning Dimensions - SAE Turning Radius 339 in
    Turning Dimensions - Steer Angle - Left/Right 45 deg

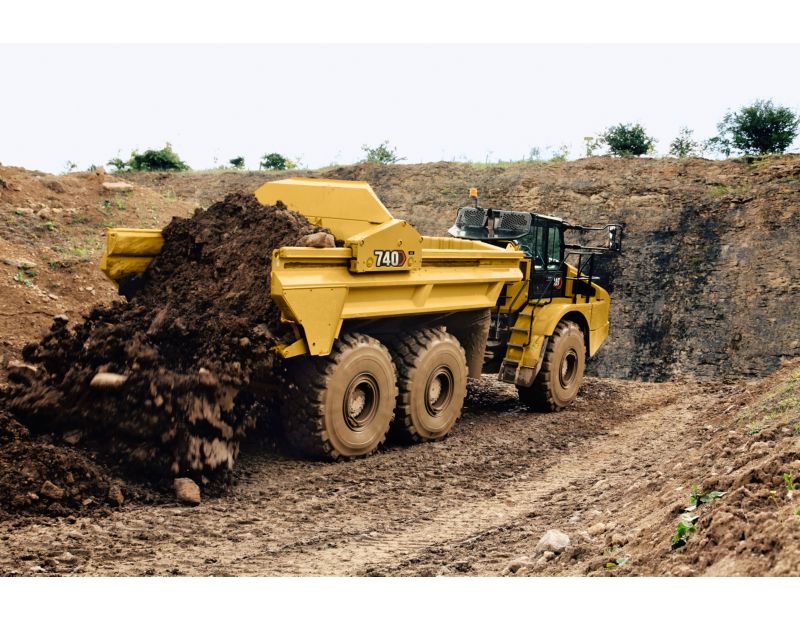

  • Blade Eject/Retract
    Spec Value
    Retract (manual) 21 s
    Eject (manual) 17 s
    Eject (automatic) 16 s
    Retract (automatic) 21 s
  • Optimal Loader/Truck Pass Matching
    Spec Value
    Note An optimum system match gives you a major productivity advantage. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved.
    Wheel Loader: 972 - Passes 4–5
    Wheel Loader: 982 - Passes 4
    Hydraulic Excavator: 374 - Passes 5
    Hydraulic Excavator: 390 - Passes 4
    Wheel Loader: 980 - Passes 4–5

Standard Equipment

NOTE

  • Standard and optional equipment may vary. Consult your Cat dealer for details.

OPERATOR ENVIRONMENT

  • Air conditioning with R134A refrigerant
  • Windshield wiper and washer, two speed, intermittent (front)
  • Windows opening side, tinted
  • Adjustable air vents
  • Two seat belts, operator's retractable
  • Windshield wiper and washer, two speed (rear)
  • Storage:
    – Cup holder
    – Flask receptacle
    – Under seat storage
    – Door pocket
    – Behind seat storage
    – Coat hook
  • Mirrors: Extensive arrangement for improved visibility
  • Tilt and telescopic steering wheel
  • Sun visor
  • Heater and defroster with variable speed fan
  • Secondary steering – electro hydraulic
  • Combined gear selection and eject control lever
  • Machine operation monitoring system includes:
    – Action lamp
    – Engine oil pressure
    – Primary steering system
    – Left and right turn signal
    – High beam
    – Coolant temperature
    – Tachometer
    – Parking brake
    – Fuel level
    – Transmission oil temperature
    – Brake system
    – Transmission hold
    – Hoist control
    – Hydraulic system
    – Charging system
    – Retarder
    – Transmission fault
    – Traction control system
    – Check engine lamp
  • Liquid Crystal Display (LCD):
    – Alert indicator
    – Selected gear and direction
    – Speed or auto shift
    – Review Operation and Maintenance Manual (OMM)
    – Primary steering failure
    – Seat belt warning
    – Secondary steering failure
    – DPF regeneration filter
    – Machine Security System (MSS)
    – Secondary steering energy source engaged
    – Hour meter
    – Retarder active
  • Window blinds
  • Glass windows: laminated and tinted-front toughened and tinted-sides and rear
  • Touch screen display incorporating the rearview camera video feed
  • Seats:
    – Fully adjustable, air suspension, heated/cooled
    – Padded trainer with lap belt

CAT TECHNOLOGIES

  • Product Link: PL631 (satellite) or PL641 (cellular) dependent on location and licensing agreement
  • Cat Detect with Stability Assist

ELECTRICAL AND LIGHTING

  • Batteries (two) maintenance free
  • Electrical system: 24 volt, 5A 24- to 12-volt converter
  • Horn
  • Lighting Systems:
    – Cab interior
    – Two head lamps
    – Two width marker
    – Two reversing
    – Work light
    – Two stop/tail lights
    – Front and rear direction indicators
  • Main disconnect switch
  • Remote starting receptacle (cables not included)

POWER TRAIN

  • Auto shift nine-speed forward and two reverse transmission
  • Cat C18 engine
  • Differentials: standard with automatic clutched inter and cross-axle differential locks
  • Dual circuit oil immersed, enclosed brakes – all wheels
  • Retarder: engine compression brake
  • Three axle, six-wheel drive

SAFETY

  • Reverse alarm
  • Rearview camera
  • ROPS/FOPS cab

GUARDS

  • Rear window
  • Radiator
  • Crankcase
  • Axle
  • Front dump body spill guard, integral part of fabricated body

OTHER STANDARD EQUIPMENT

  • Mud flaps: wheel arch and body mounted with transportation tiebacks
  • S·O·S sampling valves
  • Tires, six 29.5R25, radial
  • Vandalism protection: lockable caps for fuel tank and hydraulic oil tank

Optional Equipment

NOTE

  • Standard and optional equipment may vary. Consult your Cat dealer for details.

OPTIONAL EQUIPMENT

  • Auto lube installation for automatic greasing of bearings
  • Body liners
  • Bluetooth radio stereo system
  • Cat Production Measurement payload monitoring system
  • Cold weather coolant –51° C (–60° F)
  • Cold weather start attachment
  • Engine block heater
  • Ether start
  • Exhaust heated body
  • Fast fuel fill
  • Fender extension
  • Flashing LED beacon
  • Four point seat belt
  • Fuel additive – anti-waxing
  • Heated rearview motorized mirrors
  • Machine Security System (MSS)
  • Product Link Elite: PLE631 (satellite), PLE641 (cellular)
  • Roof mounted High Intensity Discharge (HID) work lights
  • Sound suppression
  • 875/65 R29 wide tires
