Caterpillar

Cat® Water Delivery System Factory Option

Overview

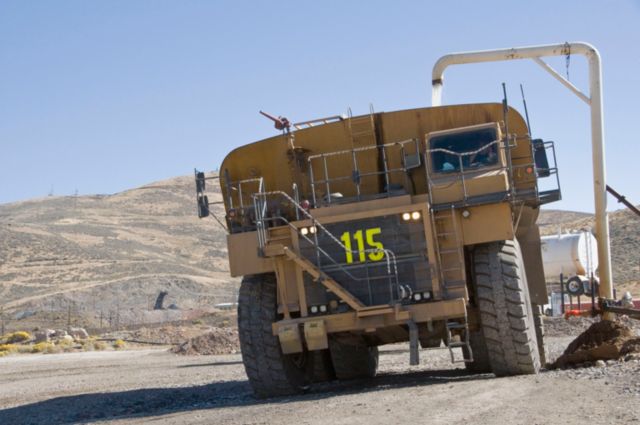

The Cat® Water Delivery System (WDS) is an automated system with a fully-integrated Cat design. It controls the amount of water and spray patterns to prevent the hazards common with overwatering. WDS provides variable water flow based on truck speed and determines appropriate flow to conserve water. The Cat WDS is available as a factory option for the Cat 777, 785D, and 789D Off-Highway Truck Bare Chassis.

*Results shown from Cat WDS compared to conventional water system. **Results shown from Cat WDS cannon output. Testing was conducted at theCaterpillar Tucson Proving Ground with data captured from a production study.Results may vary.

Photos

Videos

Features

Specifications

  • General
    Spec Value
    Cannon Capacity 2271 - 6246 liters per min up to 60 meters (600 - 1,650 gallons per min up to 200 ft). Depends on nozzle orifice and pipe size.
    Water Coverage 0.1 - 0.8 L/m² at speeds of 4 to 40 kph (0.05 - 0.2 gal/ft² at speeds of 3 to 25 mph)

Standard Equipment

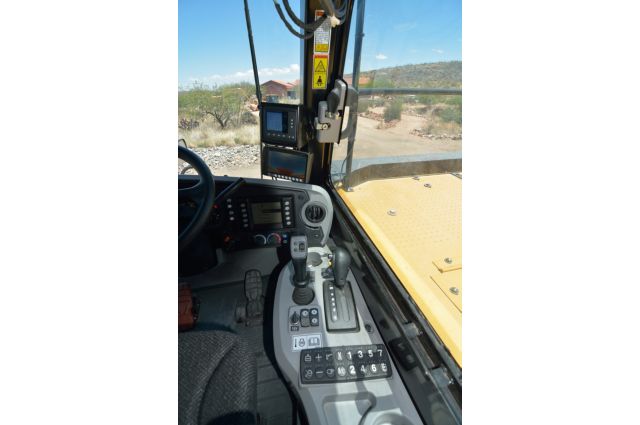

Controls

  • Factory installed
  • Integrated into cab
  • Ergonomic
  • Durable

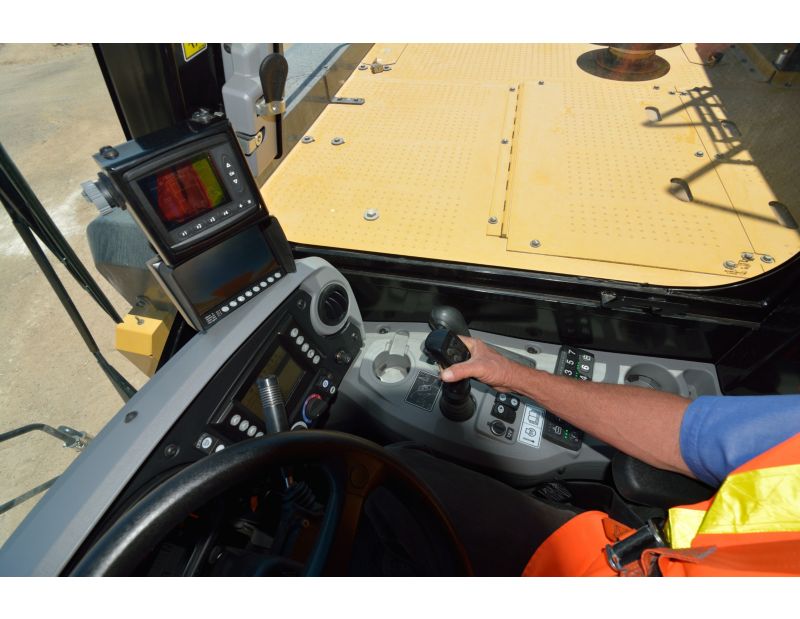

Water System Monitor

  • Integrated into cab
  • Programmable spray configurations
  • Automatic diagnostic messages

Variable Hydraulic Pump Drive

  • 6814 L/min (1,800 gpm) at speeds of 4 kph - 40 kph (3 to 25 mph)
  • Auto shut-off
  • Soft startup

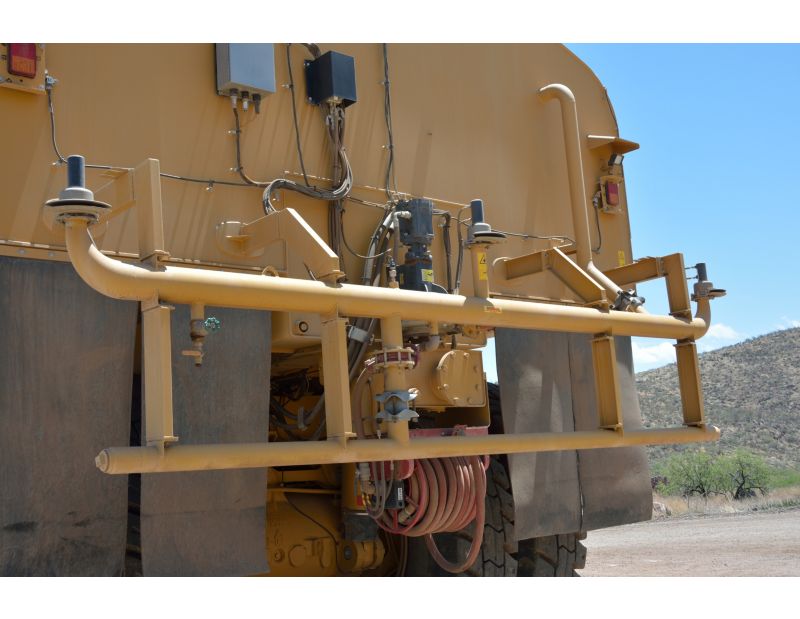

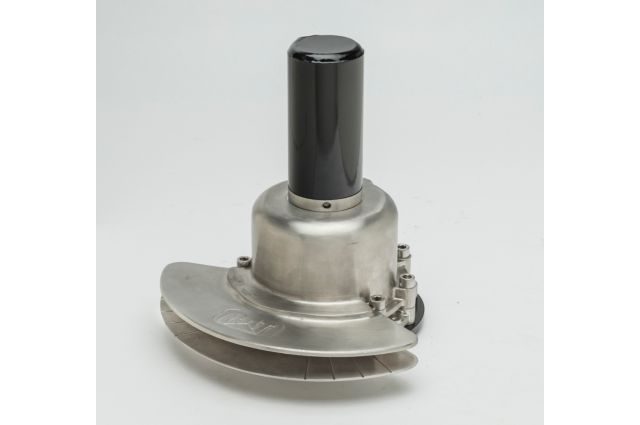

Stainless Steel Spray Heads

  • Resists corrosion
  • Maintenance free
  • Patented design

Independent Hydraulic & Cooling System

  • Minimizes overheating

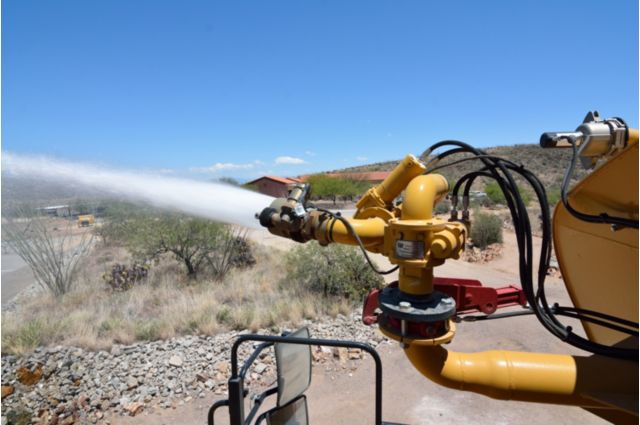

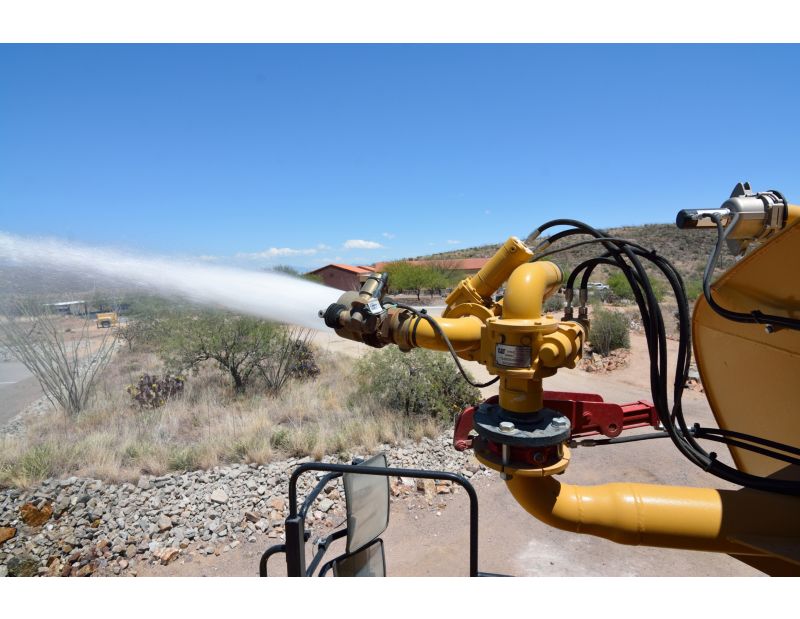

Water Cannon

  • Hydraulically controlled
  • Optional nozzles
  • Integrated joystick with cab controls
  • Operates at idle for added fuel savings

Parts & Service

  • Available through global Cat Dealer Network

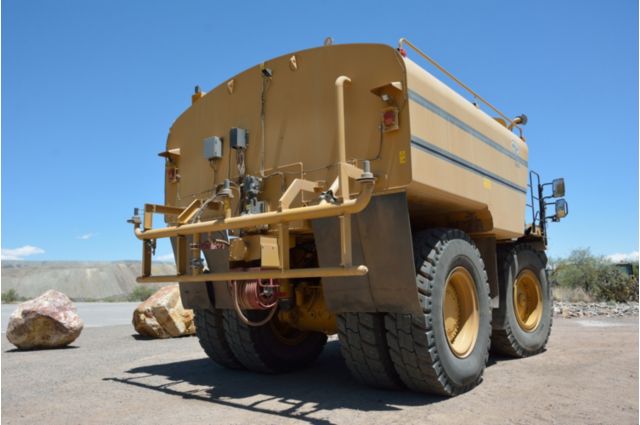

Water Tank

  • Contact your local Cat dealer or Caterpillar OEM Solutions at oemsolutions@cat.com for assistance in obtaining water tanks through local suppliers worldwide.
