Caterpillar

3.7 m (12 ft) Snow Plow

Robust design for moving snow with maximum efficiency and power.

Photos

Videos

  • Cat® Snow Attachments at Work
  • An Attachment for Every Job - Cat® Work Tool Attachments

360° View

Exterior

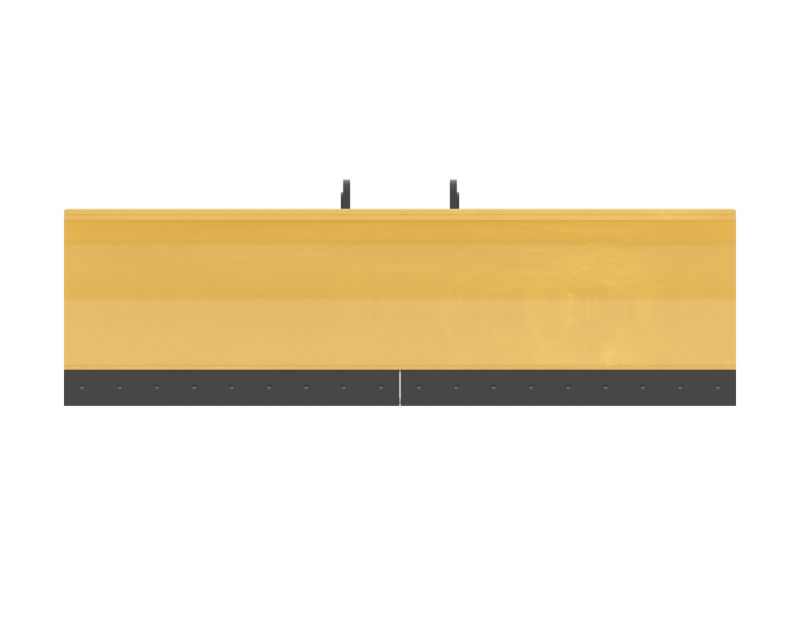

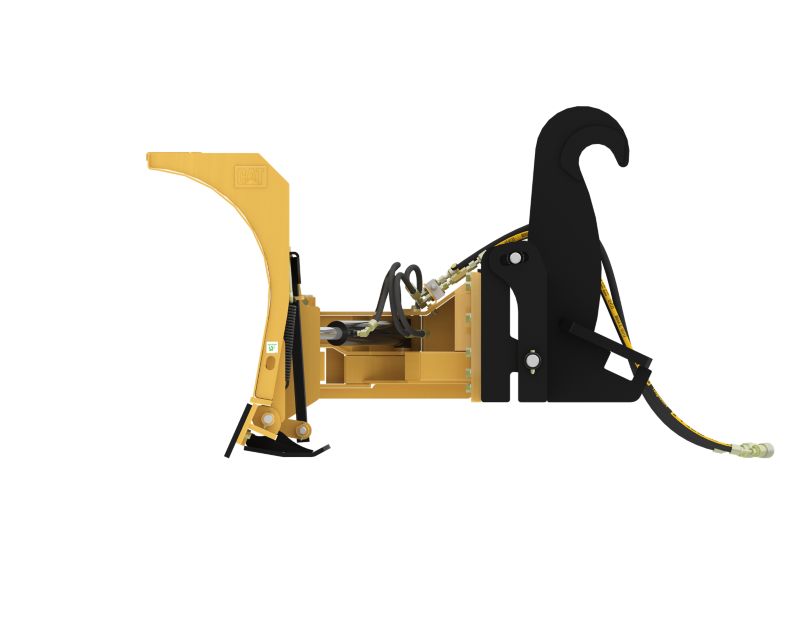

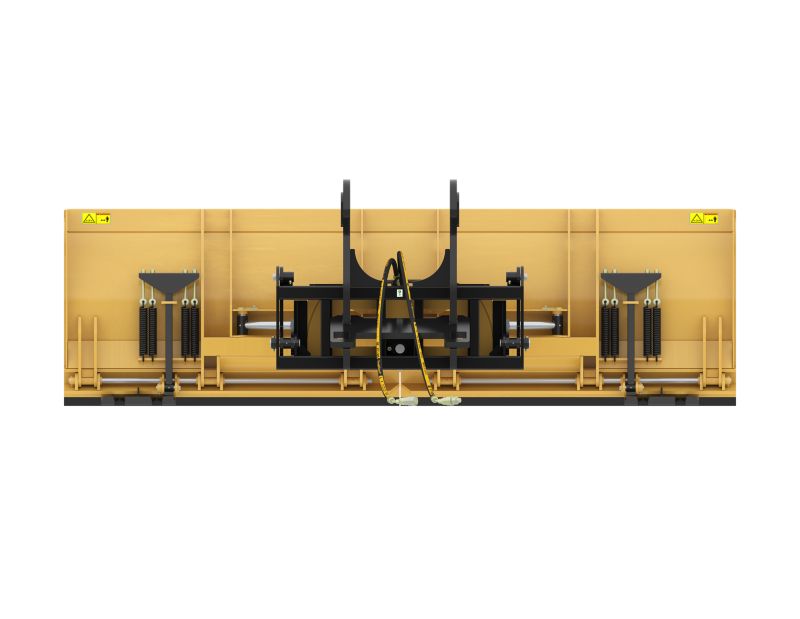

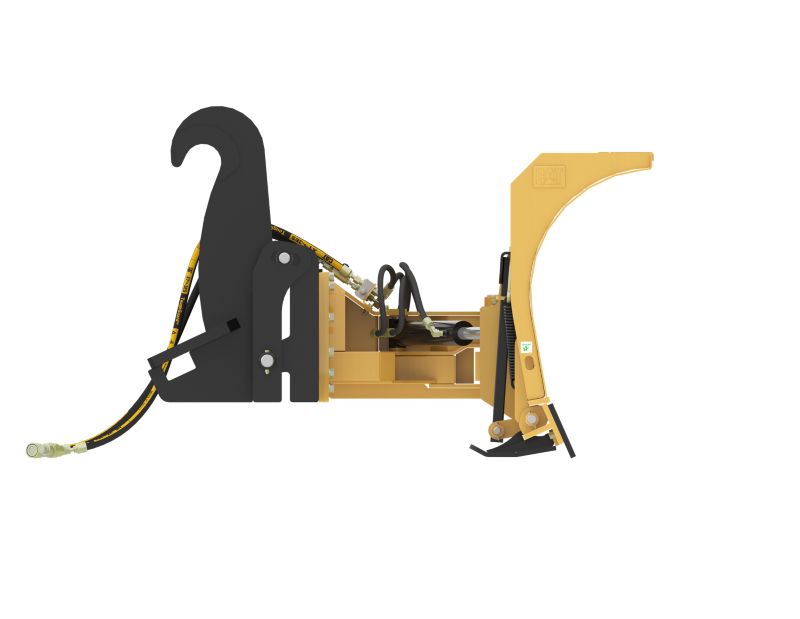

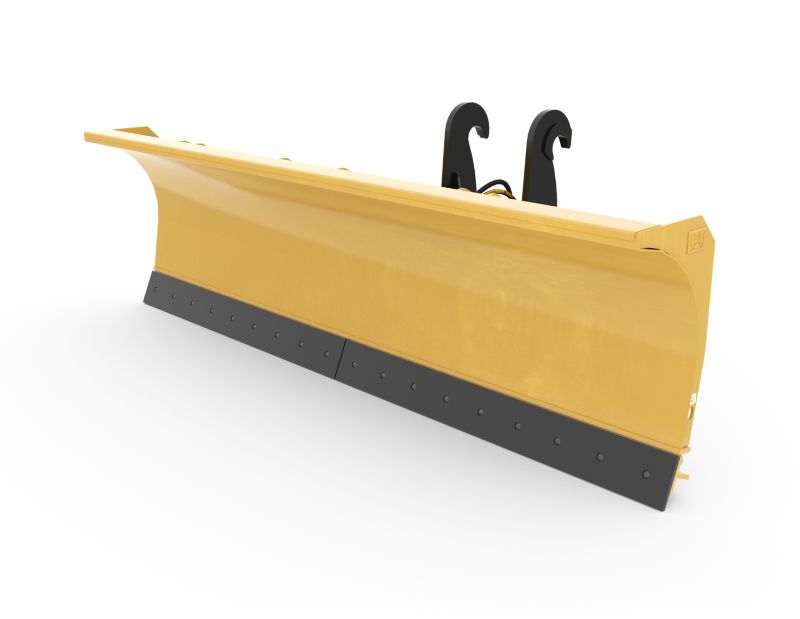

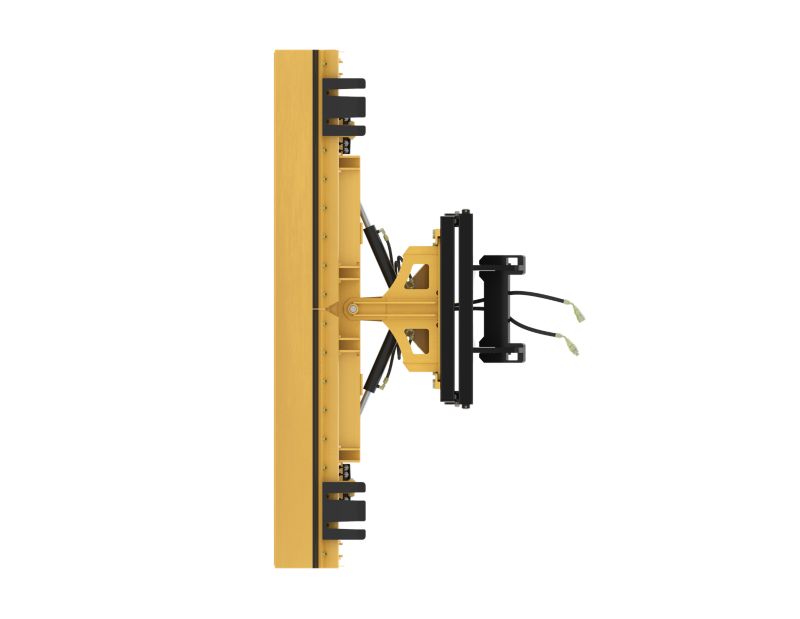

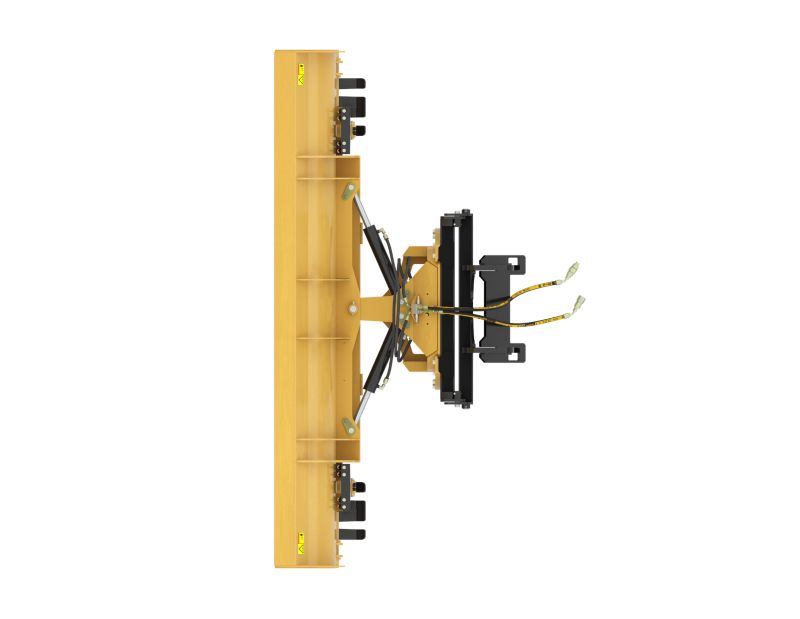

Model shown represents features on all Cat® Snow Plows except where indicated.

Features

Specifications

  • General
    Spec Value
    Width 144 in
    Angled Width 118 in
    Weight 3362 lb
    Overall Height 41.9 in
    Blade Height 42.2 in
    Length 69.9 in
    Hydraulic Angling - Left/Right of Center ±35 Degrees
    Float ±5 Degrees
    Interface Type Fusion™ Coupler
    Trip Edge Type Steel
    Trip Edge Height 7.6 in
    Trip Edge Quantity 2
