Ideal for asphalt patch cutting, road expansion join cuts, and utility trenching.
Cat
SW460, 160 mm (6 in) Wheel Saw
Photos
Videos
360° View
Exterior

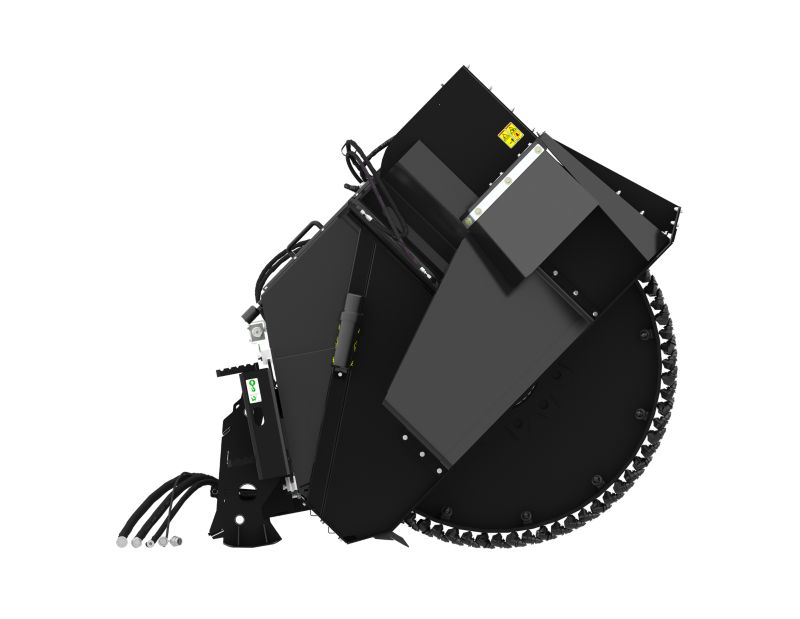

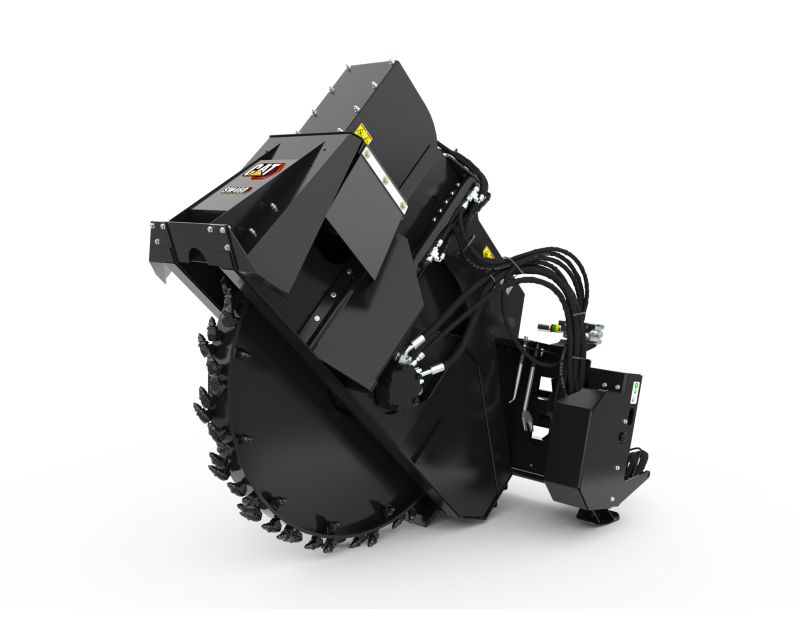

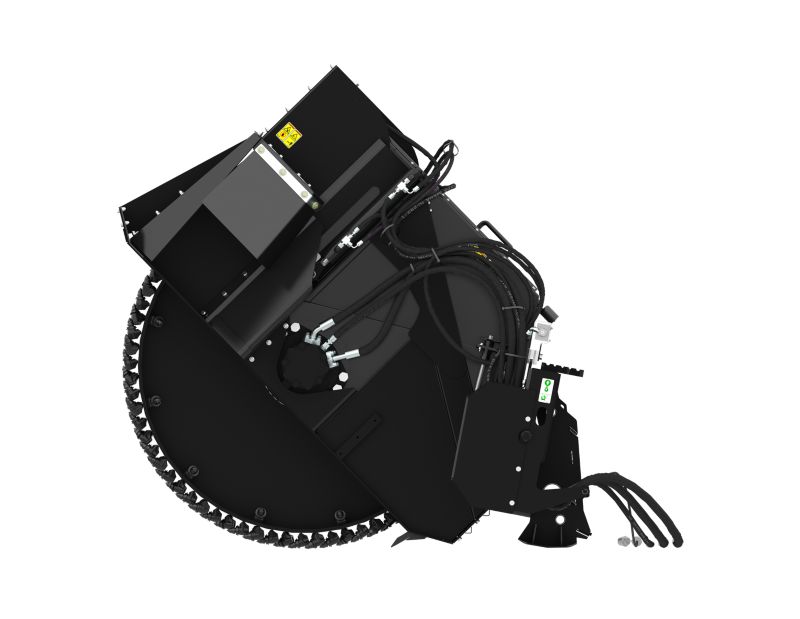

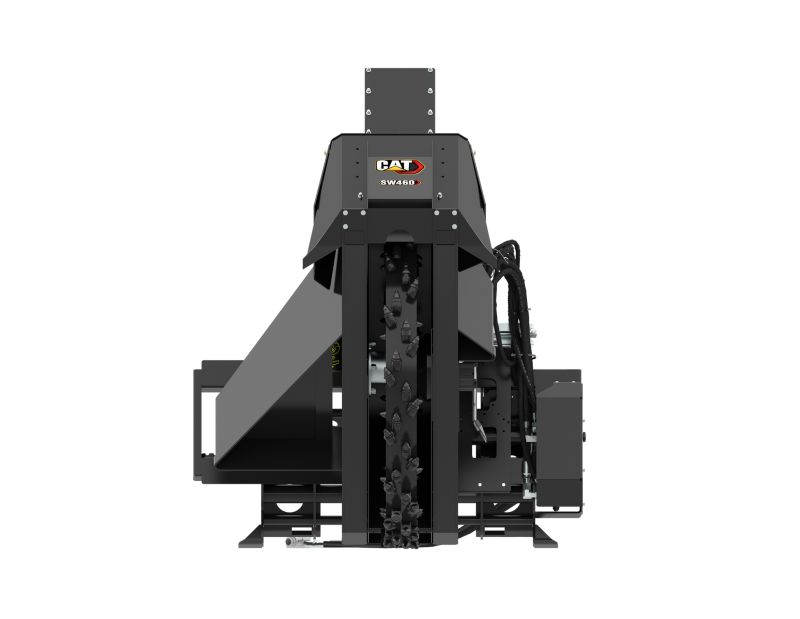

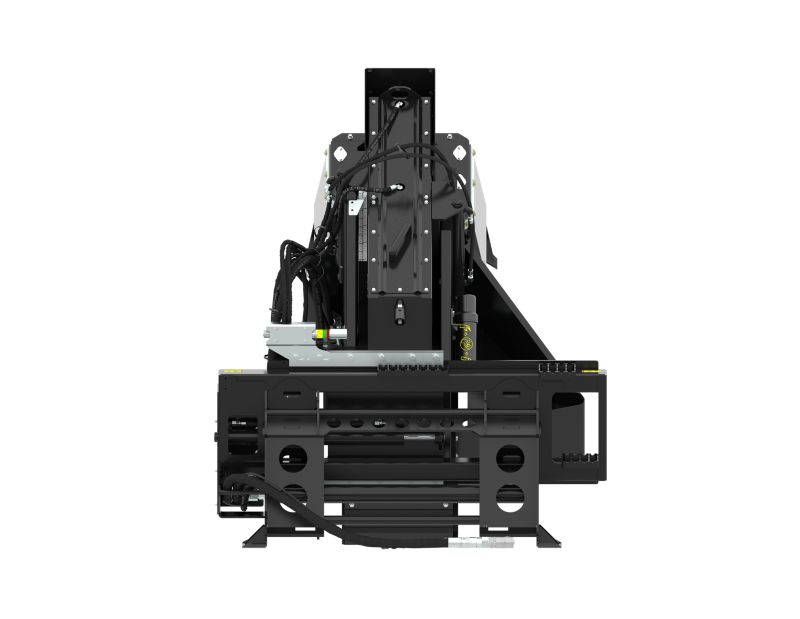

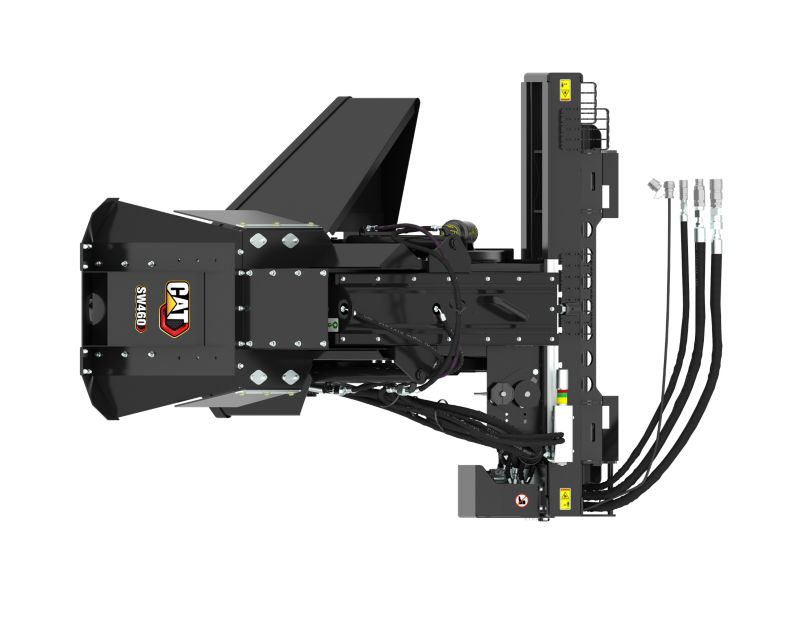

Model shown represents features on all Cat® Wheel Saws except where indicated.
Documents
Features
Specifications
-
General
Spec Value Maximum Cutting Depth 23.6 in Wheel Width 6.3 in Weight 2899.1 lb Overall Width 65.2 in Overall Height 69.5 in Length 95.2 in Required Hydraulics High Flow XHP / XE Optimal Hydraulic Flow 136-150 L/min (36-40 gpm) Optimal Hydraulic Pressure 250-280 bar (3630-4000 psi) Motor Displacement 102.9 in³/rev Wheel Torque at Maximum Pressure 5538.4 lb/ft Wheel Speed at Maximum Flow 89 RPM Bit Speed at Maximum Flow 1410.8 ft/min Conical Bits - Per Wheel 96 Standard Bit Type Concrete Optional Bit Type All Purpose Side Shift Travel 21.7 in Trench Cleaning Device Yes Drive Method Direct Drive Interface Type Skid Steer Coupler
