Cat P200 Series Secondary Pulverizers are designed to reduce the size of debris, clear up a job site, and separate concrete from rebar at ground level after demolition.
Cat
P232 Secondary Pulverizer
Photos
-

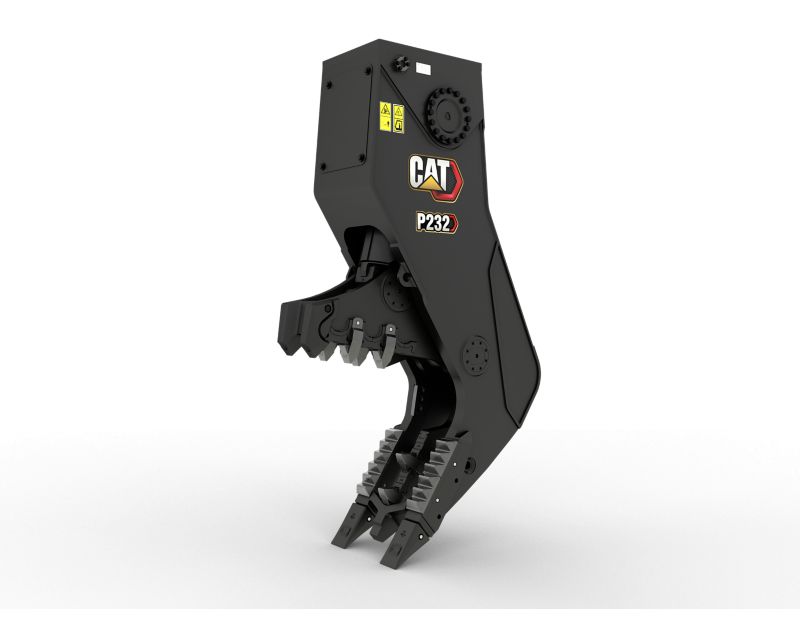

Cat P232 Secondary Pulverizer -

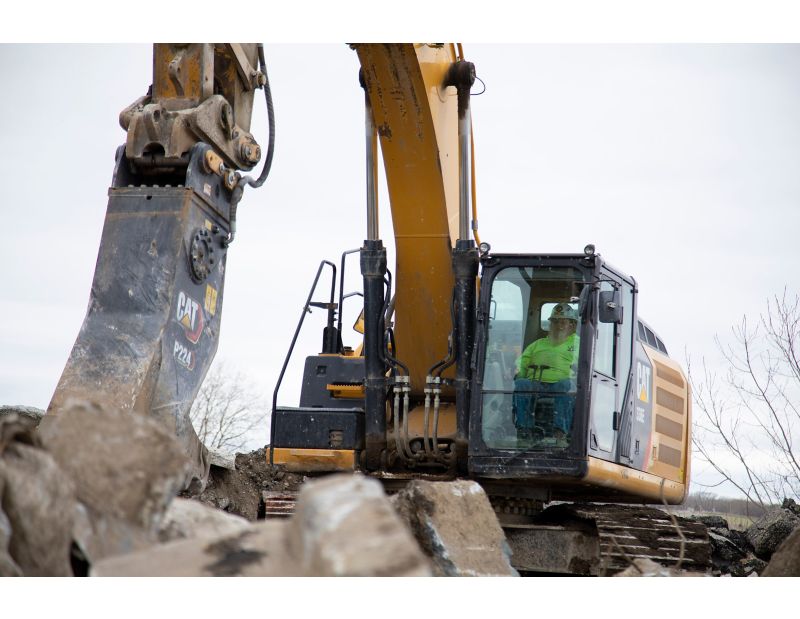

Cat P224 Pulverizer on Cat Excavator -

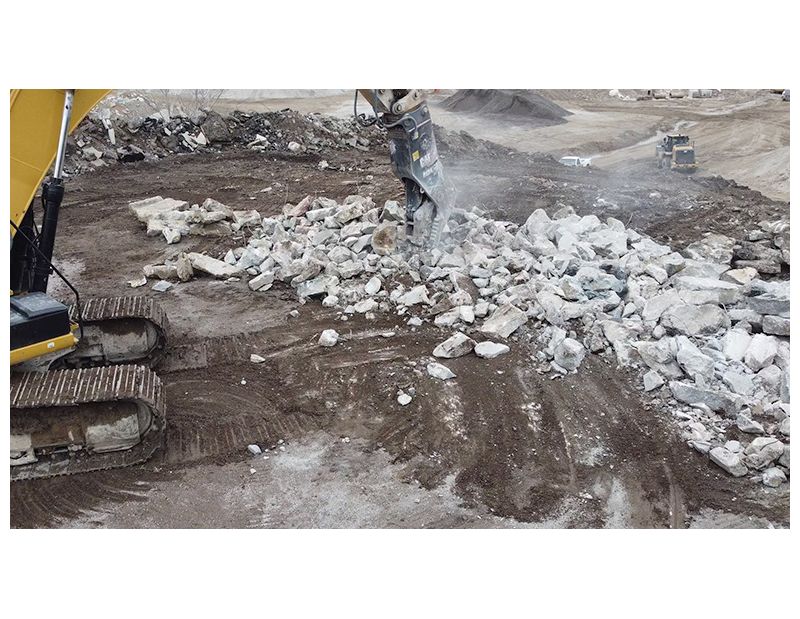

Cat Secondary Pulverizer crushing rock
Features
HIGH PERFORMANCE
- Cat pulverizer jaws are designed to cut through material quickly to enhance your machine’s overall operating efficiency and help reduce fuel consumption.
- The oversized cylinder on the non-rotating secondary pulverizer delivers a strong crushing force to reduce concrete and separate rebar.
- The Speed Booster valve actively balances speed and power, delivering fast cycle times and strong closing force to help increase productivity.
HIGH PERFORMANCE
- Cat pulverizer jaws are designed to cut through material quickly to enhance your machine’s overall operating efficiency and help reduce fuel consumption.
- The oversized cylinder on the non-rotating secondary pulverizer delivers a strong crushing force to reduce concrete and separate rebar.
- The Speed Booster valve actively balances speed and power, delivering fast cycle times and strong closing force to help increase productivity.
EASY TO MAINTAIN
- Replaceable wear parts can be swapped quickly in the field and do not require surface welding to help reduce service time.

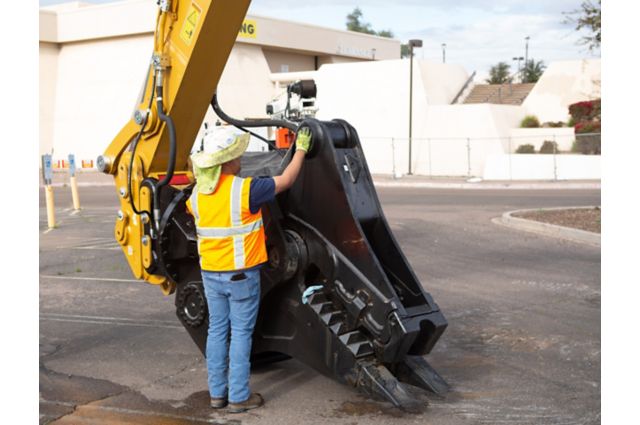

- Daily wear parts inspection and grease points are accessible from the ground with the pulverizer still mounted on the machine.
- Safely perform maintenance with easy access through one inspection panel.
- Hydraulic components are shielded from damage inside the housing, helping decrease downtime on the job site.
EASY TO MAINTAIN
- Replaceable wear parts can be swapped quickly in the field and do not require surface welding to help reduce service time.
- Daily wear parts inspection and grease points are accessible from the ground with the pulverizer still mounted on the machine.
- Safely perform maintenance with easy access through one inspection panel.
- Hydraulic components are shielded from damage inside the housing, helping decrease downtime on the job site.
RELIABILITY AND DURABILITY
- Cat pulverizers are manufactured with high-strength, abrasion-resistant
steel, especially in excessive wear areas. - Reinforced cylinder rod hinges on the moveable jaw are designed to help boost durability and life of the pulverizer.
- The C-shaped cylinder guard provides extra protection against concrete demolition.
- Cat pulverizers have a versatile use across demolition applications, making them your choice for a wide variety of job sites.
RELIABILITY AND DURABILITY
- Cat pulverizers are manufactured with high-strength, abrasion-resistant
steel, especially in excessive wear areas. - Reinforced cylinder rod hinges on the moveable jaw are designed to help boost durability and life of the pulverizer.
- The C-shaped cylinder guard provides extra protection against concrete demolition.
- Cat pulverizers have a versatile use across demolition applications, making them your choice for a wide variety of job sites.
BOOST EFFICIENCY AND PRODUCTIVITY WITH INTEGRATED TECHNOLOGIES

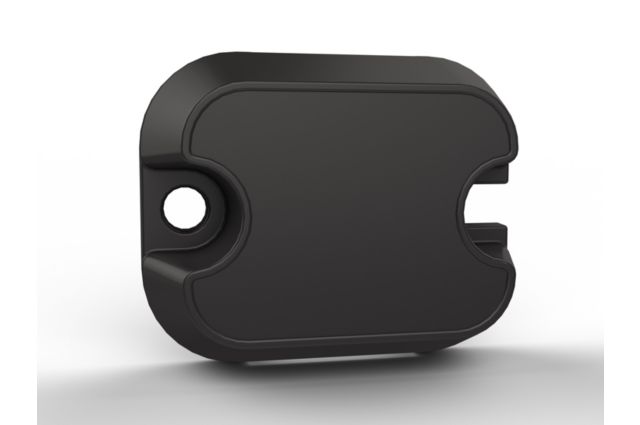

- Never waste time looking for your attachments again. Cat asset tracking is available on all pulverizers.
- Track your entire fleet of attachments and machines from one source. Pulverizers with asset tracking can be viewed within VisionLink®.
- Keep your assets secure. Pulverizers with an asset tracker send an alert if they leave an easy-to-set-up site boundary.
BOOST EFFICIENCY AND PRODUCTIVITY WITH INTEGRATED TECHNOLOGIES
- Never waste time looking for your attachments again. Cat asset tracking is available on all pulverizers.
- Track your entire fleet of attachments and machines from one source. Pulverizers with asset tracking can be viewed within VisionLink®.
- Keep your assets secure. Pulverizers with an asset tracker send an alert if they leave an easy-to-set-up site boundary.
VERSATILITY AND CONVENIENCE WITH COUPLERS

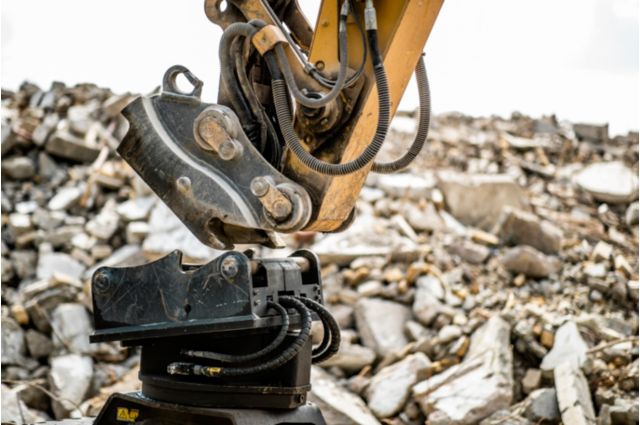

- Share pulverizers and other attachments of the same size class across multiple machines by adding a quick coupler.
- Significantly reduce the time it takes to switch attachments when using a quick coupler.
- Quick couplers add a new level of safety to your job site with the ability to switch attachments while the operator stays in the cab with built-in redundancies to keep your attachments secure in the event of a pressure loss.
- A variety of couplers are available to suit your specific needs:
- Cat Pin Grabber Couplers – dedicated pin system
- CW Dedicated Couplers – wedge-style, dedicated system
- S Type Couplers – wedge-style, dedicated system
- Hydraulic Connecting CW Couplers – hydraulic connecting version of the CW coupler with instant hydraulic capability upon connection
- Hydraulic Connecting S Type Couplers – hydraulic connecting version of the S type coupler with instant hydraulic capability upon connection
VERSATILITY AND CONVENIENCE WITH COUPLERS
- Share pulverizers and other attachments of the same size class across multiple machines by adding a quick coupler.
- Significantly reduce the time it takes to switch attachments when using a quick coupler.
- Quick couplers add a new level of safety to your job site with the ability to switch attachments while the operator stays in the cab with built-in redundancies to keep your attachments secure in the event of a pressure loss.
- A variety of couplers are available to suit your specific needs:
- Cat Pin Grabber Couplers – dedicated pin system
- CW Dedicated Couplers – wedge-style, dedicated system
- S Type Couplers – wedge-style, dedicated system
- Hydraulic Connecting CW Couplers – hydraulic connecting version of the CW coupler with instant hydraulic capability upon connection
- Hydraulic Connecting S Type Couplers – hydraulic connecting version of the S type coupler with instant hydraulic capability upon connection
Specifications
-
Performance
Spec Value Cycle Time - Open 1.9 s Cycle Time - Close 1.4 s Crushing Force - Primary Cutter 479 Sh Ton Crushing Force - Tip 153 Sh Ton Crushing Force - Primary Tooth 252 Sh Ton -
Hydraulic Requirements
Spec Value Jaw Circuit - Max. Oil Pressure 4786 psi Jaw Circuit - Max. Oil Flow 95 gal/min -
Dimensions - Jaw
Spec Value Jaw Depth 36.6 in Cutter Length 7.9 in Jaw Opening - Maximum 50.4 in Jaw Width - Fixed 26.4 in Jaw Width - Moveable 15 in -
Dimensions - Housing + Jaw
Spec Value Length 117.9 in Height 69.1 in Width 26.4 in -
Weight
Spec Value Weight - Housing, Jaw and Bracket 7628 lb -
Recommended Carrier Weight
Spec Value Excavator Minimum 32000 kg (70500 lb) Excavator Maximum 50000 kg (110200 lb)
