Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.
Caterpillar

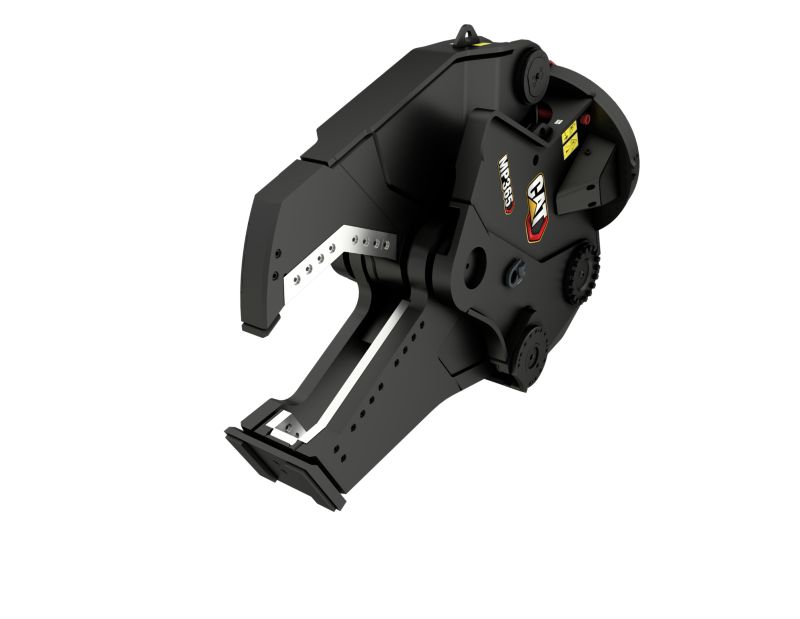

MP365 Shear Jaw
Photos
Videos
Features
Specifications
-
Performance
Spec Value Cycle Time - Open 2.1 s Cycle Time - Close 1.6 s Cutting Force - Blade Throat 1270 Sh Ton Cutting Force - Blade Center 490 Sh Ton Cutting Force - Blade Tip 263 Sh Ton -
Hydraulic Requirements
Spec Value Jaw Circuit - Max. Oil Pressure 5076 psi Jaw Circuit - Max. Oil Flow 119 gal/min Rotation Circuit - Max. Oil Pressure 2321 psi Rotation Circuit - Max. Oil Flow 13 gal/min -
Dimensions - Jaw
Spec Value Jaw Depth 33.9 in Cutter Length 28.1 in Jaw Opening - Maximum 21.7 in Jaw Width - Fixed 19.3 in Jaw Width - Moveable 5.7 in -
Dimensions - Housing + Jaw
Spec Value Width 102.2 in Length 84 in Height 43.3 in -
Weight
Spec Value Weight - Housing, Jaw and Bracket 12897 lb Weight - Jaw Only 6102 lb -
Recommended Carrier Weight
Spec Value Excavator Minimum 65 tons Excavator Maximum 90 tons
