Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.
Caterpillar

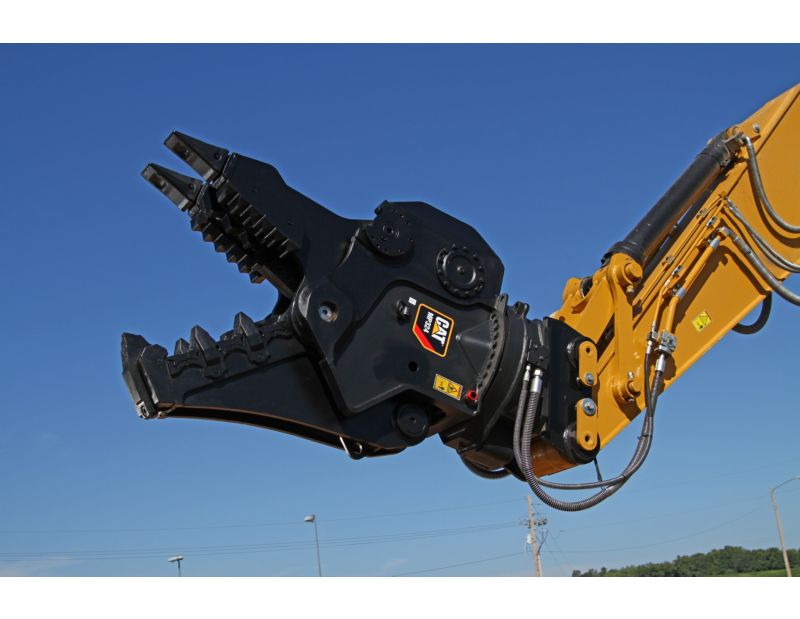

MP324 Pulverizer Jaw
Photos
Videos
Features
Specifications
-
Performance
Spec Value Cycle Time - Open 2.1 s Cycle Time - Close 1.6 s Crushing Force - Primary Cutter 808 Sh Ton Crushing Force - Cutter Tip 411 Sh Ton Crushing Force - Tooth Tip 222 Sh Ton -
Hydraulic Requirements
Spec Value Jaw Circuit - Max. Oil Pressure 5076 psi Jaw Circuit - Max. Oil Flow 119 gal/min Rotation Circuit - Max. Oil Pressure 2321 psi Rotation Circuit - Max. Oil Flow 13 gal/min -
Dimensions - Jaw
Spec Value Jaw Depth 42.9 in Cutter Length 8.9 in Jaw Opening - Maximum 62.4 in Jaw Width - Fixed 25.9 in Jaw Width - Moveable 16.8 in -
Dimensions - Housing + Jaw
Spec Value Length 113 in Height 98.1 in Width 43.3 in -
Weight
Spec Value Weight - Housing, Jaw and Bracket 13547 lb Weight - Jaw Only 6753 lb -
Recommended Carrier Weight
Spec Value Excavator Minimum 65 tons Excavator Maximum 90 tons
