Cat

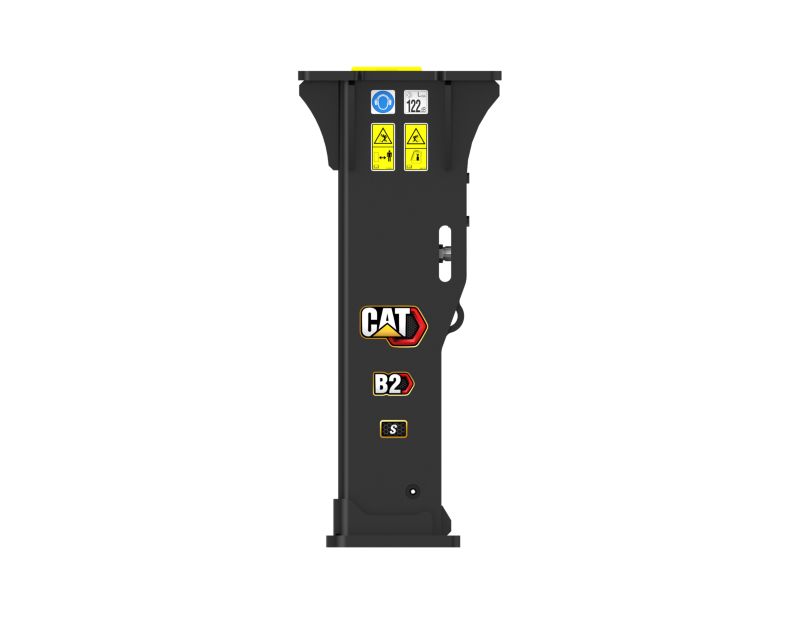

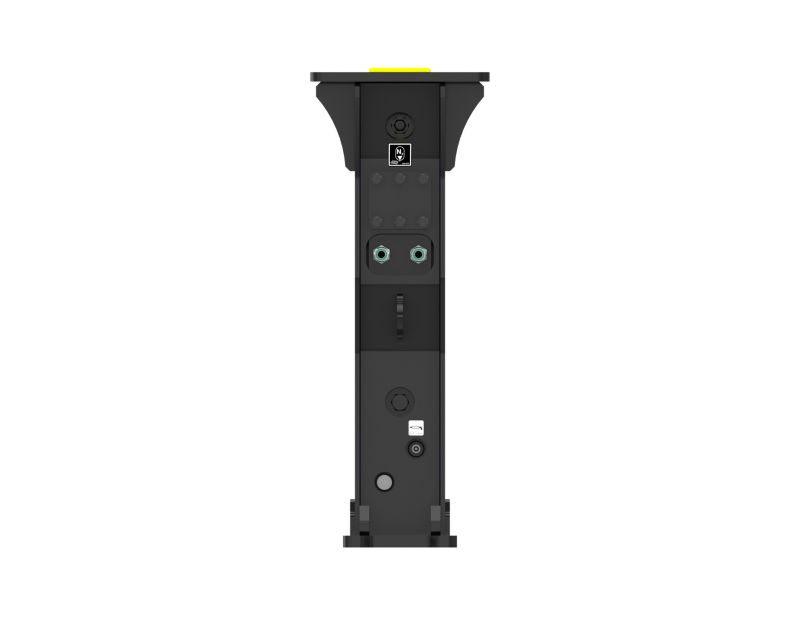

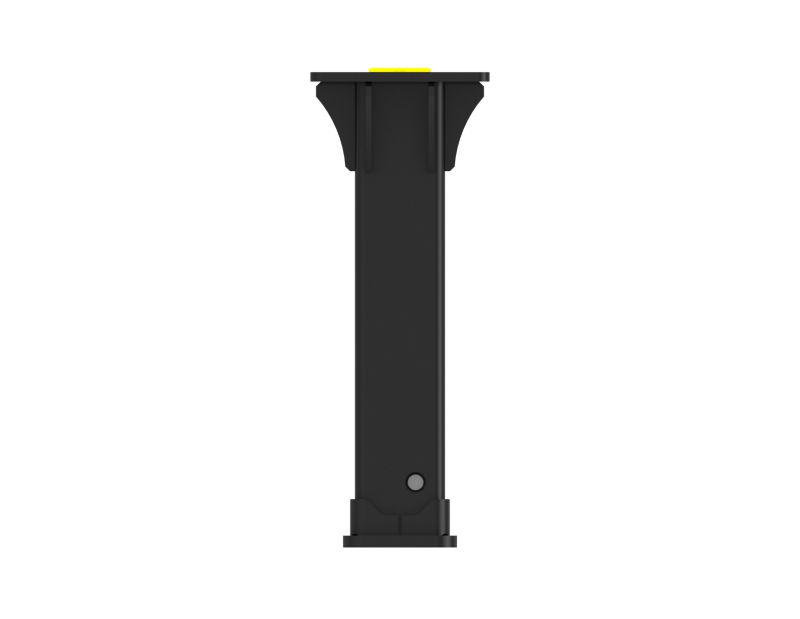

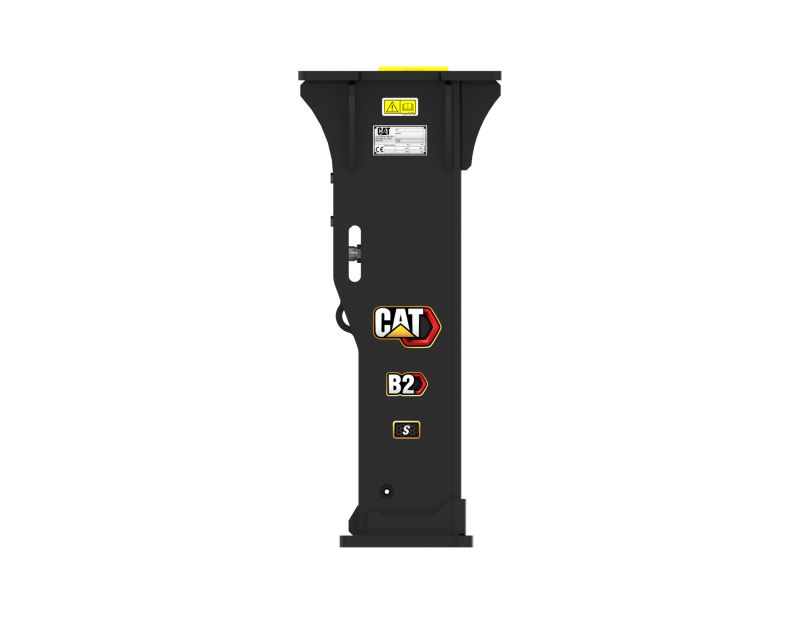

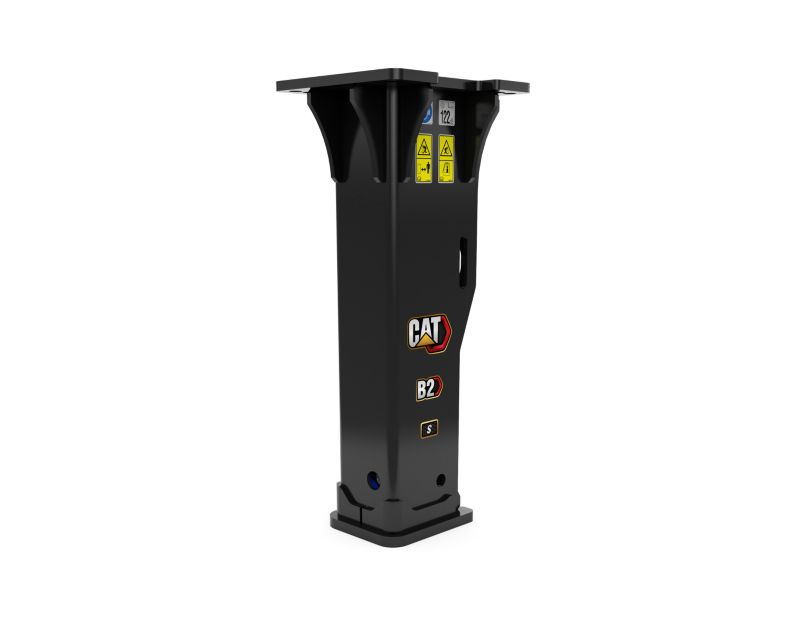

B2s Silenced Hydraulic Hammer

Used for demolition and construction applications.

Photos

Videos

  • Cat® B6 and B6s Hammers at Work
  • Cat® B8 Hammer and 309CR at Work
  • Cat® B8 Hammer and 440 at Work
  • Cat® B Model Hammers Features and Benefits
  • An Attachment for Every Job - Cat® Work Tool Attachments

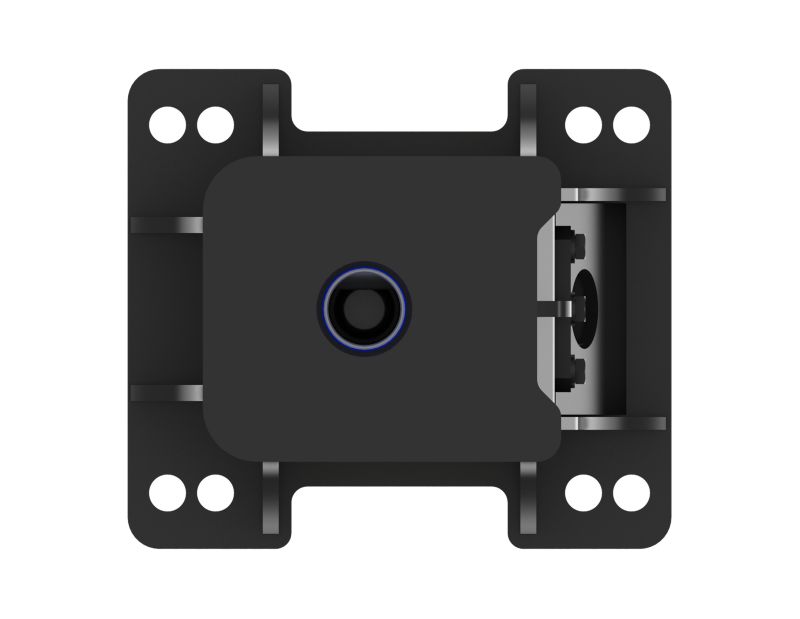

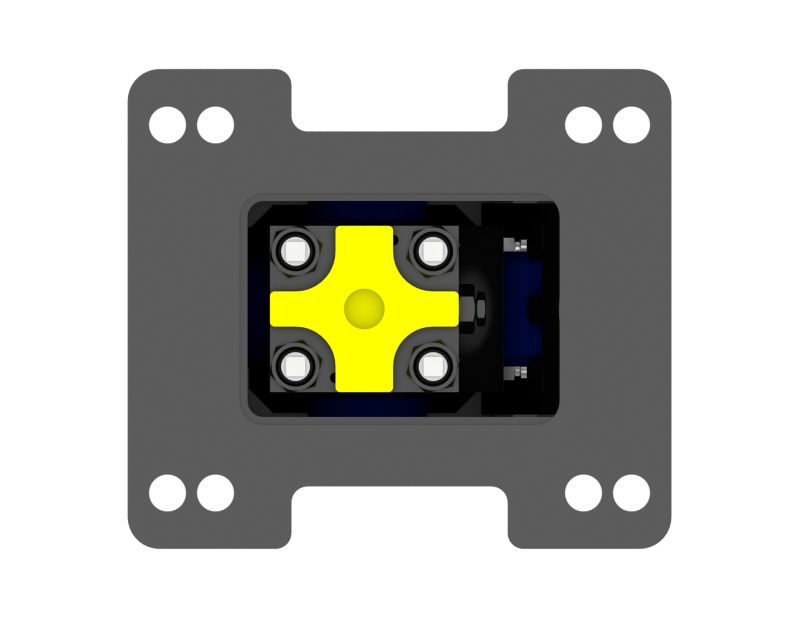

360° View

Exterior

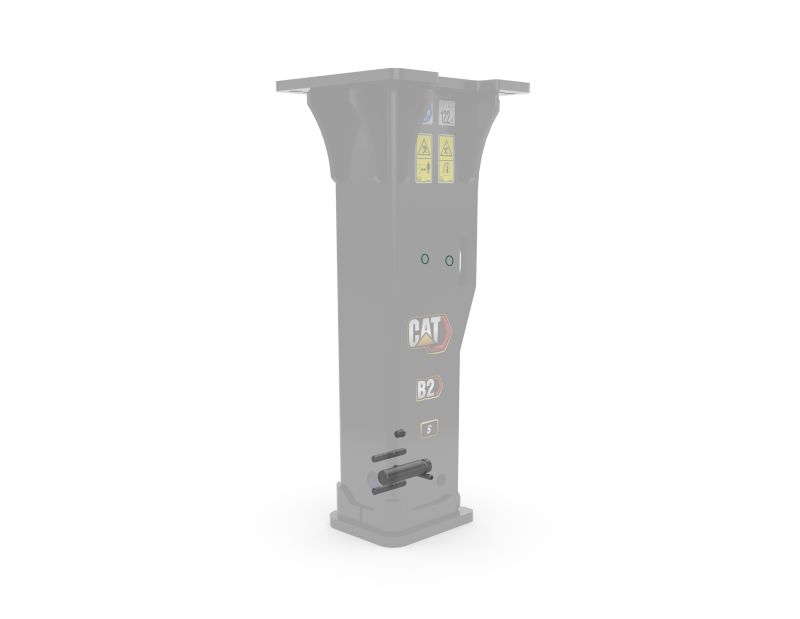

Model shown represents features on all Cat® Hammers except where indicated.

Features

Specifications

  • General
    Spec Value
    Operating Weight - With Tool 257.5 lb
    Energy Class 213.9 ft·lbf
    Machine Class 1-3 Ton Mini Excavators
    Tool Shaft Diameter 1.8 in
    Impact Frequency 700-1200 bpm
    Minimum Operating Pressure 1276 psi
    Minimum Carrier Weight 3300.3 lb
    Optimal Hydraulic Flow 20-30 lpm (5.3-7.9 gpm)
    Overall Width 11.8 in
    Overall Length 13.4 in
    Overall Height 43 in
    Height - Without Tool 31.3 in
    Sound Level 122 dB
    Mounting Bracket Size Small-Medium
