Used for demolition and construction applications.
Cat

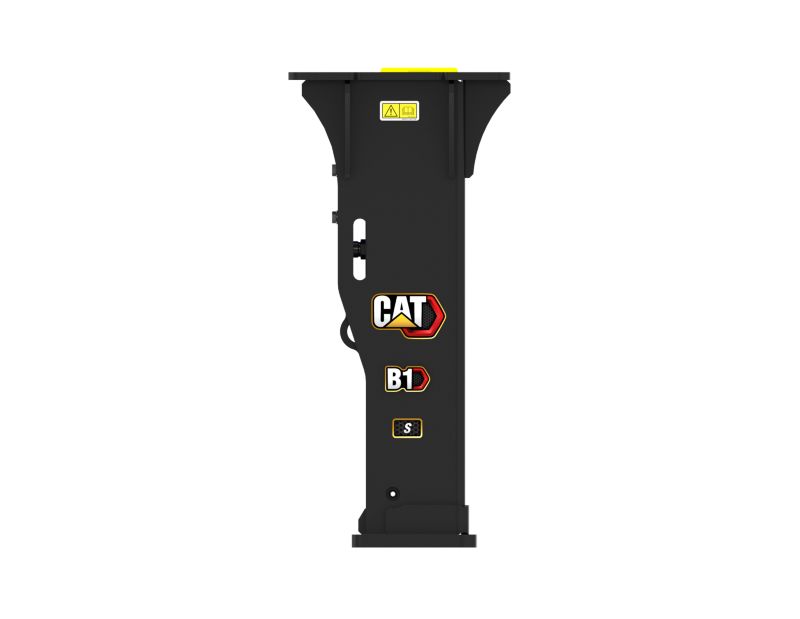

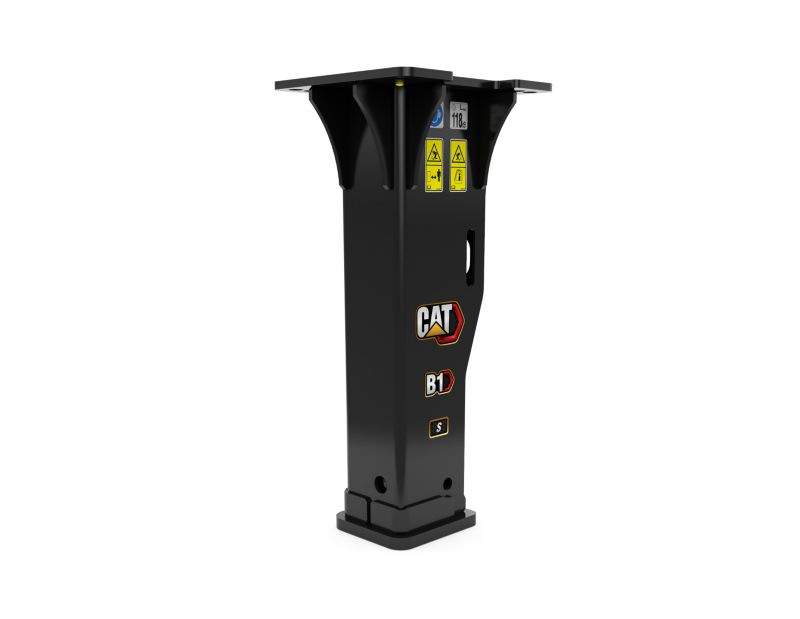

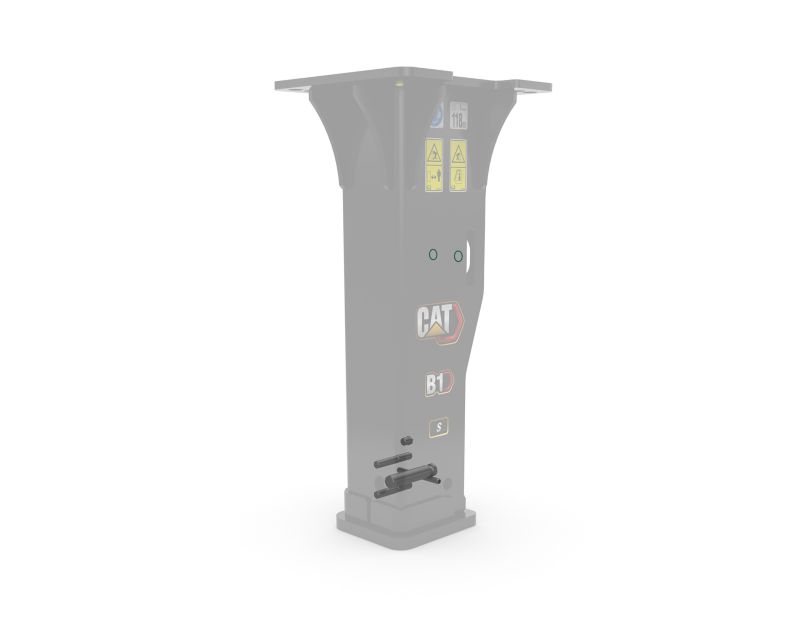

B1s Silenced Hydraulic Hammer
Photos
Videos
360° View
Exterior

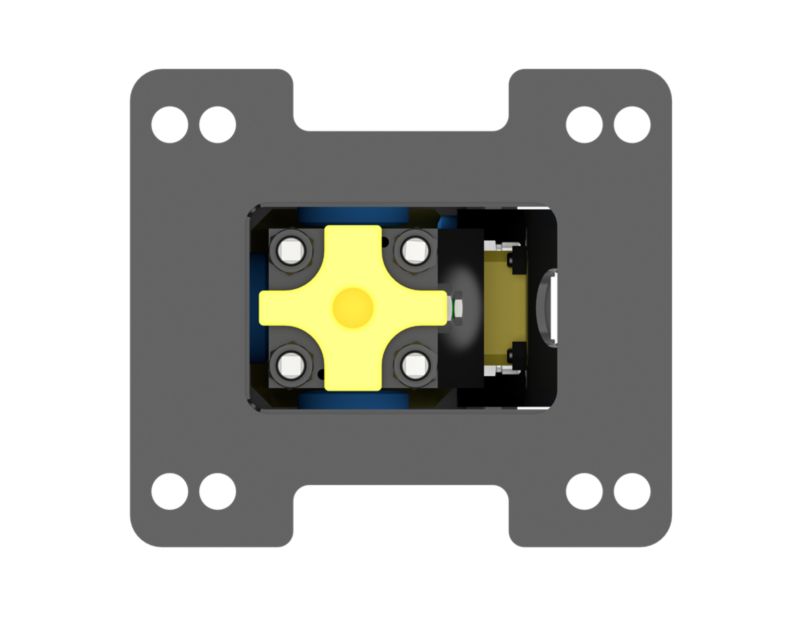

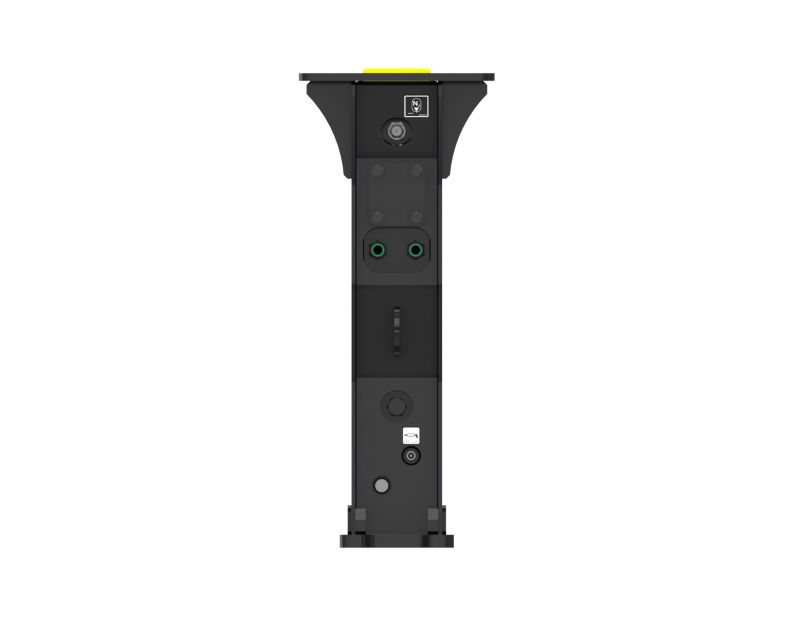

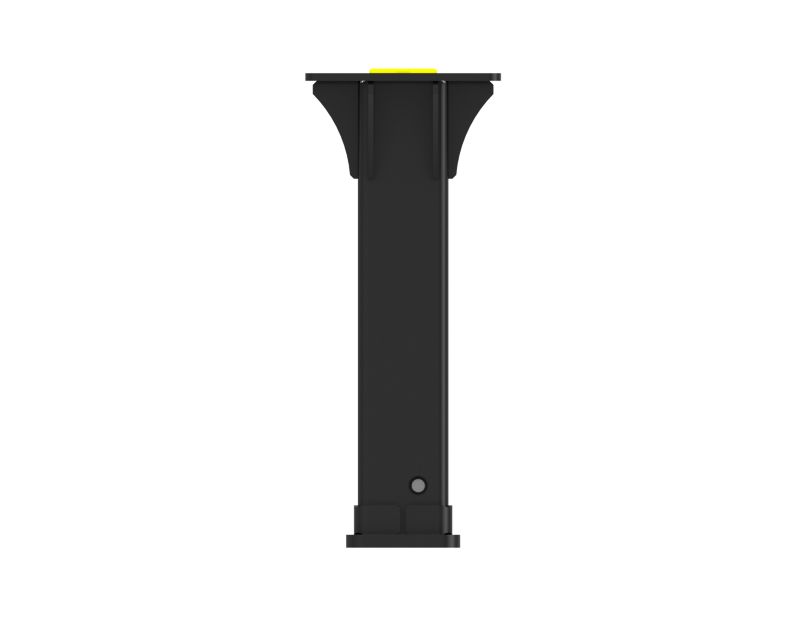

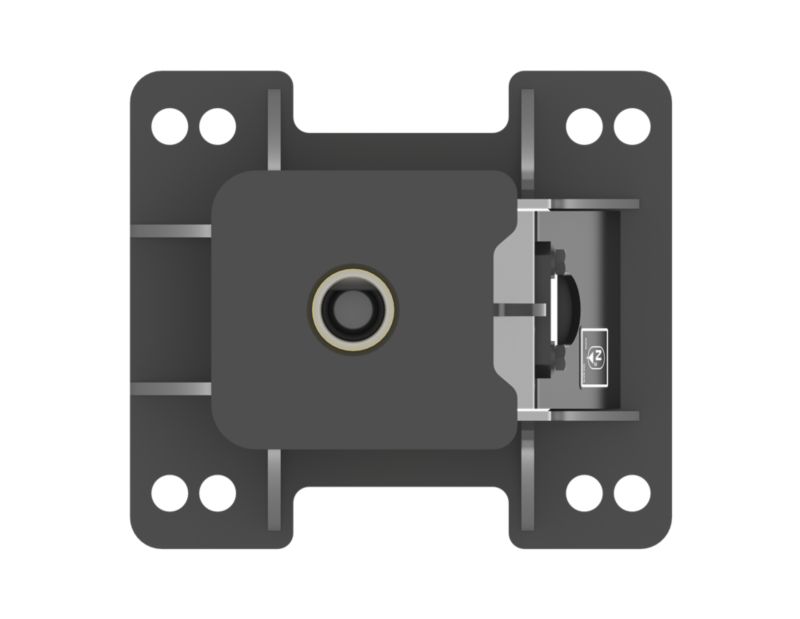

Model shown represents features on all Cat® Hammers except where indicated.
Features
Specifications
-
General
Spec Value Operating Weight - With Tool 190.3 lb Energy Class 147.5 ft·lbf Machine Class 1-2 Ton Mini Excavators Tool Shaft Diameter 1.6 in Impact Frequency 800-1400 bpm Minimum Operating Pressure 1276 psi Minimum Carrier Weight 2420.7 lb Optimal Hydraulic Flow 15-25 lpm (4-6.6 gpm) Overall Width 11.8 in Overall Length 13.4 in Overall Height 38.5 in Height - Without Tool 28.6 in Sound Level 118 dB Mounting Bracket Size Small-Medium
