Caterpillar

C27 and C32 Sound Attenuated Enclosure

C27 and C32 Sound Attenuated Enclosure

Photos

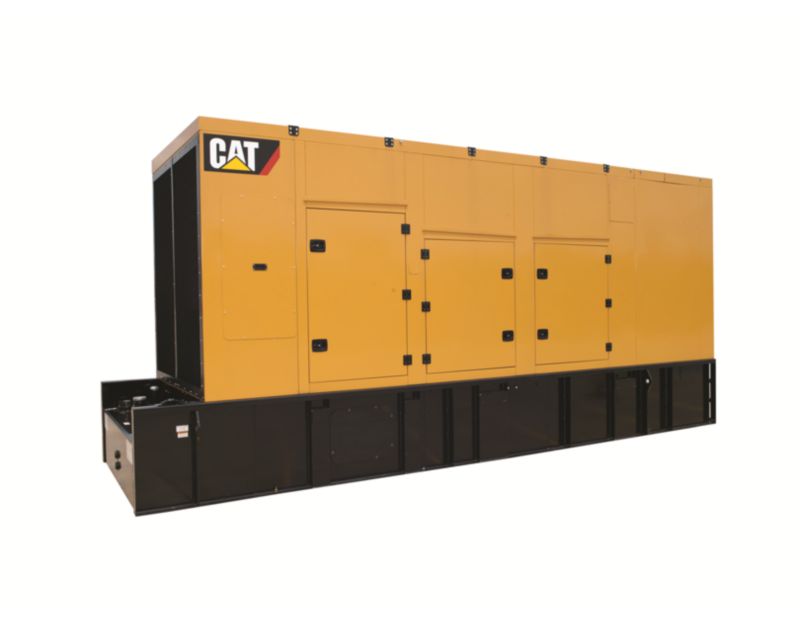

  • Enclosure
    Enclosure

Documents

Features

Robust/Highly Corrosion Resistant Construction

Robust/Highly Corrosion Resistant Construction

  • Environmentally friendly, polyester powder-baked paint in Caterpillar Yellow
  • Zinc plated or stainless-steel fasteners
  • Pitched roof for improved rain ingress protection
  • Critical grade internally mounted muffler/ exhaust system
  • Vibration spring isolators
  • 75 dBA at 7 m

Robust/Highly Corrosion Resistant Construction

  • Environmentally friendly, polyester powder-baked paint in Caterpillar Yellow
  • Zinc plated or stainless-steel fasteners
  • Pitched roof for improved rain ingress protection
  • Critical grade internally mounted muffler/ exhaust system
  • Vibration spring isolators
  • 75 dBA at 7 m

Excellent Access

Excellent Access

  • Control panel mounted on left side or right side of package
  • Large cable entry area for ease of installation
  • Left-hand or right-hand bottom entry access to power cable bus or circuit breaker
  • Double doors on both sides
  • Lube oil and coolant drains piped to exterior of enclosure and terminated drain valves

Excellent Access

  • Control panel mounted on left side or right side of package
  • Large cable entry area for ease of installation
  • Left-hand or right-hand bottom entry access to power cable bus or circuit breaker
  • Double doors on both sides
  • Lube oil and coolant drains piped to exterior of enclosure and terminated drain valves

Security And Safety

Security And Safety

  • Lockable access doors with standard key use
  • Cooling fan and battery charging alternator fully guarded
  • Oil fill and battery can only be reached via lockable access
  • Externally mounted emergency stop button
  • Designed for spreader-bar lifting to ensure safety

Security And Safety

  • Lockable access doors with standard key use
  • Cooling fan and battery charging alternator fully guarded
  • Oil fill and battery can only be reached via lockable access
  • Externally mounted emergency stop button
  • Designed for spreader-bar lifting to ensure safety

Options

Options

  • Cat® yellow or white paint
  • Interior AC lighting system and AC receptacles (interior and exterior)
  • Cold-weather bundle, including motorized louvers (powered closed), backdraft dampers, and enclosure space heater

Options

  • Cat® yellow or white paint
  • Interior AC lighting system and AC receptacles (interior and exterior)
  • Cold-weather bundle, including motorized louvers (powered closed), backdraft dampers, and enclosure space heater

Specifications

  • Weights and Dimensions
    Spec Value
    Height 3759 mm
    Width 2554 mm
    Weight 5952 kg
    Length 9750 mm
