Caterpillar

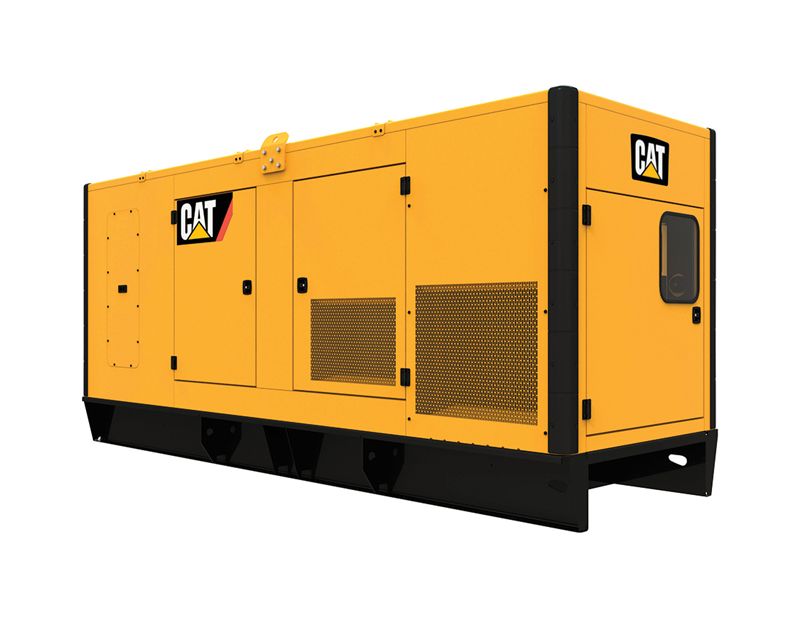

C15 Sound Attenuated Enclosure 50 and 60 Hz

These sound attenuated, factory installed enclosures incorporate internally mounted super critical level silencers, designed for safety and aesthetic value on integral fuel tank base or optional dual wall integral fuel tank base for total fluid containment.

Photos

  • Enclosure
    Enclosure

Documents

Features

Robust / Highly Corrosion Resistant Construction

Robust / Highly Corrosion Resistant Construction

  • Factory installed on integral fuel tank base
  • Environmentally friendly, polyester powder baked paint
  • 1.6 mm (0.063 in) galvanized steel
  • All round overhanging base to protect enclosure
  • High-grade engineering thermoplastic corner posts for protection
  • Integral lifting frame
  • Compression door latches giving solid door seal
  • Zinc plated or black coated stainless steel fasteners
  • Internally mounted super critical exhaust silencing system

Robust / Highly Corrosion Resistant Construction

  • Factory installed on integral fuel tank base
  • Environmentally friendly, polyester powder baked paint
  • 1.6 mm (0.063 in) galvanized steel
  • All round overhanging base to protect enclosure
  • High-grade engineering thermoplastic corner posts for protection
  • Integral lifting frame
  • Compression door latches giving solid door seal
  • Zinc plated or black coated stainless steel fasteners
  • Internally mounted super critical exhaust silencing system

Excellent Access

Excellent Access

  • Large cable entry area for installation ease
  • Accommodates rear mounted breaker and control panel
  • Double doors on both sides
  • Vertically hinged doors with solid bar door stays to hold doors open at 135° rotation
  • Lube oil and coolant drains pipes to exterior of enclosure and terminated drain valves
  • Radiator fill cover

Excellent Access

  • Large cable entry area for installation ease
  • Accommodates rear mounted breaker and control panel
  • Double doors on both sides
  • Vertically hinged doors with solid bar door stays to hold doors open at 135° rotation
  • Lube oil and coolant drains pipes to exterior of enclosure and terminated drain valves
  • Radiator fill cover

Security And Safety

Security And Safety

  • Lockable access doors which give full access to control panel and breaker
  • Cooling fan and battery charging alternator fully guarded
  • Fuel fill, oil fill and battery can only be reached via lockable access
  • Externally mounted emergency stop button
  • Designed for spreader-bar lifting to ensure safety
  • Control panel viewing window
  • Stub-up area is rodent proof

Security And Safety

  • Lockable access doors which give full access to control panel and breaker
  • Cooling fan and battery charging alternator fully guarded
  • Fuel fill, oil fill and battery can only be reached via lockable access
  • Externally mounted emergency stop button
  • Designed for spreader-bar lifting to ensure safety
  • Control panel viewing window
  • Stub-up area is rodent proof

Options

Options

  • Caterpillar yellow or white paint
  • Integral dual wall fuel tank base for total fluid containment (fuel, oil and coolant)

Options

  • Caterpillar yellow or white paint
  • Integral dual wall fuel tank base for total fluid containment (fuel, oil and coolant)

Specifications

  • Weights and Dimensions
    Spec Value
    Length 4930 mm
    Width 1658 mm
    Weight 5071 kg
    Height 2221 mm
