Cat

1812 mm (71 in) Fusion™ Coupler Sorting Grapple Fork

Stack, carry and sort piles of lumber.

Photos

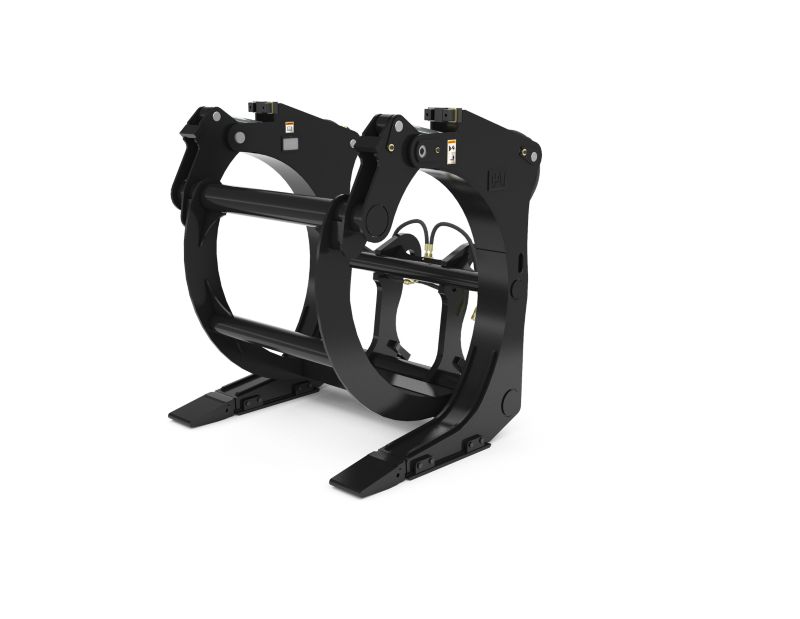

  • Studio Shot
    Studio Shot

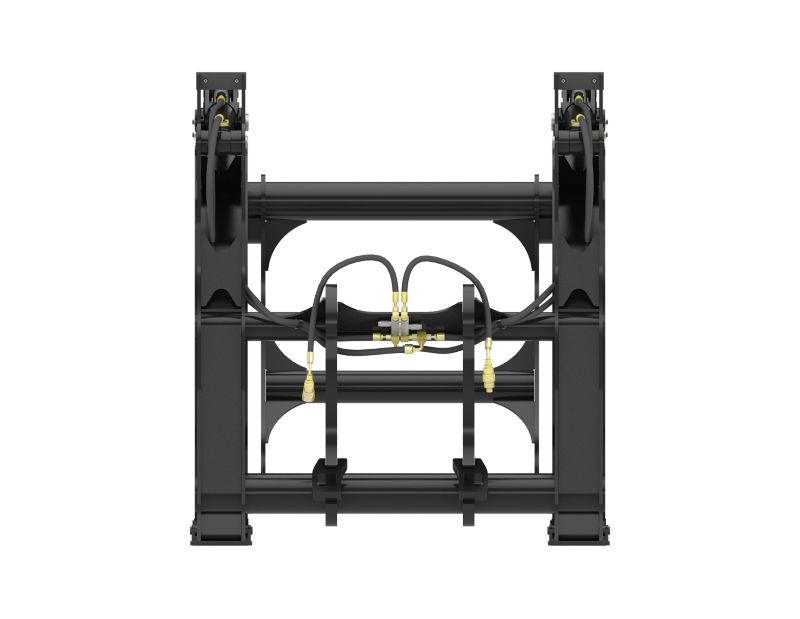

  • Front View
    Front View

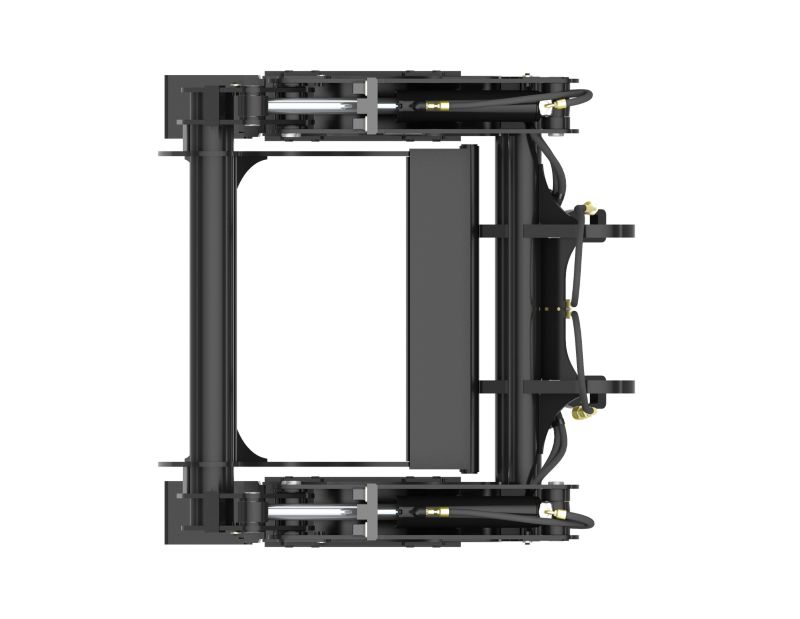

  • Top View
    Top View

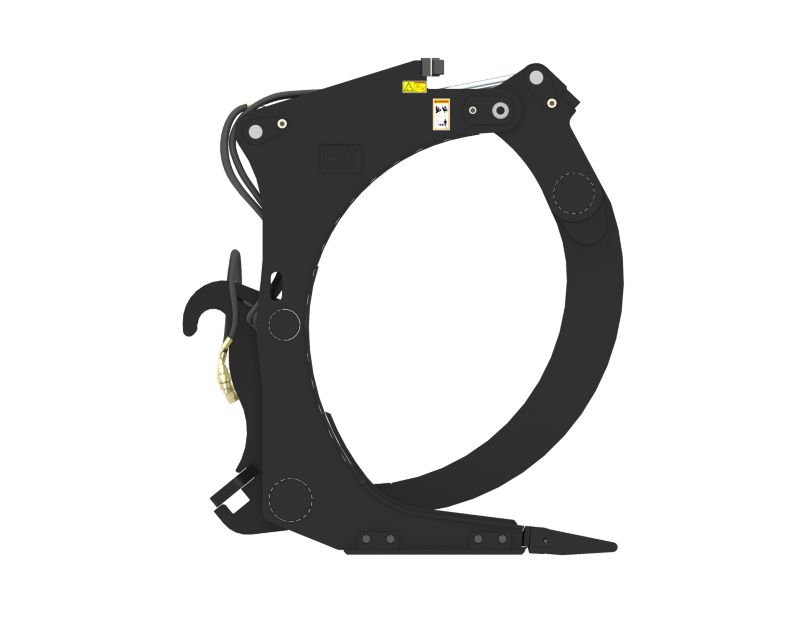

  • Left View
    Left View

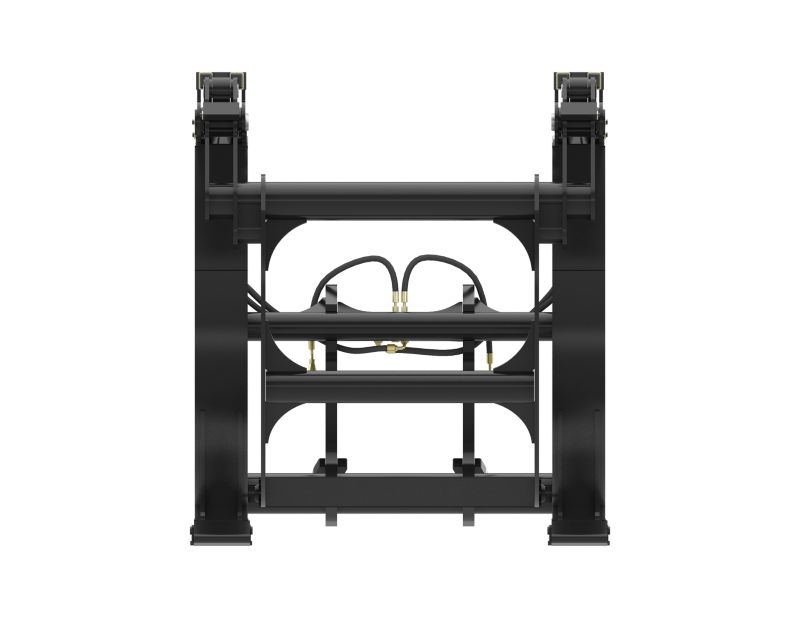

  • Rear View
    Rear View

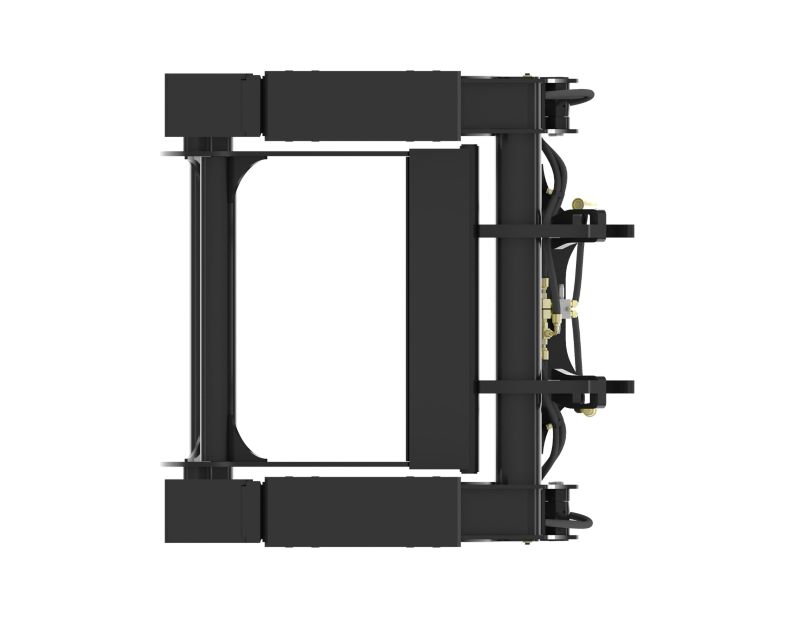

  • Bottom View
    Bottom View

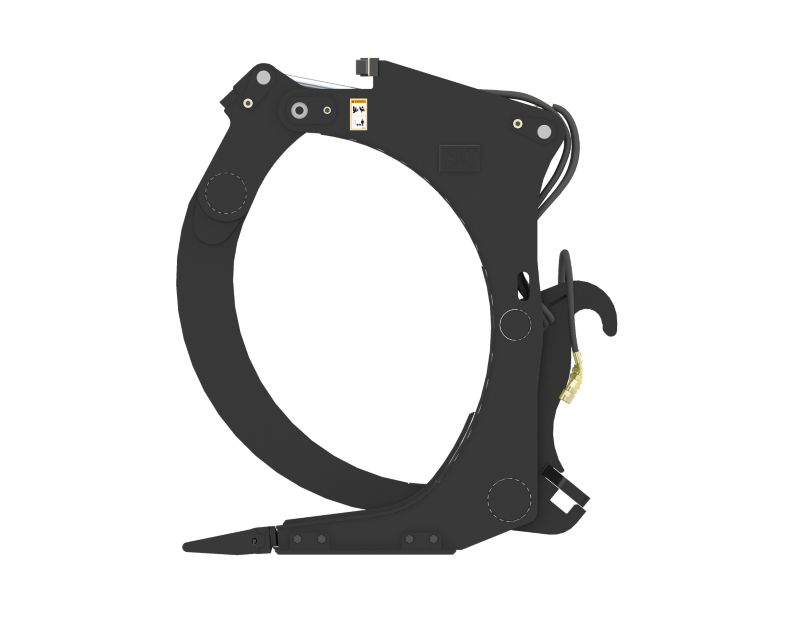

  • Right View
    Right View
  • Cat® 938M Small Wheel Loader and Sorting Grapple Forks at Work
    Cat® 938M Small Wheel Loader and Sorting Grapple Forks at Work
  • Cat® Sorting Grapple Forks Picking Up a Load
    Cat® Sorting Grapple Forks Picking Up a Load

Videos

  • Cat® Sorting Grapple Attachment at Work
  • Cat® Sorting Grapple Overview
  • Cat® Sorting Grapple Fork Features
  • An Attachment for Every Job - Cat® Work Tool Attachments

360° View

Exterior

Model shown represents features on all Cat® Sorting Grapple Forks except where indicated.

Documents

Features

Application

Application

Designed and built for log and lumber and is primarily used for moving logs from stack piles for further processing.

Application

Designed and built for log and lumber and is primarily used for moving logs from stack piles for further processing.
Lumber-Handling Performance

Lumber-Handling Performance

Purpose-built for use in log and lumber applications, the Sorting Grapple Fork is equipped with a large clamp creating a 21 square foot opening for material.

Lumber-Handling Performance

Purpose-built for use in log and lumber applications, the Sorting Grapple Fork is equipped with a large clamp creating a 21 square foot opening for material.
Pressure Regulated Clamping Force

Pressure Regulated Clamping Force

Integrated pressure regulator provides the ability to adjust clamping force, minimizing the potential to damage material being carried.

Pressure Regulated Clamping Force

Integrated pressure regulator provides the ability to adjust clamping force, minimizing the potential to damage material being carried.
Short Tines

Short Tines

Specifically designed to slide under log piles and roll them into the grapple. Short tines allow for precise control when loading the grapple with logs.

Short Tines

Specifically designed to slide under log piles and roll them into the grapple. Short tines allow for precise control when loading the grapple with logs.
Replaceable Wear Strips

Replaceable Wear Strips

Bolt-on wear strips on the underside of the grapple are easily replaced at regular service intervals avoiding additional welding.

Replaceable Wear Strips

Bolt-on wear strips on the underside of the grapple are easily replaced at regular service intervals avoiding additional welding.
User-Configurable

User-Configurable

Various available fork tips allow the Sorting Grapple to be configured to machine and operation.

User-Configurable

Various available fork tips allow the Sorting Grapple to be configured to machine and operation.

Specifications

  • General
    Spec Value
    Width 71.3 in
    Tine Length 50 in
    Grapple Area 20.6 ft²
    Grapple Height 102.6 in
    Grapple Weight 3860.3 lb
    Interface Type Fusion™ Coupler
    Operating Weight 33170.7 lb
