Caterpillar

1524 mm (60 in) Pipe & Pole Forks

Cat® Pipe & Pole Forks are designed and built for use in oil and gas field drilling, pipe line construction and above-ground utilities work.

Photos

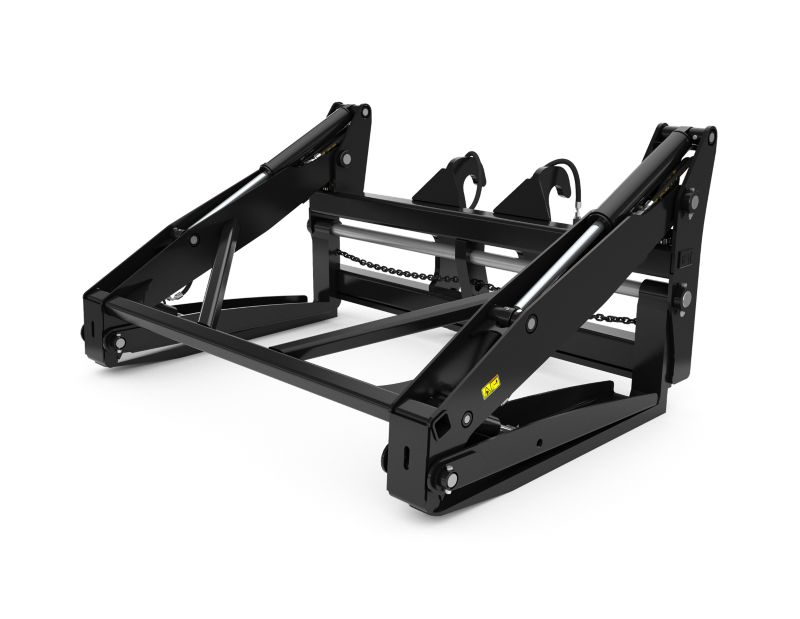

  • Studio Shot
    Studio Shot

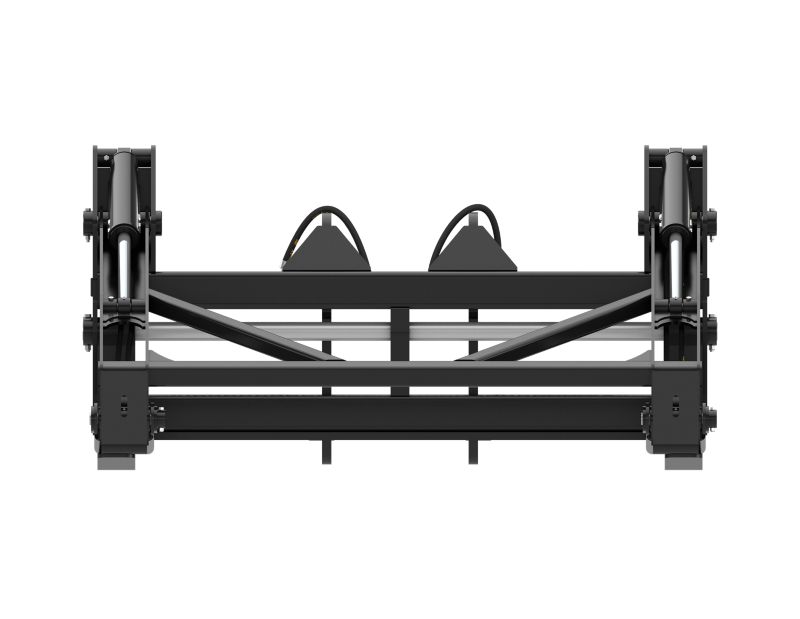

  • Front View
    Front View

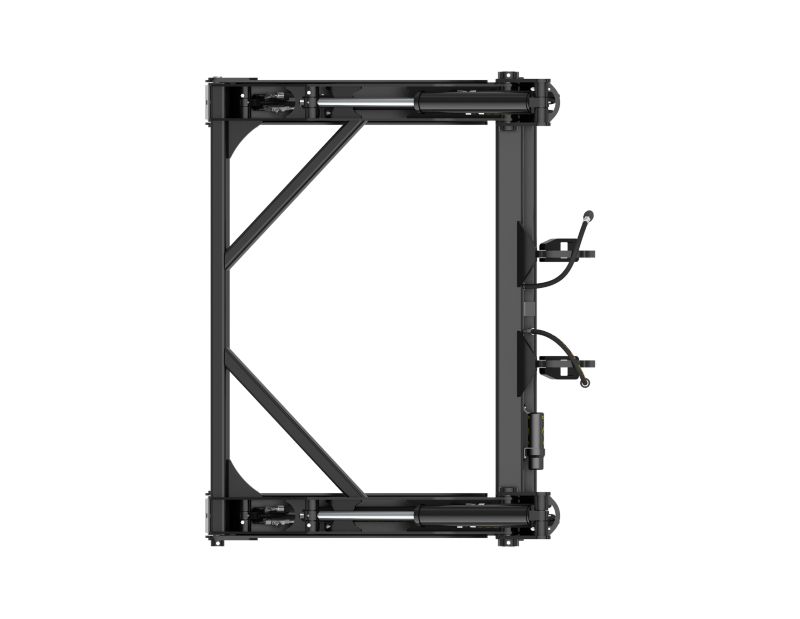

  • Top View
    Top View

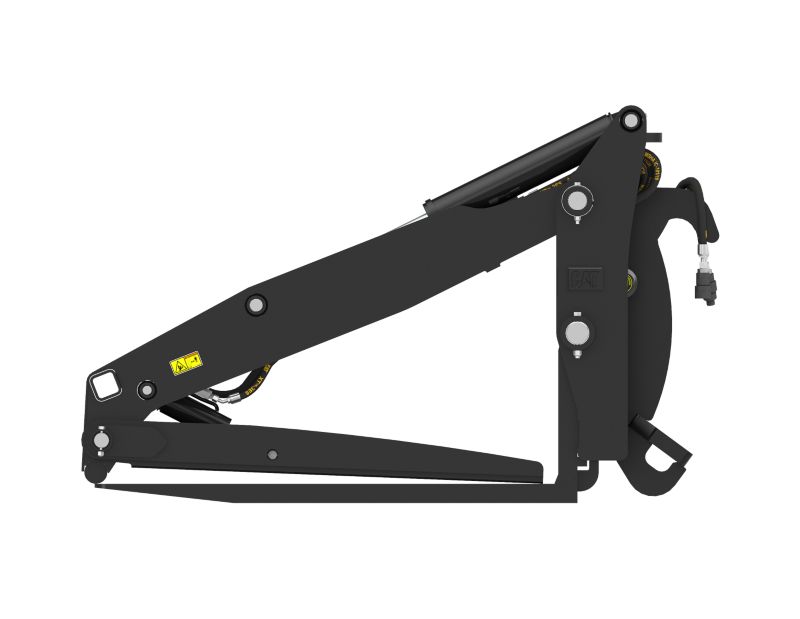

  • Left View
    Left View

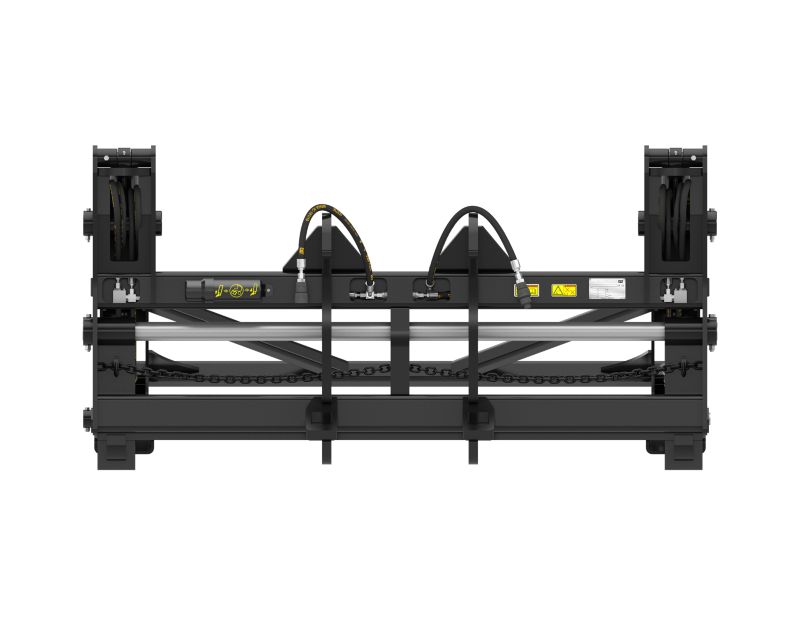

  • Rear View
    Rear View

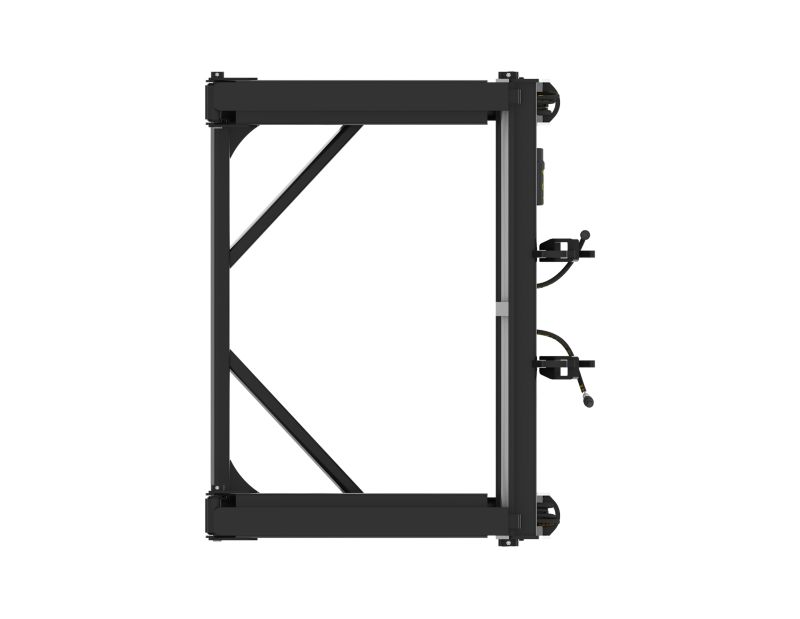

  • Bottom View
    Bottom View

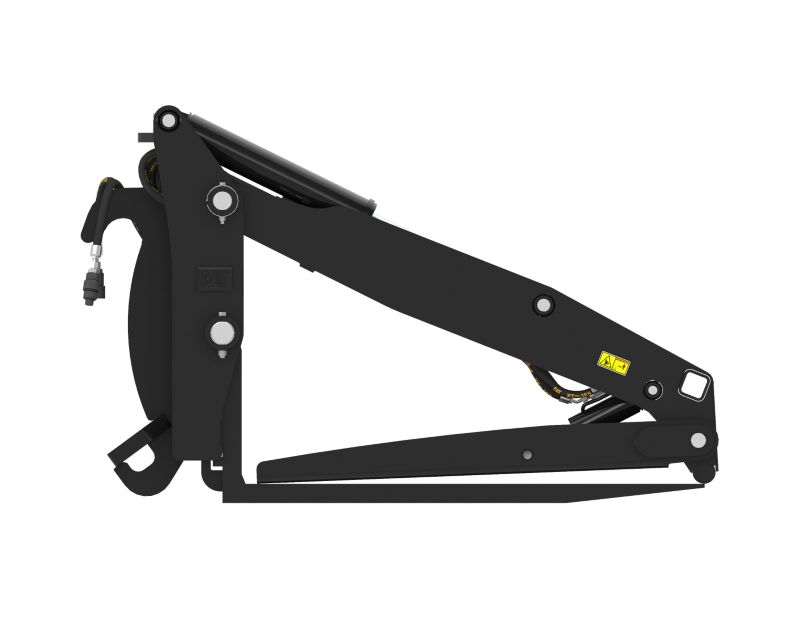

  • Right View
    Right View

Videos

  • An Attachment for Every Job - Cat® Work Tool Attachments

360° View

Exterior

Model shown represents features on all Cat® Pipe & Pole Forks except where indicated.

Features

Application

Application

Developed with a robust structure, Cat® Pipe & Pole Forks allow for high performance carrying of 76 mm (3 in) pipe up to 762 mm (30 in), all while using the same tool.

Application

Developed with a robust structure, Cat® Pipe & Pole Forks allow for high performance carrying of 76 mm (3 in) pipe up to 762 mm (30 in), all while using the same tool.
Robust and Versatile Structure

Robust and Versatile Structure

  • Robust carriage and top clamp ensure high levels of production
  • Wide two-piece clamp holds pipe in place against tines and carriage
  • Clamp can be positioned for desirable diameter of materials
  • Single stems or multiple pieces, at the same diameter, can be transported at the same time, increasing productivity

Robust and Versatile Structure

  • Robust carriage and top clamp ensure high levels of production
  • Wide two-piece clamp holds pipe in place against tines and carriage
  • Clamp can be positioned for desirable diameter of materials
  • Single stems or multiple pieces, at the same diameter, can be transported at the same time, increasing productivity

Adjustable Tines

Adjustable Tines

  • Tines width can be adjusted to better fit at application requirements
  • No tools required for adjustment

Adjustable Tines

  • Tines width can be adjusted to better fit at application requirements
  • No tools required for adjustment
Protected Hydraulic Cylinders

Protected Hydraulic Cylinders

The top clamp design allows the hydraulic cylinders to stay protected, avoiding undesirable damages at the cylinder and unexpected down time.

Protected Hydraulic Cylinders

The top clamp design allows the hydraulic cylinders to stay protected, avoiding undesirable damages at the cylinder and unexpected down time.

Pallets and other Materials

Pallets and other Materials

If palletized material transport is required, just totally open the clamp and use the carriage as a fork.

Pallets and other Materials

If palletized material transport is required, just totally open the clamp and use the carriage as a fork.

Specifications

  • General
    Spec Value
    Width 100.7 in
    Tine Length 60 in
    Weight 3505.3 lb
    Interface Type Fusion™ Coupler
    Required Hydraulics 3rd Function
    Carriage Height - Closed Clamp 52 in
    Carriage Height - Open Clamp 112.3 in
    Tine Spacing - Maximum Width 96 in
    Tine Width 6 in
    Tine Thickness 2.5 in
    Load Capacity 5158.8 lb
