Cat

2.5 m3 (3.3 yd3) Fusion™ Coupler General Purpose Bucket - Performance Series With Bolt-On Cutting Edge

General Purpose Performance Series buckets provides higher fill factors and material retention in load and carry applications, as well as grading, leveling and dumping in a wide variety of applications and materials.

Photos

  • Studio Shot

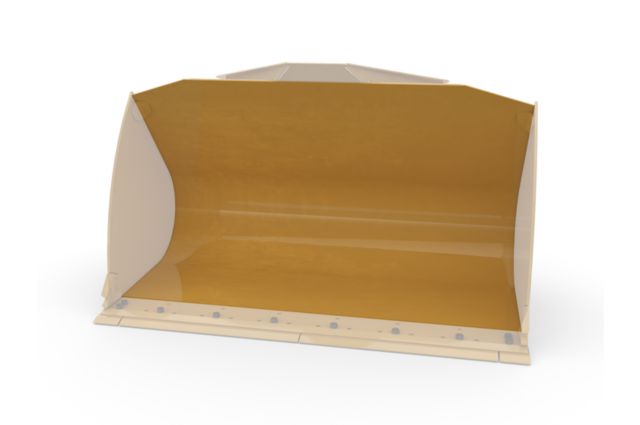

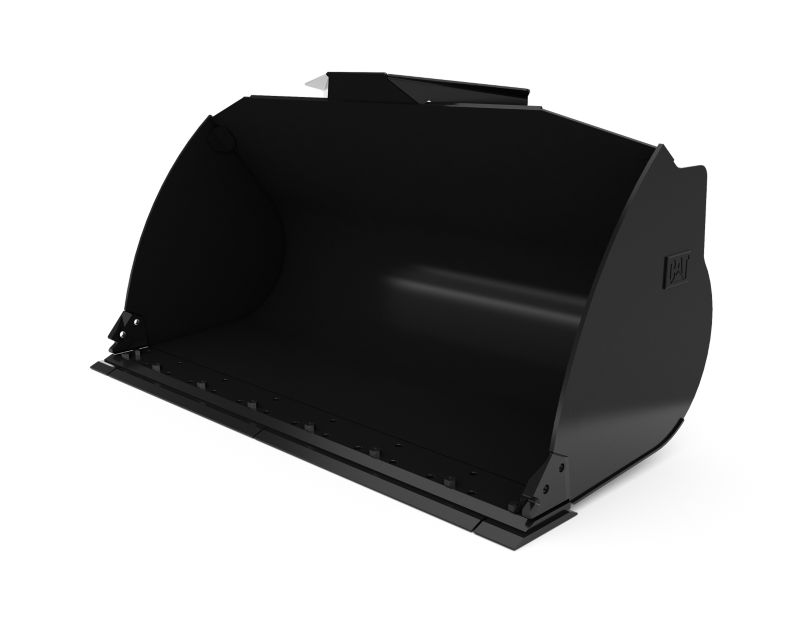

    Studio Shot
  • Front View

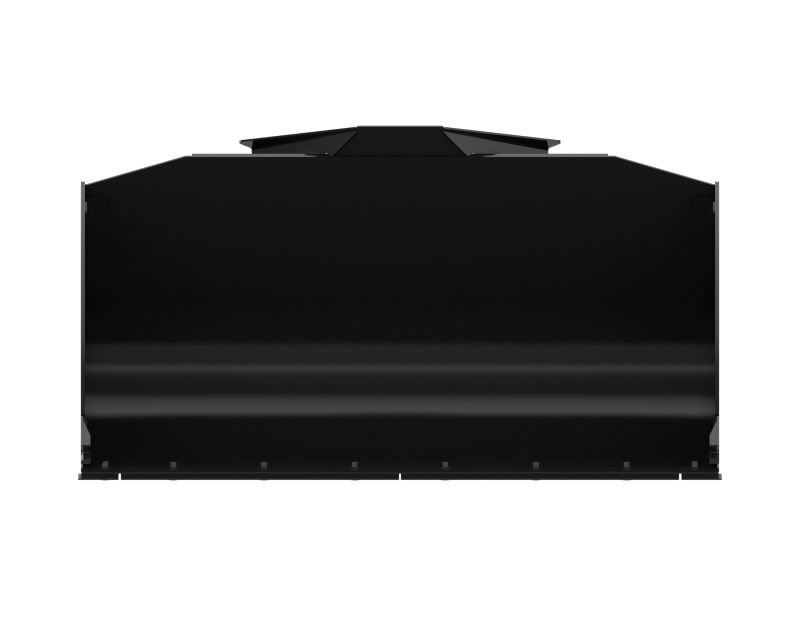

    Front View
  • Top View

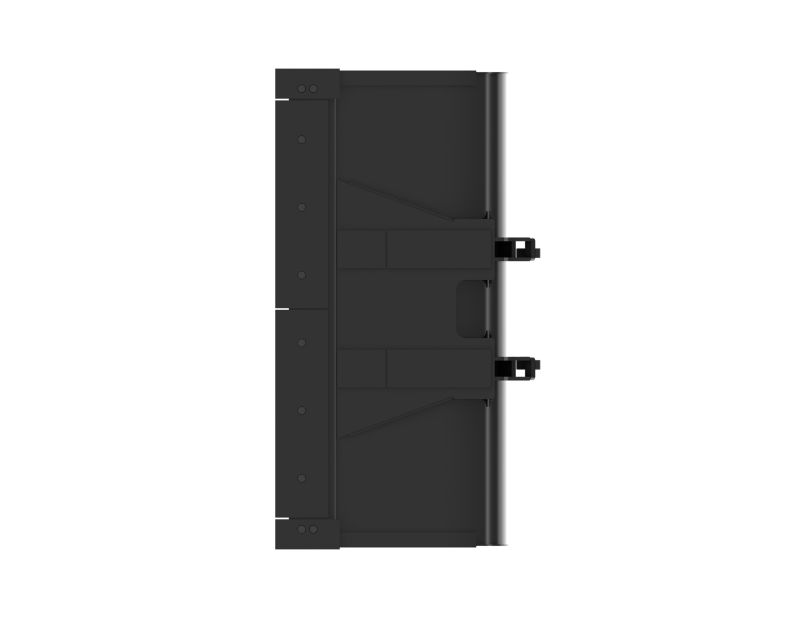

    Top View

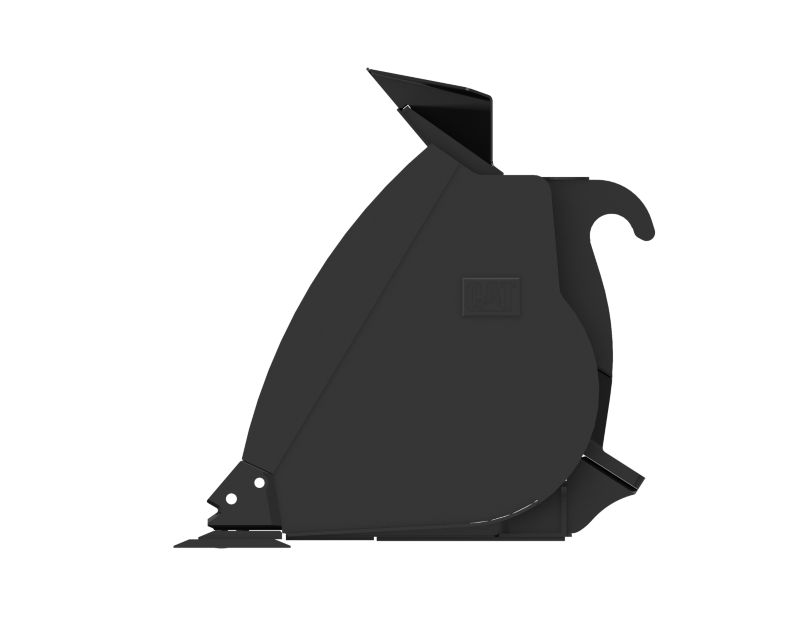

  • Left View

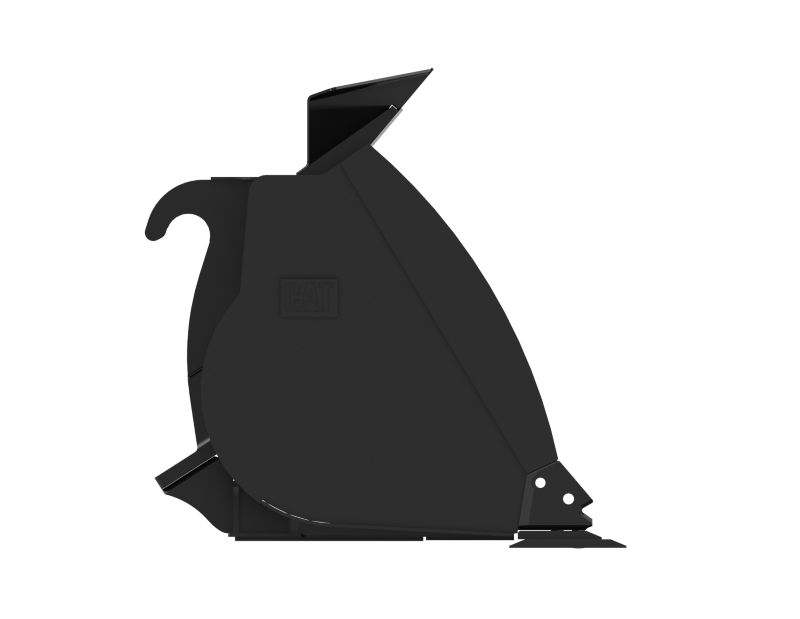

    Left View
  • Rear View

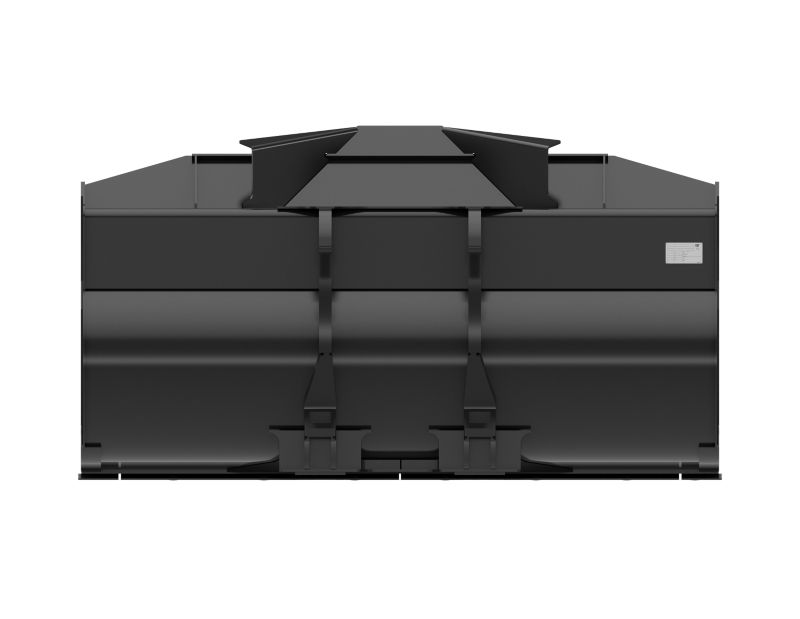

    Rear View
  • Bottom View

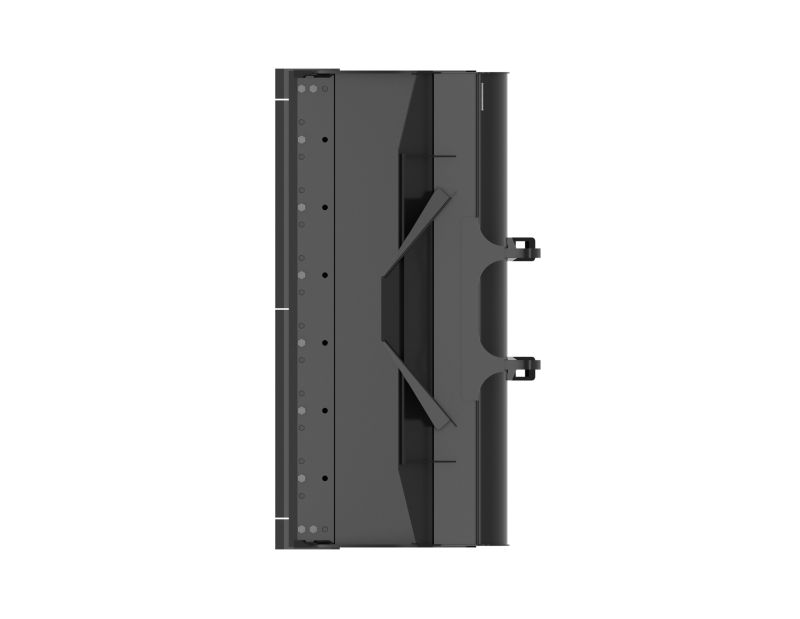

    Bottom View
  • Right View
    Right View

Videos

  • An Attachment for Every Job - Cat® Work Tool Attachments

Features

Application

Application

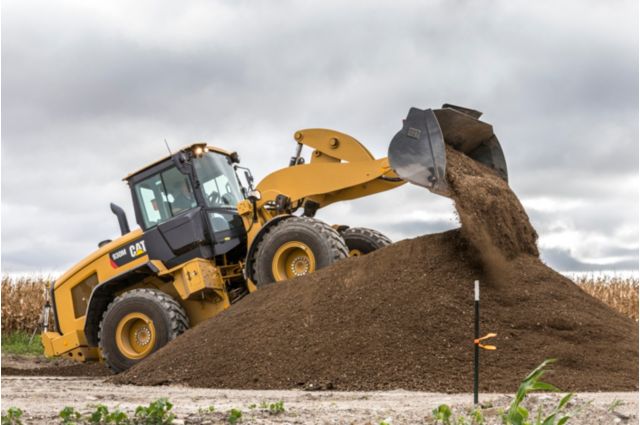

General Purpose Performance Series Buckets provide good all-around performance for stockpiling, re-handling, excavating, and bank loading. As the name suggests, these buckets work well in loading from stockpiles as well as bank loading. They are designed for standard breakout forces and abrasion conditions. Ideal for back dragging and grading applications. The fill factor for Performance Series buckets can be up to 115% on top of the specified capacity.

Application

General Purpose Performance Series Buckets provide good all-around performance for stockpiling, re-handling, excavating, and bank loading. As the name suggests, these buckets work well in loading from stockpiles as well as bank loading. They are designed for standard breakout forces and abrasion conditions. Ideal for back dragging and grading applications. The fill factor for Performance Series buckets can be up to 115% on top of the specified capacity.
Integrated Spill Guard

Integrated Spill Guard

Integrated Spill Guard provides protection of machine linkage and improved load retention by preventing material spillage.

Integrated Spill Guard

Integrated Spill Guard provides protection of machine linkage and improved load retention by preventing material spillage.
Rounded Sidebars

Rounded Sidebars

Rounded sidebars help funnel material into the bucket and retain it.

Rounded Sidebars

Rounded sidebars help funnel material into the bucket and retain it.
Performance Series Profile

Performance Series Profile

Performance Series profile for easy loading and maximum carry load.

Performance Series Profile

Performance Series profile for easy loading and maximum carry load.
Open Throat Design

Open Throat Design

Open throat design improves heap size and fill factor.

Open Throat Design

Open throat design improves heap size and fill factor.

Specifications

  • General
    Spec Value
    Width 100.4 in
    Height 55.3 in
    Weight 2410.9 lb
    Length 54.3 in
    Capacity 3.3 yd³
    Base Edge Thickness 1 in
    Cutting Edge Thickness 1 in
    Interface Type Fusion™ Coupler
