Used in ditch cleaning, sloping, grading and other finishing work.
Cat
1372 mm (54 in), 375 L (13.2 ft3) Pin On Ditch Cleaning Bucket
Photos
-

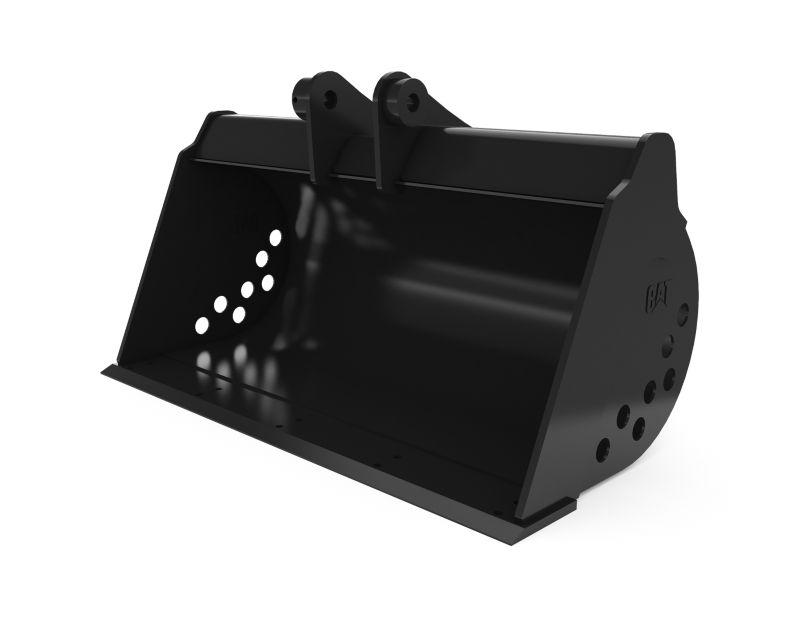

Studio Shot -

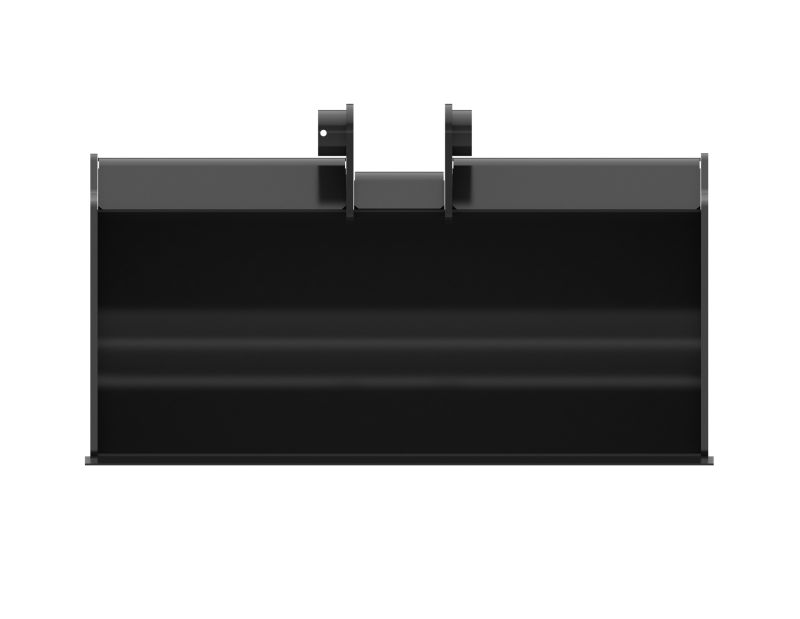

Front View -

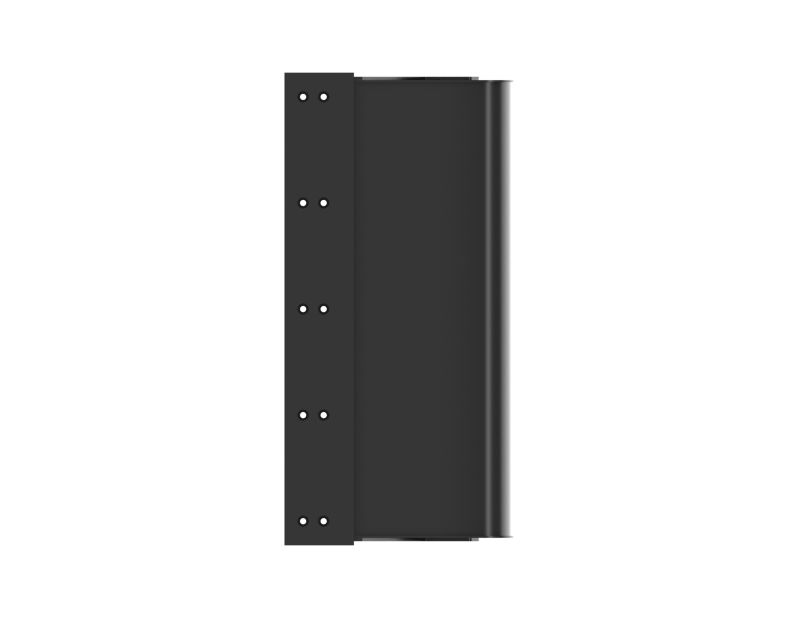

Top View -

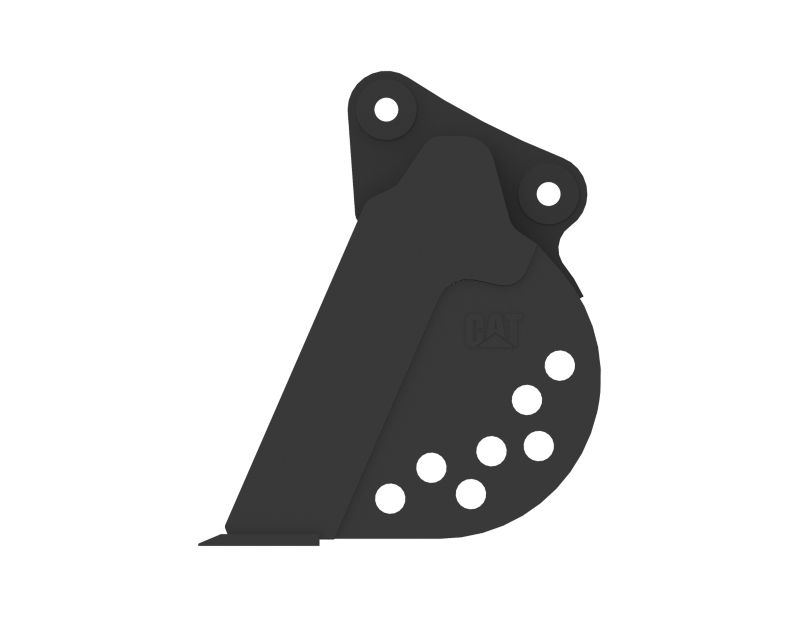

Left View -

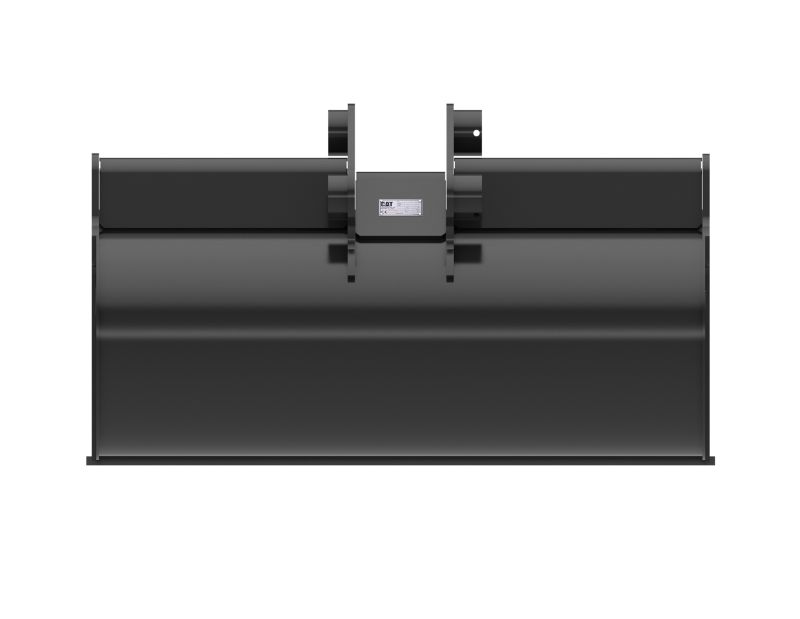

Rear View -

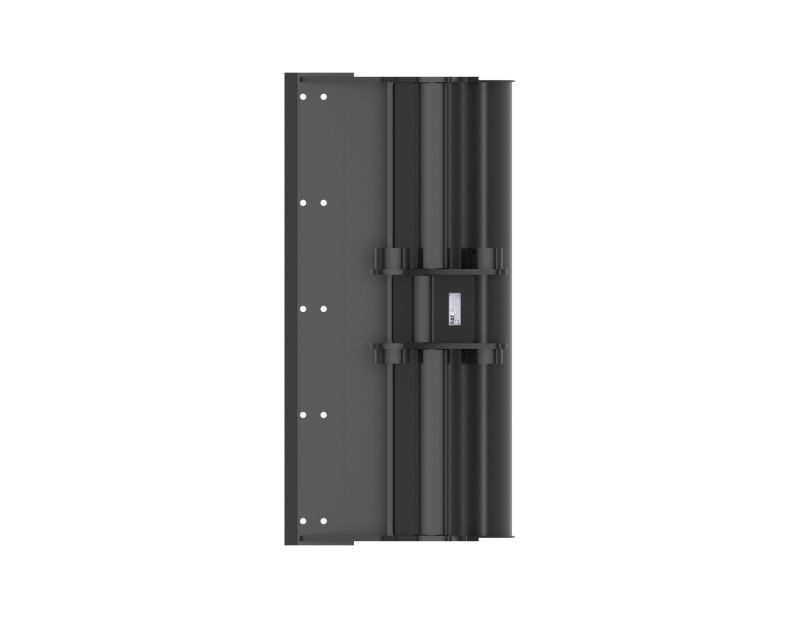

Bottom View -

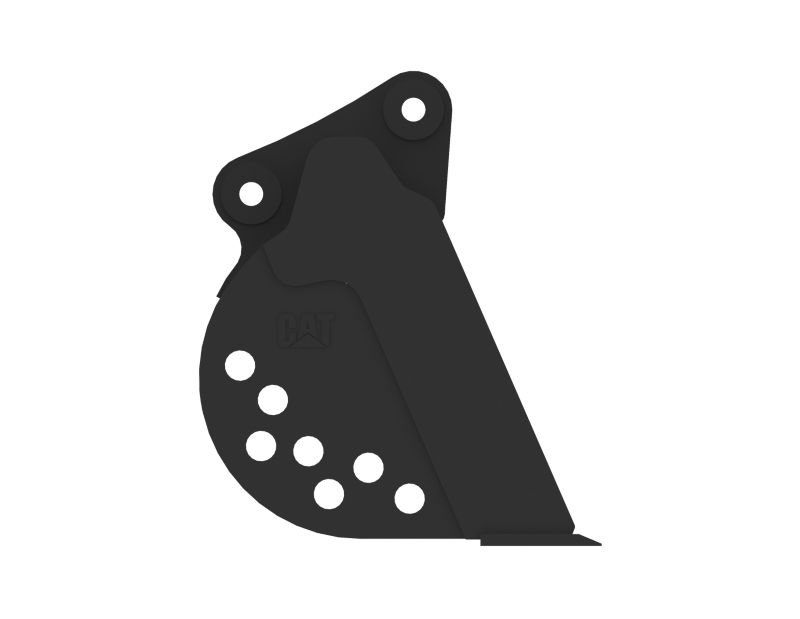

Right View
Videos
Features
Application
Versatile bucket for applications such as cleaning wide trenches, loading materials, grading, dressing slopes and more.
Application
Versatile bucket for applications such as cleaning wide trenches, loading materials, grading, dressing slopes and more.
Bucket Design
Formed back wrapper design enhances bucket loading and production.
Bucket Design
Formed back wrapper design enhances bucket loading and production.
Superior Bucket Fill
Optimum wrapper angle and no sharp corners promote superior bucket fill and reduce material packing.
Superior Bucket Fill
Optimum wrapper angle and no sharp corners promote superior bucket fill and reduce material packing.
Bucket Shape
Enhanced bucket shape allows material to flow more easily. Tapered bucket sidewalls allow for easy dumping of sticky material.
Bucket Shape
Enhanced bucket shape allows material to flow more easily. Tapered bucket sidewalls allow for easy dumping of sticky material.
Specifications
-
General
Spec Value Width 54 in Weight 517 lb Tip Radius 31.3 in Capacity 13.2 ft³ Base Edge Thickness 0.8 in Interface Type Pin On
