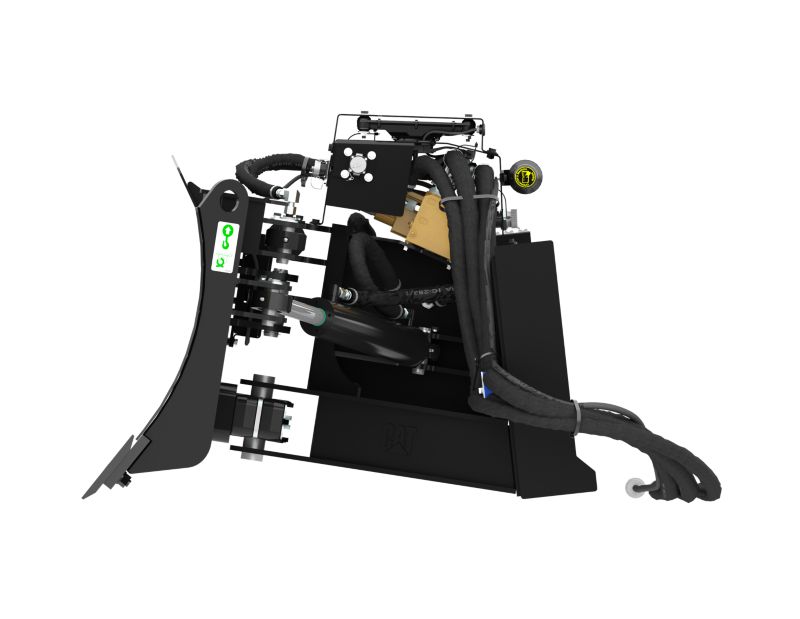

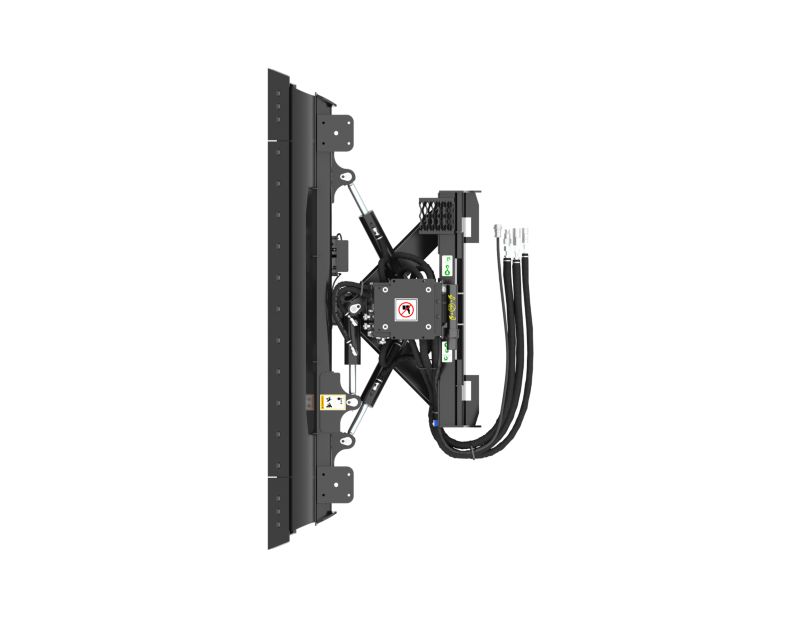

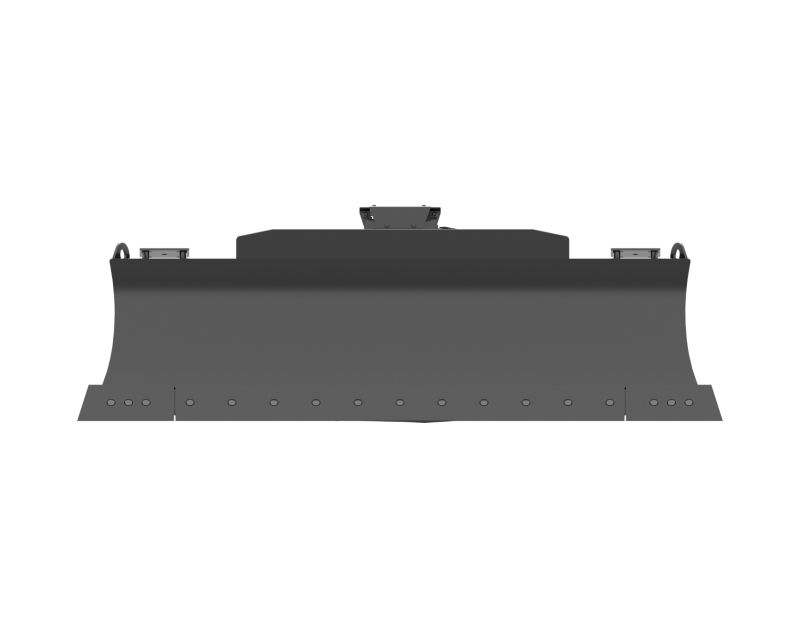

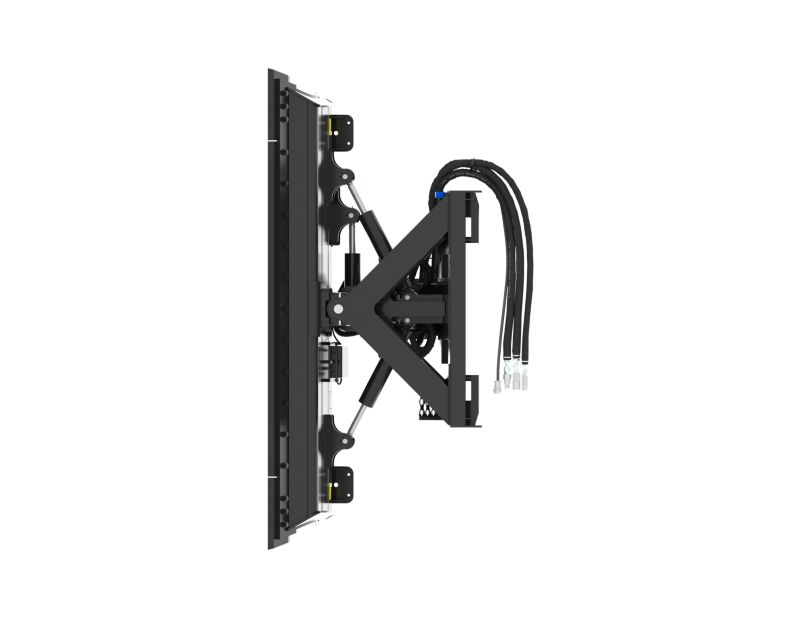

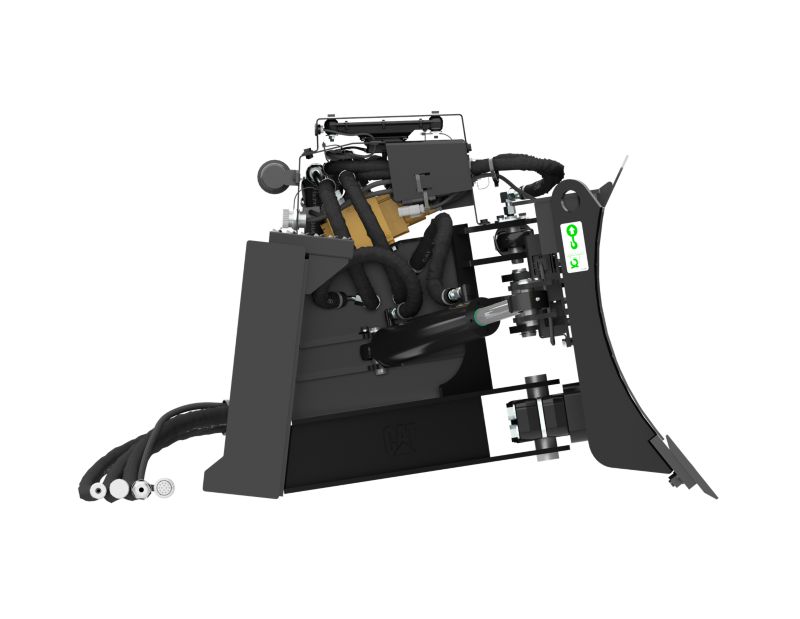

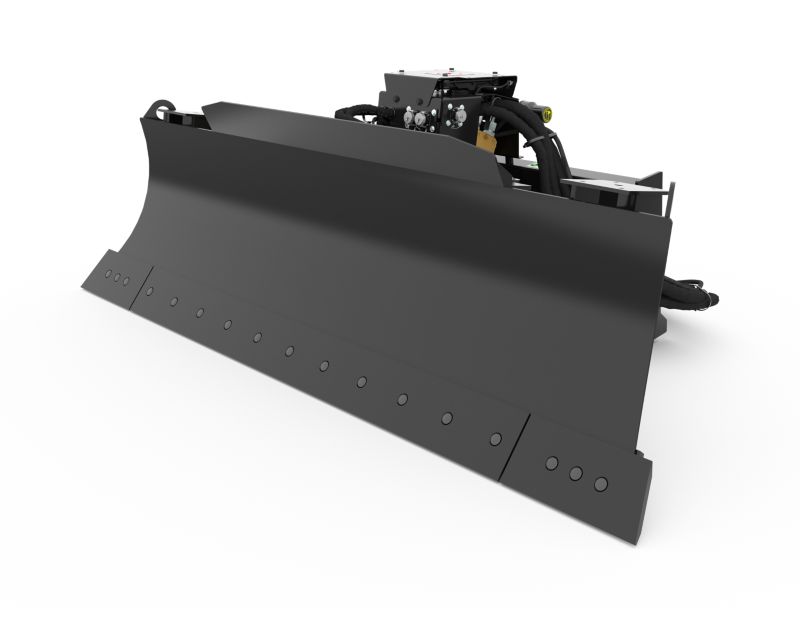

2337 mm (92 in) Dozer Blade with Smart Technology

Designed for rough and finish grading in dirt, gravel, and light dozing.

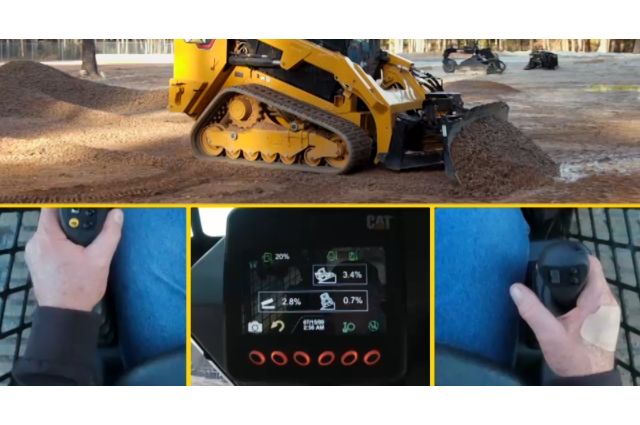

  • Cat® Smart Dozer Blade at Work
  • Cat® Smart Dozer Blade Operator Tips
  • Cat® Smart Dozer Blade with Assist
  • An Attachment for Every Job - Cat® Work Tool Attachments

360° View


Features shown represent all Cat® Dozer Blades except where indicated.



  • General
    Spec Value
    Blade Width 92 in
    Width - Fully Angled 80.7 in
    Maximum Blade Angle - Right/Left of Center 30 degrees
    Tilt Angle Range +/- 10 degrees
    Blade Height 24.4 in
    Overall Height 30.9 in
    Length 40.5 in
    Weight 1164 lb
    Cutting Edge Thickness 0.6 in
    Required Hydraulics High Flow XPS
    Optimal Hydraulic Flow 42-86 L/min (11-23 gpm)
    Optimal Hydraulic Pressure 145-235 bar (2100-3400 psi)
    Interface Type Skid Steer Coupler
