Cat® Augers are used to drill holes for footings, fencing, sign posts, trees and shrubs in construction, agricultural and landscaping applications.
Cat
A23 Auger
Photos
Videos
360° View
Exterior

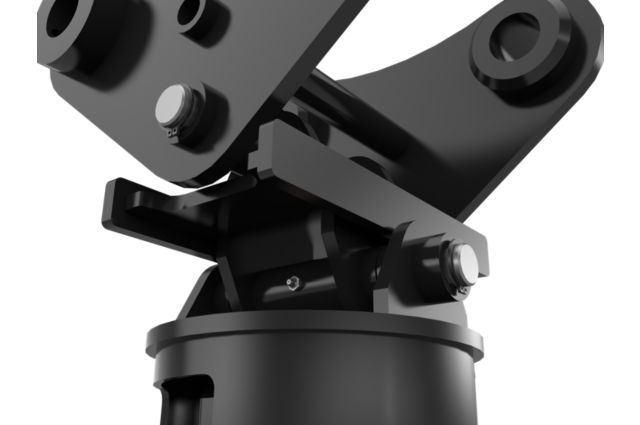

Model shown represents features on all Cat® Augers except where indicated.
Documents
Features
Specifications
-
General
Spec Value Drive Shaft Torque at Maximum Pressure 1699.3 lb/ft Drive Method Gerotor Motor - Direct Drive Mounting Bracket Design 2 Ton Mini Excavator Pin On Required Hydraulics Standard Flow Optimal Hydraulic Flow 42-83 L/min (11-22 gpm) Optimal Hydraulic Pressure 145-235 bar (2100-3400 psi) Overall Width - With Bracket 11.1 in Overall Length - With Bracket 11.1 in Overall Height 37.3 in Housing Diameter 11 in Swing Range (fore/aft) 70 degrees Swing Range (L/R) 76 degrees Weight 257.9 lb Motor Displacement 38 in³ Bit Speed at Maximum Flow 127 rpm Hex Output Shaft Size 2 in
