Caterpillar

A23

Cat® Augers are used to drill holes for footings, fencing, sign posts, trees and shrubs in construction, agricultural and landscaping applications.

Photos

Videos

  • Cat® Auger Attachment at Work
  • Cat® Auger Attachment Overview
  • An Attachment for Every Job - Cat® Work Tool Attachments

360° View

Exterior

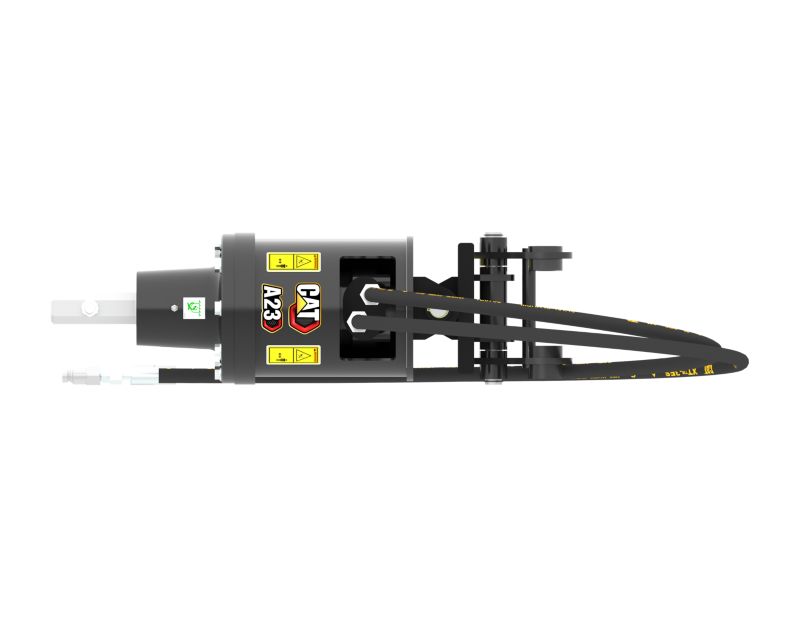

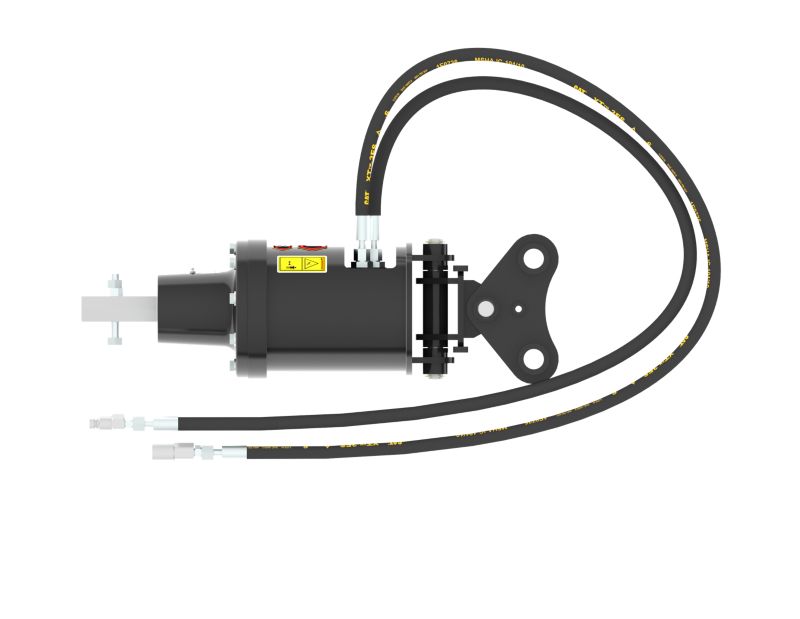

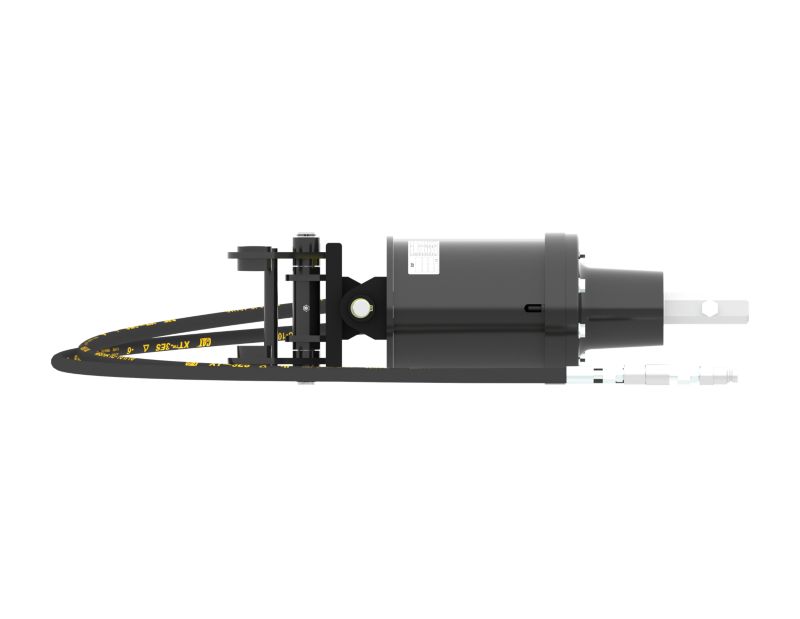

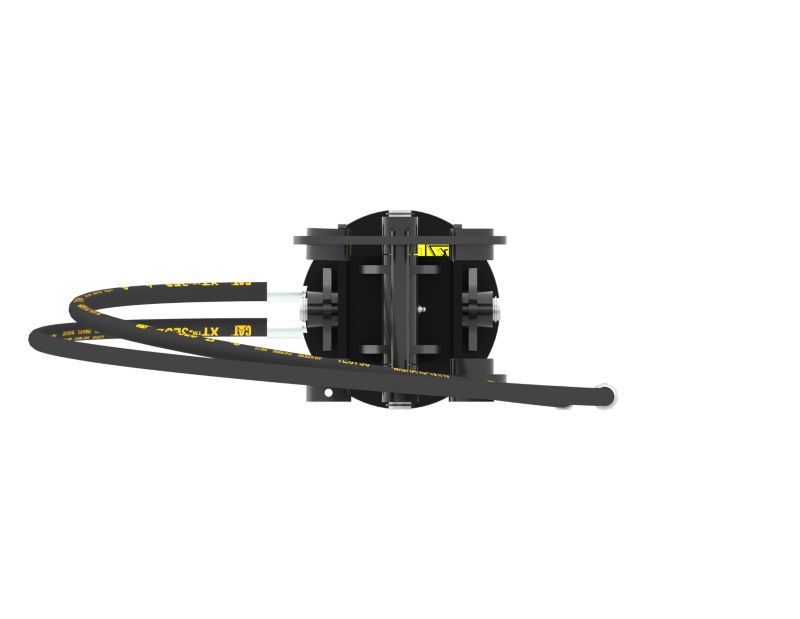

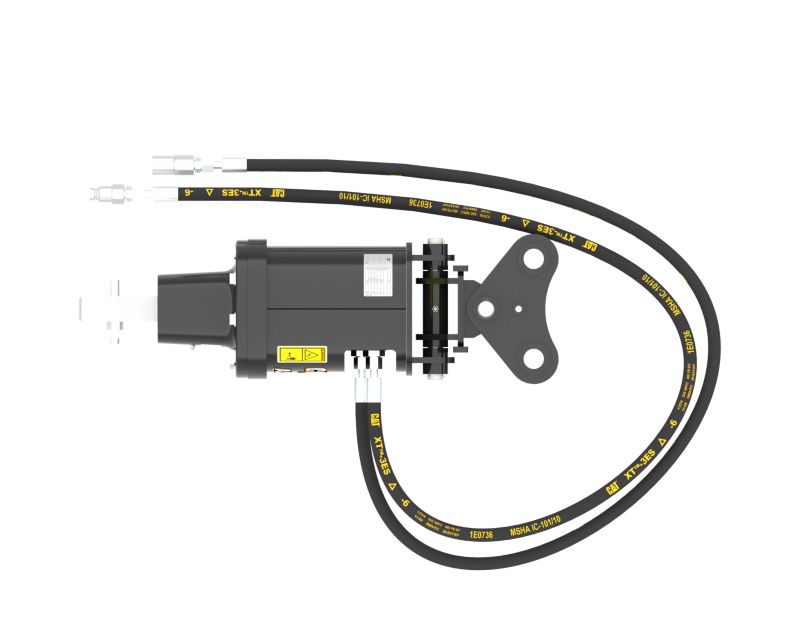

Model shown represents features on all Cat® Augers except where indicated.

Features

Specifications

  • General
    Spec Value
    Drive Shaft Torque at Maximum Pressure 1699.3 lb/ft
    Drive Method Gerotor Motor - Direct Drive
    Mounting Bracket Design 3 Ton Mini Excavator Pin On
    Required Hydraulics Standard Flow
    Optimal Hydraulic Flow 42-83 L/min (11-22 gpm)
    Optimal Hydraulic Pressure 145-235 bar (2100-3400 psi)
    Overall Width - With Bracket 11.8 in
    Overall Length - With Bracket 11.1 in
    Overall Height 37.7 in
    Housing Diameter 11 in
    Swing Range (fore/aft) 70 degrees
    Swing Range (L/R) 76 degrees
    Weight 264.6 lb
    Motor Displacement 39 in³
    Bit Speed at Maximum Flow 127 rpm
    Hex Output Shaft Size 2 in
